TM070RBH10-41
Product name:

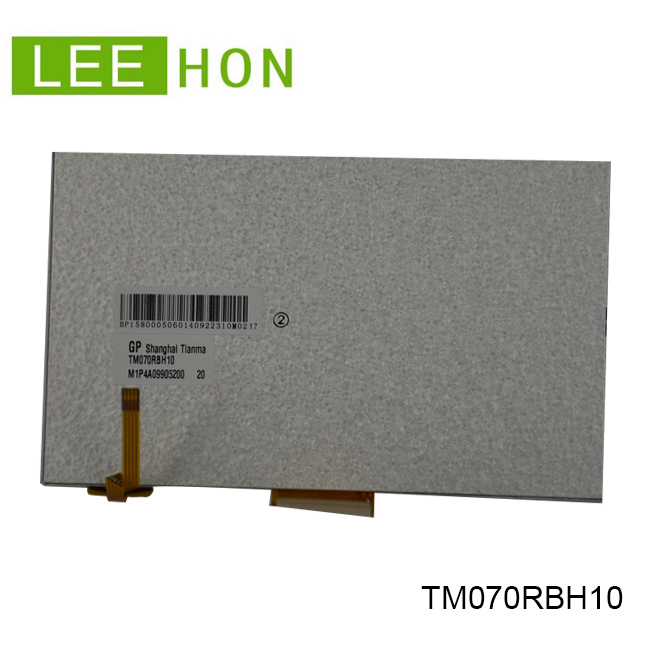

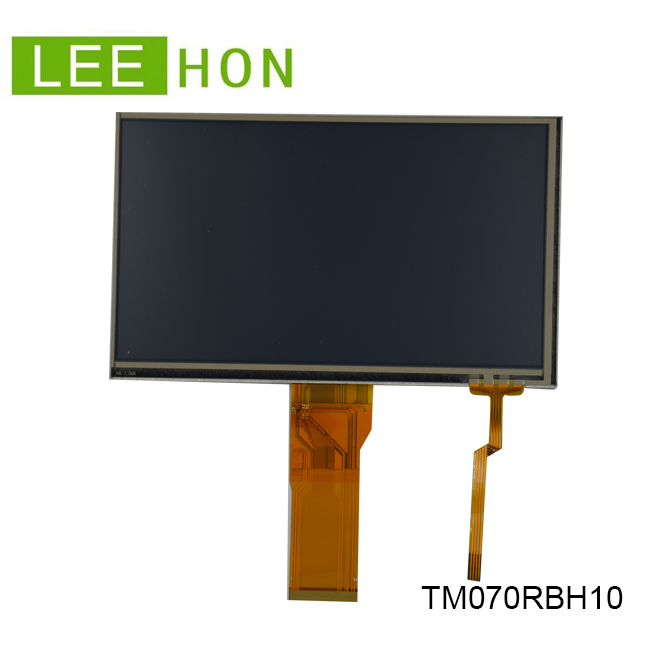

TIANMA 7 inch 800×480 TM070RBH10-41
Product overviews:
TIANMA 7 inch tft lcd panelTM070RBH10-41 with 800(RGB) x 480 resolution , brightness 350 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +80 (°C). Based on its white LED backlight.This model is recommended for industrial use.Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board.
Supply Status:
Steady supply.
| Brand: | TIANMA |
| Model P/N: | TM070RBH10-41 |
| Diagonal Size: | 7 inch |
| Pixels: | 800×480 |
| Pixel Pitch(mm): | 0.1926 (H) x 0.179(V) mm |
| Interface Type: | RGB |
| Luminance: | 350 cd/m² |
| Viewing Angle: | Typ.：60/80/80/80 |
| Active Area(mm): | 154.08 (W) x 85.92 (H) mm |
| Physical Size(mm): | 164.9x 100 x 6.8 (W x H x D) (mm) |
| Contrast Ratio: | Typ.：1000:1;Min：800:1 |
| Response Time: | Typ.25 |
| Work Mode: | TM,NW |
| Surface Treatment: | Anti Glare |
| Color Depth: | 16.7M |
| Backlight: | WLED , 20K hours , with LED Driver |
| Input Voltage: | 5.0 V |
| Storage Temp: | -30 ~ +80 (°C) |
| Operating Temp: | -20 ~ +70 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 195.09 g |
| Package: | Max capacity:8 TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
