Product model: TM057QDH01
Product name:

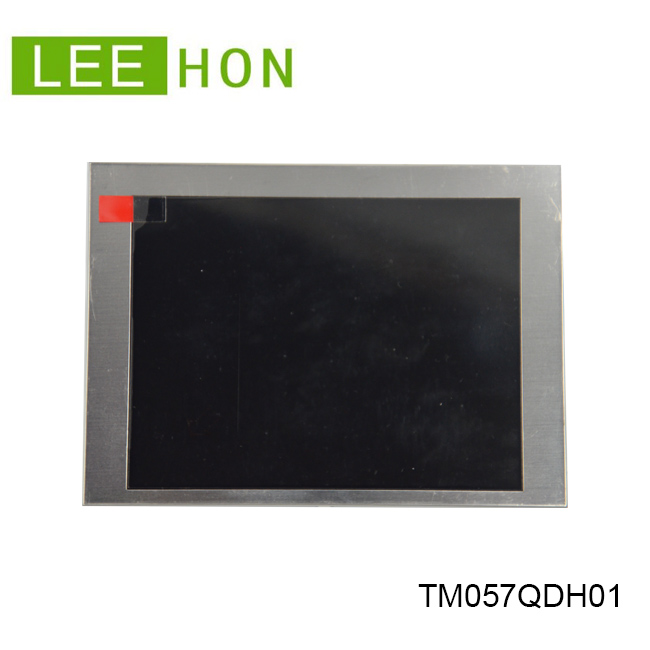

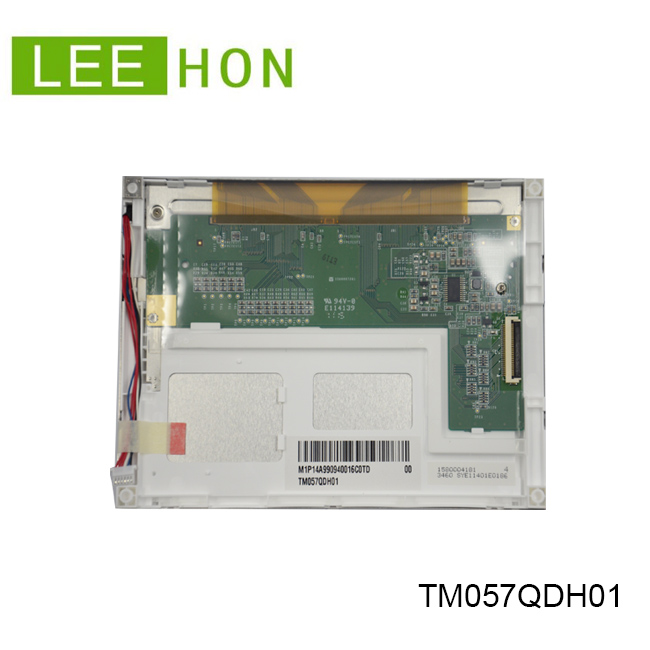

TIANMA 5.7 inch 640(RGB) x 480 TM057QDH01
Product overviews:
TM057QDH01 is a 5.7-inch a-Si TFT-LCD LCD module product launched by TIANMA. It is equipped with WLED backlight, no backlight driver, and no touch. This product operates at a temperature of -20~70 ° C and is stored at a temperature of -30~85 ° C.
Supply Status:
Steady supply.
| Brand: | TIANMA |
| Model P/N: | TM057QDH01 |
| Diagonal Size: | 5.7 inch |
| Pixels: | 640(RGB) x 480 |
| Pixel Pitch(mm): | 0.180x0.180 mm |
| Interface Type: | terminal |
| Luminance: | Typ. 400 nit；Min 320nit |
| Viewing Angle: | Typ.：60/70/70/70 |
| Active Area(mm): | 115.20x86.40 mm |
| Physical Size(mm): | 144.00x104.60x12.30 (W x H x D) (mm) |
| Contrast Ratio: | Typ.：500:1;Min：400:1 |
| Response Time: | Typ.20;Max 30 |
| Work Mode: | TM with Normally White |
| Surface Treatment: | Anti-Glare(3H) |
| Color Depth: | 262K |
| Backlight: | WLED , 50K hours , with LED Driver |
| Input Voltage: | 3.3 V |
| Storage Temp: | -30 ~ +85 (°C) |
| Operating Temp: | -20 ~ +70 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 165g |
| Package: | Max. capacity: 40 pieces TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
How to obtain the specification sheet and find your product:
Visit our official website, navigate to the "Technical Support" section of the page "Product Details Page", or search for the product for which you need specifications by product model or name, and then visit the product details page, fill in your email, send your email address to the backend, and wait for us to send you an email.
Click to enter Search
Contact technical support:
Email: info@leehon.com(please explain your purpose of visit)Tel: 0086-15906639973
We are committed to providing you with the information and resources you need to successfully carry out your product development and design efforts. Thank you for your trust in our products.
