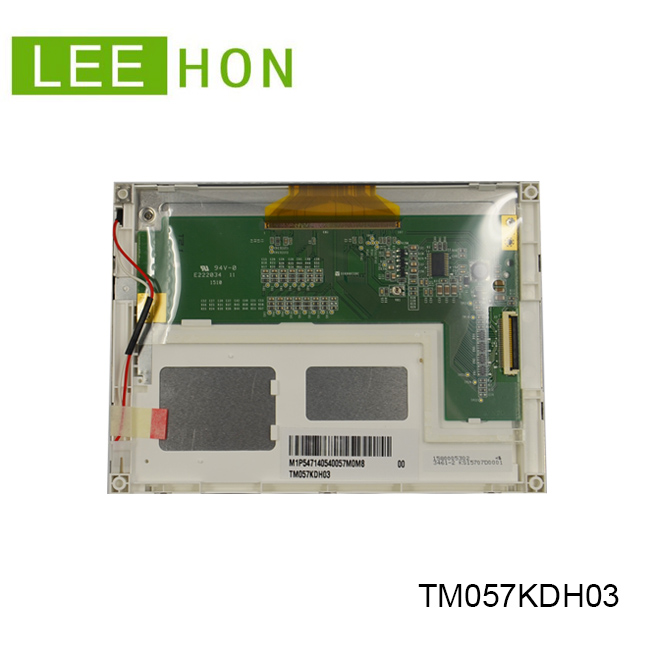

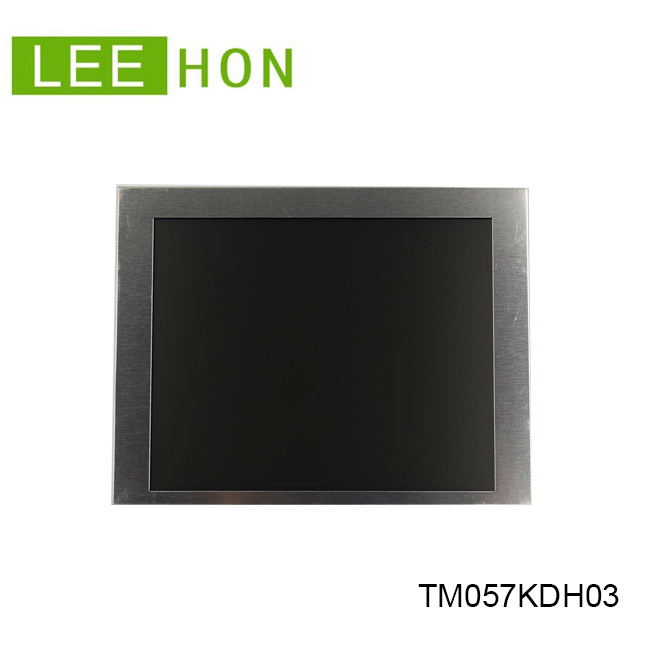

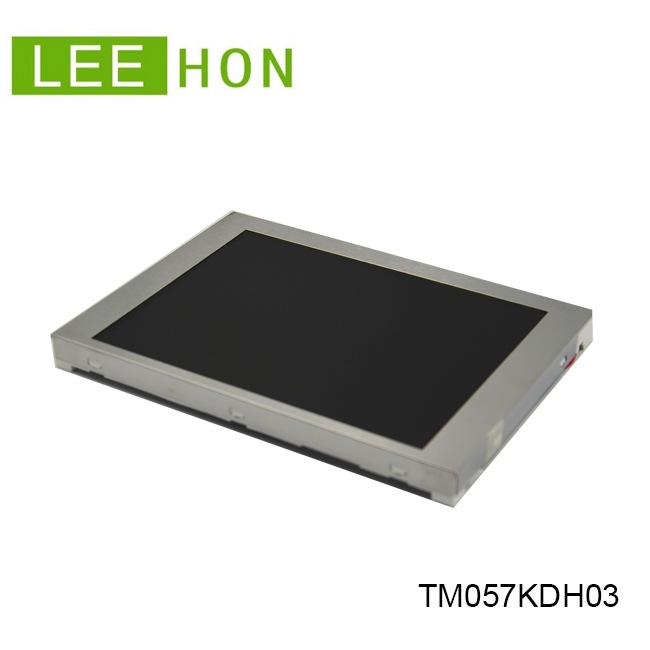

Product model: TM057KDH03
Product name:
TIANMA 057inch 320(RGB) x 240 TM057KDH03
Product overviews:
TM057KDH03 is a 5.7-inch a-Si TFT-LCD liquid crystal module product launched by TIANMA. It is equipped with WLED backlight, no backlight driver, and no touch. This product operates at a temperature of -20~70 ° C and is stored at a temperature of -30~85 ° C. Its typical features are: white LED backlight, lifespan greater than 50000 hours, display flipped up/down, left/right, and a foggy surface, lamp wire length: 80mm。 Based on its feature screen library, this model is recommended for industrial use.
Supply Status:
Steady supply.
| Brand: | TIANMA |
| Model P/N: | TM057KDH03 |
| Diagonal Size: | 057inch |
| Pixels: | 320(RGB) x 240 |
| Pixel Pitch(mm): | 0.360x0.360 mm |
| Interface Type: | Parallel RGB |
| Luminance: | 320(Min)/400(Typ) cd/m2 |
| Viewing Angle: | 70/60/70/70(typ.) |
| Active Area(mm): | 115.20x86.40 mm |
| Physical Size(mm): | 144.00x104.60x12.30 mm |
| Contrast Ratio: | typ 500:1 min 400:1 |
| Response Time: | 20(typ.)/30(max.) ms |
| Work Mode: | TM with Normally White |
| Surface Treatment: | Anti-Glare(3H) |
| Color Depth: | 262K |
| Backlight: | WLED,50K hours,with LED Driver |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -30 ~ 85 °C |
| Operating Temp: | -20 ~ 70 °C |
| Touchscreen: | without |
| Net Weight: | 160 g |
| Package: | Package Quantity in one Box: 40pcs |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
