Product model:
More parameters
AT070TN94
Product name:

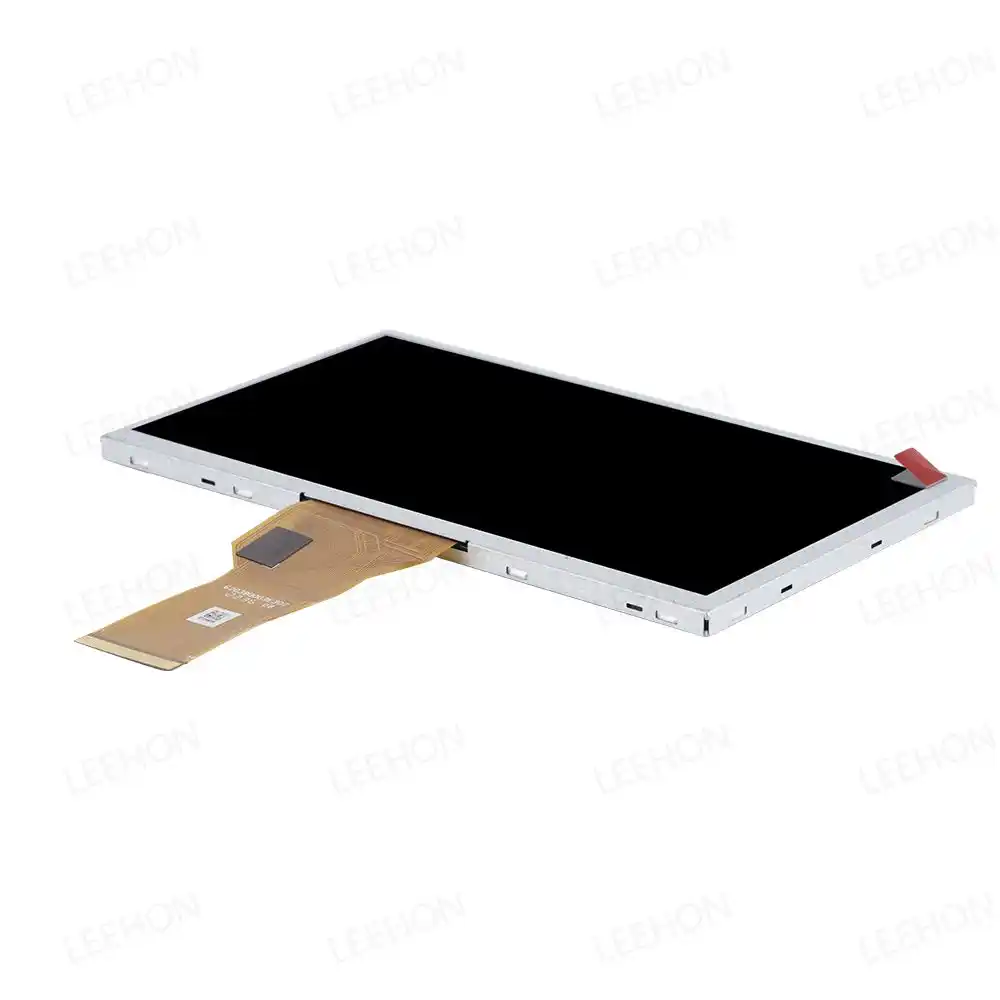

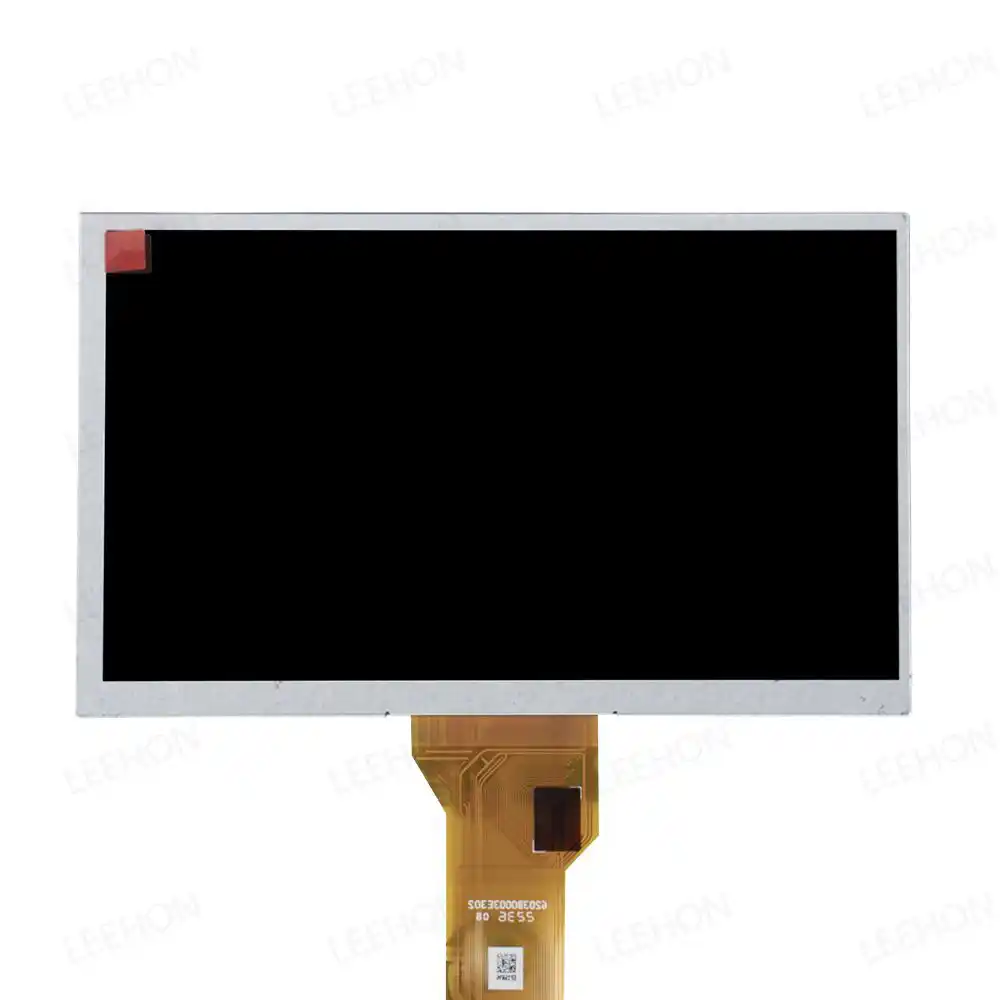

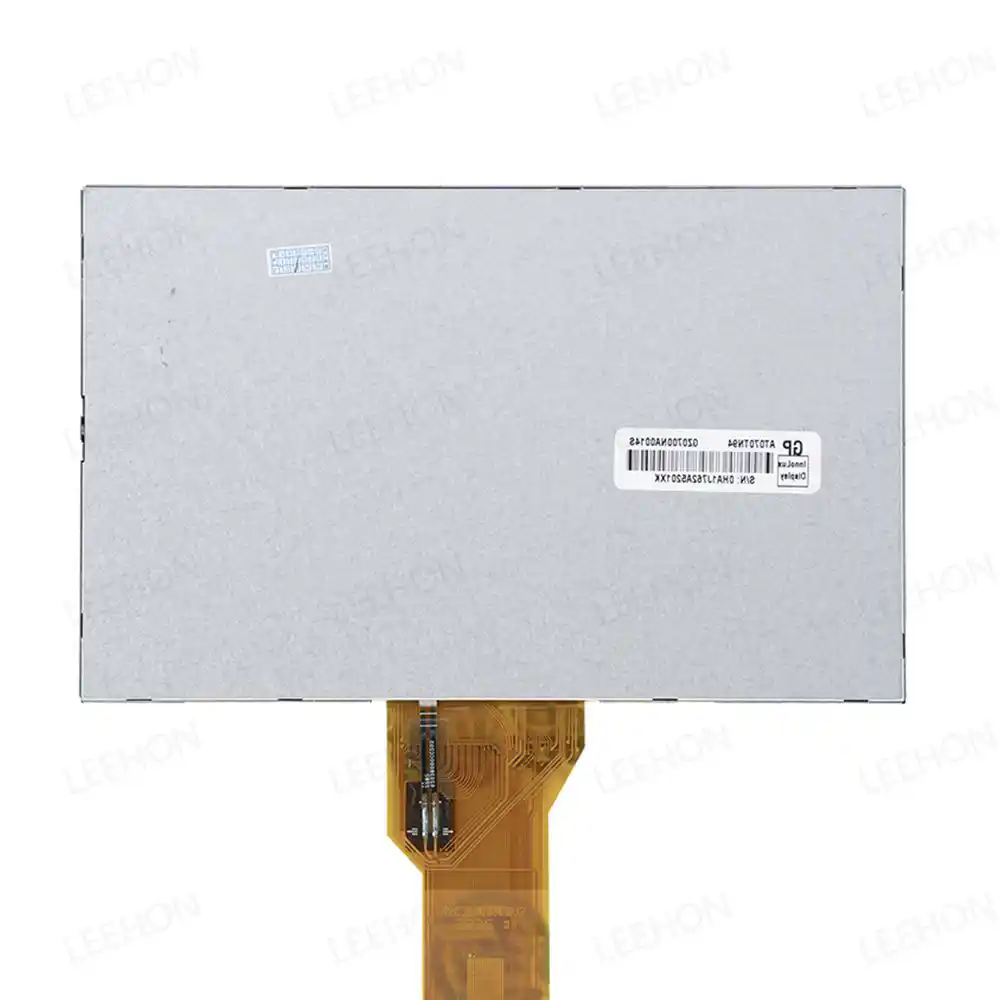

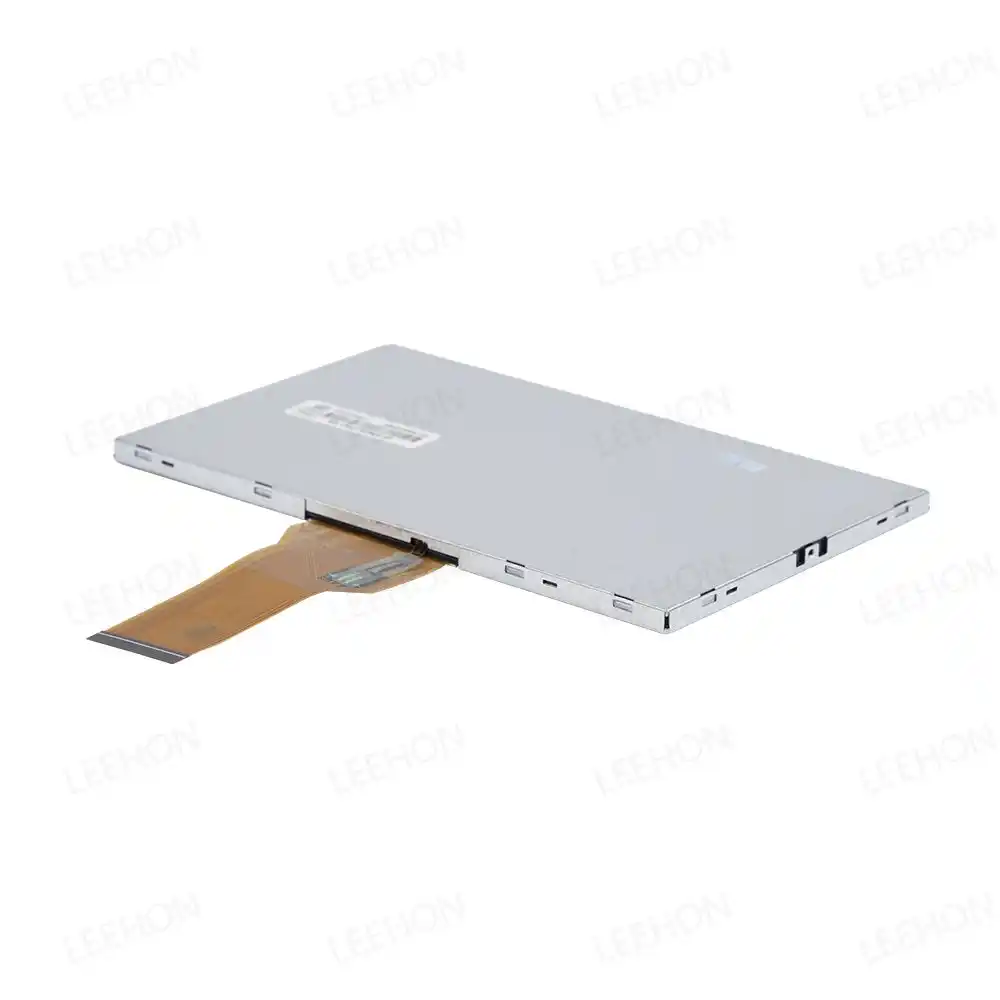

INNOLUX 7 inch 800×480 AT070TN94
Product overviews:
Supply Status:
Steady supply.
| Brand: | INNOLUX |
| Model P/N: | AT070TN94 |
| Diagonal Size: | 7 inch |
| Pixels: | 800×480 |
| Pixel Pitch(mm): | 0.0642(W) × 0.1790(H) mm |

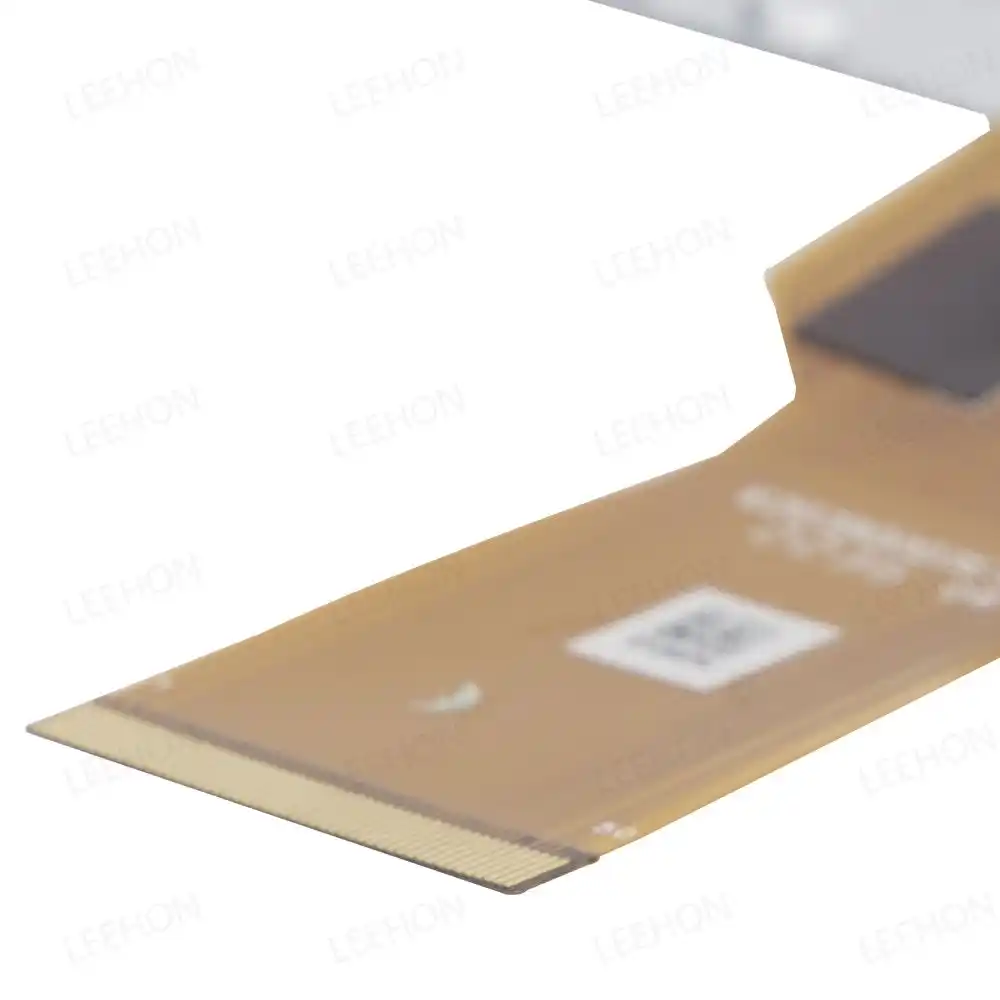

| Interface Type: | RGB |
| Luminance: | 400 cd/m² |
| Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) |

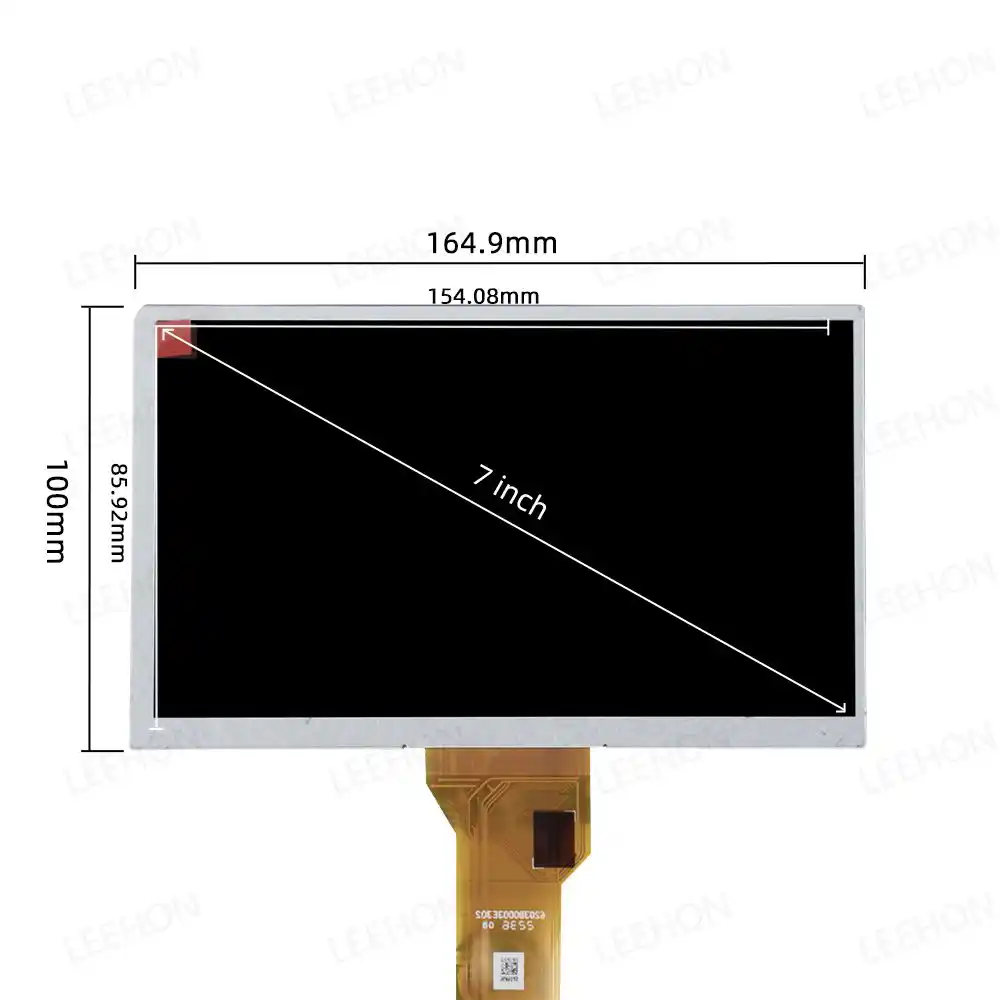

| Active Area(mm): | 154.08(W) × 85.92(H) mm |
| Physical Size(mm): | 164.9(W) ×100.0(H) ×5.7(D) mm |
| Contrast Ratio: | 500:1 (Typ.)；400:1(Min) |
| Response Time: | 25 (Typ.)(Tr+Tf) ms |
| Work Mode: | Normally White, Transmissive |
| Surface Treatment: | Anti-Glare |
| Color Depth: | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Backlight: | WLED,20K hours |
| Input Voltage: | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Storage Temp: | -30 ~ 85 °C |
| Operating Temp: | -30 ~ 85 °C |
| Touchscreen: | without |
| Net Weight: | 154g (Typ.) |
| Package: | Max capacity:50pcs TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
