DV170E0M-N10
Product name:

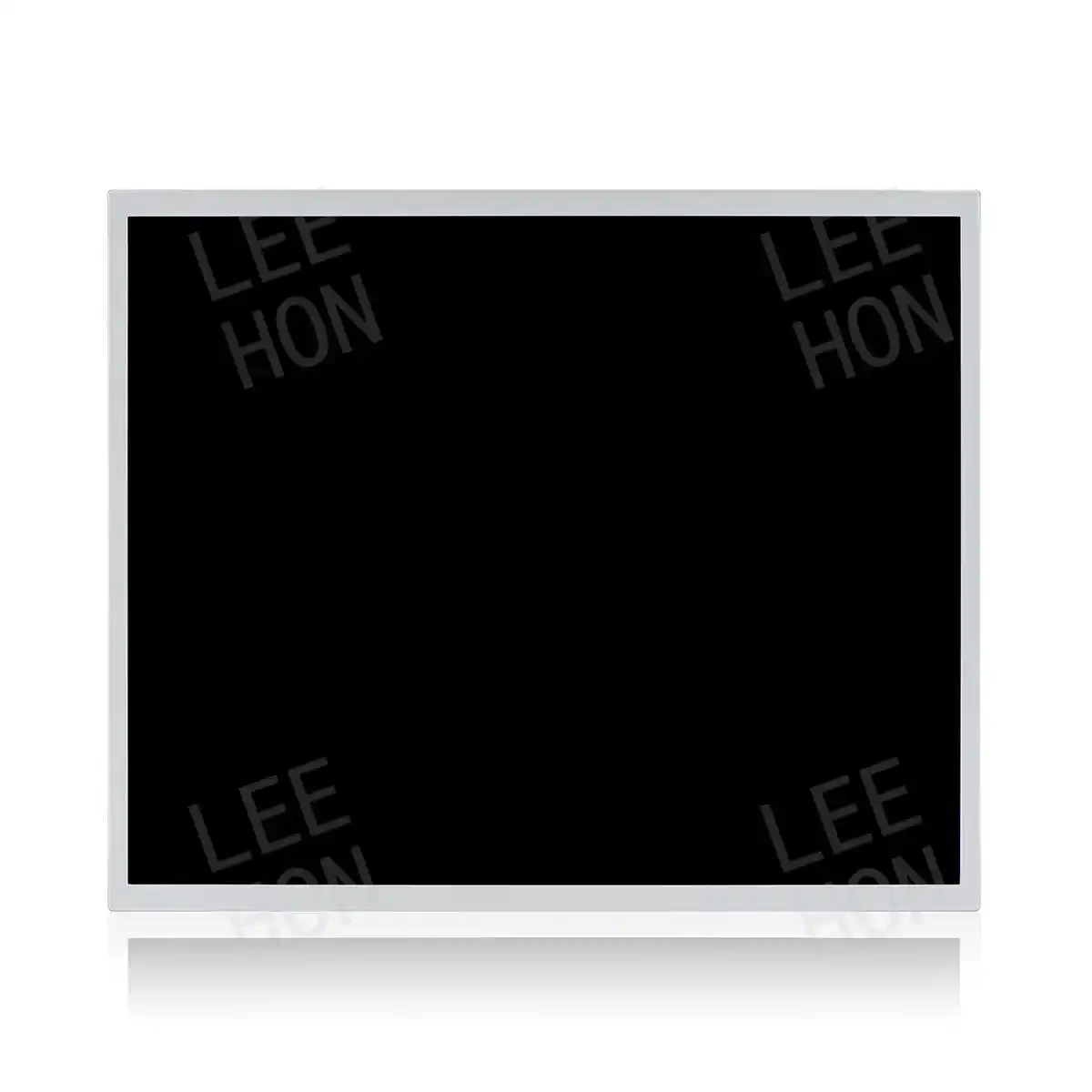

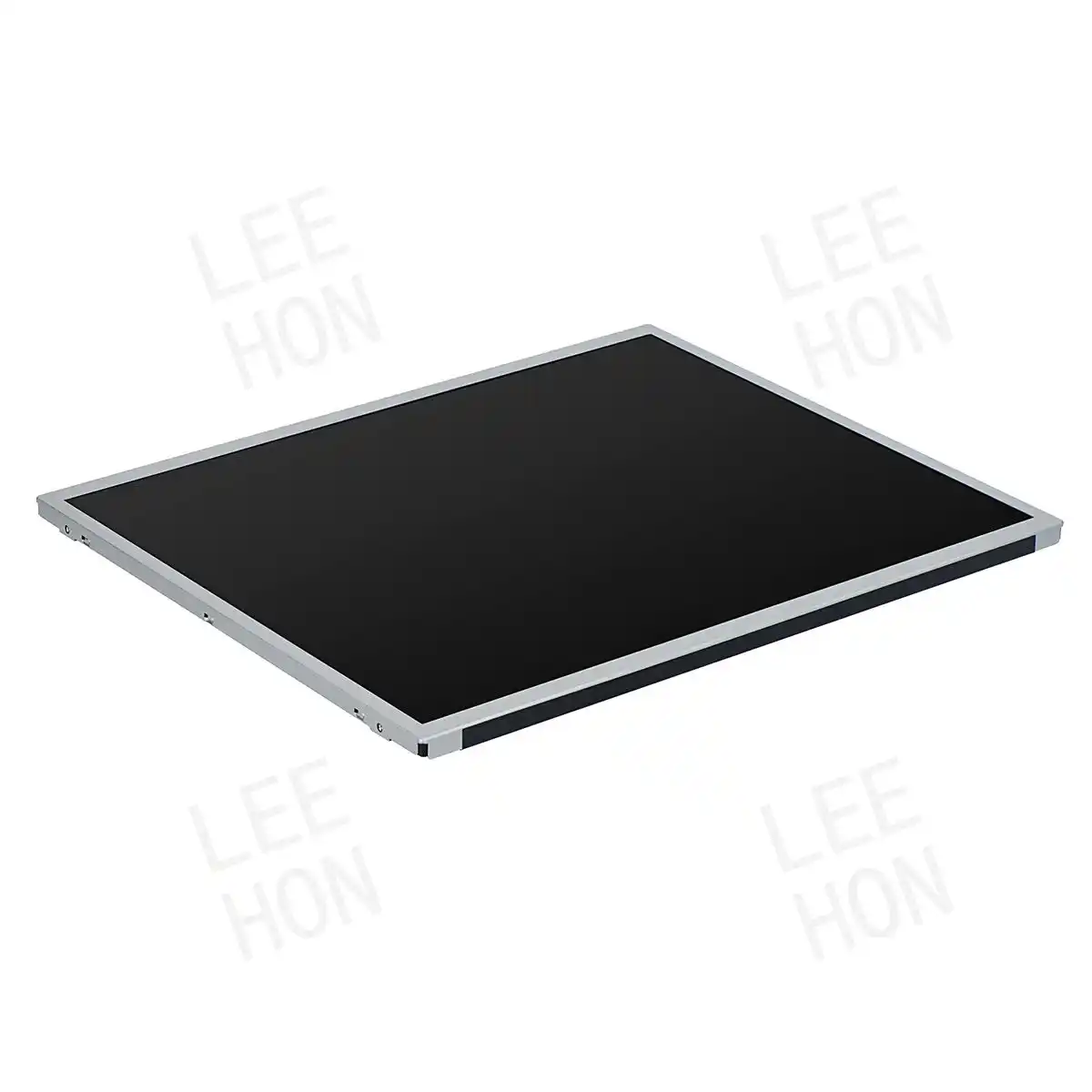

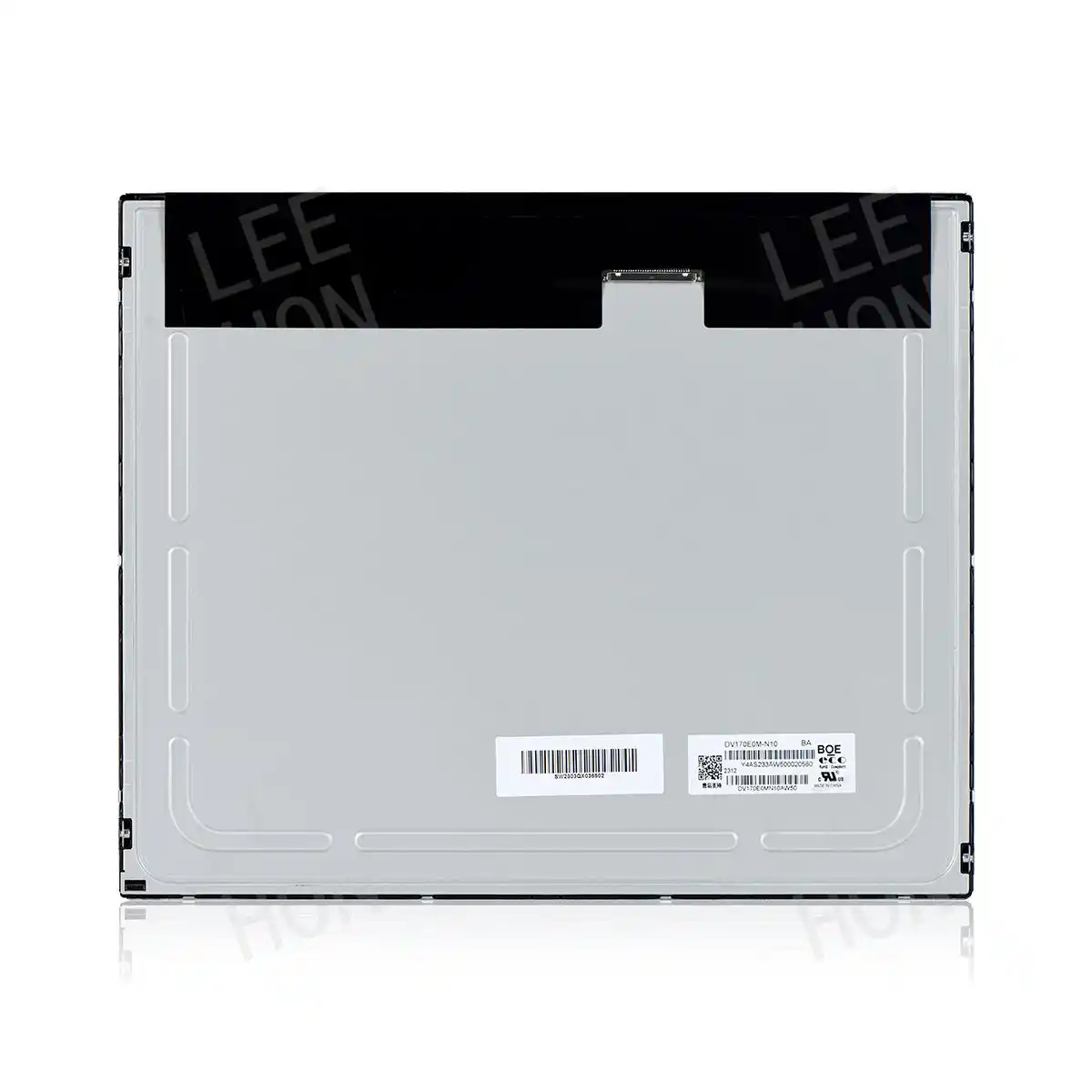

BOE 17 inch 1280×1024 DV170E0M-N10
Product overviews:
The DV170E0M-N10, manufactured by BOE, is a 17 inch a-Si TFT-LCD module featuring an SXGA resolution of 1280x1024 pixels and a 5:4 aspect ratio. It utilizes WLED backlighting without a built-in driver and lacks touch functionality. The display operates within a temperature range of 0 to 50°C, with a storage temperature from -20 to 60°C. Its surface is treated with a matte finish (Haze 25%) and Hard coating (3H). This model suitable for industrial.
Supply Status:
Steady supply.
| Brand: | BOE |
| Model P/N: | DV170E0M-N10 |
| Diagonal Size: | 17 inch |
| Pixels: | 1280×1024 |
| Pixel Pitch(mm): | 0.264(H) ×0.264(V) mm |

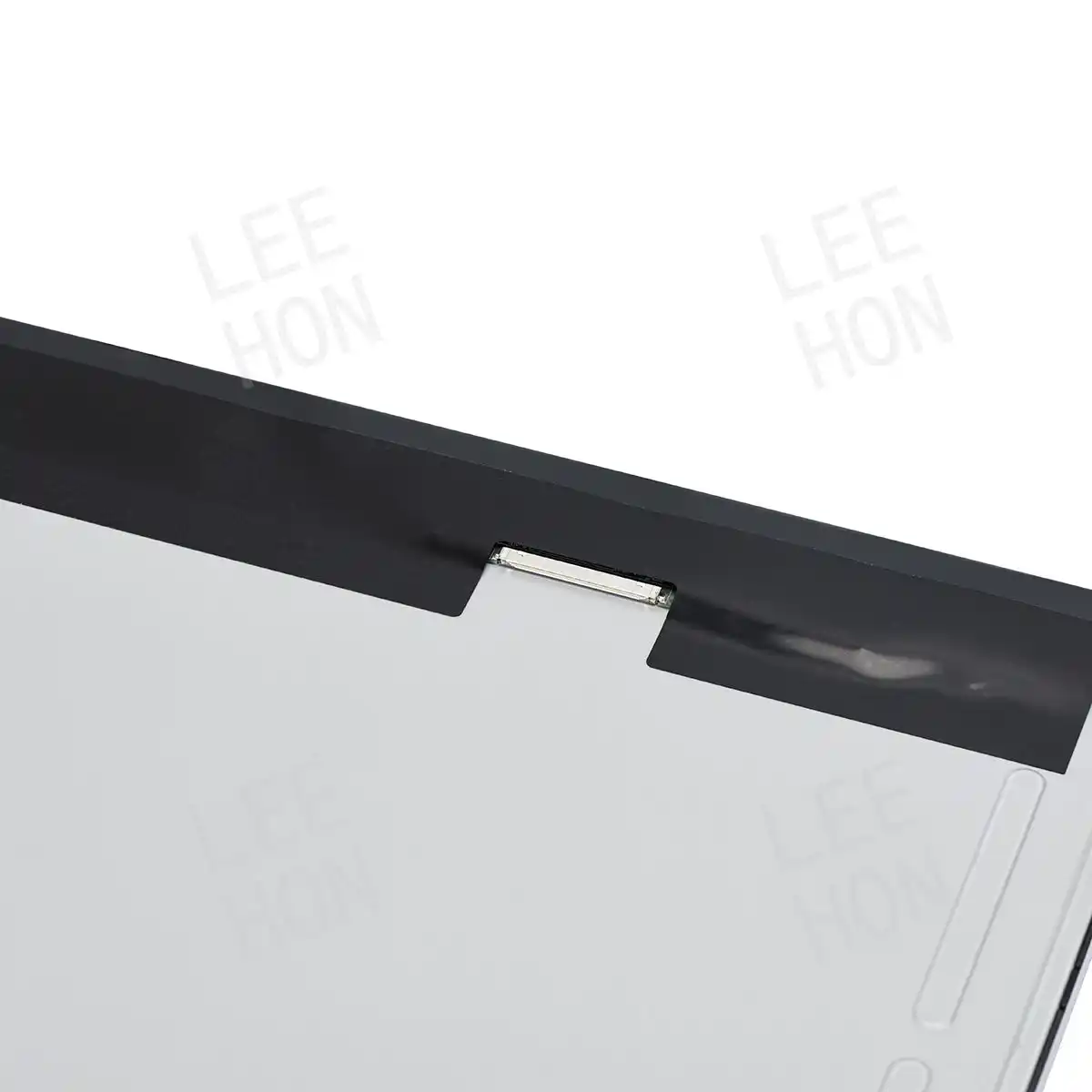

| Interface Type: | LVDS |
| Luminance: | 250 cd/m² |
| Viewing Angle: | 89/89/89/89(typ.) |
| Active Area(mm): | 345.408(H) × 259.056(V) mm |

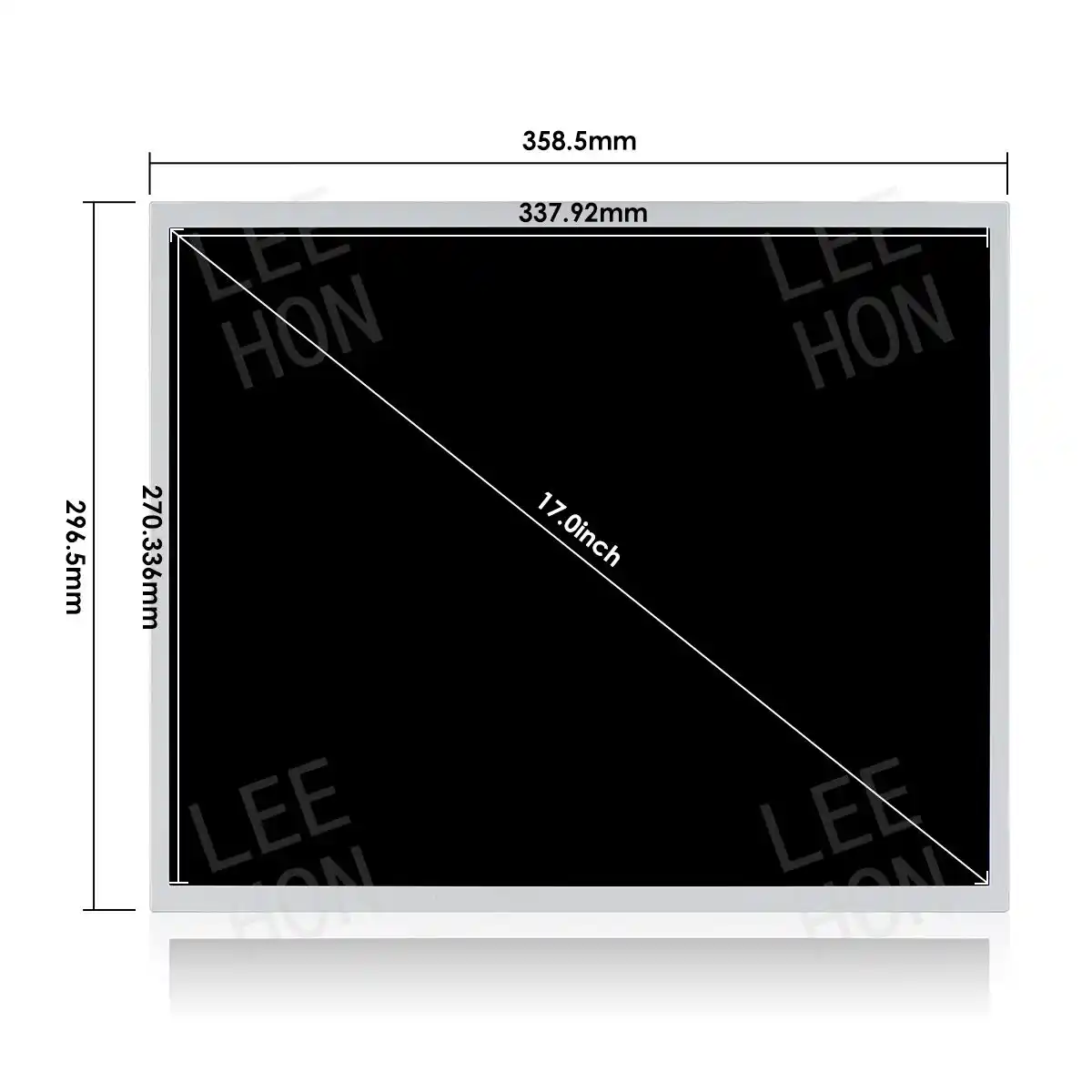

| Physical Size(mm): | 358.5(H) × 296.5V) × 7.7 (Body) mm |
| Contrast Ratio: | typ 1000:1 min 700:1 |
| Response Time: | 20(typ.) (ms) |
| Work Mode: | Normally Black |
| Surface Treatment: | Haze 25%, 3H |
| Color Depth: | 16.7M |
| Backlight: | WLED,30K hours |
| Input Voltage: | 5.0V (Typ.) |
| Storage Temp: | -20 ~ 60 °C |
| Operating Temp: | 0 ~ 50 °C |
| Touchscreen: | without |
| Net Weight: | 167 0(typ.) g |
| Package: | Pallet:6boxes per layer, total 2 layers |

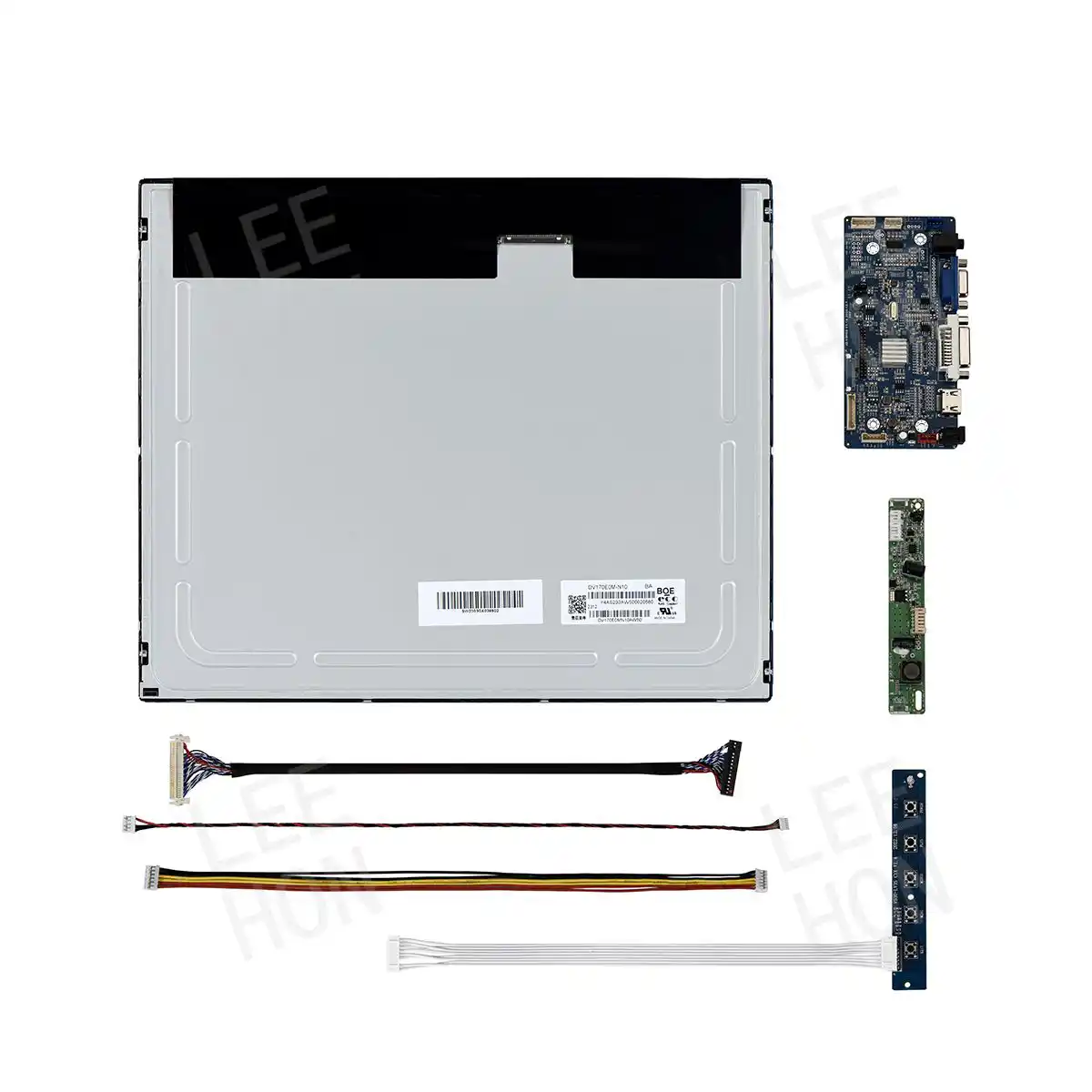

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
