TCG057VGLCS-H50-S
Product name:

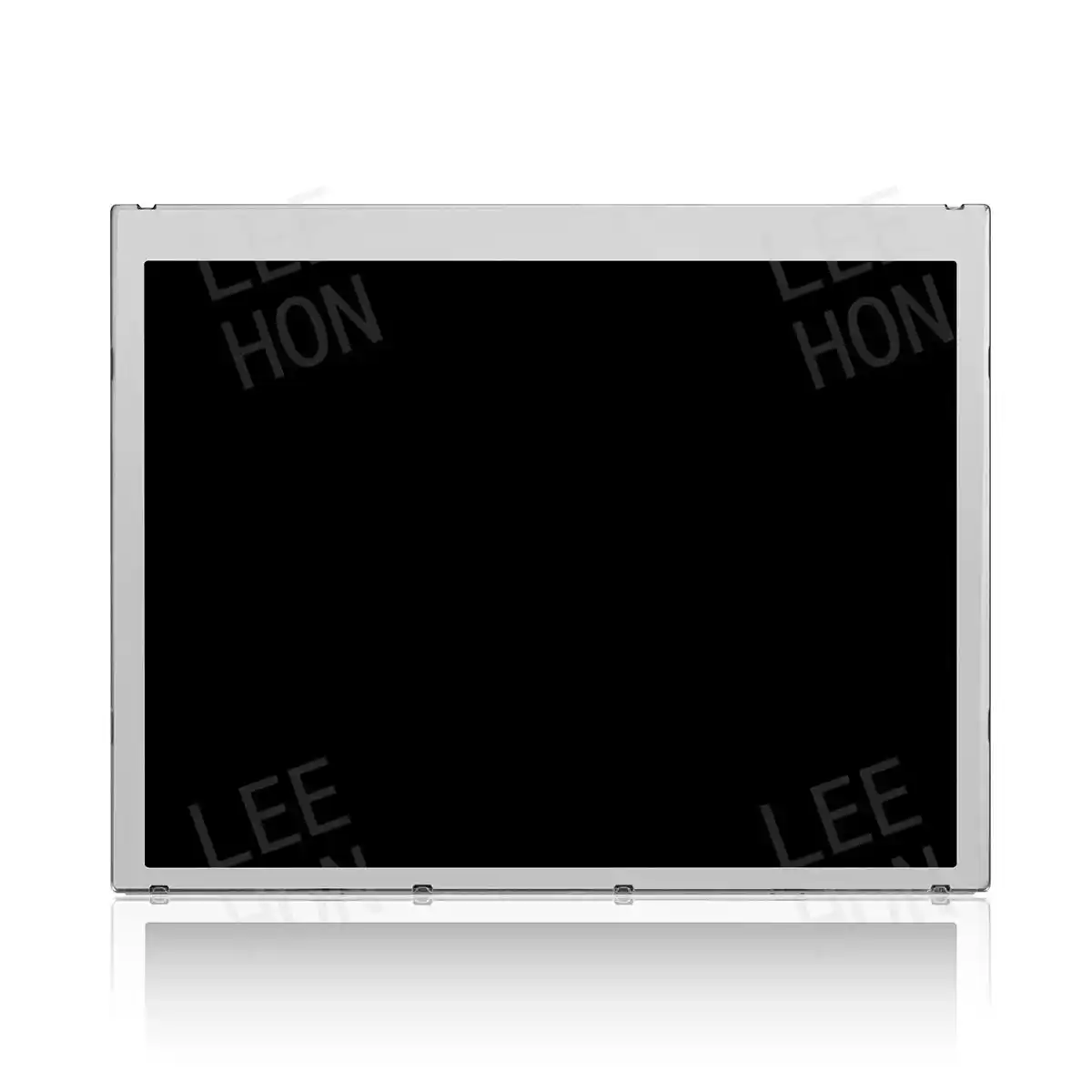

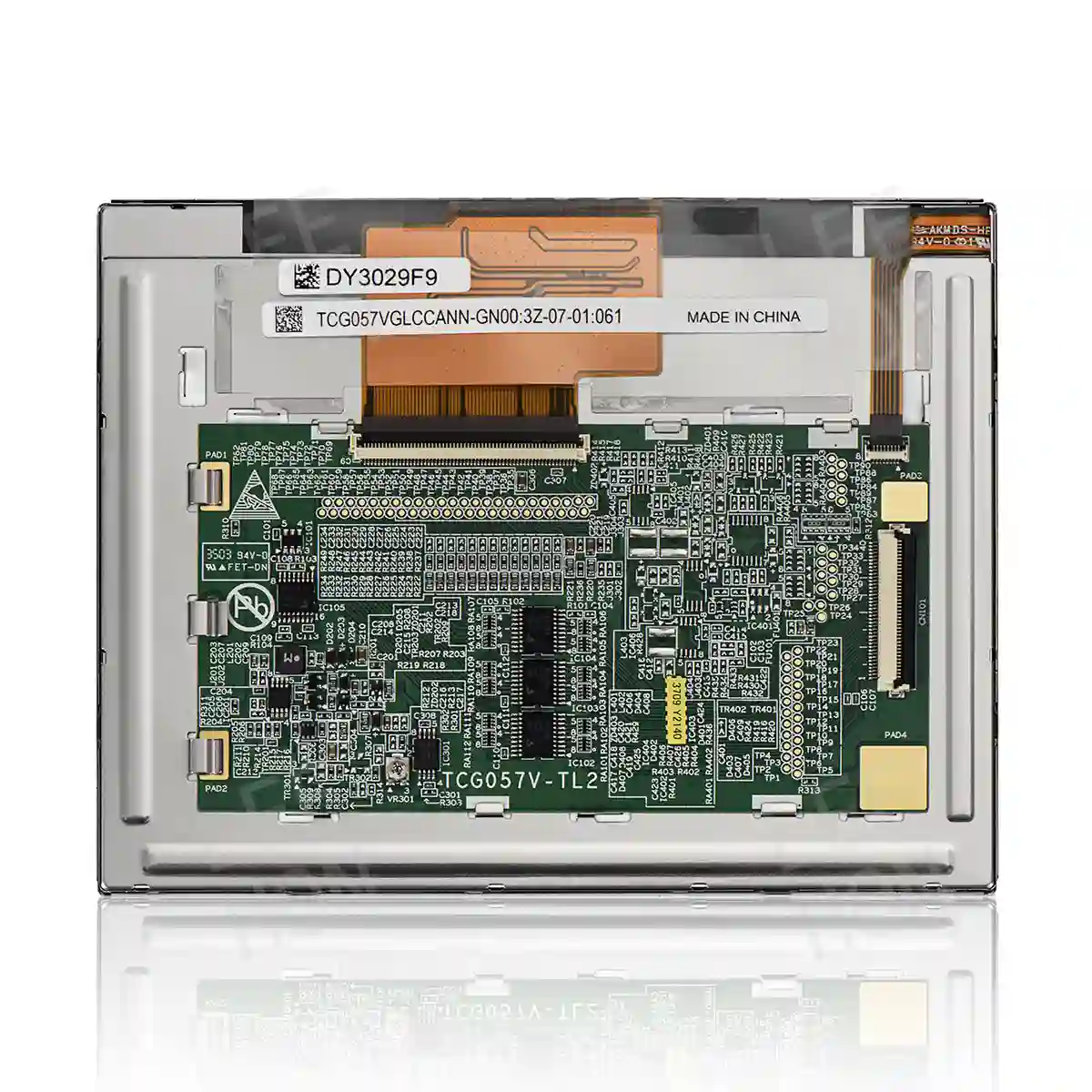

KYOCERA 5.7 inch 640×480 TCG057VGLCS-H50-S
Product overviews:
The TCG057VGLCS-H50-S launched by Kyocera is a 5.7-inch LCD module product that uses a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch. The typical features of the screen library are: high brightness, white LED backlight, lifespan greater than 50000 hours, up/down, left/right flip display, and mirror surface. Its working temperature is -20~70 ° C, and its storage temperature is -30~80 ° C.
Supply Status:
Steady supply.
| Brand: | KYOCERA |
| Model P/N: | TCG057VGLCS-H50-S |
| Diagonal Size: | 5.7 inch |
| Pixels: | 640×480 |
| Pixel Pitch(mm): | 0.06(W)×0.18(H) mm |

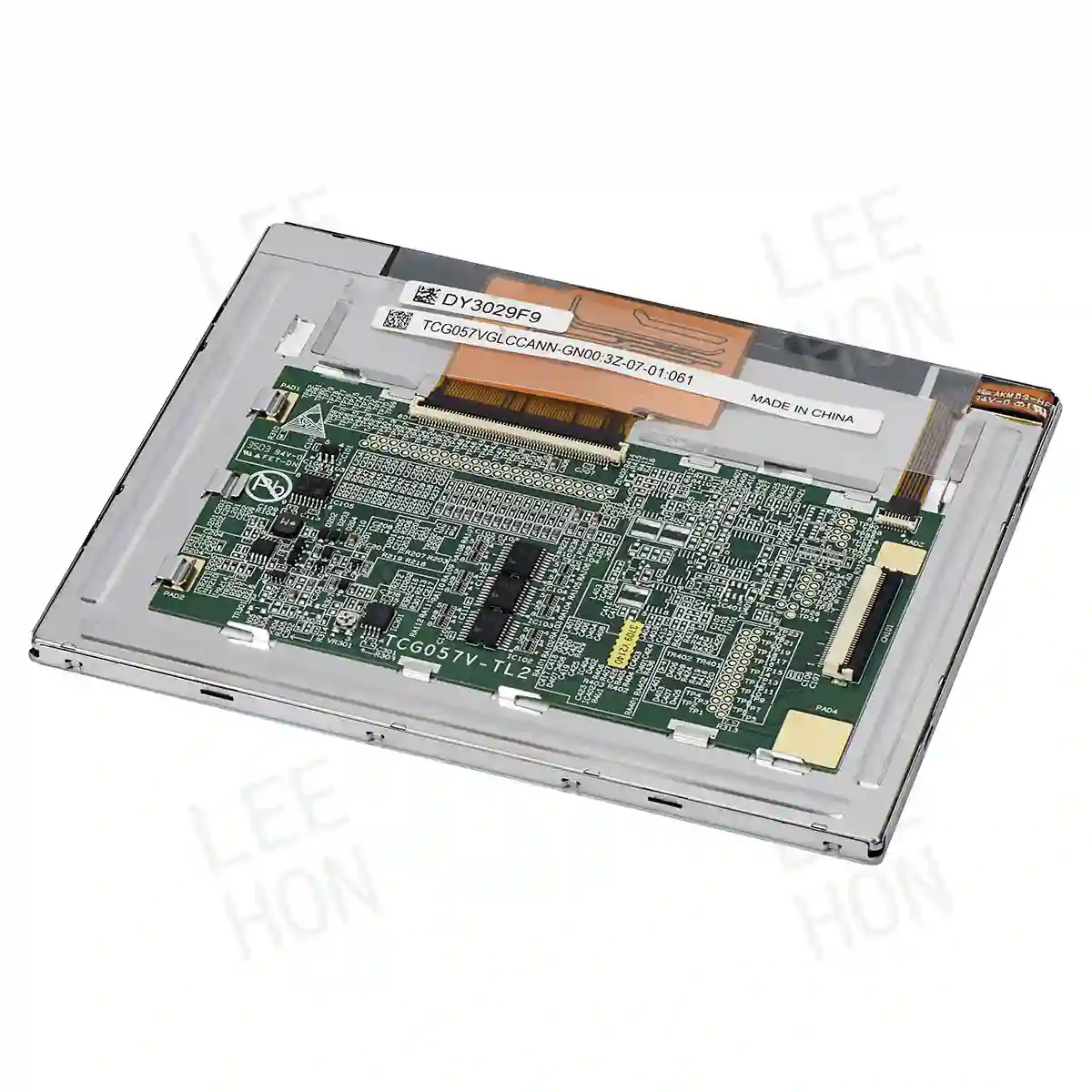

| Interface Type: | RGB |
| Luminance: | 800 cd/m² |
| Viewing Angle: | Typ.：80/80/80/80 |
| Active Area(mm): | 115.2(W)×86.4(H) mm |

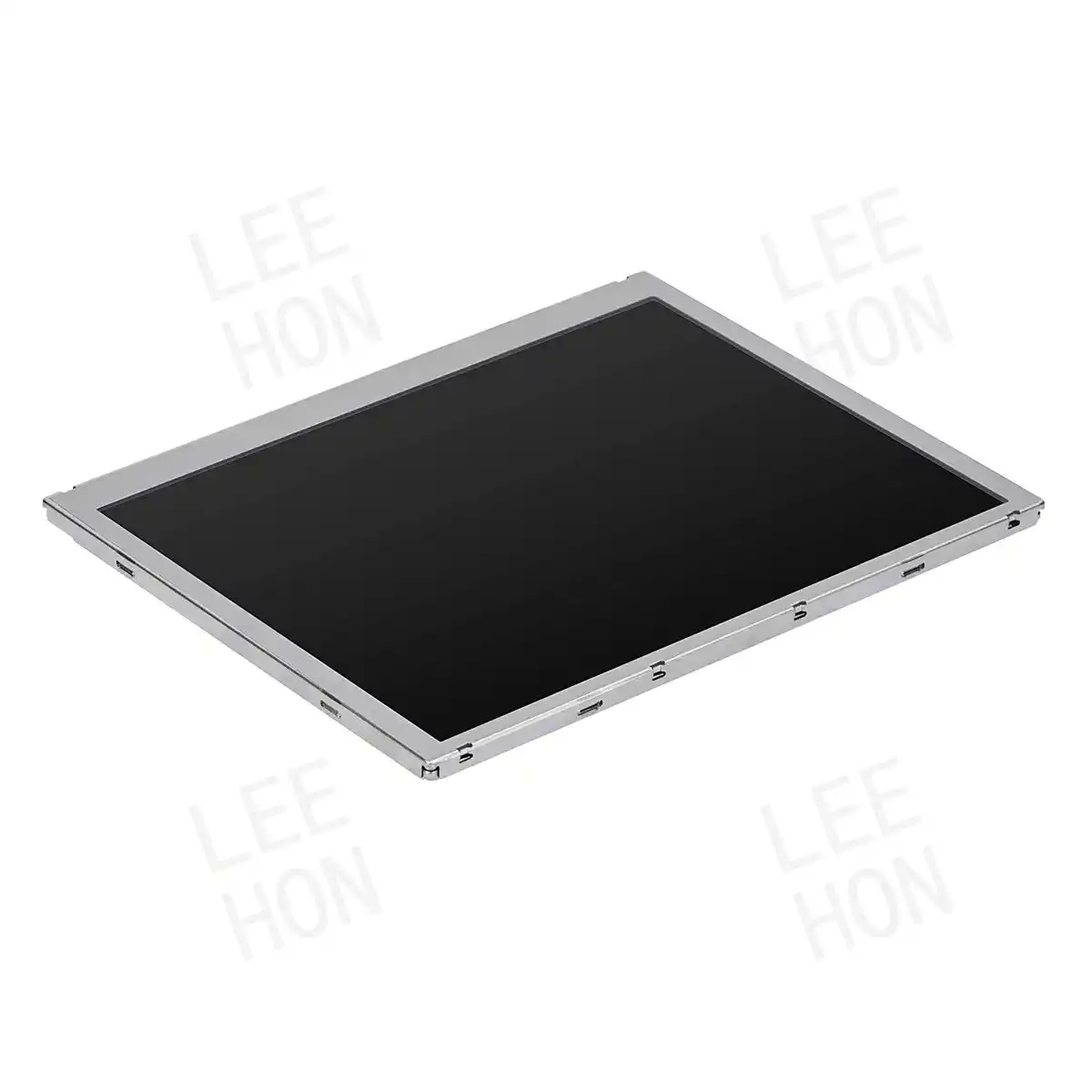

| Physical Size(mm): | 144(W)×(104.8)(H)×13(D) mm |
| Contrast Ratio: | 500:1 (Typ.) |
| Response Time: | Typ.25 |
| Work Mode: | Normally White |
| Surface Treatment: | Mirror (Haze 0%), anti reflective treatment |
| Color Depth: | 262K (6-bit) |
| Backlight: | WLED , 50K hours , with LED Driver |
| Input Voltage: | 3.3 V |
| Storage Temp: | -30 ~ +80 (°C) |
| Operating Temp: | -20 ~ +70 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 210g (Typ.) |
| Package: | - |

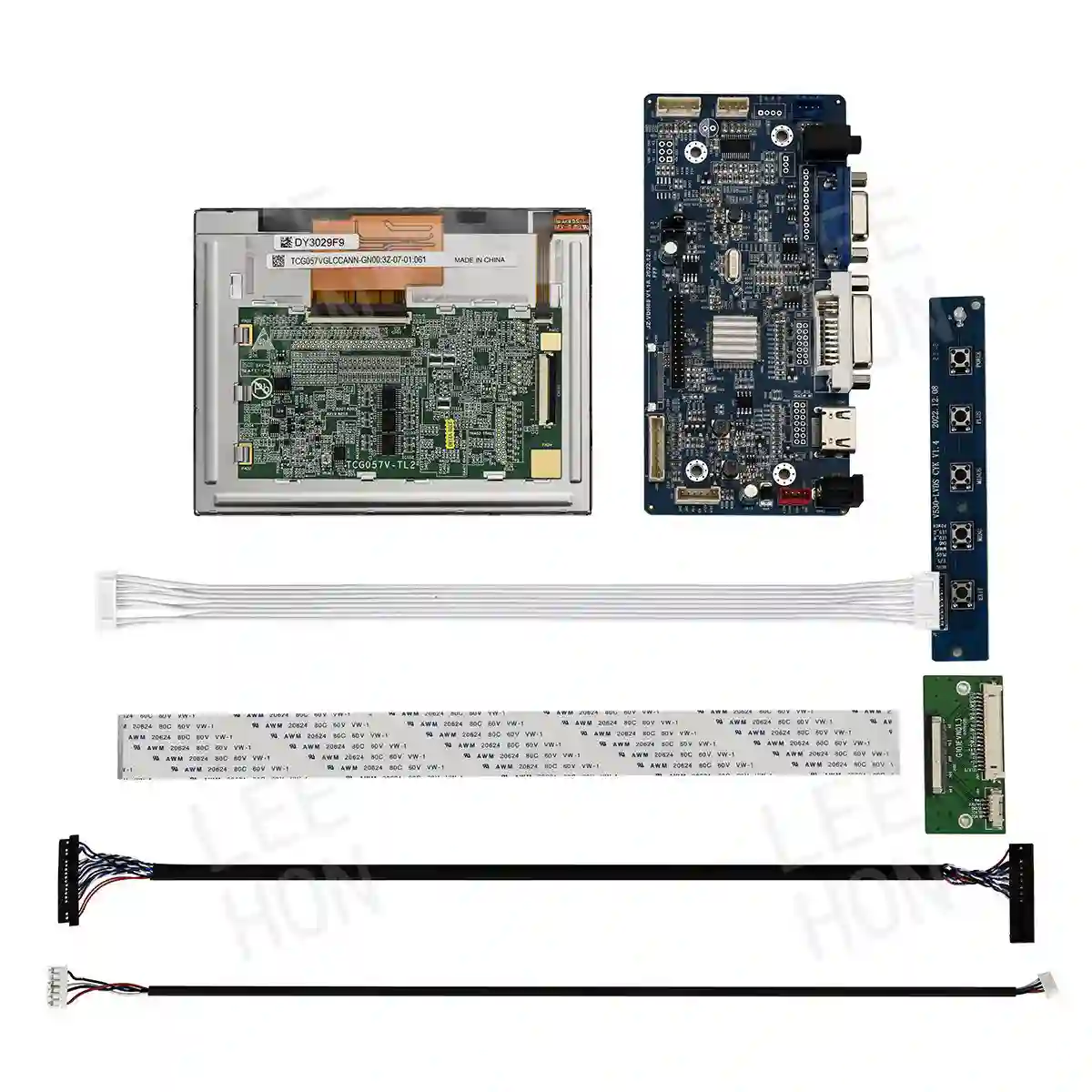

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
