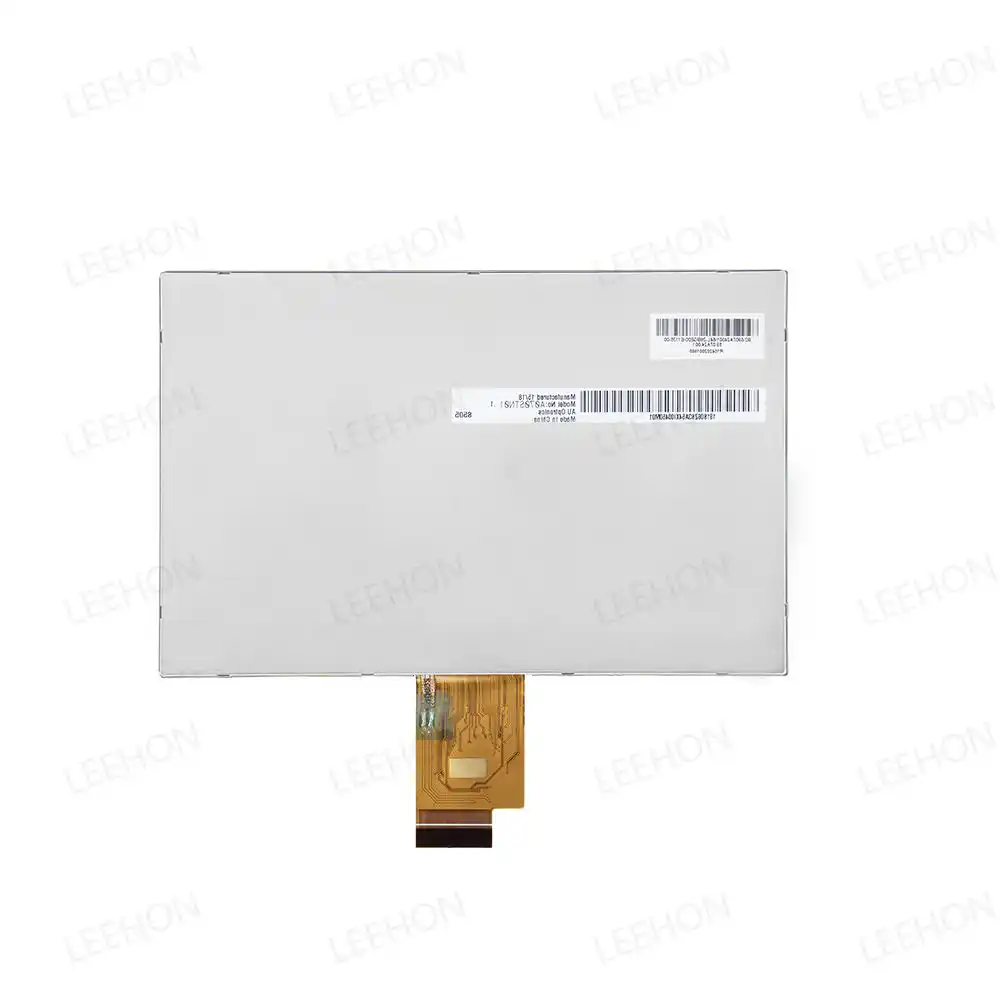

Product model: A070STN01.1
Product name:

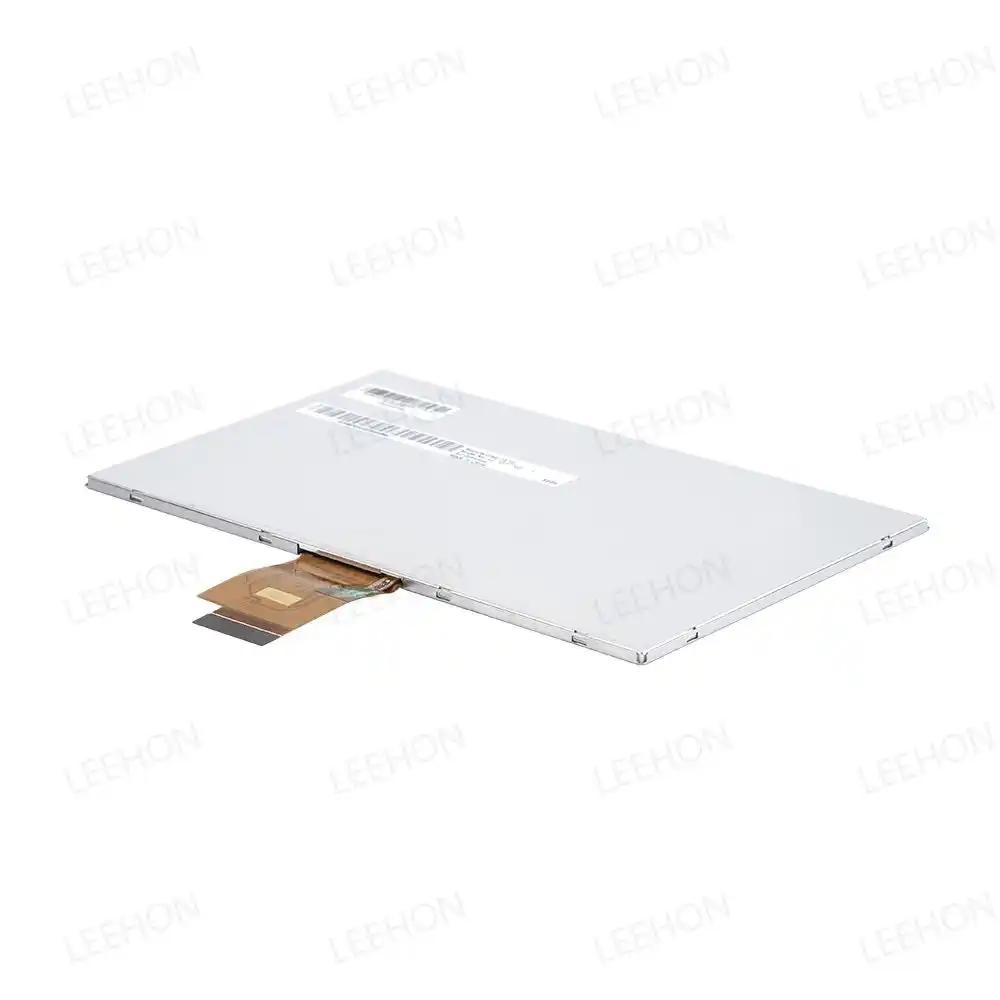

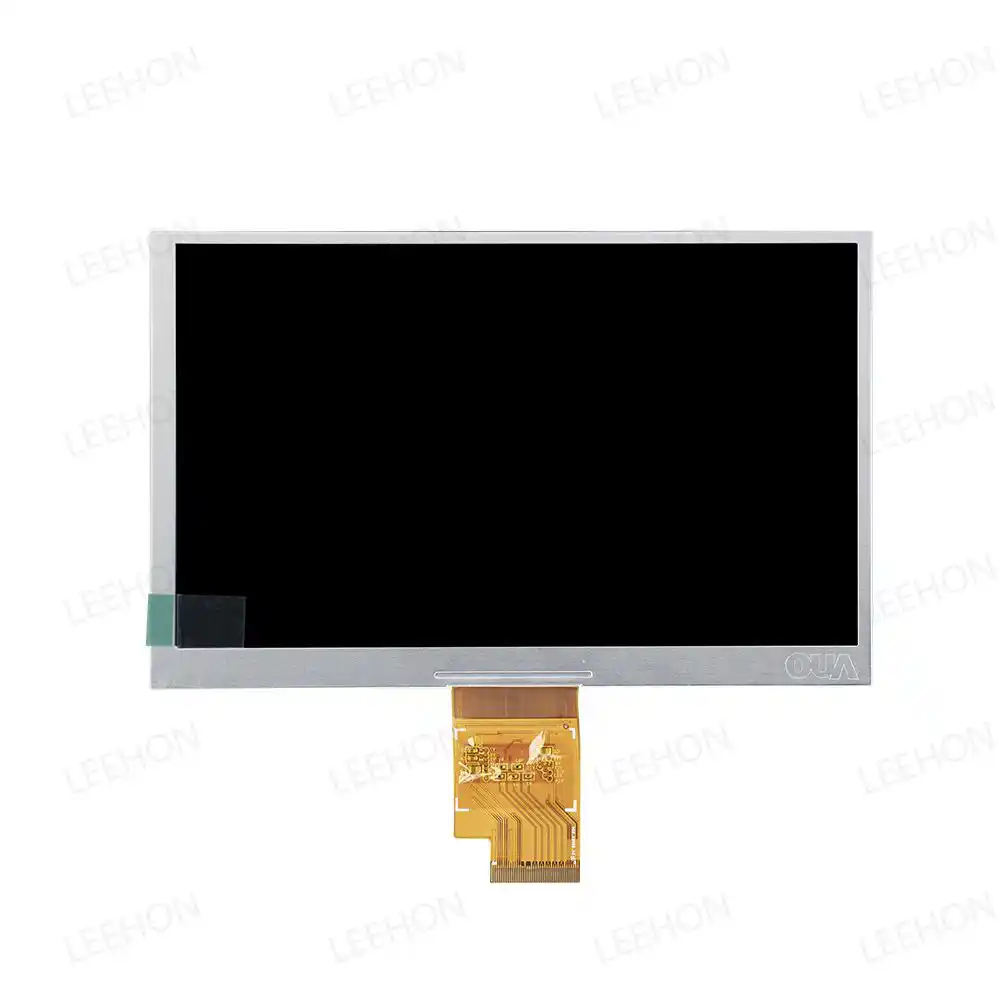

AUO 070inch 1024(RGB)×600, WSVGA A070STN01.1
Product overviews:

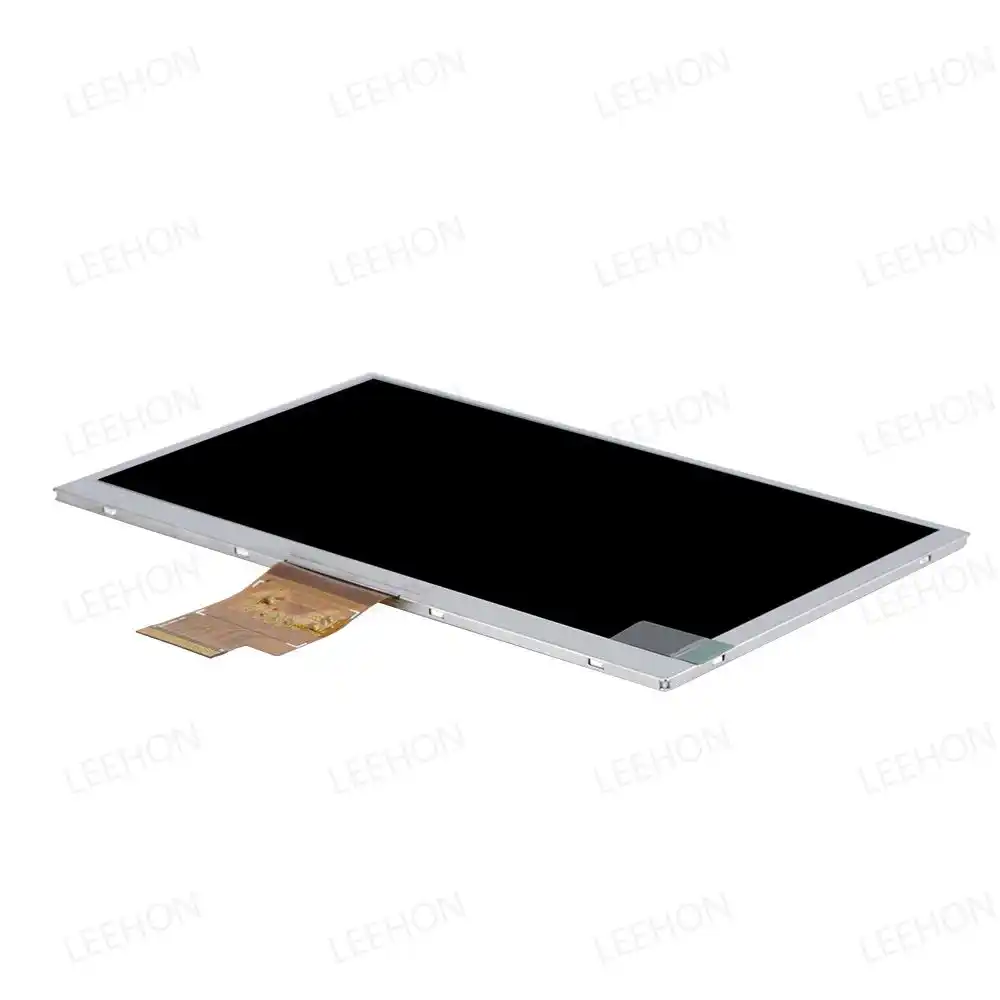

A070STN01.1 is a 7.0-inch a-Si TFT-LCD LCD module product launched by AUO. It is equipped with WLED backlight, no backlight driver, and no touch. The working temperature of this product is 0~50 ° C, and the storage temperature is -20~60 ° C. Its typical features are: white LED backlight, up/down, left/right flip display, 6/8-bit grayscale options, and a mirror surface.
Supply Status:
Stop supply, no substitutes available at the moment.
| Brand: | AUO |
| Model P/N: | A070STN01.1 |
| Diagonal Size: | 070inch |
| Pixels: | 1024(RGB)×600, WSVGA |
| Pixel Pitch(mm): | 0.150×0.150 [169PPI] |

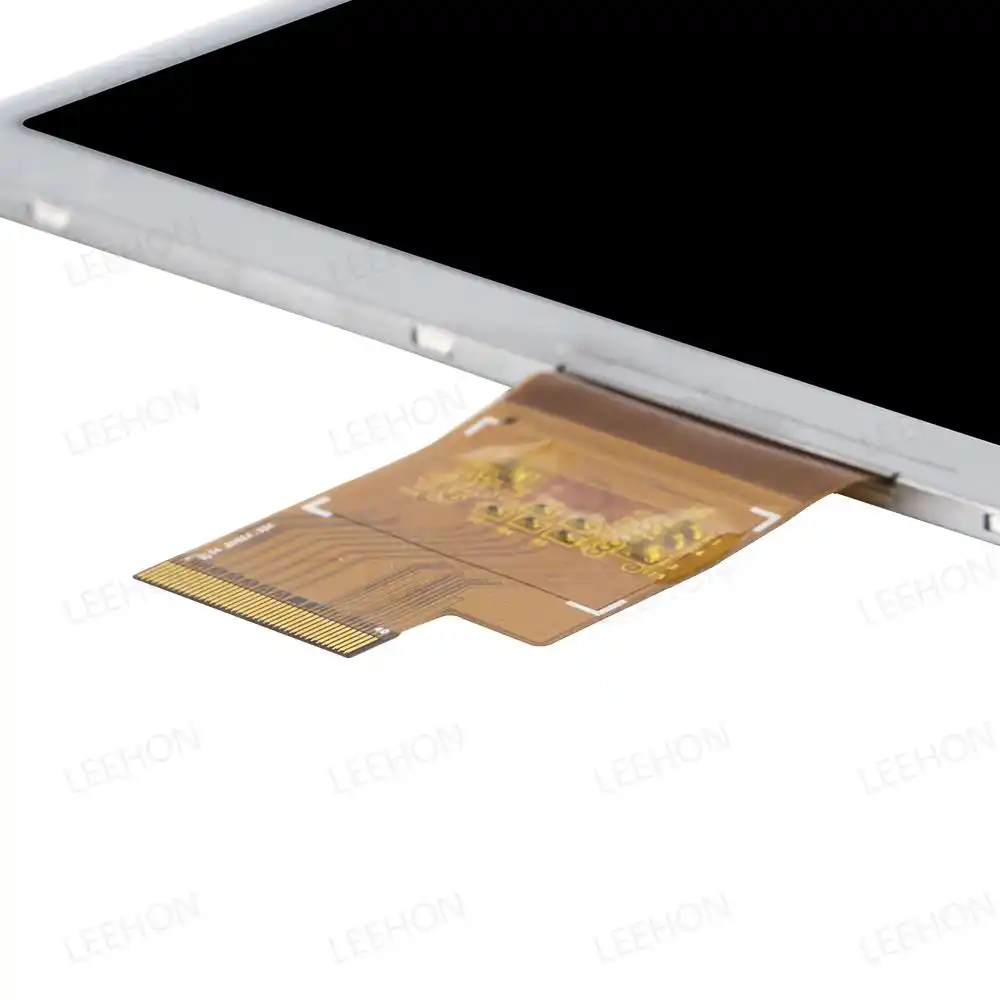

| Interface Type: | LVDS (1 ch, 6/8-bit) |
| Luminance: | 300 cd/m²(Typ.);240 cd/m²(Min.) |
| Viewing Angle: | 80/80/70/80 (Typ.)(CR≥10) |

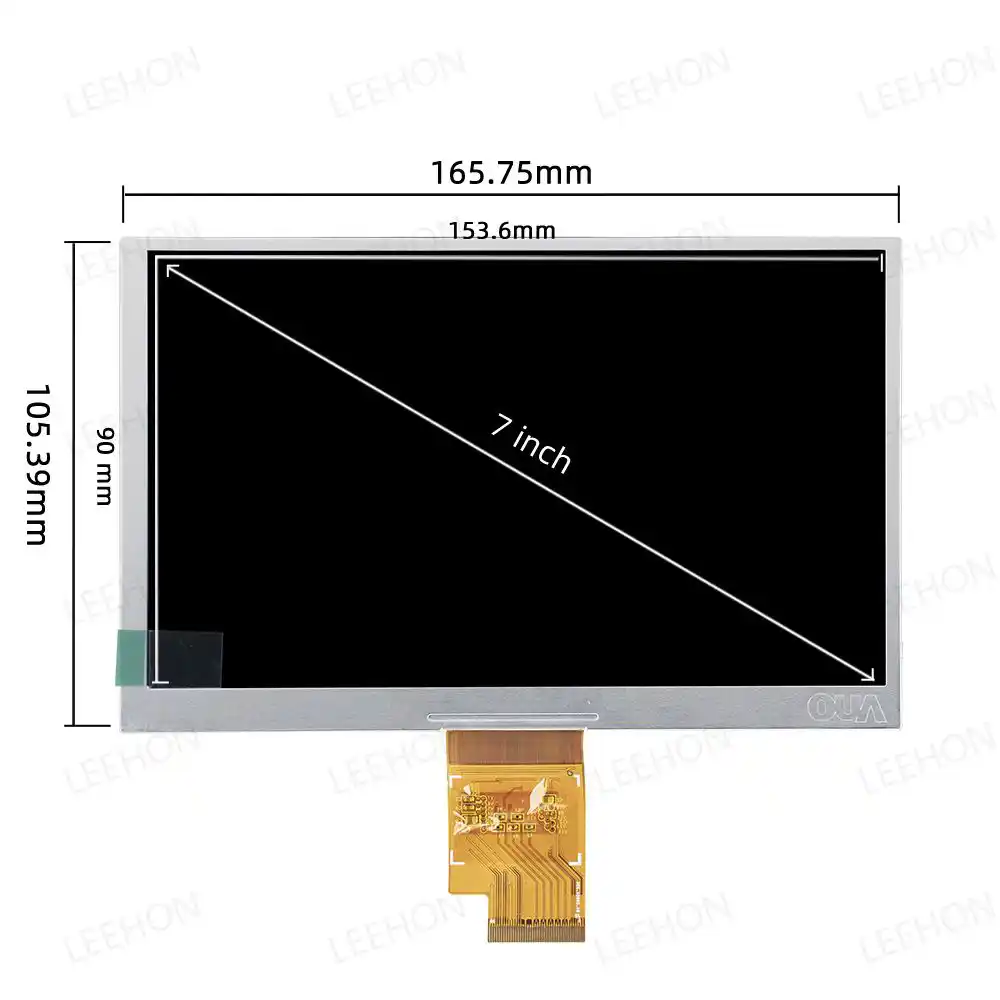

| Active Area(mm): | 153.6(H) × 90(V) mm |
| Physical Size(mm): | 165.75(H) × 105.39(V) mm |
| Contrast Ratio: | 800:1 (Typ.)；600:1(Min) |
| Response Time: | 3/6 (Typ.)(Tr/Td) |
| Work Mode: | Normally White |
| Surface Treatment: | Glossy,HC |
| Color Depth: | 262K/16.2M (6-bit / 6-bit + FRC) |
| Backlight: | WLED,20K hours |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -20 ~ 60 °C |
| Operating Temp: | 0 ~ 50 °C |
| Touchscreen: | without |
| Net Weight: | 90.0g |
| Package: | Max capacity:60pcs TFT-LCD module per carton |
