Product model: TCG057VGLCS-H50
Product name:
KYOCERA 5.7 inch 640(RGB)×480, VGA TCG057VGLCS-H50
Product overviews:
TCG057VGLCS-H50 is a 5.7-inch LCD module product launched by Kyocera Display Co., Ltd. (Kyocera) using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight drive, and no touch. As a TN, white display, transparent LCD module product, TCG057VGLCS-H50 can provide a display brightness of 800 cd/m ² with a transmission contrast of 500:1 and a viewing angle of 80/80/80/80 (Typ.) (CR ≥ 5) (L/R/U/D). Its response time is 10/25 (Typ.) (Tr/Td) ms. Due to the use of 6-bit grayscale signals for each pixel, this product can display 262K colors and achieve a color saturation of 52% (NTSC).
Supply Status:
Steady supply.
| Brand: | KYOCERA |
| Model P/N: | TCG057VGLCS-H50 |
| Diagonal Size: | 5.7 inch |
| Pixels: | 640(RGB)×480, VGA |
| Pixel Pitch(mm): | 0.180×0.180 mm (H×V) |

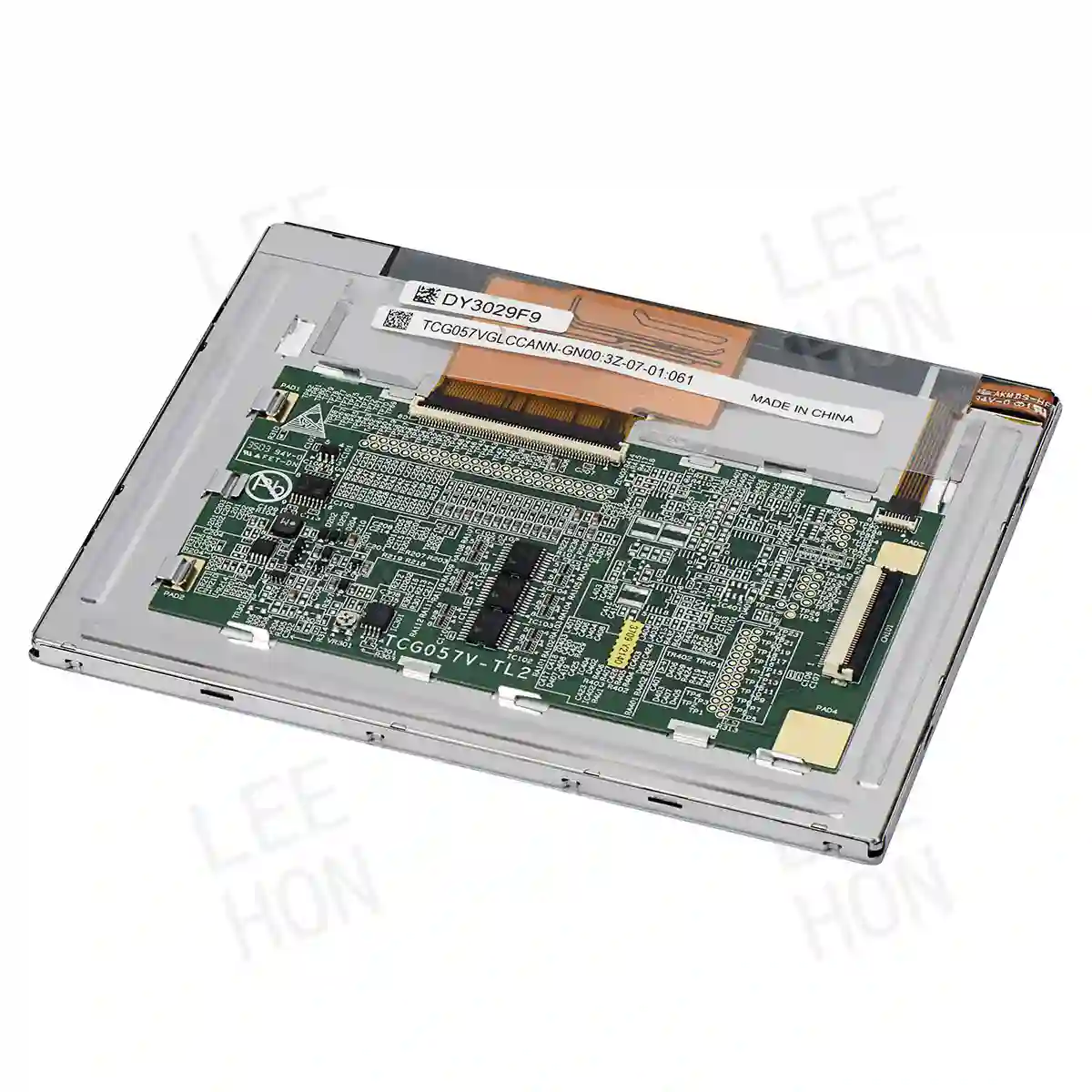

| Interface Type: | Parallel RGB (1 ch, 6-bit) |
| Luminance: | 800 cd/m² (Typ.) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥5) |

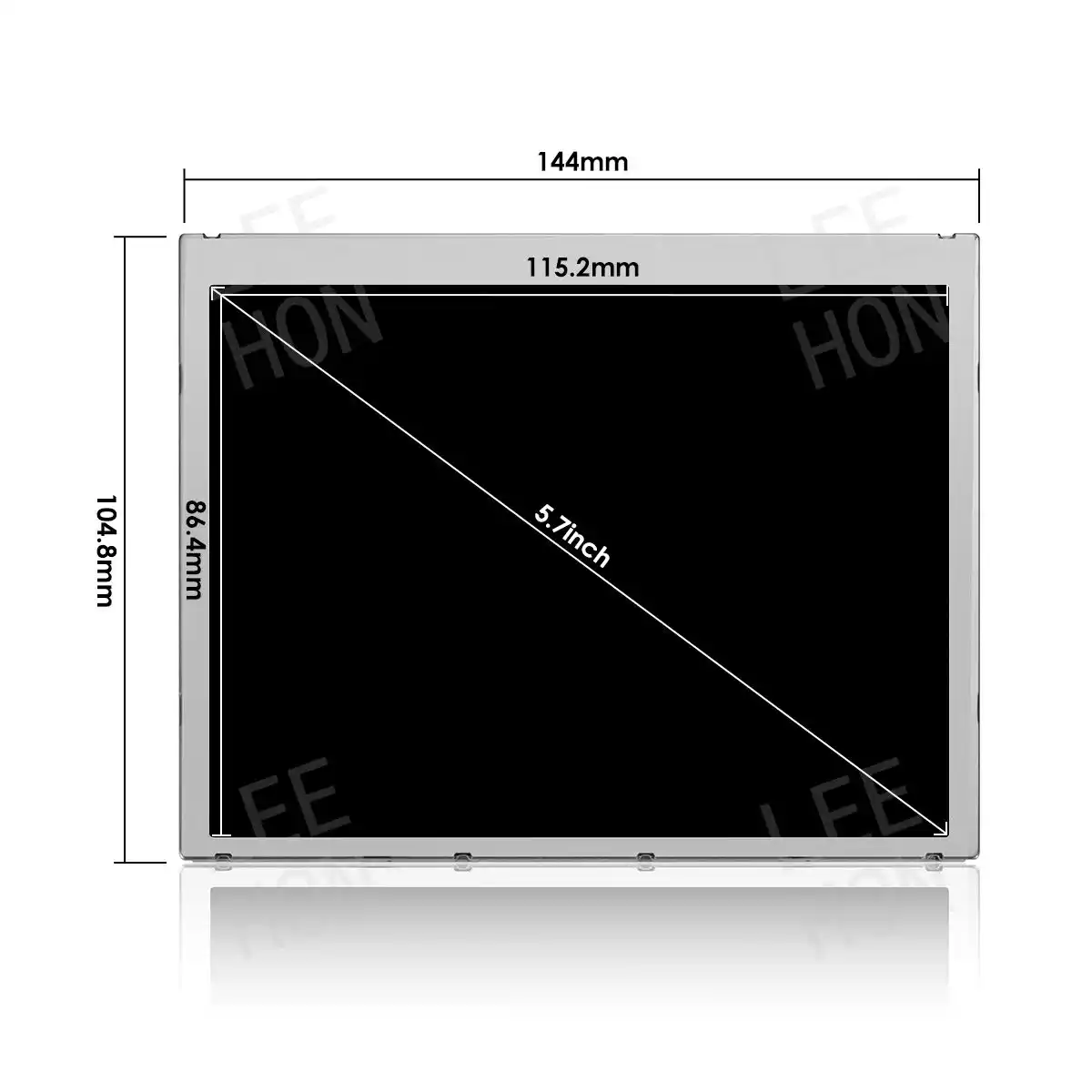

| Active Area(mm): | 115.2×86.4 mm (H×V) |
| Physical Size(mm): | 144×104.8 mm (H×V) |
| Contrast Ratio: | 500:1 (Typ.) |
| Response Time: | 10/25 (Typ.)(Tr/Td) (ms) |
| Work Mode: | TN, Normally White |
| Surface Treatment: | Mirror (Haze 0%), anti reflective treatment |
| Color Depth: | 262K (6-bit) |
| Backlight: | WLED , 50K hours |
| Input Voltage: | 3.3V(Typ.) |
| Storage Temp: | -30 ~ +80 (°C) |
| Operating Temp: | -20 ~ +70 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 210g (Typ.) |
| Package: | - |

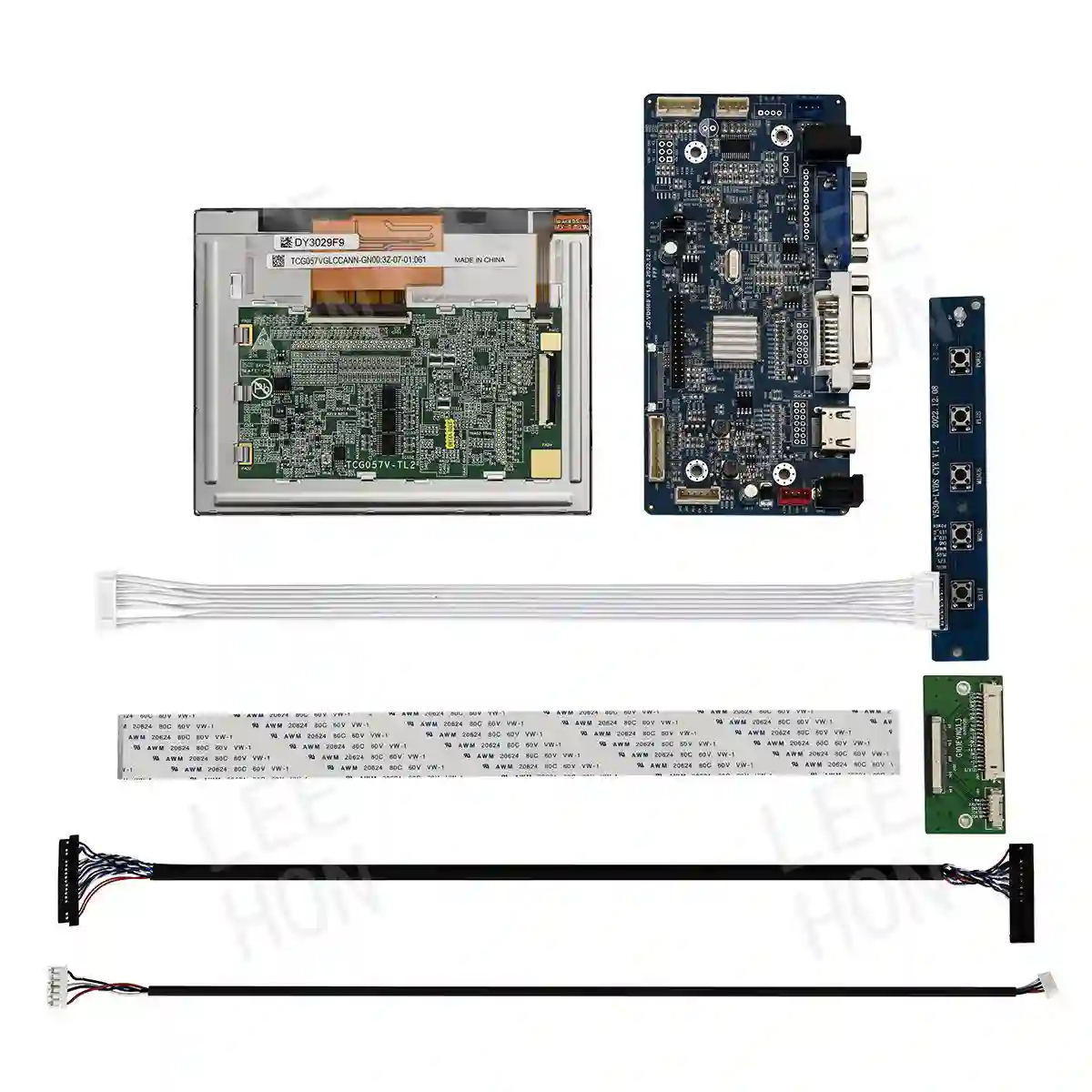

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
