G057QN01 V2
Product name:

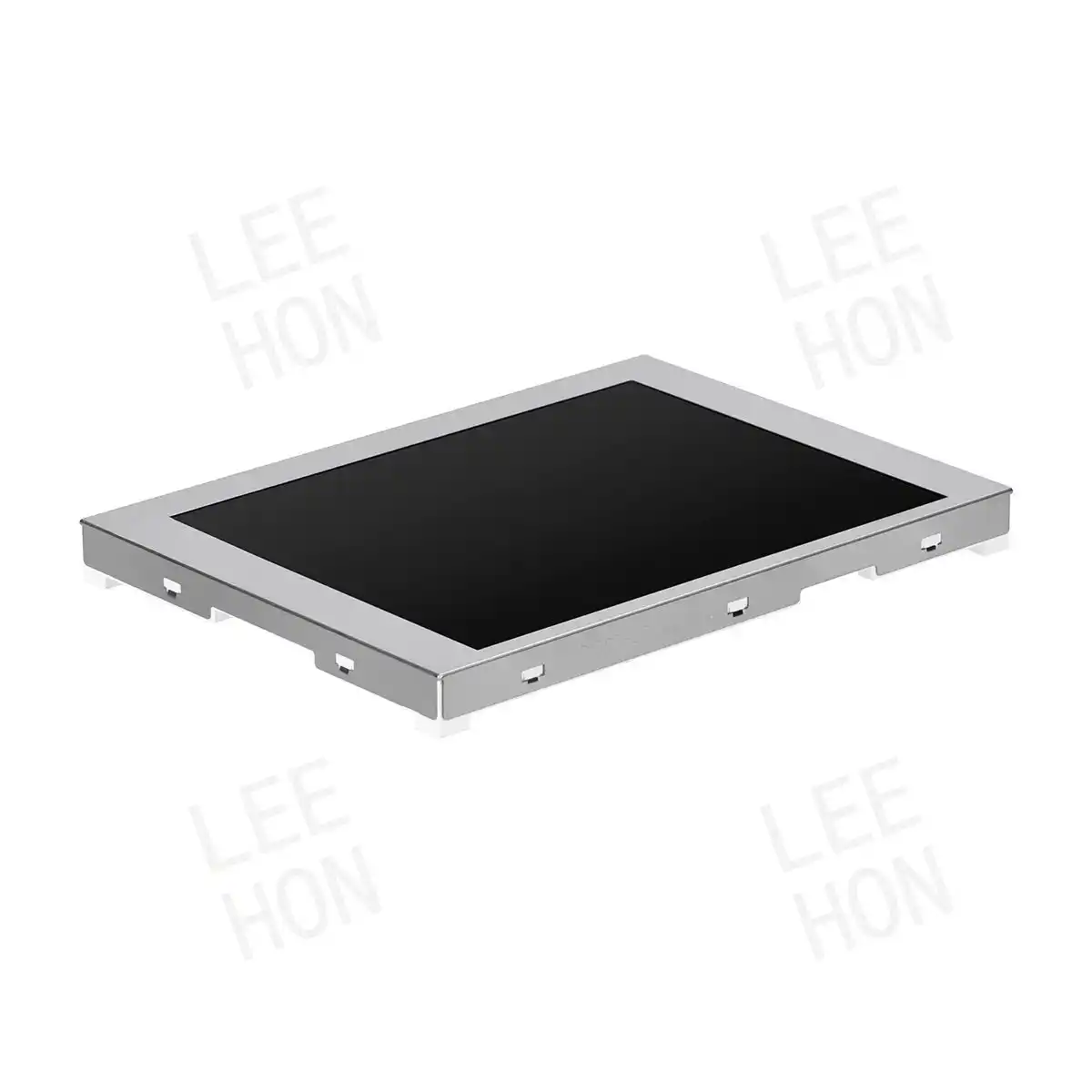

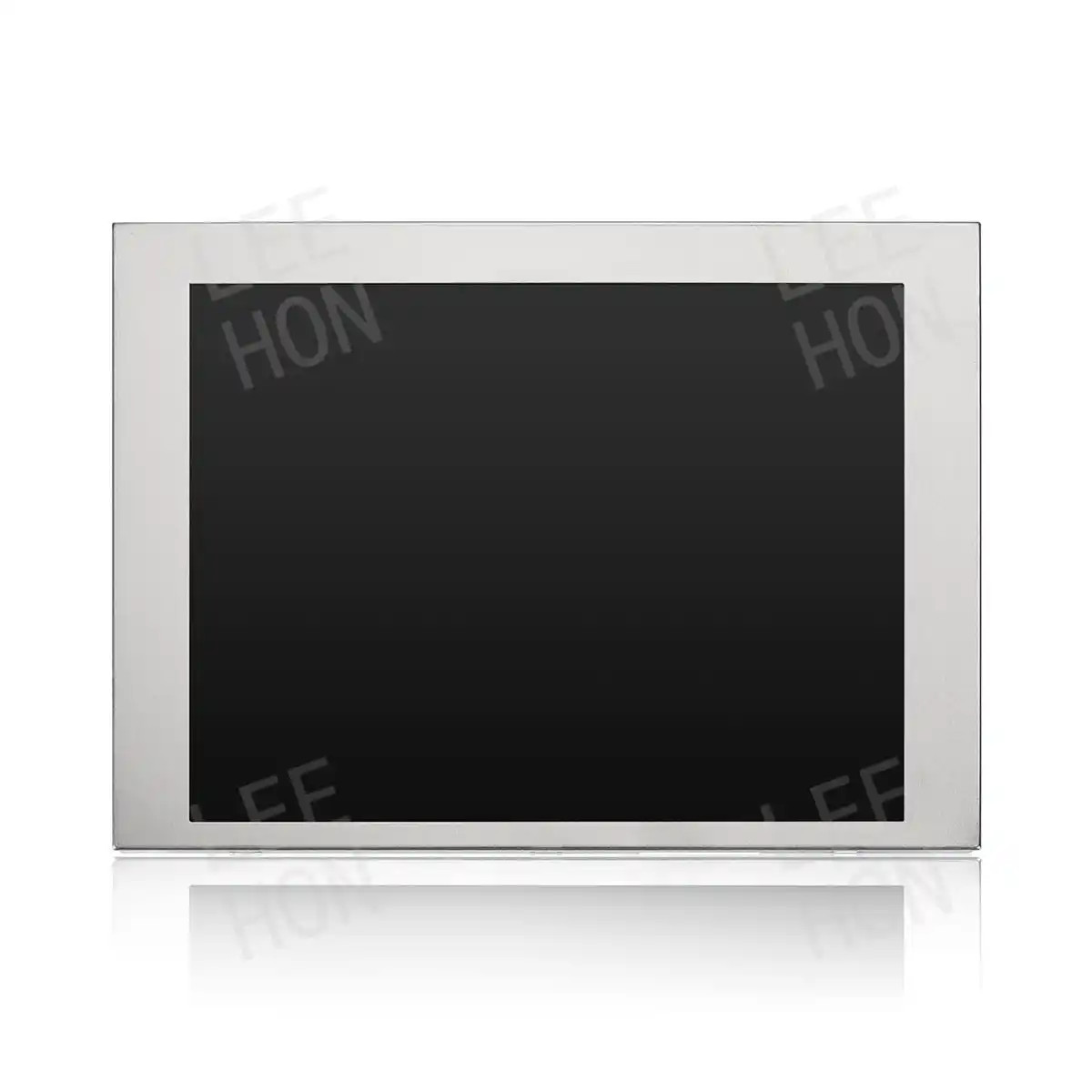

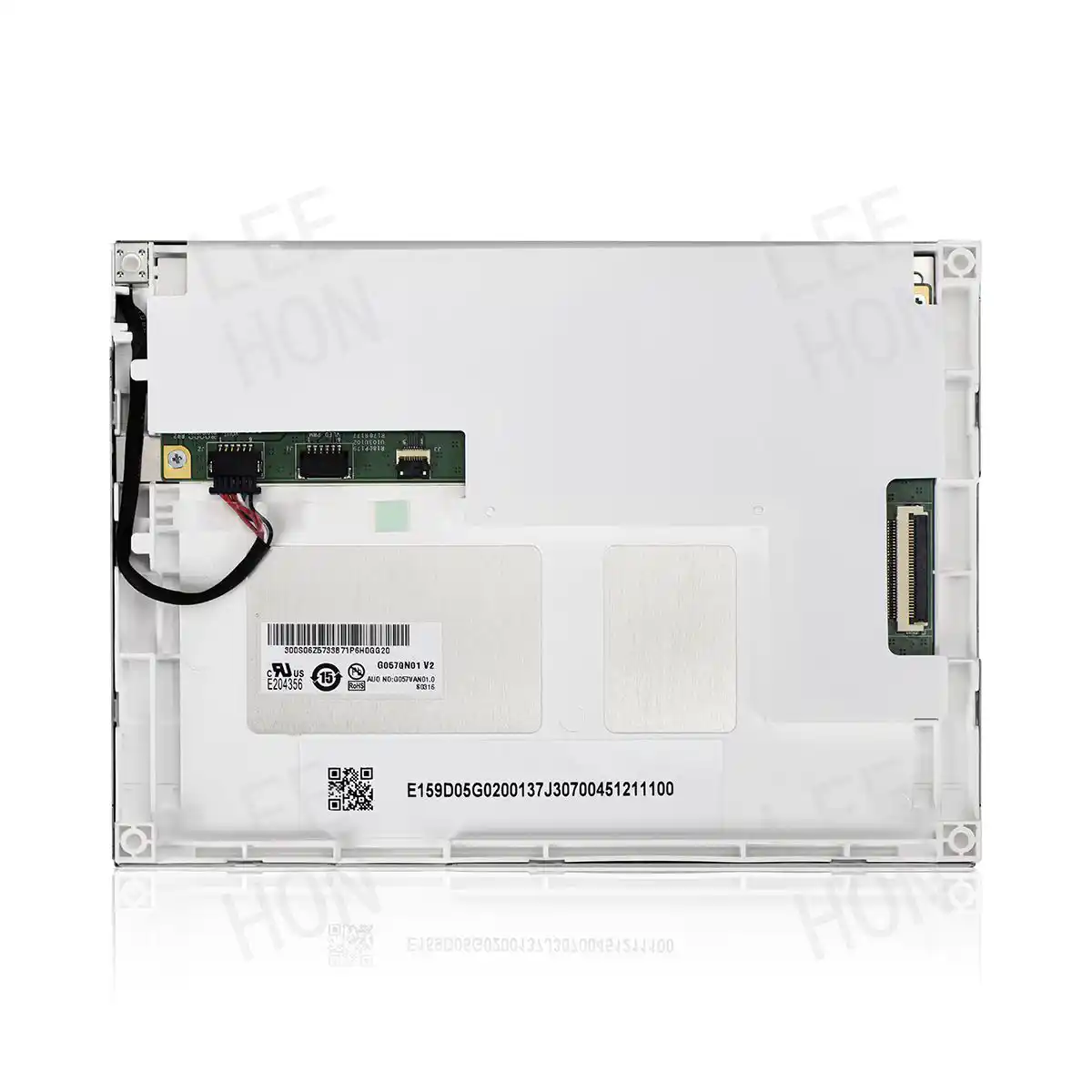

AUO 5.7 inch 320×240 G057QN01 V2
Product overviews:
G057QN01 V2 is designed for industrial display applications with QVGA (320 x RGB x 240) resolution and 262k colors (RGB 6-bits). It is composed of a TFT-LCD panel, driver ICs, control and power supply circuits board and backlight unit including LED driver circuit. G057QN01 V2 offers CMOS interface for display signal input.
Supply Status:
Steady supply.
| Brand: | AUO |
| Model P/N: | G057QN01 V2 |
| Diagonal Size: | 5.7 inch |
| Pixels: | 320×240 |
| Pixel Pitch(mm): | 0.36 x 0.36 mm |

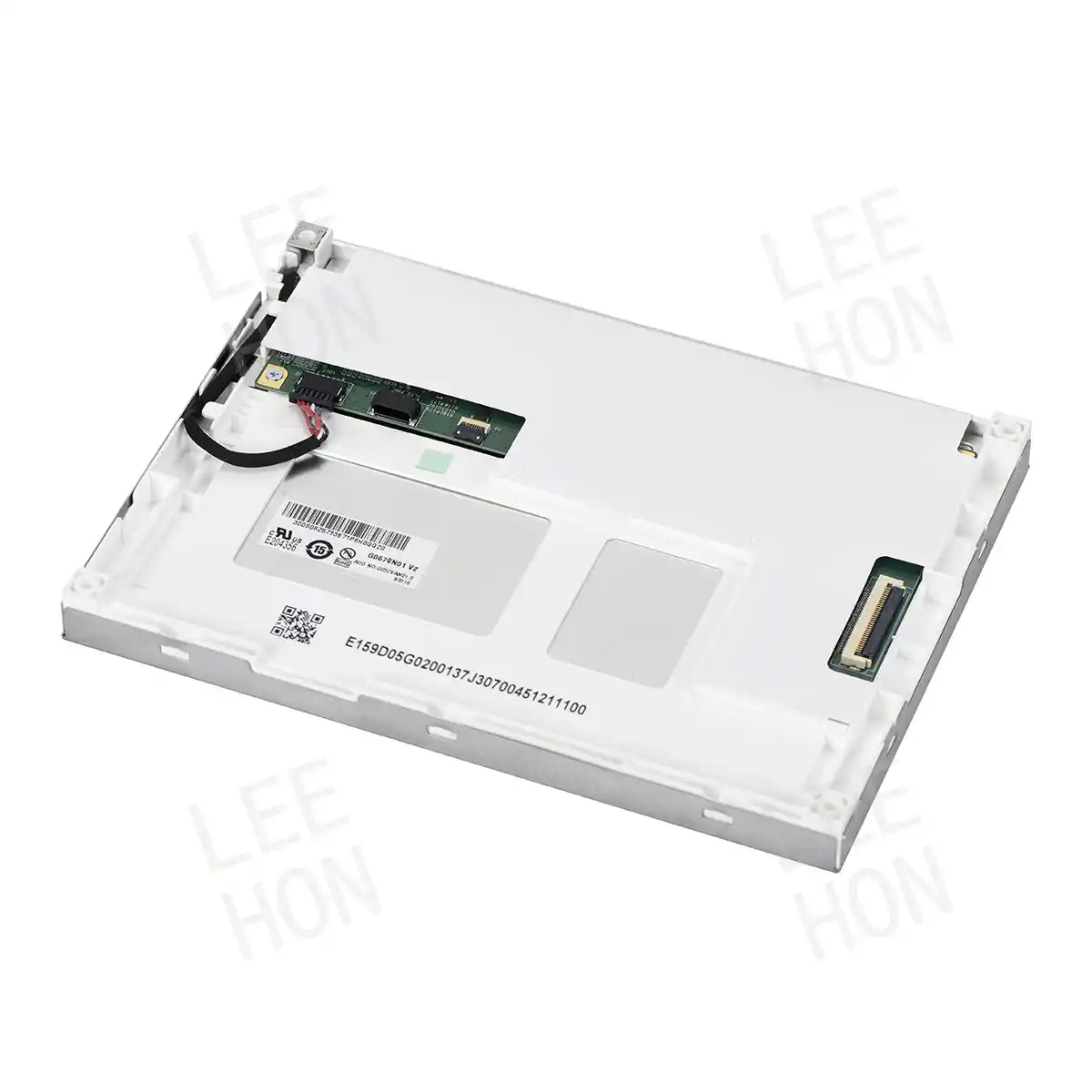

| Interface Type: | CMOS,RGB |
| Luminance: | 800 cd/m² |
| Viewing Angle: | Typ.：70/70/80/80 |

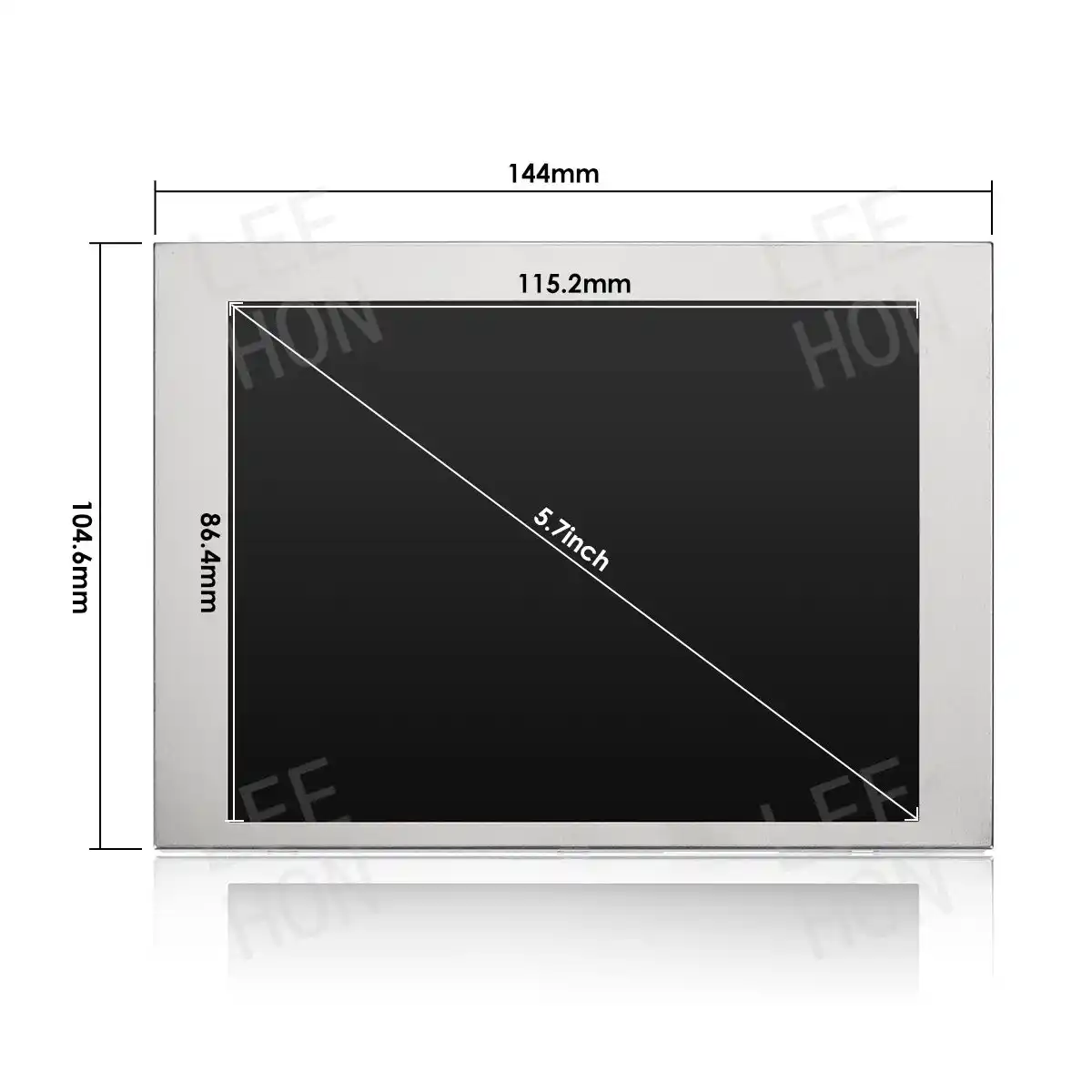

| Active Area(mm): | 115.2(H) x 86.4(V) mm |
| Physical Size(mm): | 144.0(H)x 104.6(V) x 12.3(D) (typ.) mm |
| Contrast Ratio: | Typ.：800:1;Min：500:1 |
| Response Time: | Typ.25;Max 35 |
| Work Mode: | TN, Normally White |
| Surface Treatment: | Anti-Glare, Hardness 3H |
| Color Depth: | 262K colors |
| Backlight: | WLED , 50K hours , with LED Driver |
| Input Voltage: | 3.3 V |
| Storage Temp: | -30 ~ +85 (°C) |
| Operating Temp: | -30 ~ +85 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 150g (typ.), 165g (max.) |
| Package: | Max. capacity: 60 pieces TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
