NV156FHM-N42
Product name:

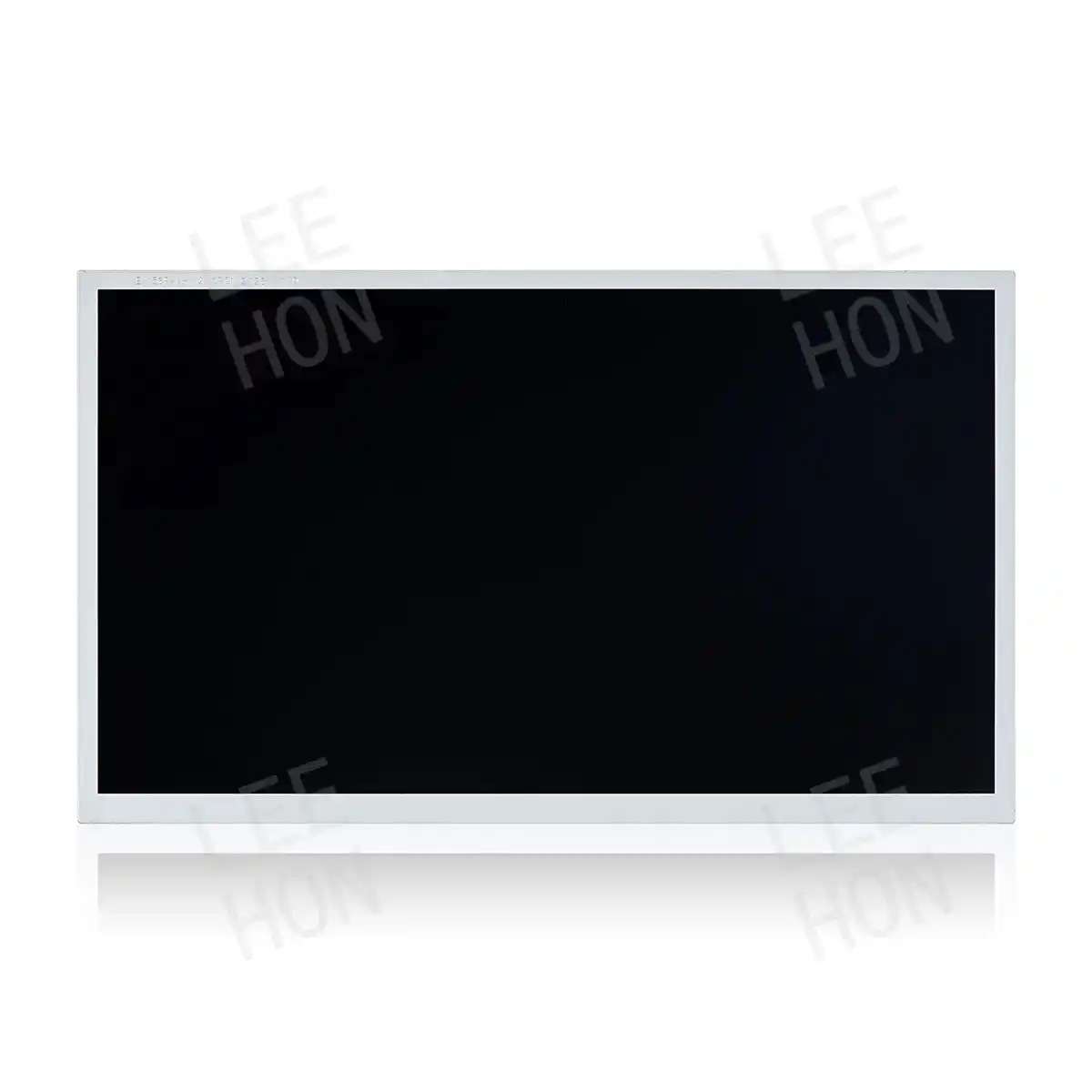

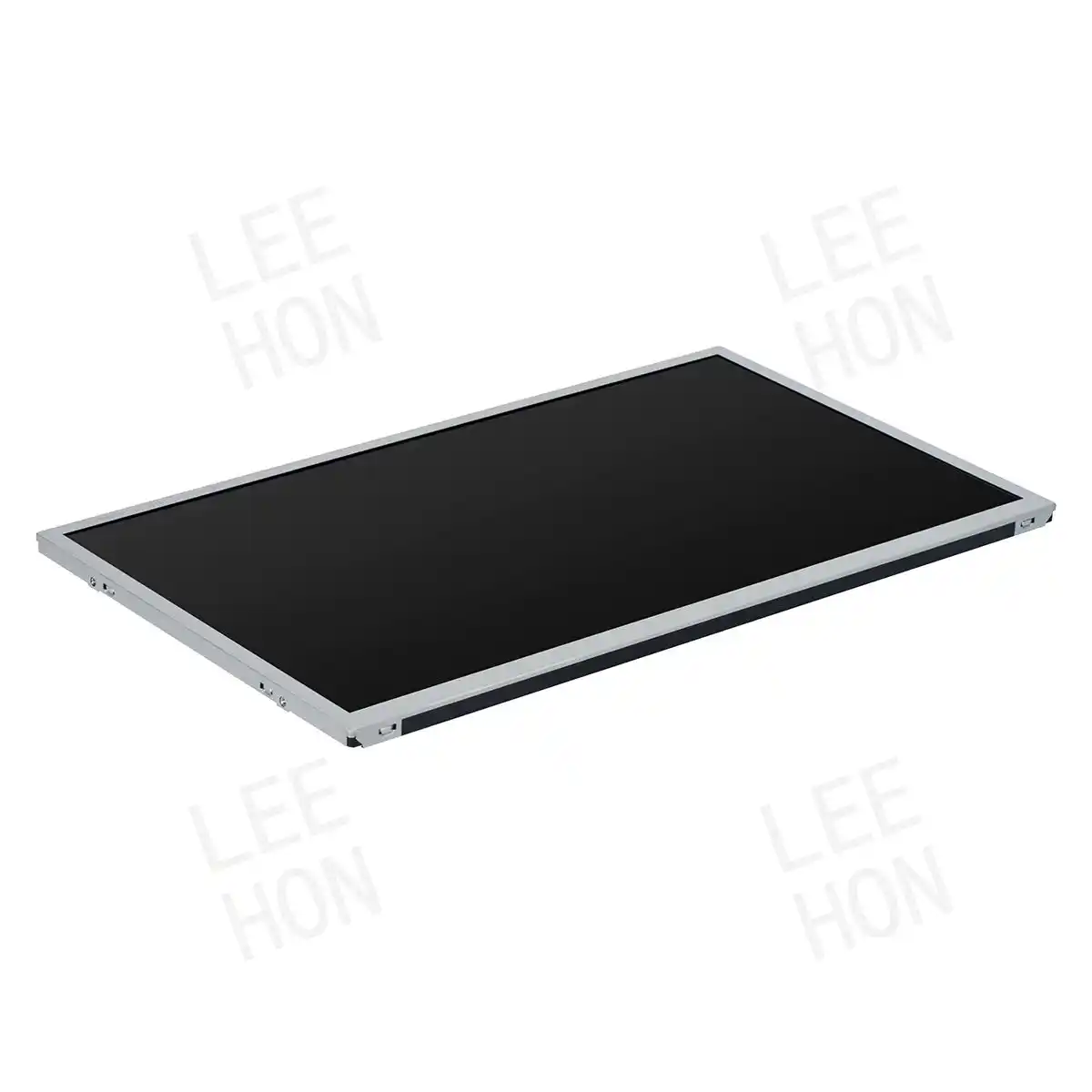

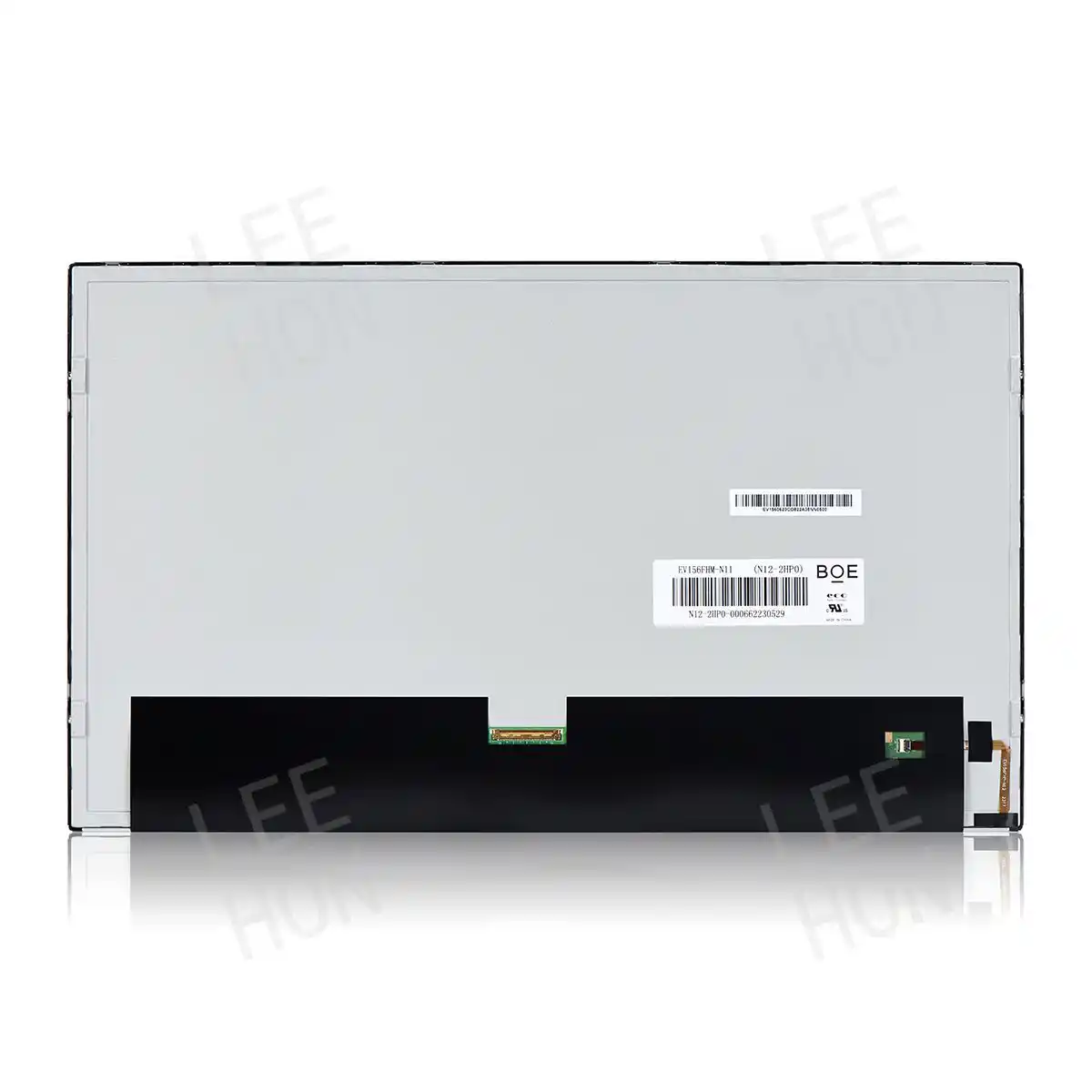

BOE 15.6 inch 1920×1080 NV156FHM-N42
Product overviews:
NV156FHM-N42 V8.0 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 15.6 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080verticalpixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this module is a low reflection and higher color type. Therefore, this module is suitable for Notebook PC. The LED Driver for back-light driving is built in this model. All input signals are eDP1.2 interface compatible.
Supply Status:
Steady supply.
| Brand: | BOE |
| Model P/N: | NV156FHM-N42 |
| Diagonal Size: | 15.6 inch |
| Pixels: | 1920×1080 |
| Pixel Pitch(mm): | 0.17925 (H) X 0.17925 (V) mm |

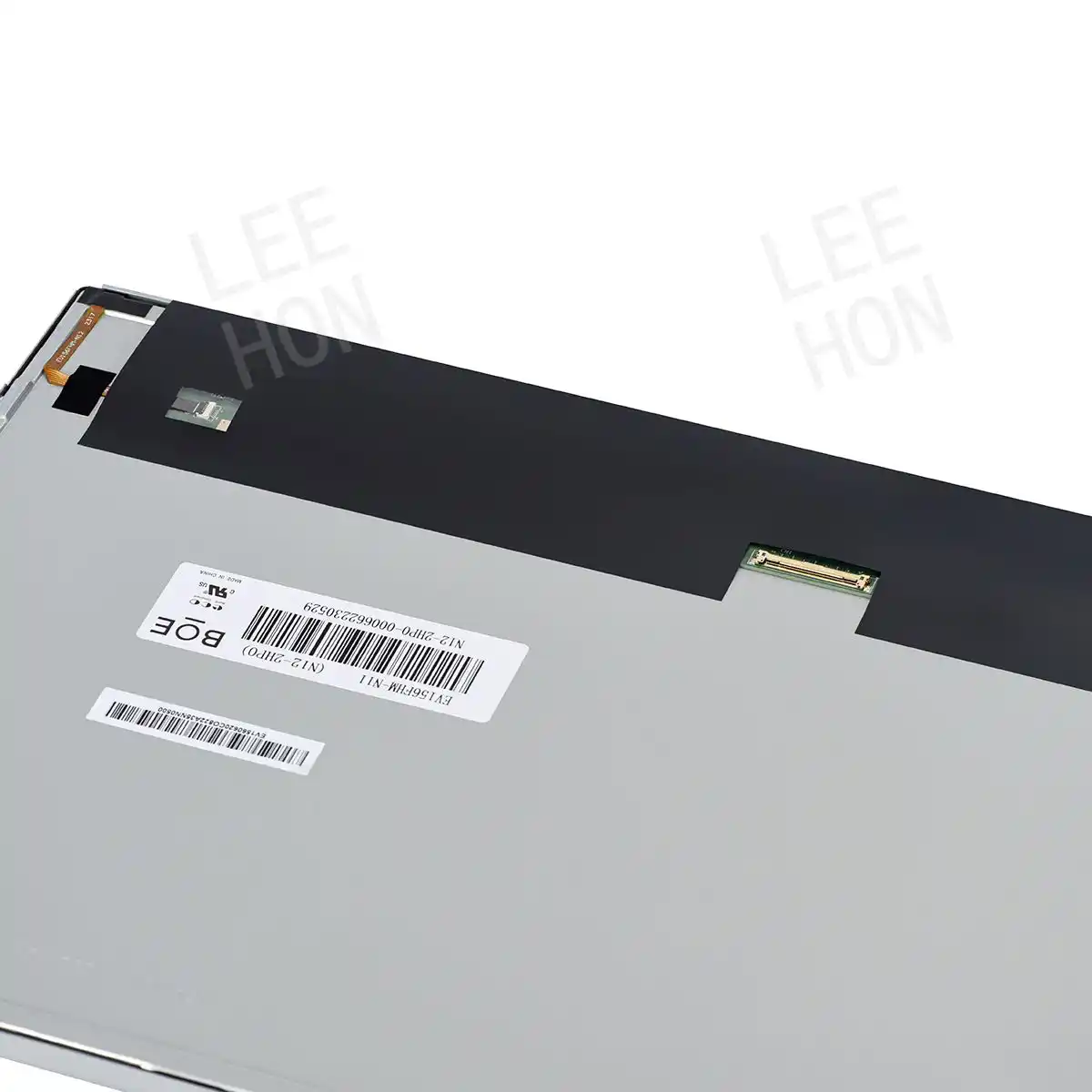

| Interface Type: | eDP |
| Luminance: | 250 cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.) |

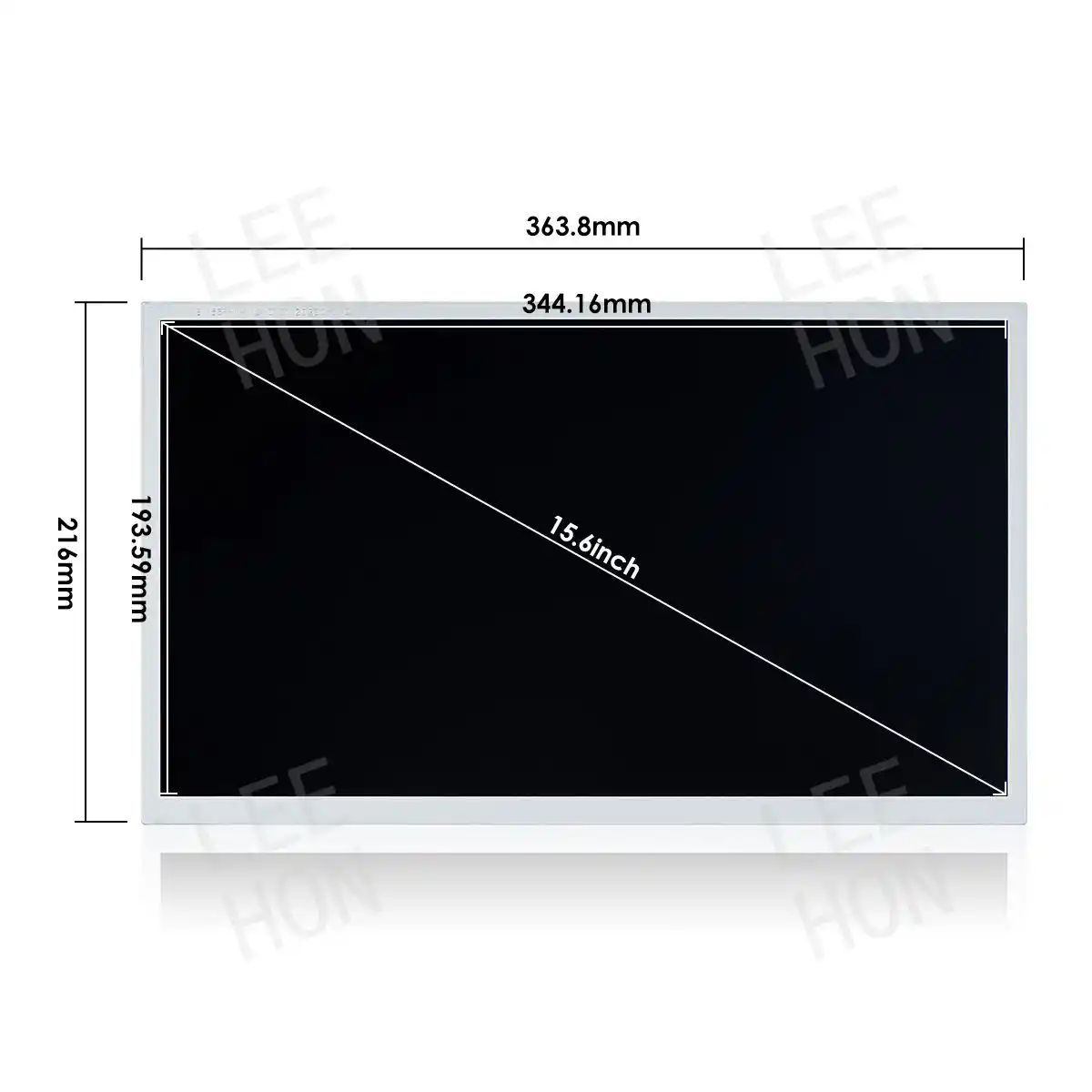

| Active Area(mm): | 344.16 (H) × 193.59 (V) mm |
| Physical Size(mm): | 359.5(H)*223.8(V) (W/PCB)*3.2(Max) mm |
| Contrast Ratio: | 800:1 (Typ.)；600:1(Min) |
| Response Time: | 35/30 (Typ.)(Tr/Td) (ms) |
| Work Mode: | Normally Black |
| Surface Treatment: | Anti-Glare |
| Color Depth: | 262K |
| Backlight: | WLED,15 K hours withLED |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -20 ~ 60 °C |
| Operating Temp: | 0 ~ 50 °C |
| Touchscreen: | without |
| Net Weight: | 380 (max) g |
| Package: | Max capacity:30 pcs TFT-LCD module per carton |

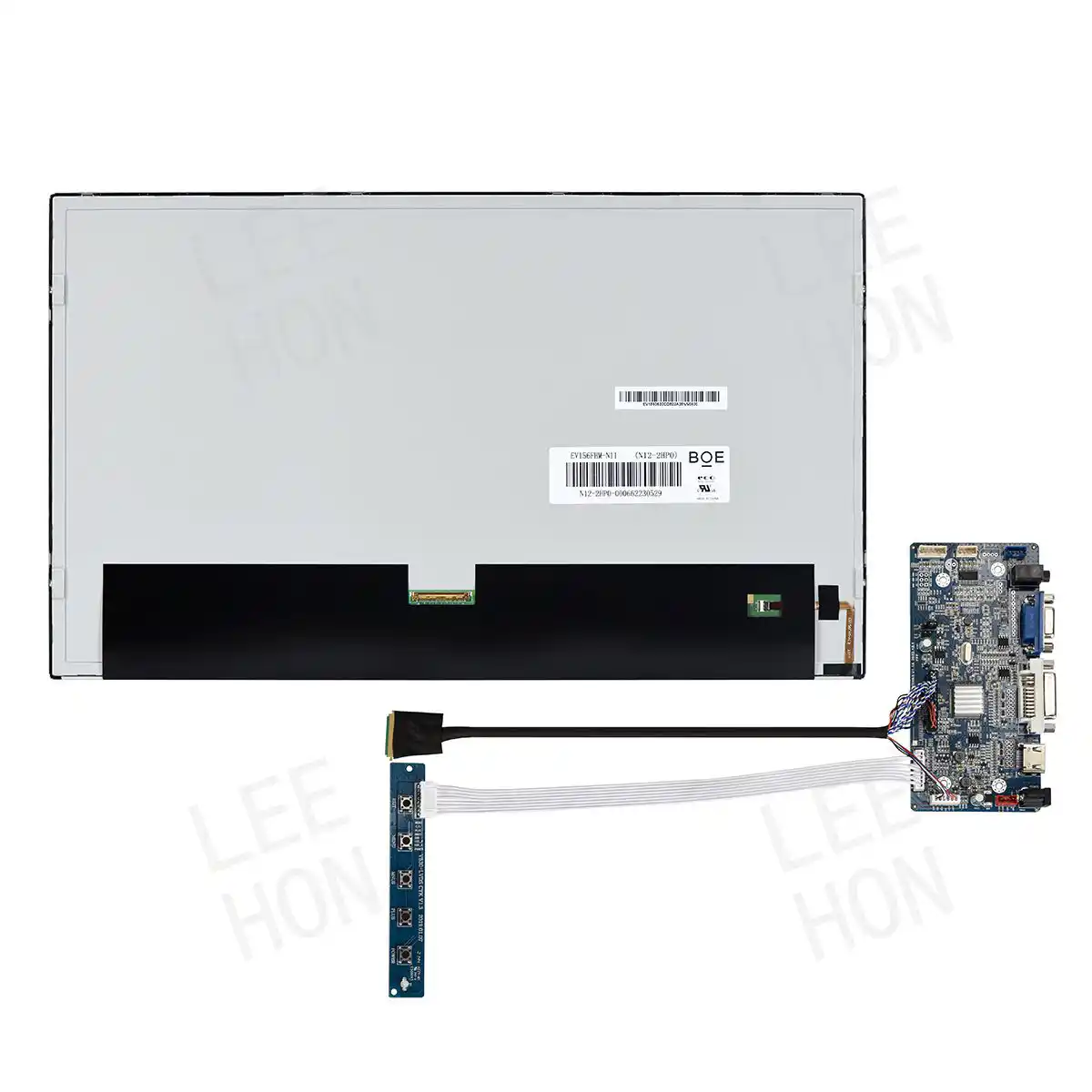

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
