Product model:
More parameters
G156XW01 V1
Product name:
AUO 15.6 inch 1366x768 G156XW01 V1
Product overviews:
This specification applies to the 15.6 inch-wide Color a-Si TFT-LCD Module G156XW01 The display supports the HD - 1366(H) x 768(V) screen format and 16.2M colors (RGB 6-bits + 2-FRC data). All input signals are LVDS interface and this module contains with an LED driver for backlight.
Supply Status:
Steady supply.
| Brand: | AUO |
| Model P/N: | G156XW01 V1 |
| Diagonal Size: | 15.6 inch |
| Pixels: | 1366x768 |
| Pixel Pitch(mm): | 252 ×252 mm |

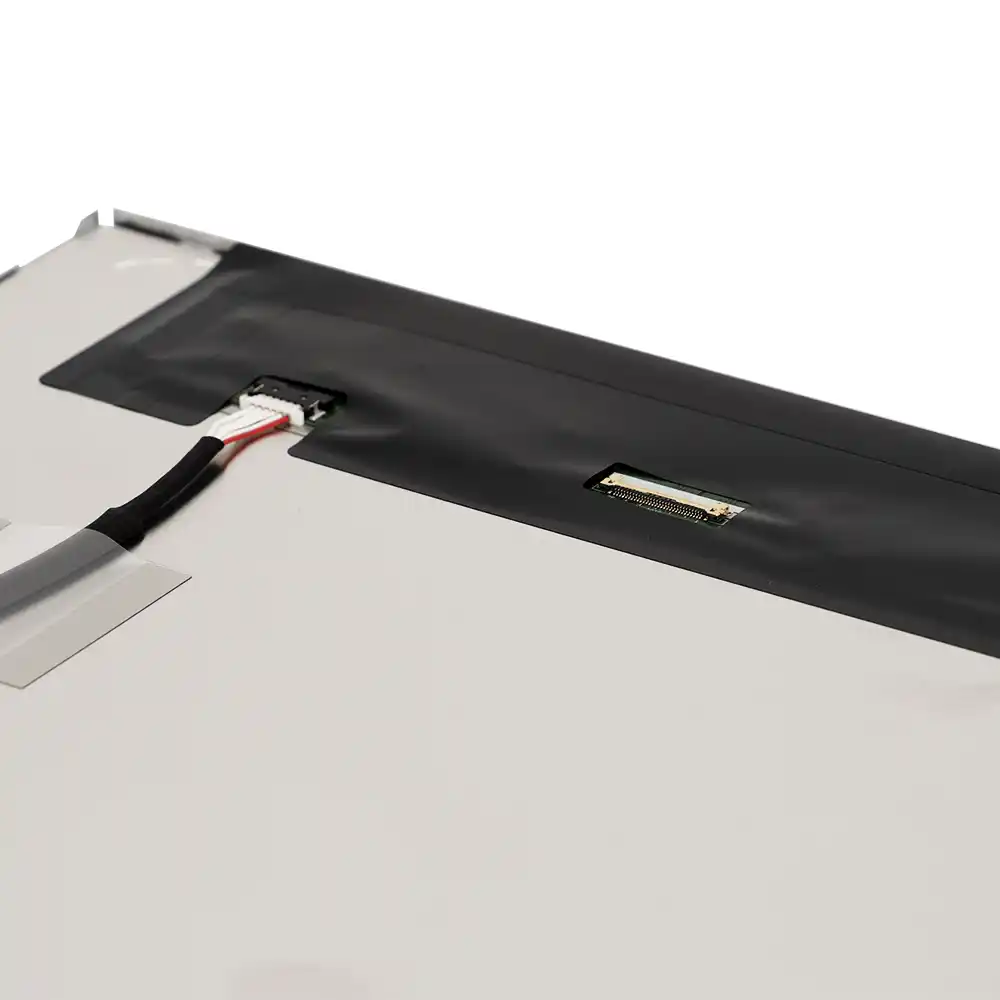

| Interface Type: | LVDS |
| Luminance: | 400 cd/m² |
| Viewing Angle: | 85/85/80/80 (Typ.) |

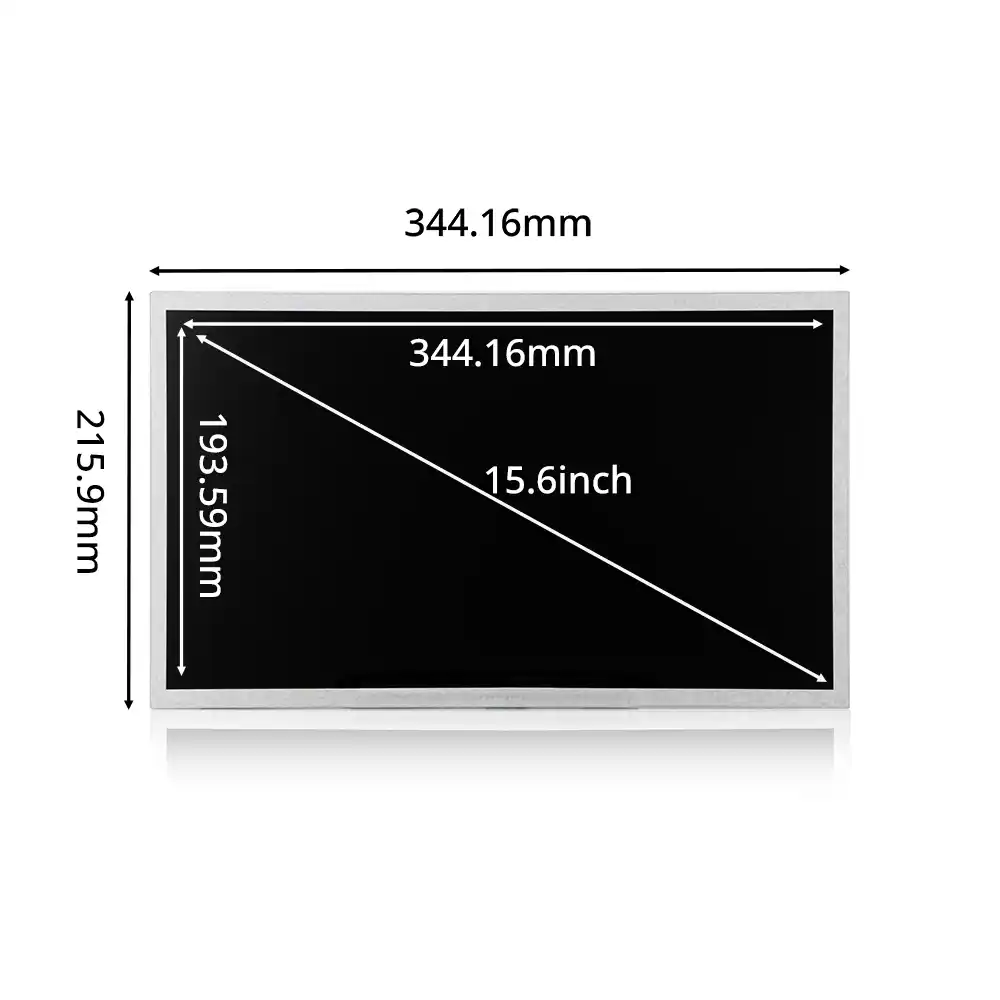

| Active Area(mm): | 344.232 (H) x 193.536 (V) |

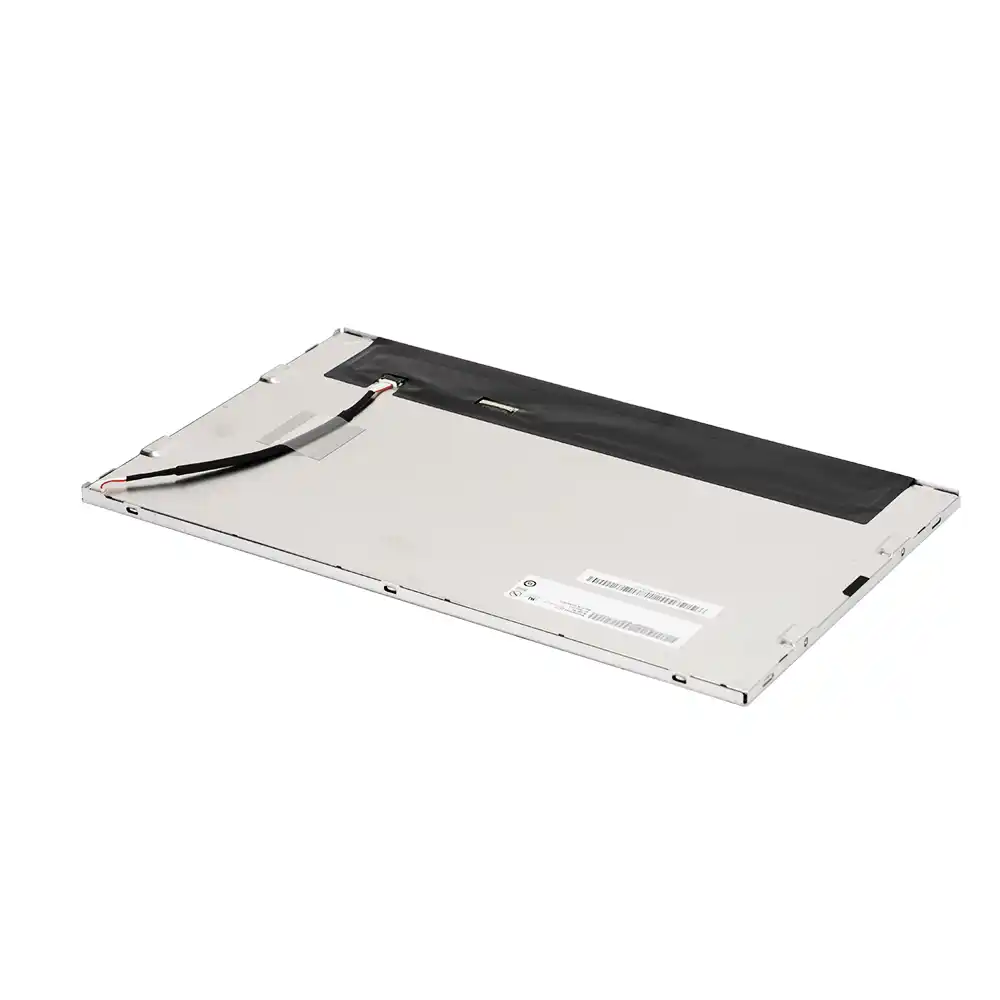

| Physical Size(mm): | 363.8(W) X 215.9(H) X 16.85 (D) Typ. |
| Contrast Ratio: | 500:1 |
| Response Time: | 8 ms |
| Work Mode: | TN Mode, Normally White |
| Surface Treatment: | Anti-Glare, 3H |
| Color Depth: | 16.2M colors (RGB 6-bit + 2-FRC ) |
| Backlight: | WLED,50K hours withLED |
| Input Voltage: | 5.0V (Typ.) |
| Storage Temp: | -20 ~ 60 °C |
| Operating Temp: | 0 ~ 60 °C |
| Touchscreen: | without |
| Net Weight: | 1250 (Typ.), 1350(Max.) |
| Package: | Max capacity:11 pcs TFT-LCD module per carton |
