EV156FHM-N10
Product name:
BOE 15.6 inch 1920×1080 EV156FHM-N10
Product overviews:

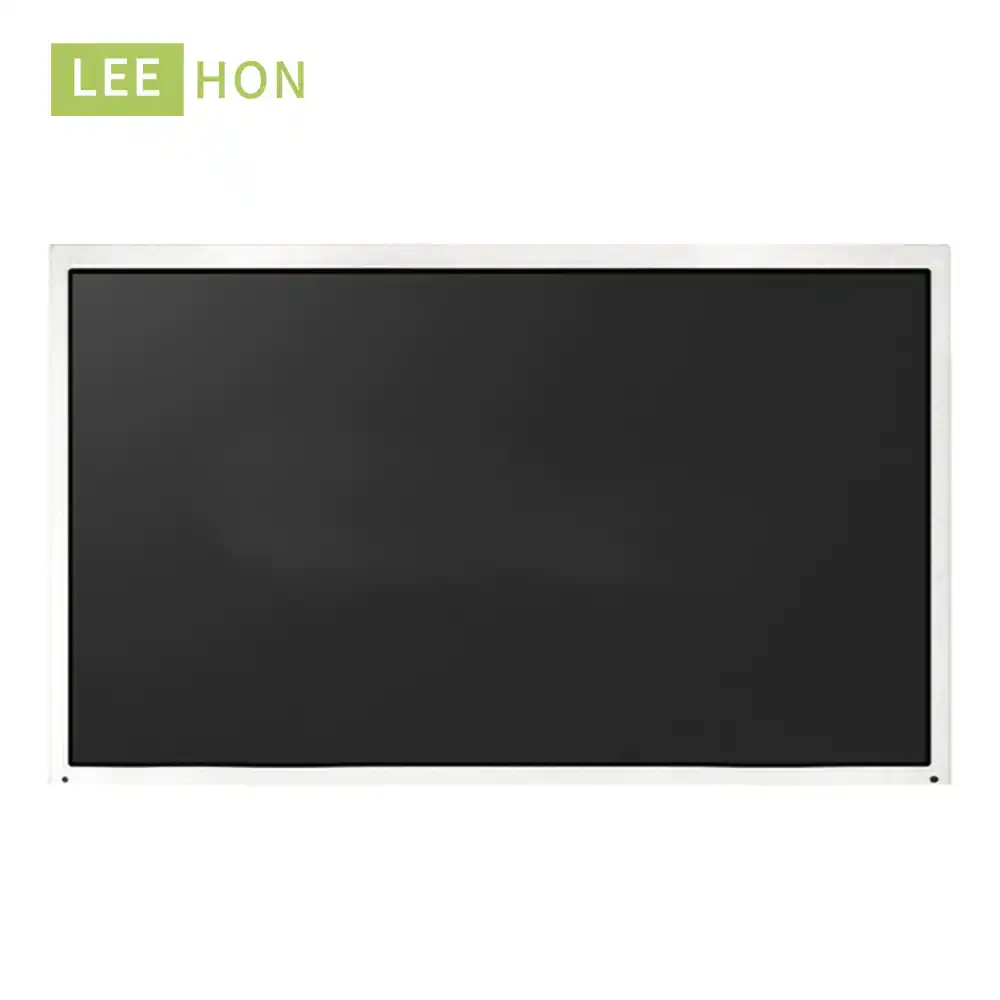

The EV156FHM-N10 is a 15.6 inch a-Si TFT-LCD panel by BOE, featuring FHD (1920x1080) resolution, 16:9 aspect ratio, and WLED backlight with an LED driver. It offers 500 cd/m² brightness, 1200:1 contrast, and wide viewing angles of 89/89/89/89 (L/R/U/D). The module, without touch, has a hard coating surface and supports MIPI interface. Designed for industrial and medical applications, it operates within 0 to 60°C and can be stored at -20 to 60°C.
Supply Status:
Steady supply.
| Brand: | BOE |
| Model P/N: | EV156FHM-N10 |
| Diagonal Size: | 15.6 inch |
| Pixels: | 1920×1080 |
| Pixel Pitch(mm): | 0.05975(H)×0.17925(V) mm |

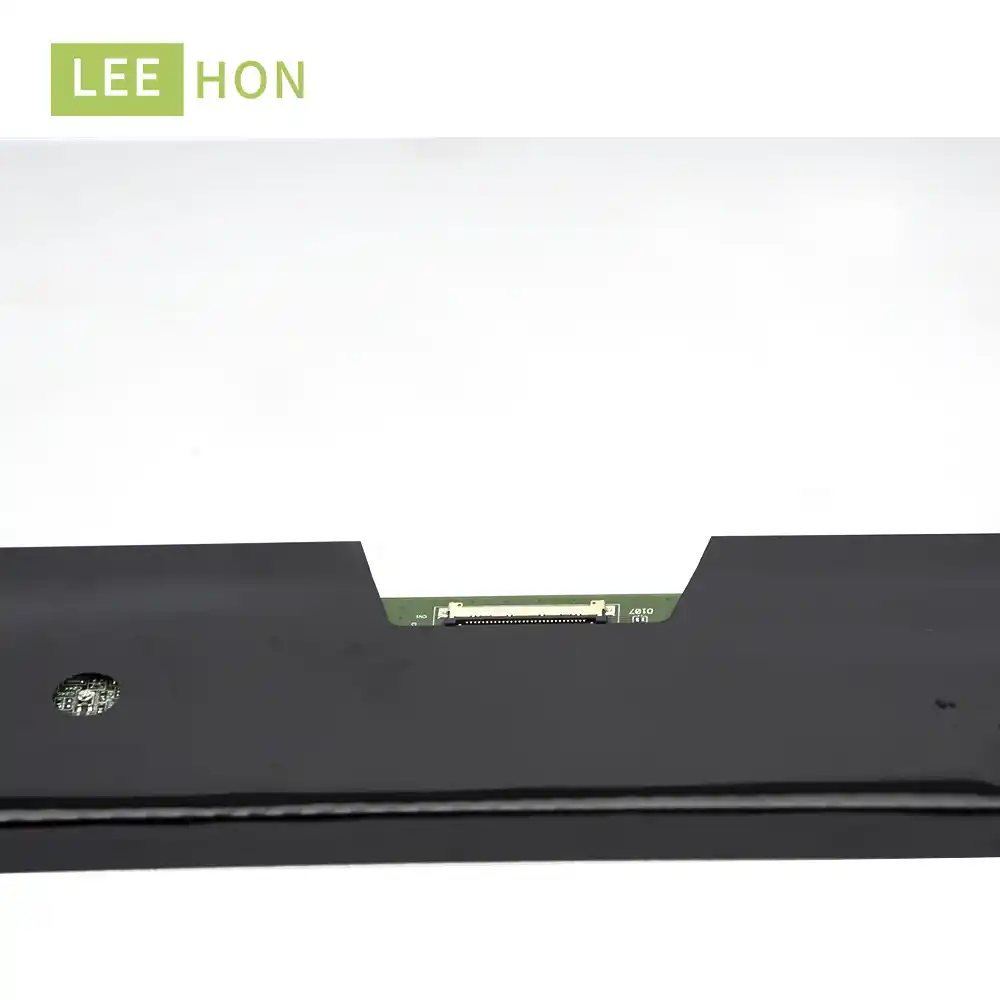

| Interface Type: | eDP |
| Luminance: | 500 cd/m² |
| Viewing Angle: | 89/89/89/89(typ.) |

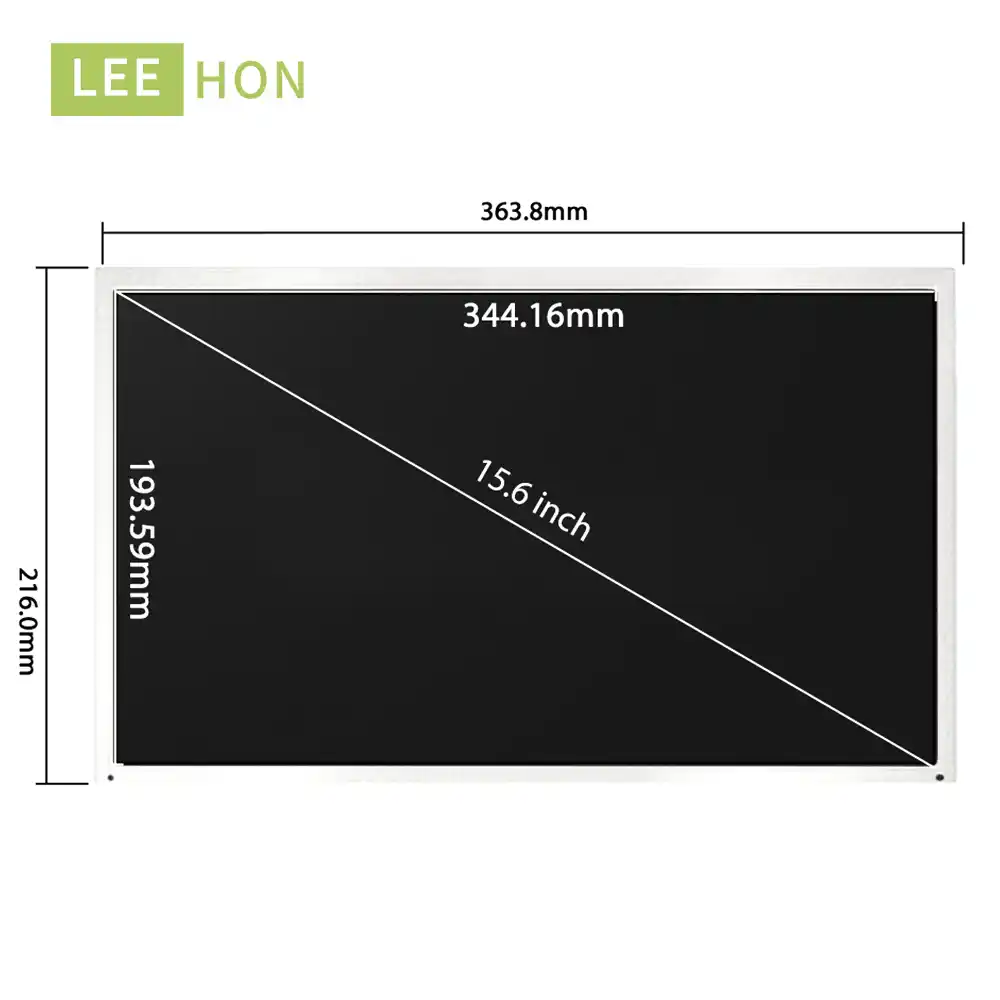

| Active Area(mm): | 344.16(H)x193.59(V) mm |
| Physical Size(mm): | 363.8(H)x216(V)x9.6(Typ) mm |
| Contrast Ratio: | 1200:1(typ.) |
| Response Time: | 20(typ.) (ms) |
| Work Mode: | Normally Black |
| Surface Treatment: | HC |
| Color Depth: | 16.7M(6bits+Hi FRC) |
| Backlight: | WLED,0K hours,with LED Driver |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -20 ~ 60 °C |
| Operating Temp: | 0 ~ 60 °C |
| Touchscreen: | without |
| Net Weight: | 850(max.)g |
| Package: | Package Quantity in one Box: 15pcs |

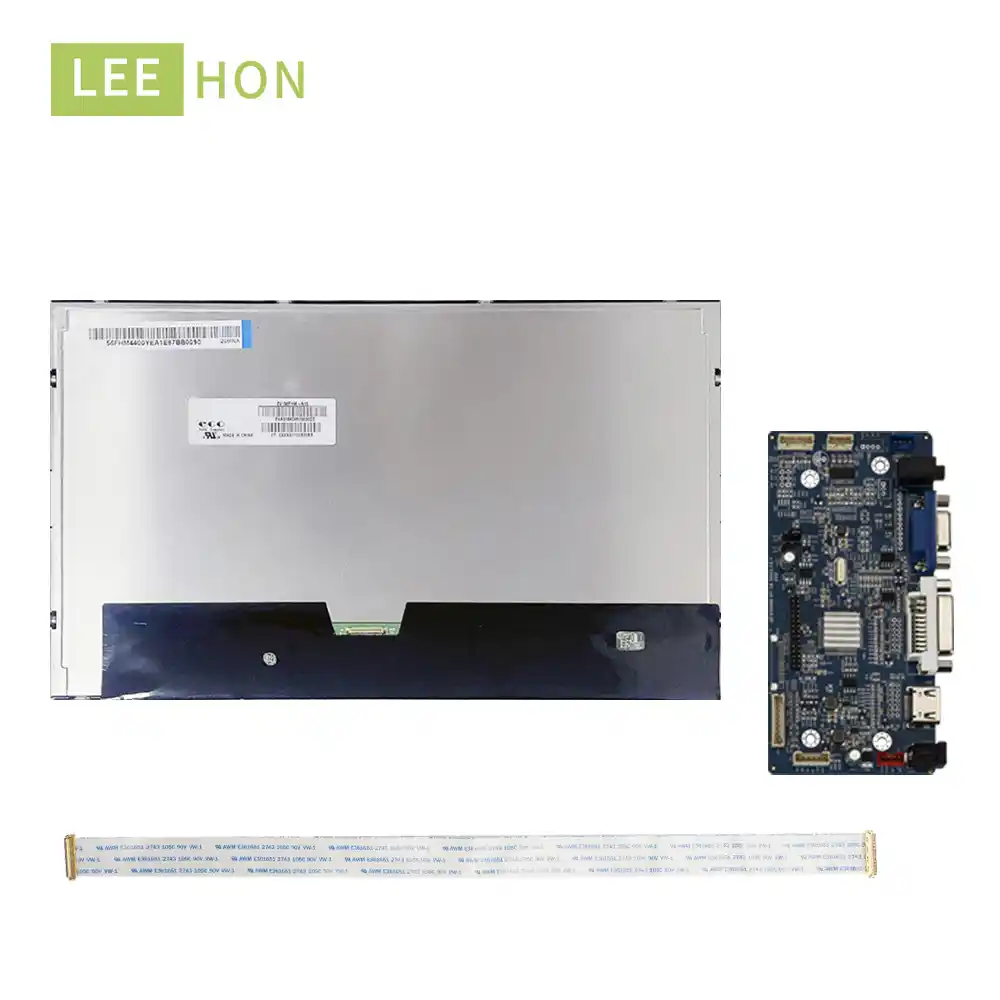

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
