Market Evaluation of BOE EV101WXM-N80 10.1-inch LCD Module

The BOE EV101WXM-N80 10.1-inch LCD module has its unique performance in the market, which is evaluated from different dimensions as follows:

Performance

• Display Effect : The brightness is 400 cd/m² (Typ.), and the contrast ratio is 900 : 1 (Typ.) (transmissive), which can present clear images. It has a full viewing angle, with a viewing angle of 85/85/85/85 (Typ.) (CR≥10), and there is no obvious color deviation or brightness reduction when watching the screen from various angles. It can display 16.7M (8-bit) colors, which is relatively rich in color, but the NTSC ratio is 48%, and it is not top-notch in color gamut coverage.
• Response Time : The response time is 30 (Typ.) (Tr+Td) (ms), which can meet the general usage scenarios, and the trailing phenomenon is not serious when switching dynamic images.
• Temperature Adaptability : The operating temperature range is -20 ~ 70 °C, and the storage temperature is -30 ~ 80 °C, which can adapt to various environmental temperatures and has good stability.

Application Fields

• Medical Imaging Field : It is suitable for the medical imaging field, and its display performance can meet the basic viewing requirements of medical images.
• Industrial Equipment and Security Field : It can also be used for CNC systems, industrial tablet computers, security monitoring equipment and other products.

Product Specifications

In terms of product specifications, the resolution is 1280 (RGB) ×800 (WXGA), the pixel configuration is RGB vertical stripe, and the dot pitch is 0.0565×0.1695 mm. The appearance size is 233.2 (W) ×152.9 (H) mm, the appearance thickness is 6.7/10.4 (Typ./Max.) mm, and the weight is 505g (Typ.), which is conducive to equipment integration with its lightweight and thin design. It adopts LVDS (1 ch, 8-bit) signal interface, and the panel voltage is 3.3V (Typ.), which reduces power consumption and cost with low voltage drive.

Market Advantages

As a well-known brand, BOE has guaranteed product quality and supply stability, and it is in mass production, with a supply volume that can meet market demand. In terms of price, it is relatively competitive, and there are differences in quotations from different merchants, such as some quoting 129 yuan, and some negotiating.

Shortcomings

• Poor Visibility in Sunlight : It is not suitable for use in outdoor strong light environments.
• Not High Color Gamut Coverage : It is not very suitable for professional image and design fields with extremely high color requirements.

Recommended Competitors for BOE EV101WXM-N80 10.1-inch LCD Module

The competitors of BOE EV101WXM-N80 10.1-inch LCD module can choose similar products with similar size and application direction, such as BOE's EV101WXM-N10. The following is a comparison:

Appearance Size and Thickness

Interface

Purchase Suggestions for BOE EV101WXM-N80 10.1-inch LCD Module

When considering the purchase of the BOE EV101WXM-N80 10.1-inch LCD module, the following suggestions are for your reference:

• Clarify Usage Requirements : The operating temperature of this module is -20 - 70°C, and the storage temperature is -30 - 80°C. It has features such as a wide viewing angle and white LED backlight, and is suitable for fields such as medical imaging and industrial equipment. Confirm whether your usage scenario and ambient temperature meet its conditions, and whether its performance can meet your actual needs, such as whether the parameters such as resolution 1280(RGB)×800, brightness 400cd/m² (Typ.), and contrast ratio 900:1 (Typ.) (transmissive) meet the usage requirements.
• Choose a Reliable Supplier : Purchase through regular channels, such as LEEHON. You can check the supplier's qualifications, reputation, after-sales service, and other aspects. Refer to other customers' evaluations and feedback to ensure product quality and after-sales protection.
• Pay Attention to Product Details : Carefully understand the various parameters and specifications of the product. In addition to the above-mentioned, you also need to pay attention to pixel arrangement (RGB vertical stripe), dot pitch (0.0565×0.1695 mm), pixel pitch (0.1695×0.1695 mm), panel weight (505g(Typ)), display area (216.96(W)×135.6(H) mm), etc. Also understand the interface type (LVDS(1 ch, 8-bit), terminal interface), to ensure that it can be compatible and connected with your equipment.

User Experience of BOE EV101WXM-N80 10.1-inch LCD Module

The BOE EV101WXM-N80 is a 10.1-inch LCD module launched by BOE. The following introduces its user experience from multiple aspects:

• Basic Parameters :

  • Size and Resolution : 10.1-inch screen, with a resolution of 1280(RGB)×800 (WXGA), pixel arrangement is RGB vertical stripe, aspect ratio is 16:10, and the display area is 216.96(W)×135.6(H)mm, which can clearly present images and text content.

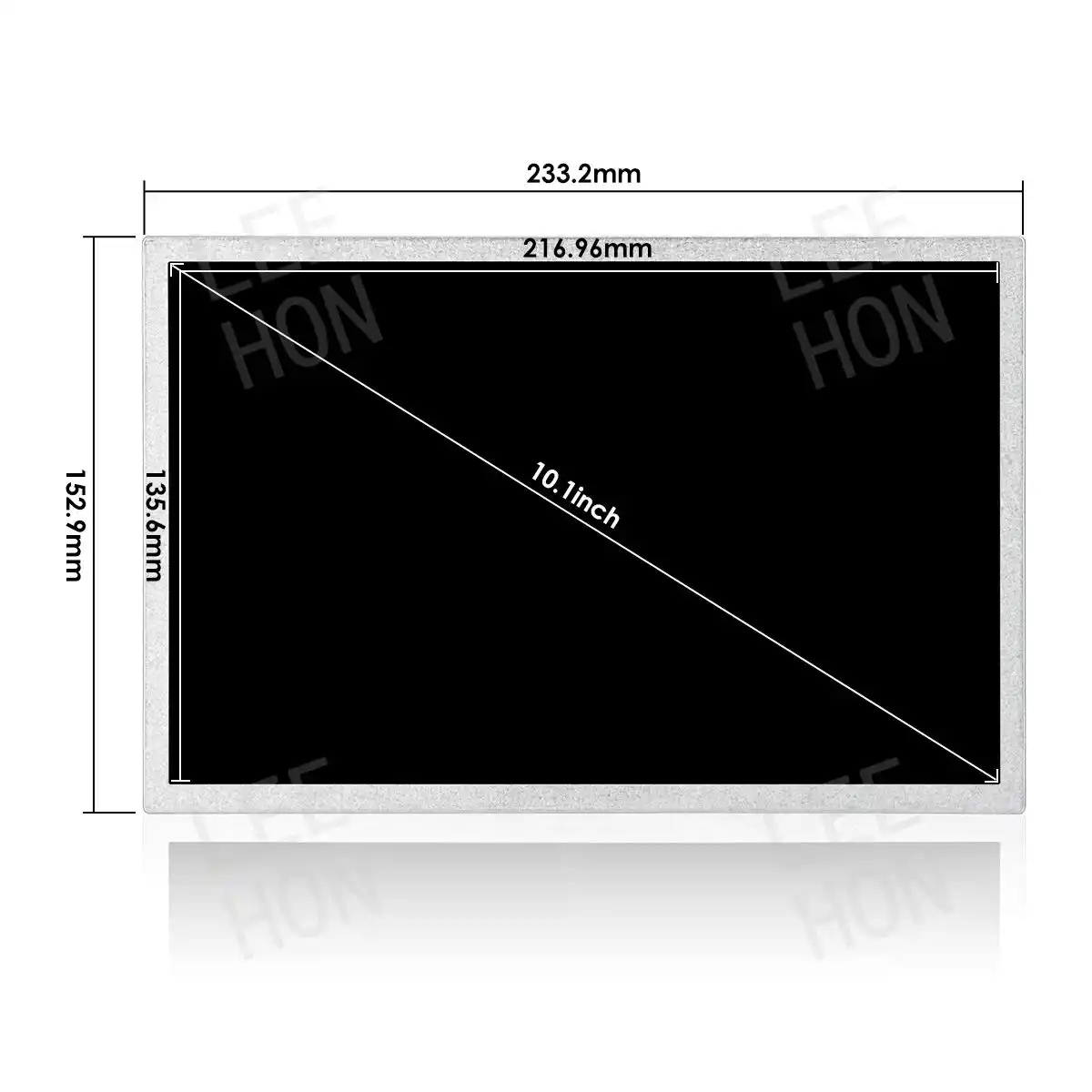

  • Appearance and Weight : The appearance size is 233.2(W)×152.9(H)mm, the thickness is 6.7/10.4 (Typ./Max.)mm, and the weight is 505g(Typ). The lightweight and thin design is easy to install and carry.
• Optical Performance :

  • Brightness and Contrast : The brightness is 400cd/m² (Typ.), and the contrast ratio is 900:1 (Typ.). In general indoor environments, the picture is bright and clear, with vivid colors, no overexposure in bright parts, and details preserved in dark parts.
  • Viewing Angle and Color : The viewing angle is 85/85/85/85 (Typ.)(CR≥10), and the full viewing angle design ensures that the picture's brightness, color, and contrast change little when viewed from different angles. The display color is 16.7M (8-bit), and the display color gamut is 48% NTSC (CIE1931), which can meet the color requirements of most daily scenarios.
  • Response Time : The response time is 30 (Typ.)(Tr+Td) (ms). When switching dynamic images, the trailing phenomenon is not obvious, and watching videos and operating dynamic interfaces is relatively smooth.
• Adaptability to Working Environment : The operating temperature range is -20 - 70°C, and the storage temperature range is -30 ~ 80°C, which can adapt to various temperature environments and work stably and reliably in different climate regions or industrial environments with temperature changes.

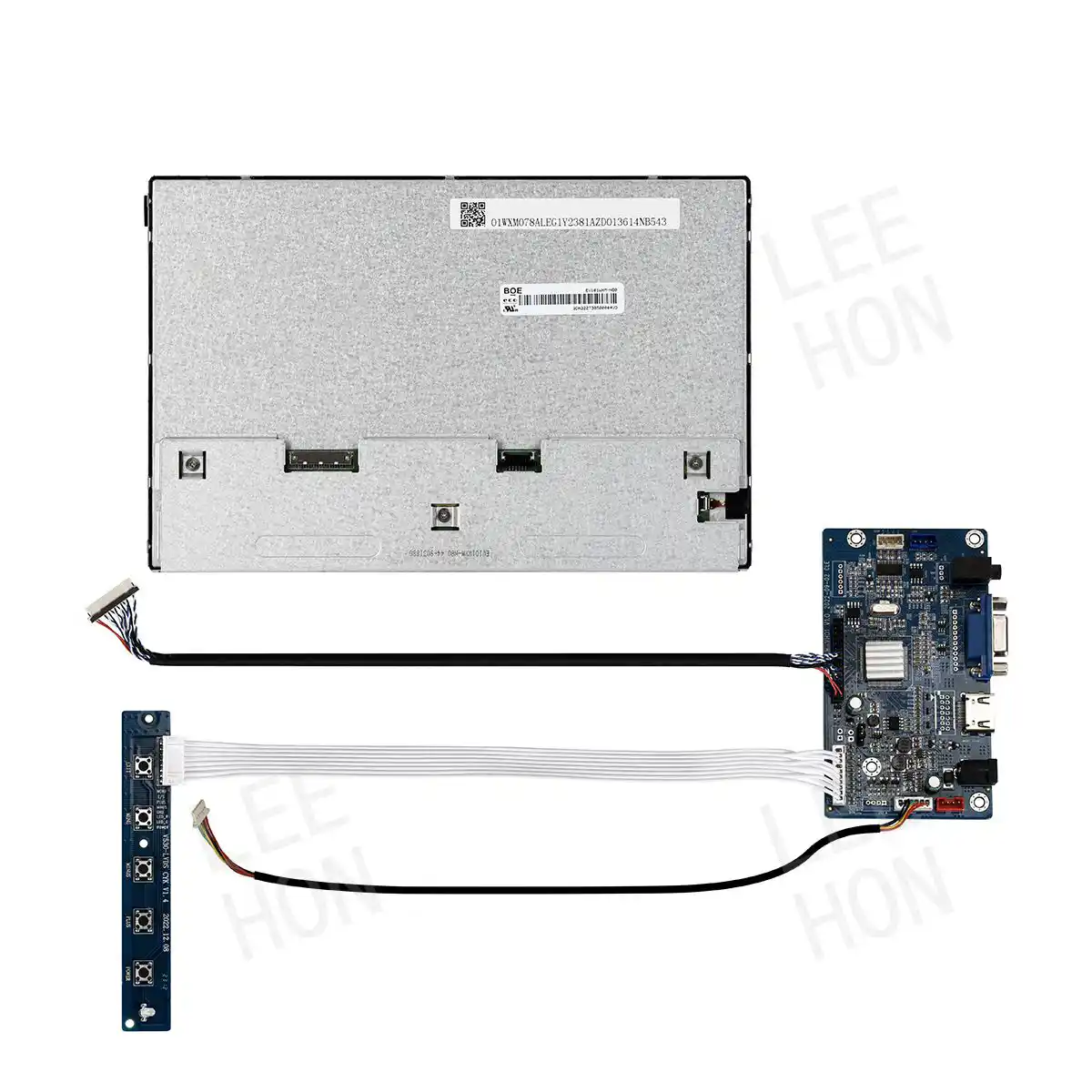

• Interface and Signal Transmission : The signal interface is LVDS(1 ch, 8-bit), the interface type is terminal, the number of interfaces is 1 pcs, and the number of interface pins is 6 pins. This type of interface has stable transmission and can effectively transmit image signals to ensure picture quality.

• Light Emitting System : It adopts side-entry WLED light source, with a light source life of 30K(Min.) (Hours), providing a stable backlight source, long life, reducing the trouble of frequent light source replacement, and reducing usage costs.

Specifications of BOE EV101WXM-N80 10.1-inch LCD Module

The following are the specifications of the BOE EV101WXM-N80 10.1-inch LCD module:
