Product model: TCG043WQLBAANN-GN50
Product name:
KYOCERA 043inch 480(RGB)×272, WQVGA TCG043WQLBAANN-GN50
Product overviews:
TCG043WQLBAANN-GN50 is a 4.3-inch LCD module product launched by Kyocera Display Co., Ltd. (Kyocera) using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch. As a TN, normally white display, and transmissive LCD module product, TCG043WQLBAANN-GN50 can provide a display brightness of 800 cd/m ² with a transmission contrast ratio of 350:1 and a viewing angle of 70/70/60/65 (Typ.) (CR ≥ 10) (L/R/U/D). Its response time is 25 (Typ.) (Tr+Td) ms. Due to the use of a 6-bit+FRC grayscale signal for each pixel, this product can display 16.2M colors and achieve a color saturation of 46% (NTSC). In terms of backlight, this product uses a WLED side entry light source with a lifespan of 100K hours and does not include backlight drivers. TCG043WQLBAANN-GN50 adopts Parallel RGB (1 ch, 8-bit) signal interface, with a total of 40 pins, connected by FPC, and a screen driving voltage of 3.3V (Typ.)
Supply Status:
Steady supply.
| Brand: | KYOCERA |
| Model P/N: | TCG043WQLBAANN-GN50 |
| Diagonal Size: | 043inch |
| Pixels: | 480(RGB)×272, WQVGA |
| Pixel Pitch(mm): | 0.198×0.198 mm (H×V) |

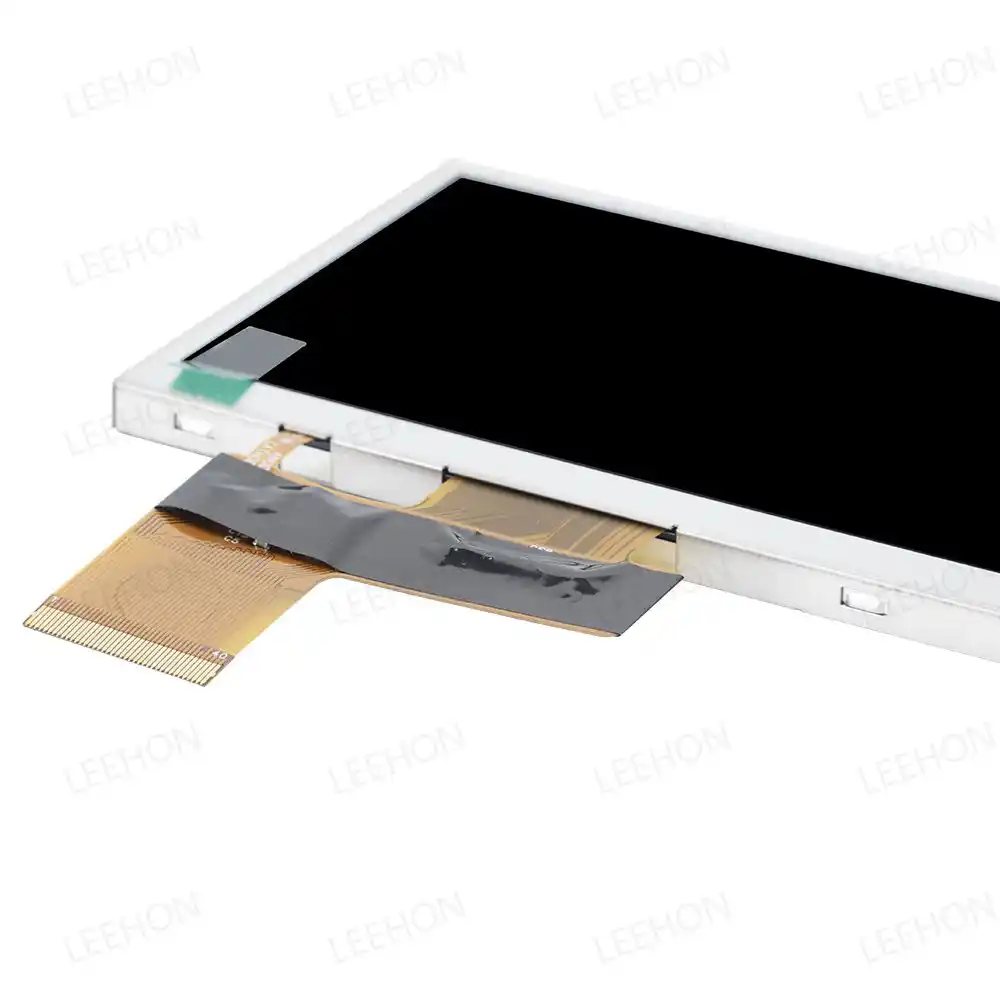

| Interface Type: | Parallel RGB (1 ch, 8-bit) |
| Luminance: | 800cd/m²(Typ.);560 cd/m²(Min.) |
| Viewing Angle: | 70/70/60/65 (Typ.) |
| Active Area(mm): | 95.04(W)×53.856(H) |
| Physical Size(mm): | 105.5×67.2x5.9 mm |
| Contrast Ratio: | 350:1 (Typ.)；245:1(Min) |
| Response Time: | 25 (Typ.)(Tr+Td) ms |
| Work Mode: | Normally White |
| Surface Treatment: | Mirror (Haze 0%) |
| Color Depth: | 16.2M (6-bit + FRC) |
| Backlight: | WLED,100K hours |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -30 ~ 80 °C |
| Operating Temp: | -20 ~ 70 °C |
| Touchscreen: | without |
| Net Weight: | 75.0g |
| Package: | - |
