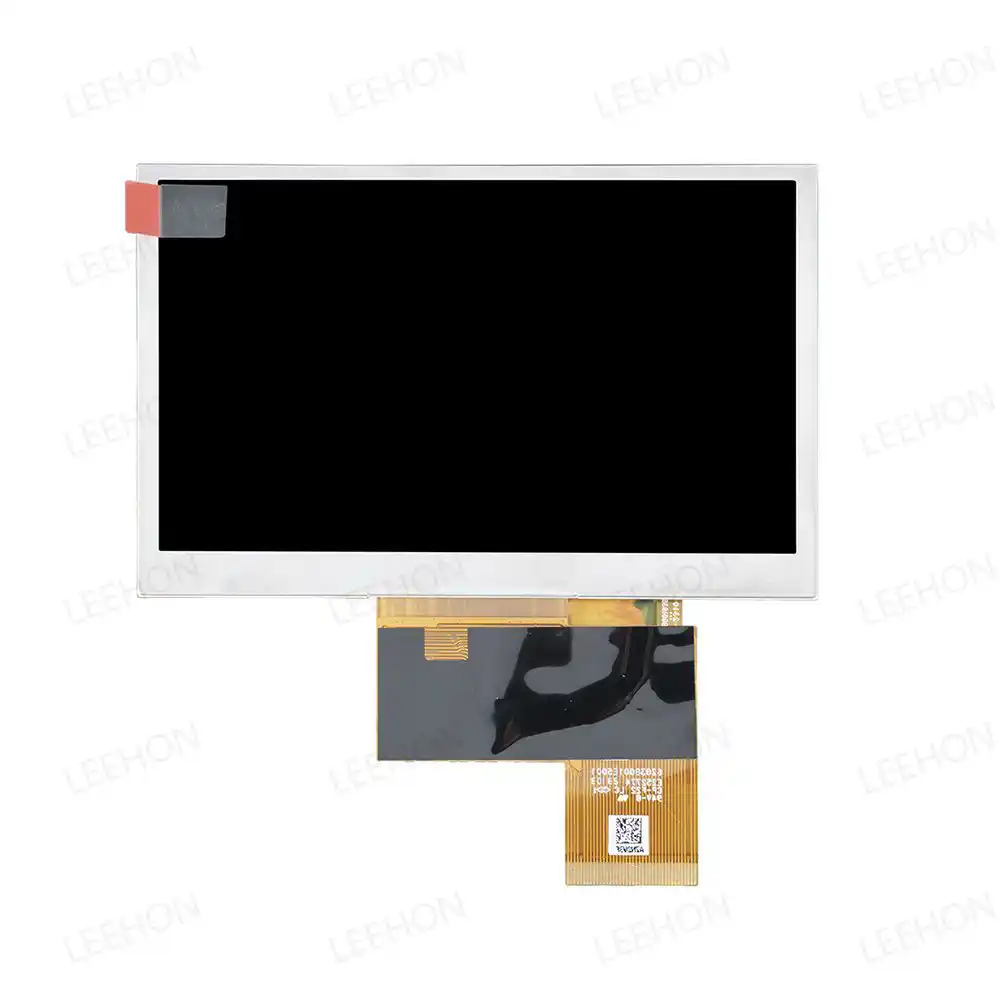

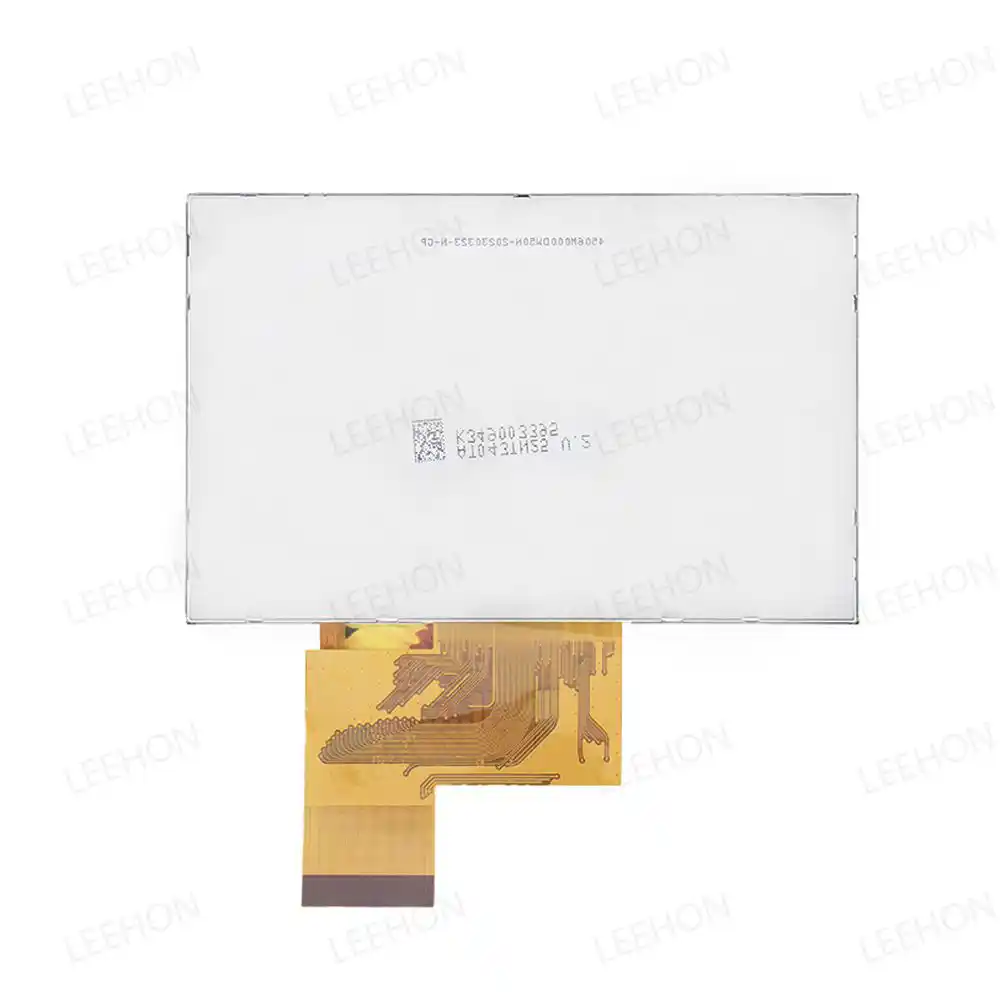

Product model: AT043TN25 V.2
Product name:
INNOLUX 043inch 480(RGB)×272, WQVGA AT043TN25 V.2
Product overviews:
Supply Status:
Steady supply.
| Brand: | INNOLUX |
| Model P/N: | AT043TN25 V.2 |
| Diagonal Size: | 043inch |
| Pixels: | 480(RGB)×272, WQVGA |
| Pixel Pitch(mm): | 0.198×0.198 mm |

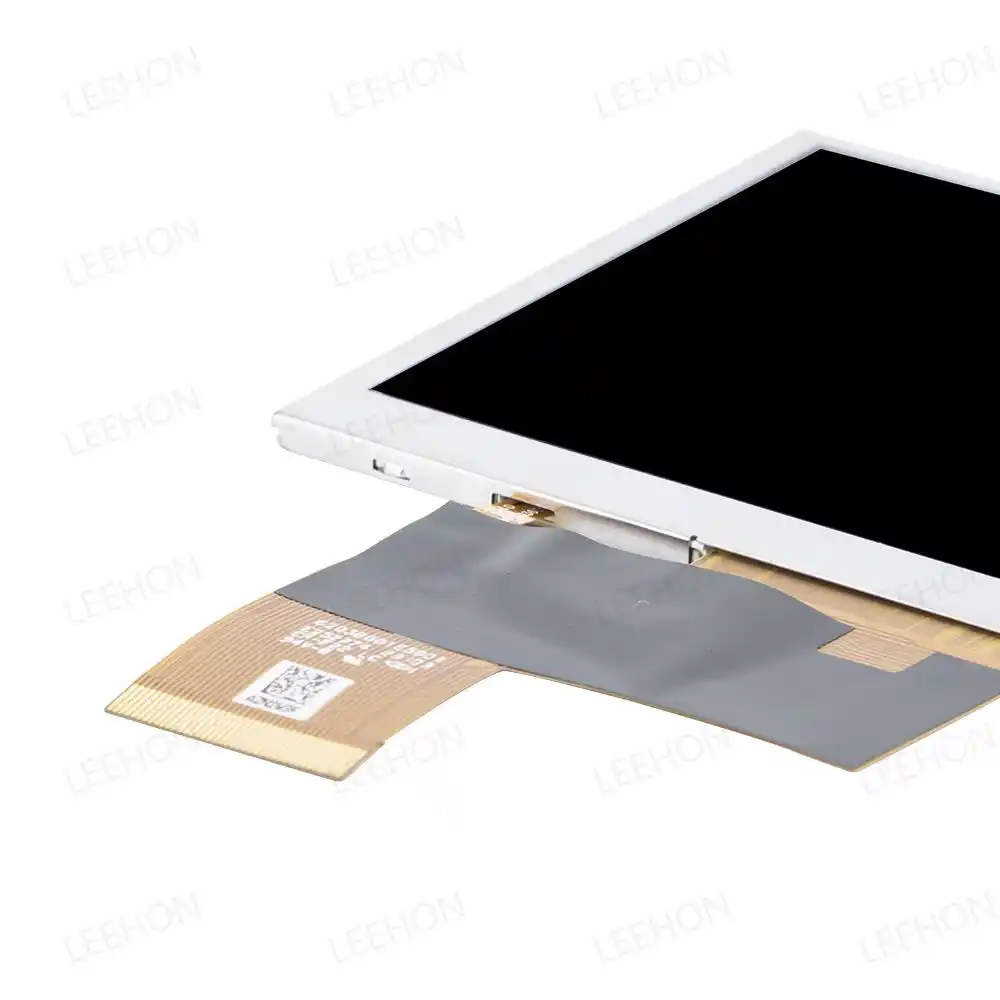

| Interface Type: | Parallel RGB (1 ch, 8-bit) |
| Luminance: | 500 cd/m²(Typ.);400 cd/m²(Min.) |
| Viewing Angle: | 70/70/50/70 (Typ.) |

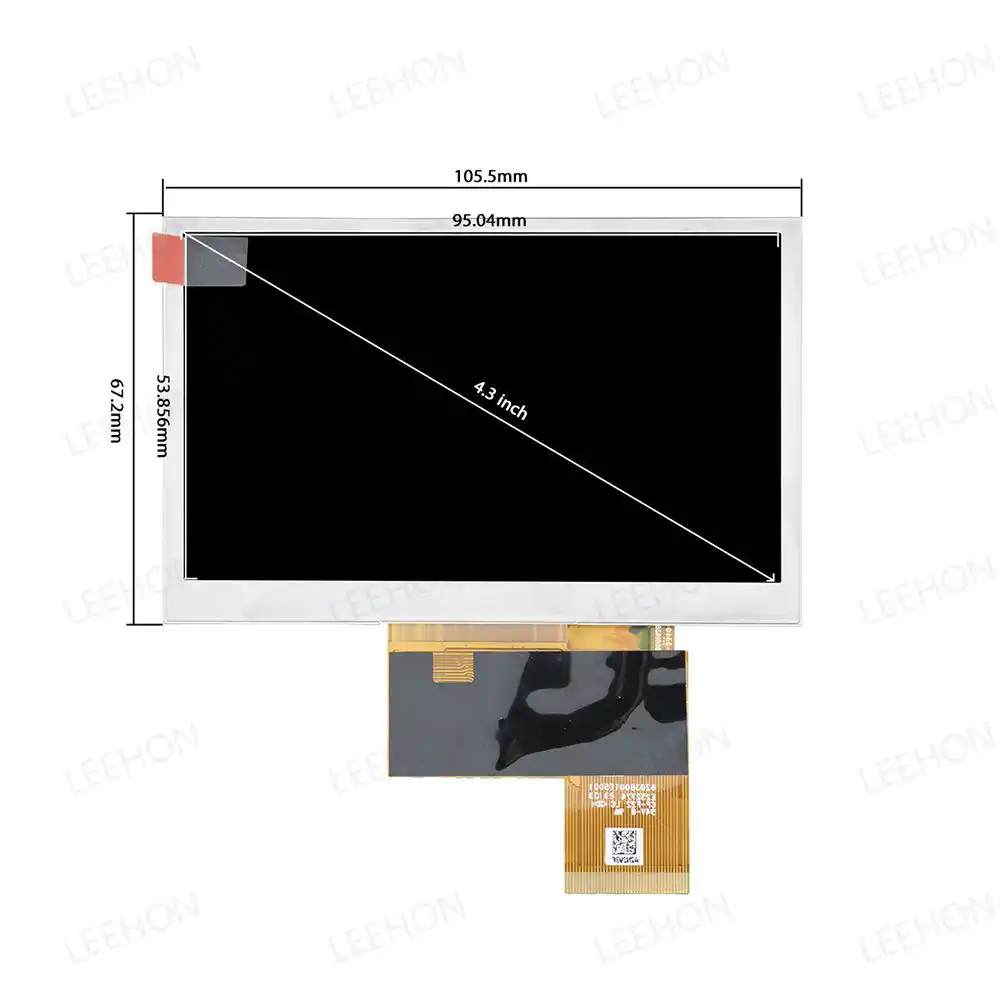

| Active Area(mm): | 95.04(W)×53.856(H) mm |

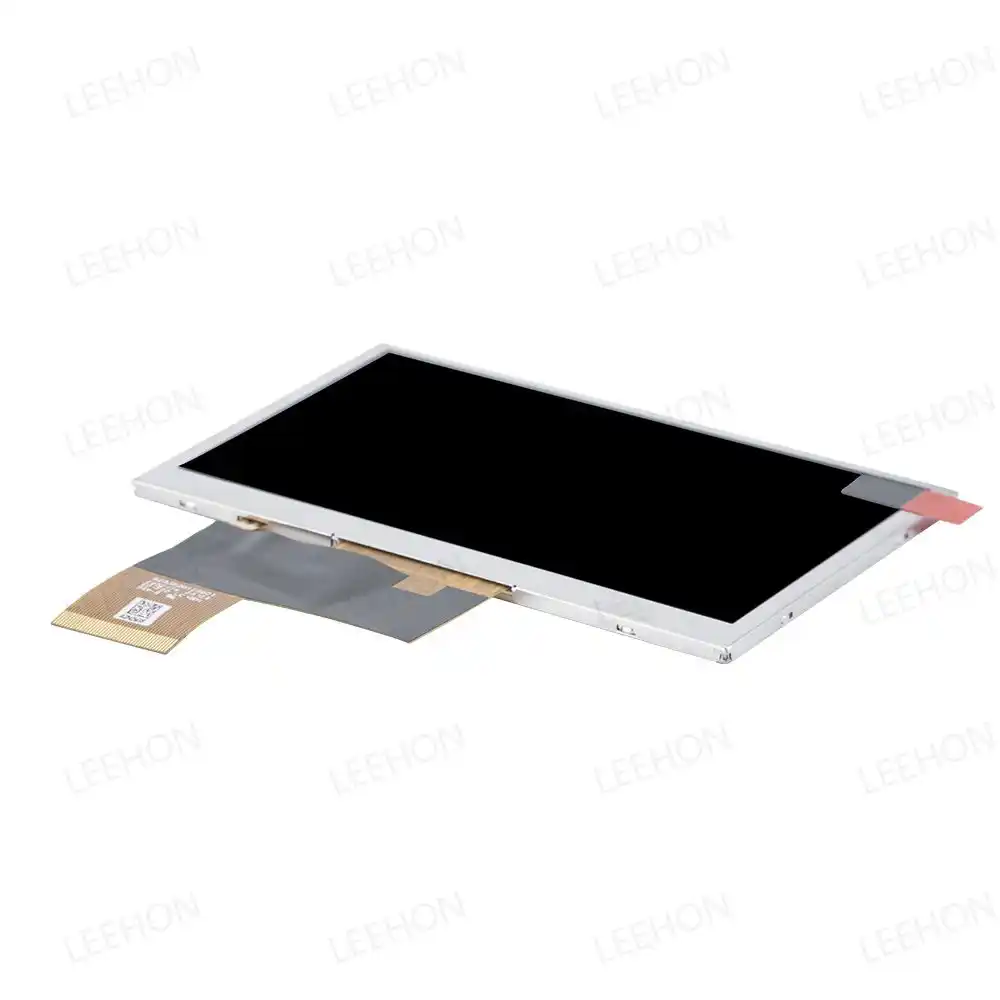

| Physical Size(mm): | 105.5×67.2x2.9 mm |
| Contrast Ratio: | 500:1 (Typ.)；400:1(Min) |
| Response Time: | 10/15 (Typ.)(Tr/Td) ms |
| Work Mode: | Normally White, Transmissive |
| Surface Treatment: | Anti-Glare |
| Color Depth: | 16.7M (8-bit) |
| Backlight: | WLED,20K hours |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -30 ~ 80 °C |
| Operating Temp: | -20 ~ 70 °C |
| Touchscreen: | without |
| Net Weight: | 45.0g (Typ.) |
| Package: | Max capacity:80pcs TFT-LCD module per carton |
