Product model: TM043NBH02
Product name:
TIANMA 4.3 inch 480(RGB)x272 TM043NBH02
Product overviews:
The TM043NBH02 launched by TIANMA is a 4.3-inch LCD module product that uses a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and a 4-wire resistive touch screen. The typical features of the screen library are: touch screen, white LED backlight, 3 in 1 FPC, Down side FPC (46.05mm length). Its working temperature is -20~60 ° C, and its storage temperature is -30~70 ° C.
Supply Status:
Steady supply.
| Brand: | TIANMA |
| Model P/N: | TM043NBH02 |
| Diagonal Size: | 4.3 inch |
| Pixels: | 480(RGB)x272 |
| Pixel Pitch(mm): | 0.198 x0.198 mm |

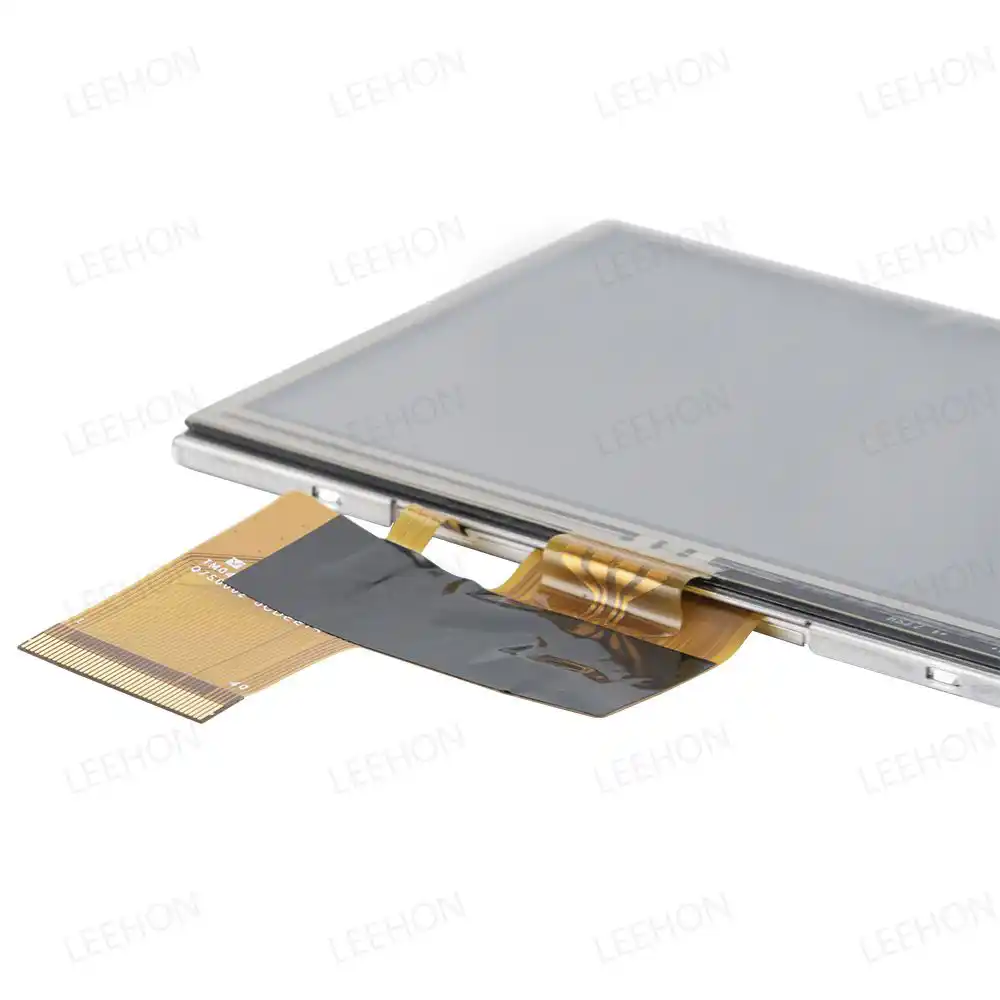

| Interface Type: | FPC |
| Luminance: | Typ. 280 nit；Min 230nit |
| Viewing Angle: | Typ.：70/50/70/70 |

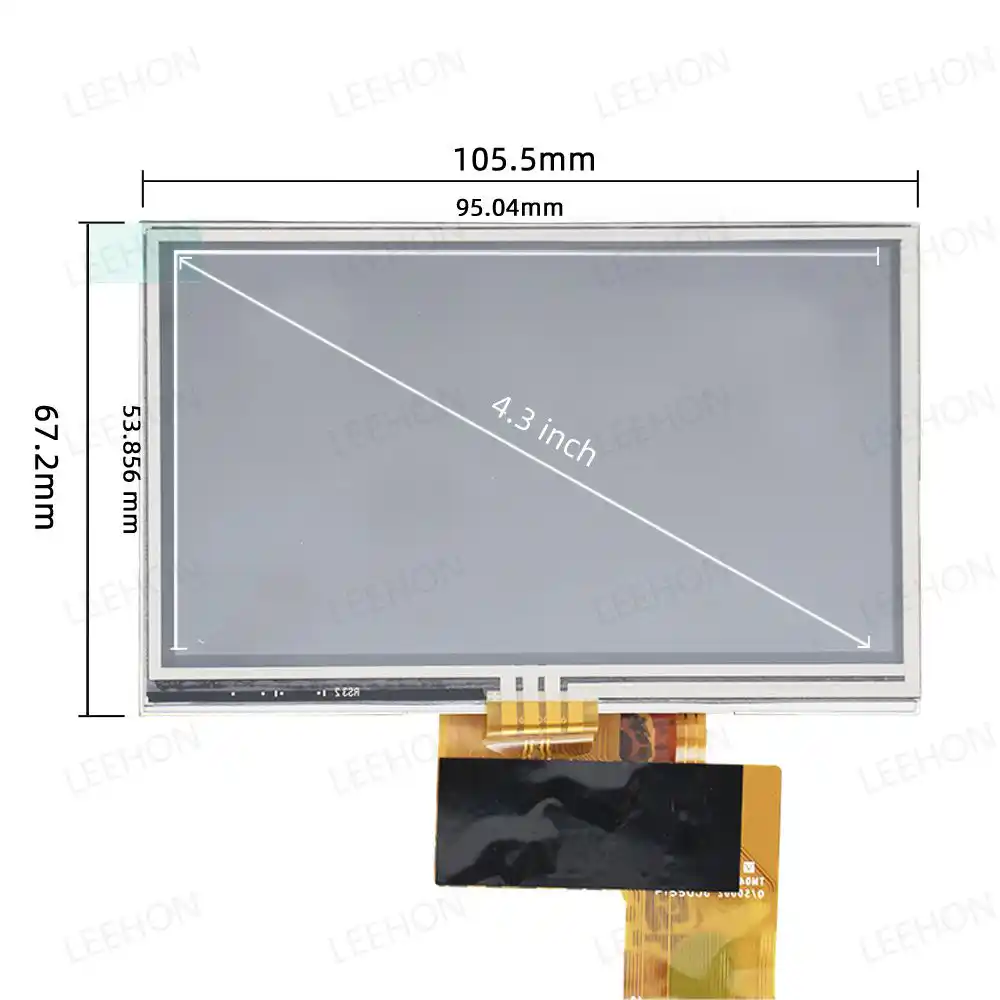

| Active Area(mm): | 95.04x53.86 mm |
| Physical Size(mm): | 105.50x67.20x4.10 (W x H x D) (mm) |
| Contrast Ratio: | Typ.：450:1;Min：400:1 |
| Response Time: | Typ.20;Max 30 |
| Work Mode: | TN,NW |
| Surface Treatment: | AG |
| Color Depth: | 16.7M |
| Backlight: | WLED , 20K hours |
| Input Voltage: | 3.3V(Typ.) |
| Storage Temp: | -30 ~ 80°C |
| Operating Temp: | -20 ~ 60°C |
| Touchscreen: | Optional |
| Net Weight: | 58 g |
| Package: | Max capacity:112 TFT-LCD module per carton |

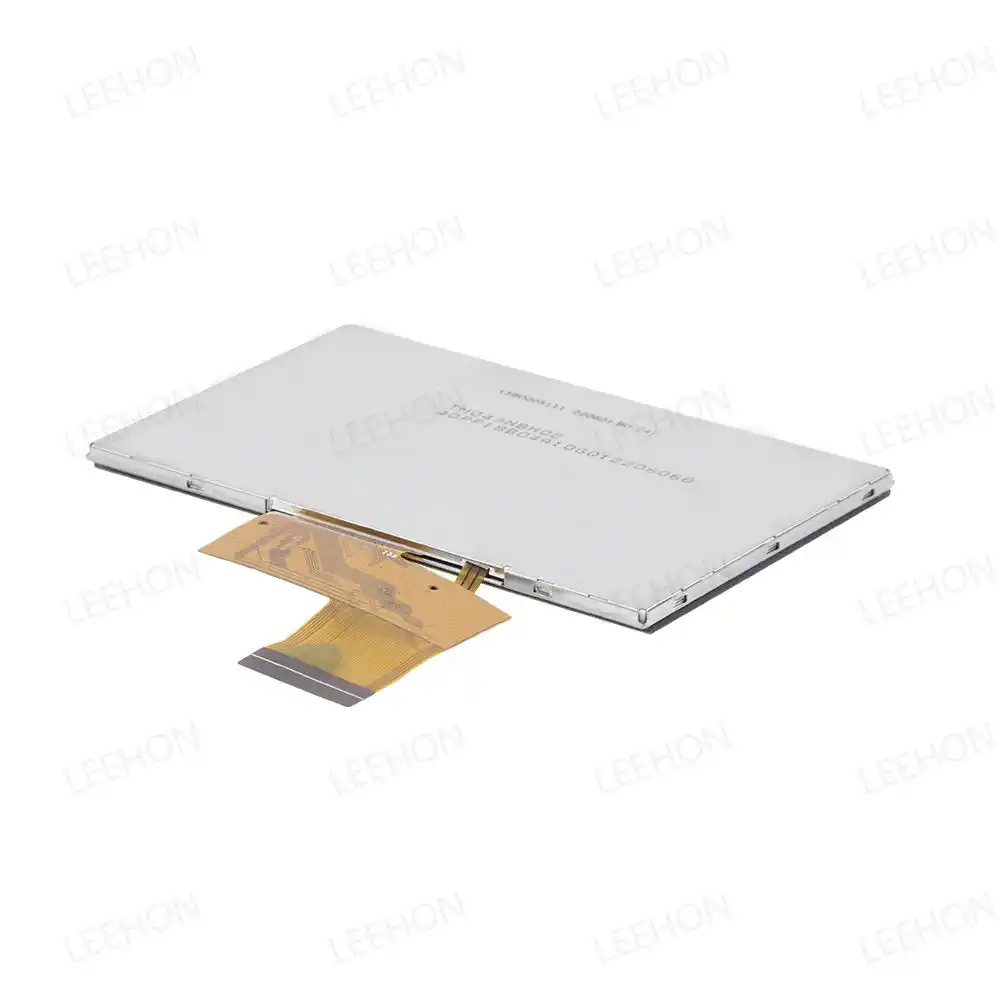

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
