Product model:
More parameters
TM043NDH02
Product name:

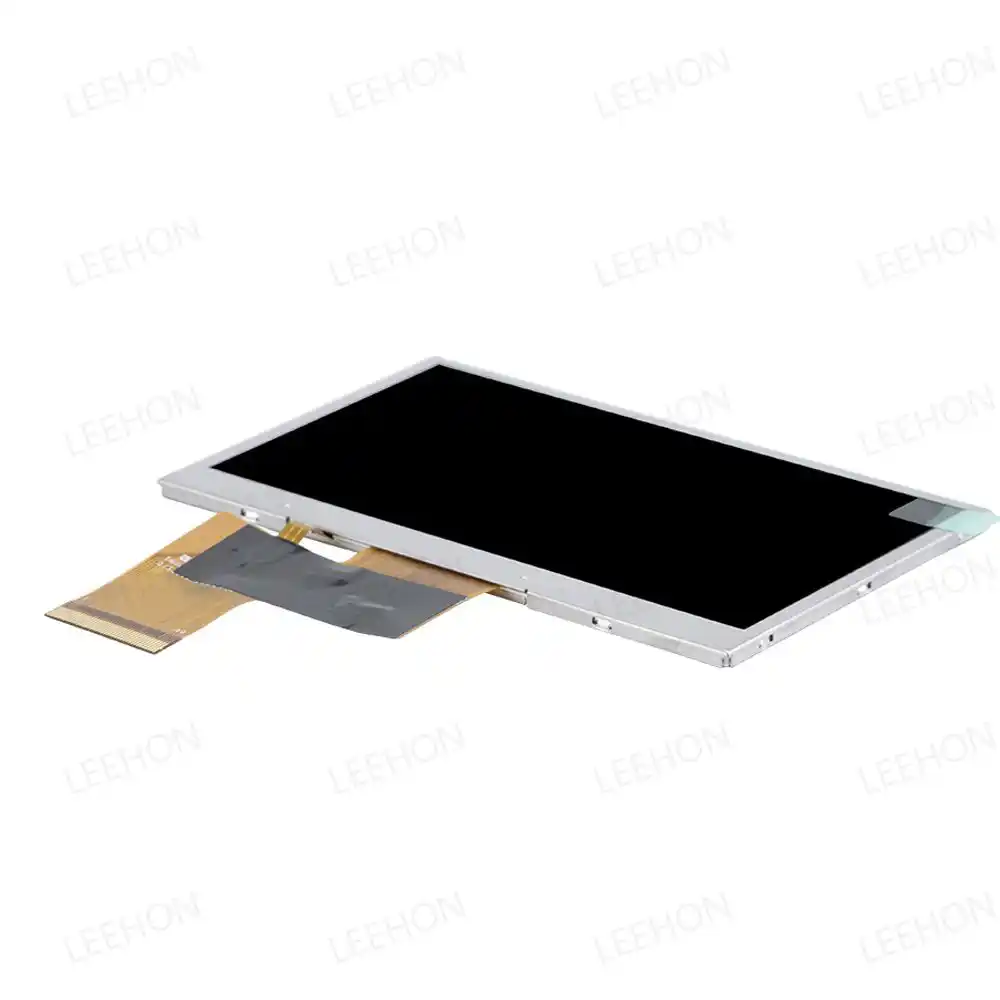

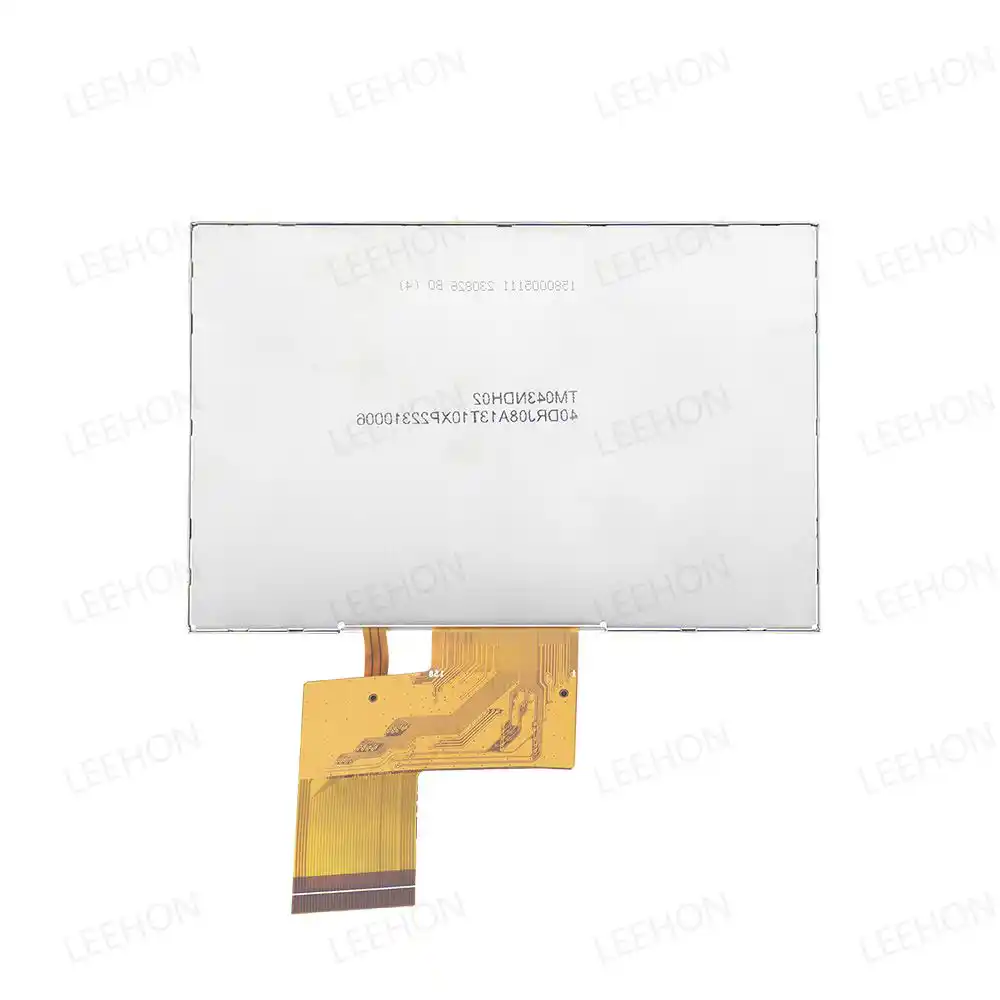

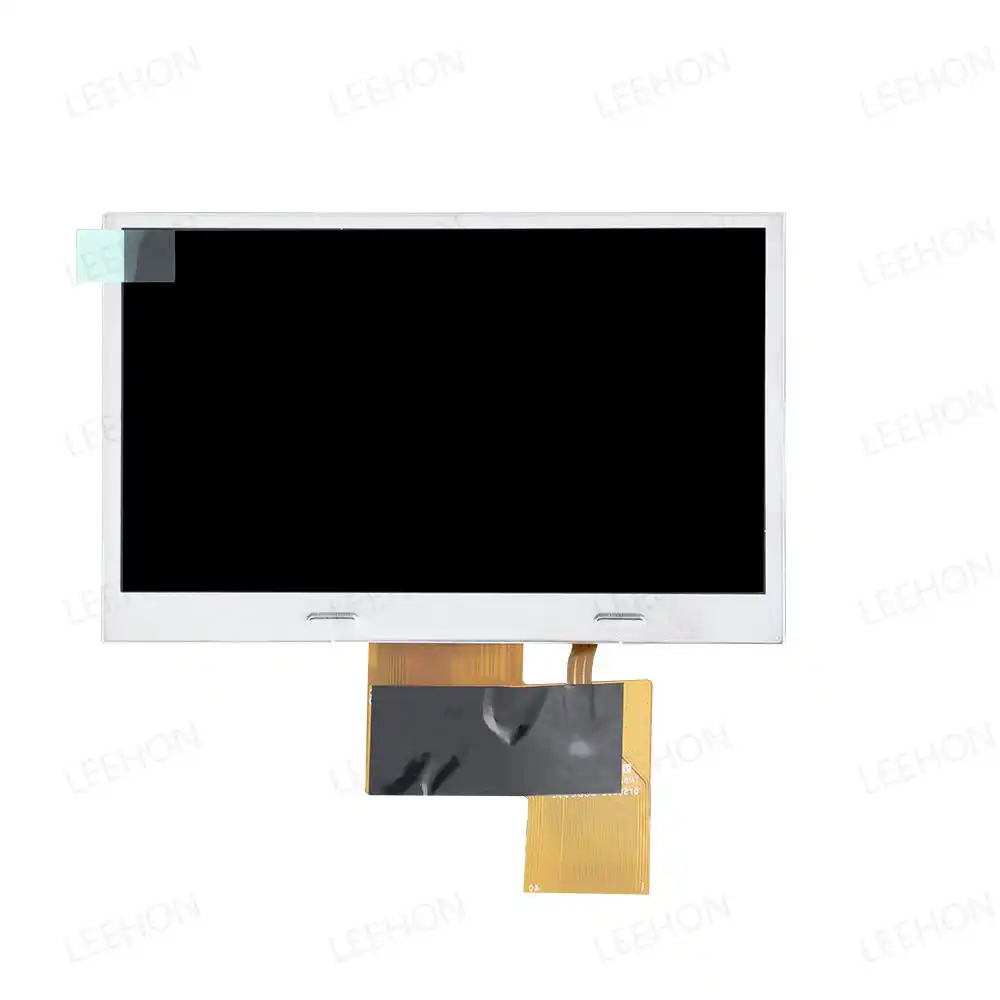

TIANMA 4.3 inch 480×272 TM043NDH02
Product overviews:
The TM043NDH02 launched by TIANMA is a 4.3-inch LCD module product that uses a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight drive, and no touch. The typical features of the screen library are: white LED backlight, surface matte, 2 in 1 FPC, and Down side FPC (46.05mm length).
Supply Status:
Steady supply.
| Brand: | TIANMA |
| Model P/N: | TM043NDH02 |
| Diagonal Size: | 4.3 inch |
| Pixels: | 480×272 |
| Pixel Pitch(mm): | 0.198x0.198 mm |

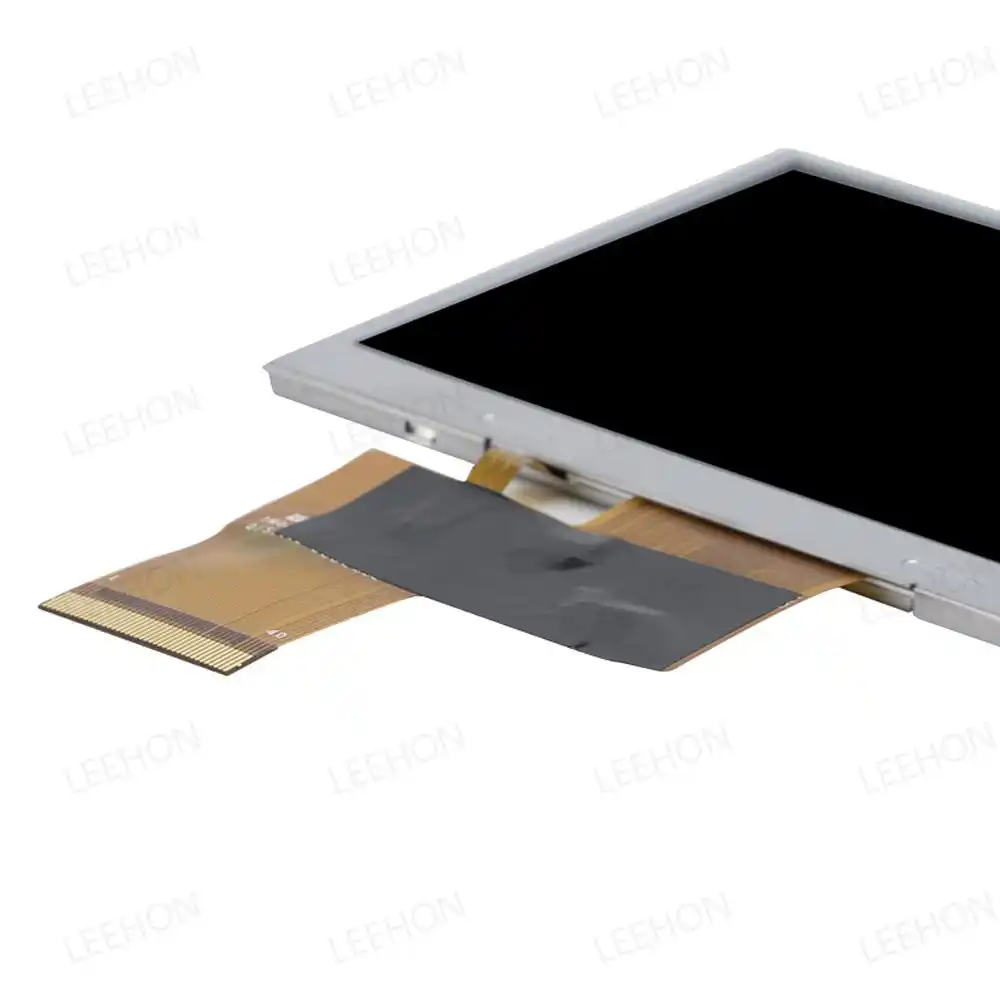

| Interface Type: | FPC |
| Luminance: | 300 cd/m² |
| Viewing Angle: | Typ.：70/50/70/70 |

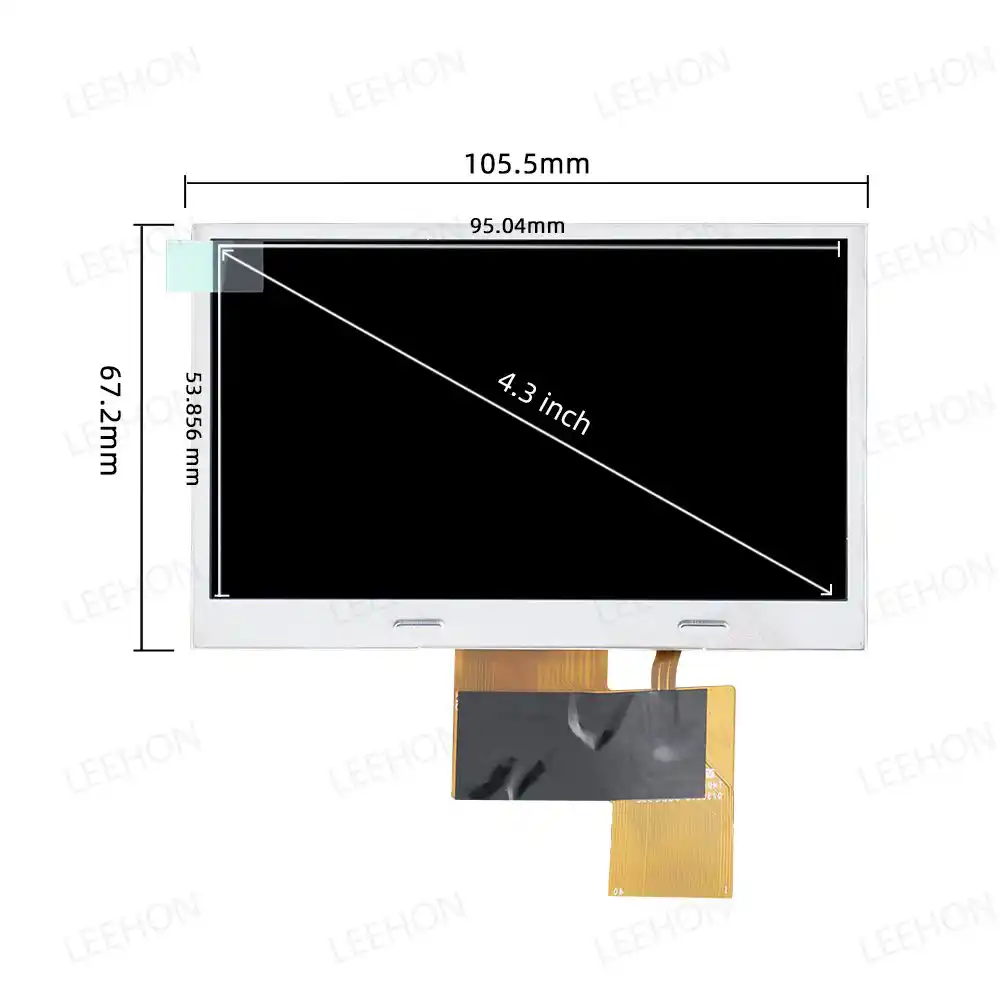

| Active Area(mm): | 95.04x53.86 mm |
| Physical Size(mm): | 105.50x67.20x2.90 (W x H x D) (mm) |
| Contrast Ratio: | Typ.：500:1;Min：400:1 |
| Response Time: | Typ.20;Max 30 |
| Work Mode: | TM with Normally White |
| Surface Treatment: | Anti-Glare(3H) |
| Color Depth: | 16.7M |
| Backlight: | WLED , 20K hours |
| Input Voltage: | 3.3 V |
| Storage Temp: | -30 ~ +80 (°C) |
| Operating Temp: | -20 ~ +70 (°C) |
| Touchscreen: | Optional |
| Net Weight: | TBD |
| Package: | Max. capacity: 112 pieces TFT-LCD module per carton |

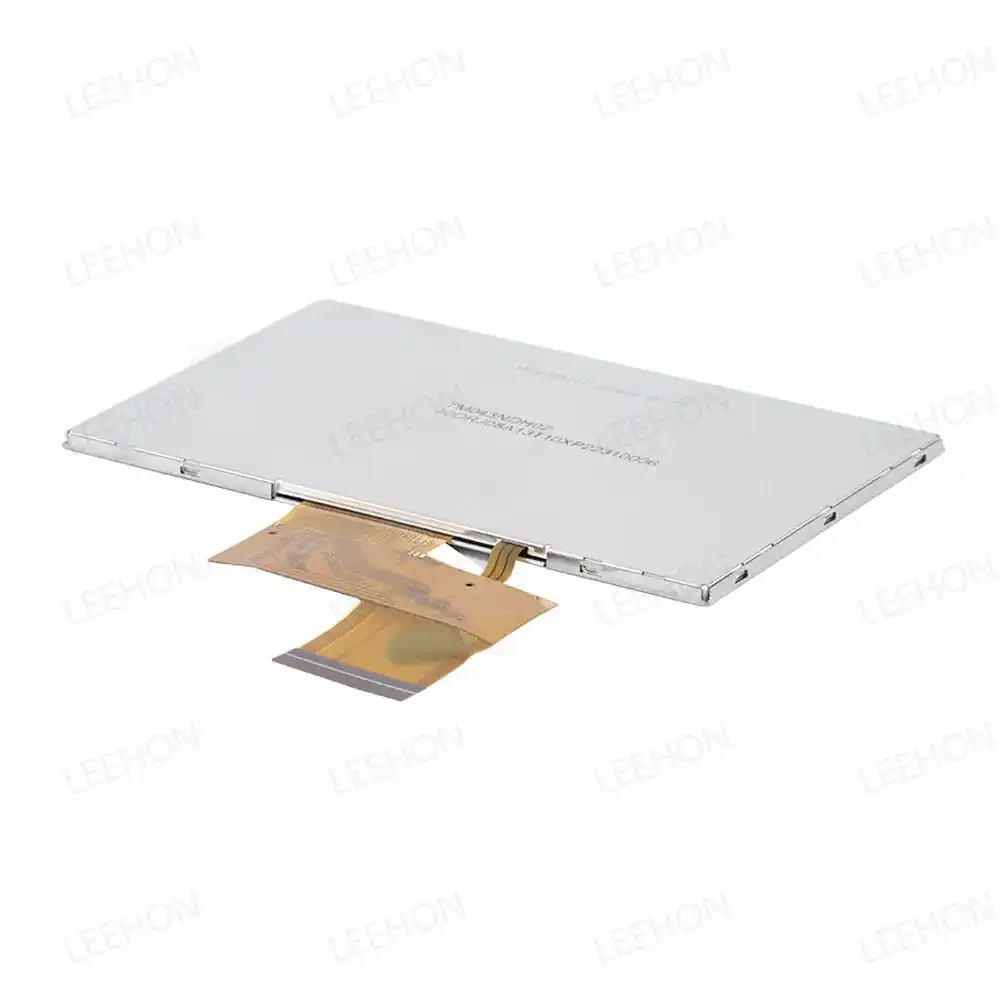

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
How to obtain the specification sheet and find your product:
Visit our official website, navigate to the "Technical Support" section of the page "Product Details Page", or search for the product for which you need specifications by product model or name, and then visit the product details page, fill in your email, send your email address to the backend, and wait for us to send you an email.
Click to enter Search
Contact technical support:
Email: info@leehon.com(please explain your purpose of visit)Tel: 0086-15906639973
We are committed to providing you with the information and resources you need to successfully carry out your product development and design efforts. Thank you for your trust in our products.
