Product model:
More parameters
M084GNS1 R1
Product name:
IVO 8.4 inch 800×600 M084GNS1 R1
Product overviews:

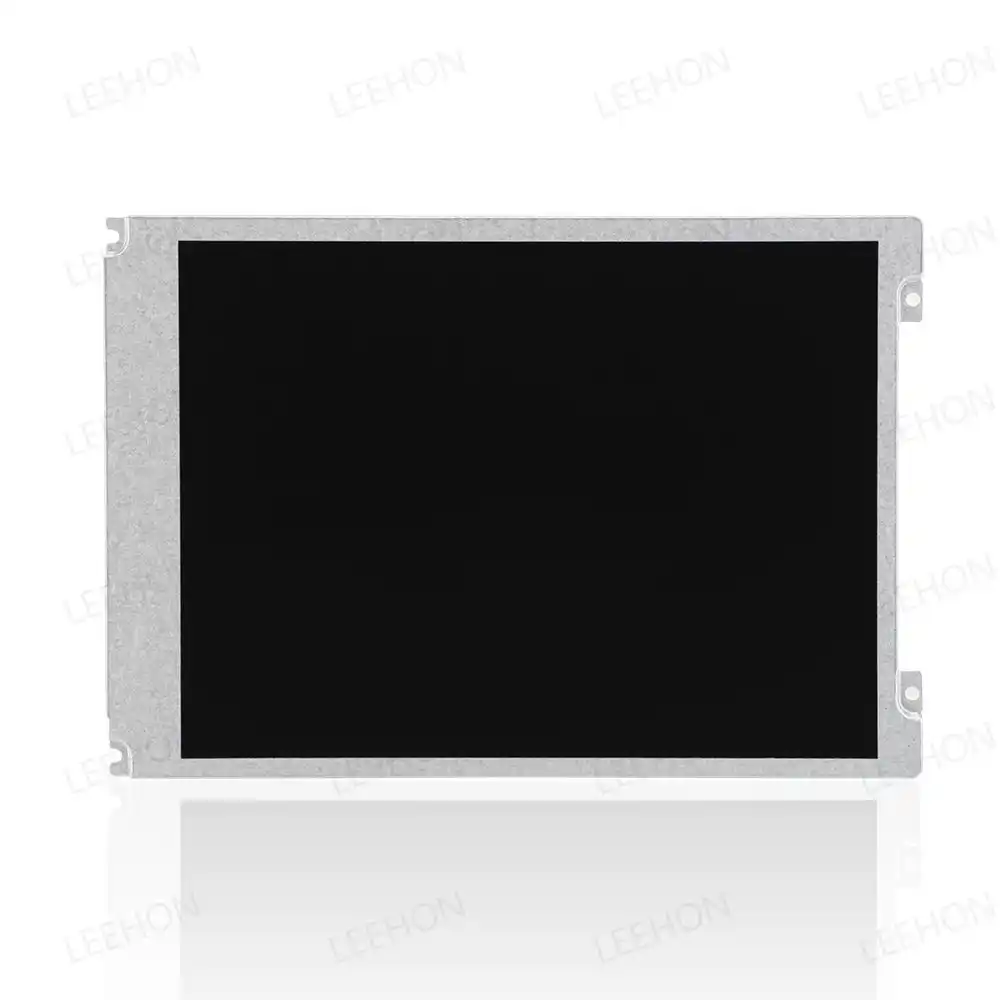

The M084GNS1 R1 is a Color Active Matrix Liquid Crystal Display with a back light system. The matrix employs a-Si Thin Film Transistor as a switching device. This TFT LCD has a 8.4 inch diagonally measured active display area with SVGA resolution (800 horizontal by 600 vertical pixels array).
Supply Status:
Steady supply.
| Brand: | IVO |
| Model P/N: | M084GNS1 R1 |
| Diagonal Size: | 8.4 inch |
| Pixels: | 800×600 |
| Pixel Pitch(mm): | 0.213 x 0.213 mm |

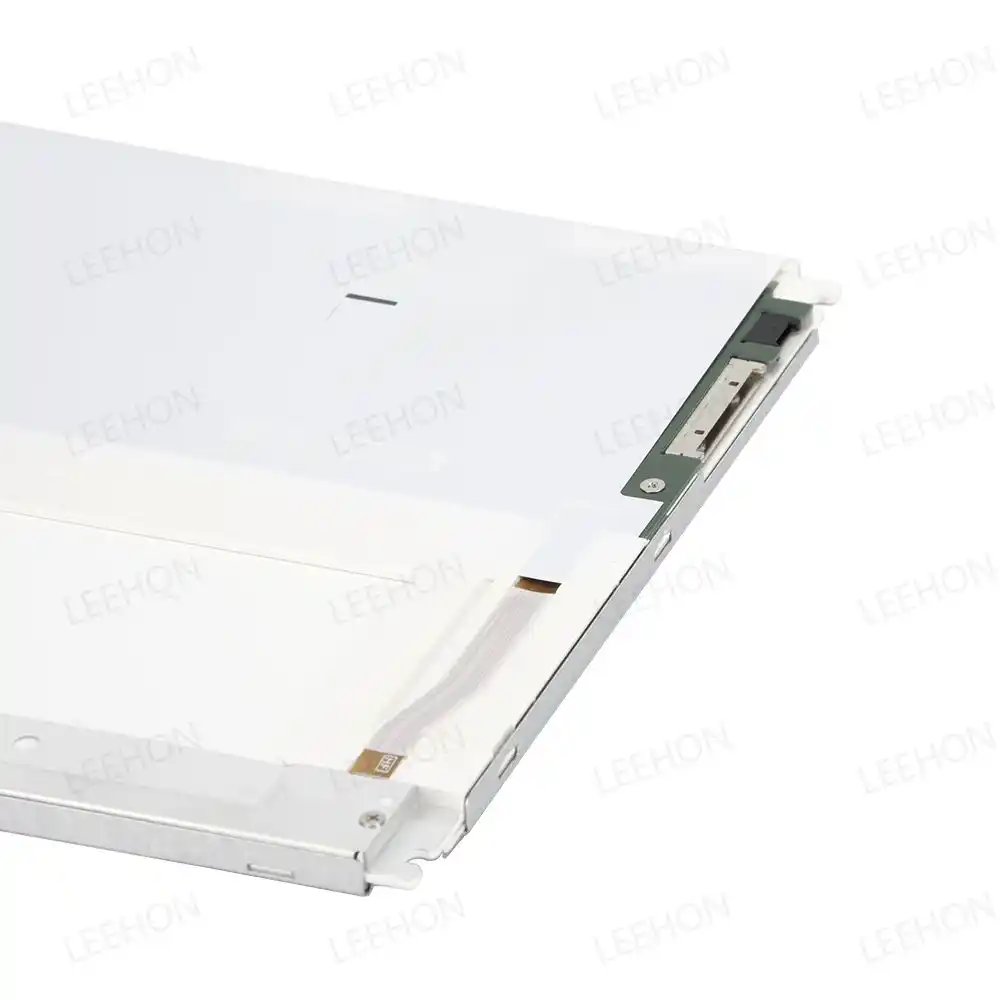

| Interface Type: | LVDS |
| Luminance: | 350 cd/m² |
| Viewing Angle: | 80/80/80/80 (Typ.) |
| Active Area(mm): | 170.4(H) x127.8(V) mm |

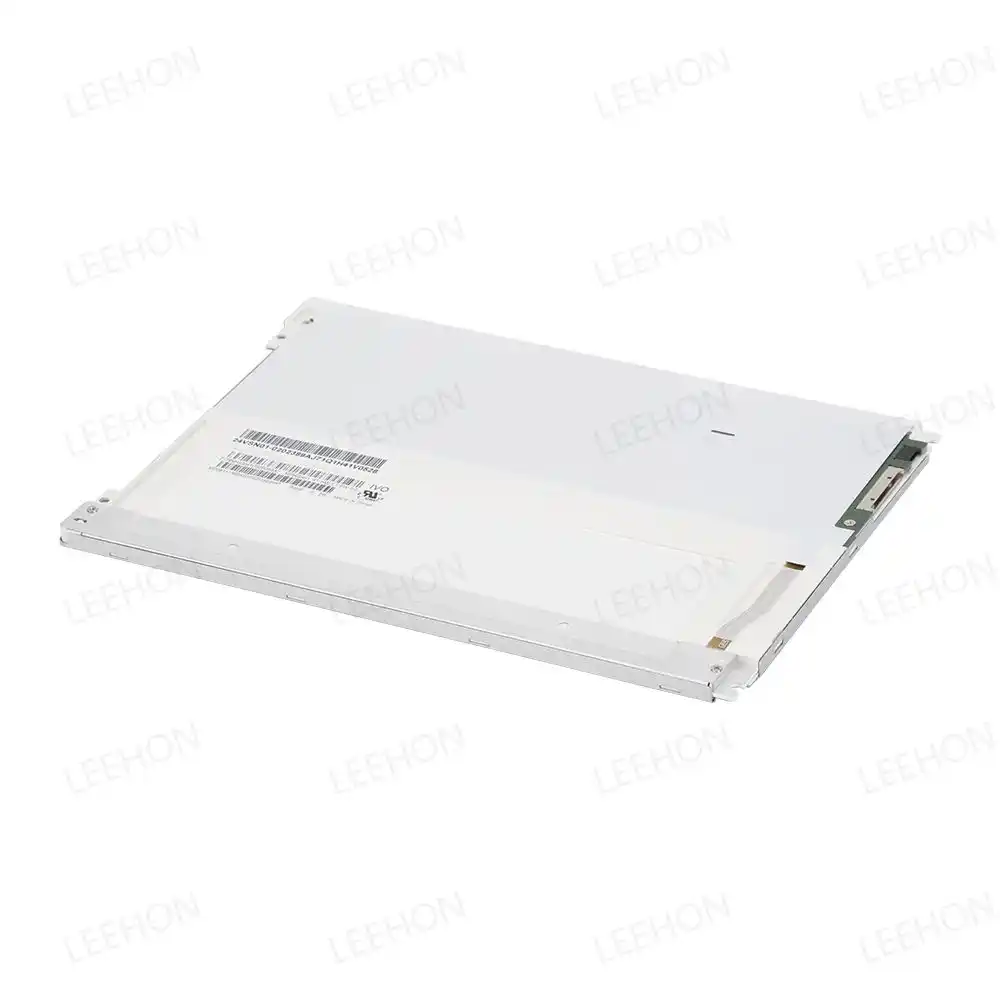

| Physical Size(mm): | 203. 0 (Typ.) x 142.5 (Typ.) x 5.7(Typ.) mm |
| Contrast Ratio: | 600:1 (Typ.)；480:1(Min) |
| Response Time: | 16/25 (Typ.)(Tr/Td) ms |
| Work Mode: | Normally White |
| Surface Treatment: | Anti-glare |
| Color Depth: | 262 K/16.7 M |
| Backlight: | WLED,50K hours withLED |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -30 ~ 80 °C |
| Operating Temp: | -20 ~ 70 °C |
| Touchscreen: | without |
| Net Weight: | 200g (Typ) |
| Package: | Max capacity:40pcs TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
How to obtain the specification sheet and find your product:
Visit our official website, navigate to the "Technical Support" section of the page "Product Details Page", or search for the product for which you need specifications by product model or name, and then visit the product details page, fill in your email, send your email address to the backend, and wait for us to send you an email.
Click to enter Search
Contact technical support:
Email: info@leehon.com(please explain your purpose of visit)Tel: 0086-15906639973
We are committed to providing you with the information and resources you need to successfully carry out your product development and design efforts. Thank you for your trust in our products.
