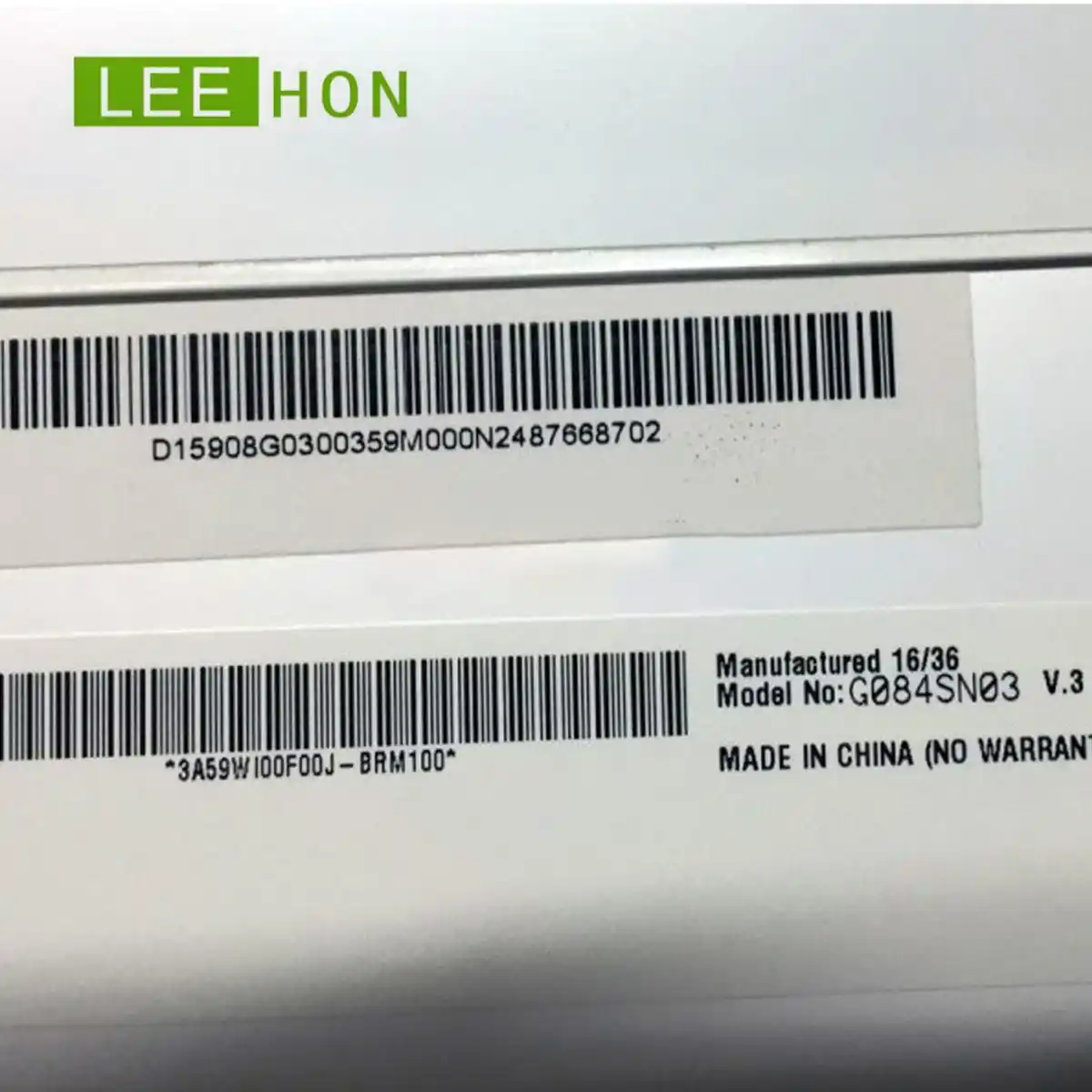

Product model: G084SN03 V3
Product name:

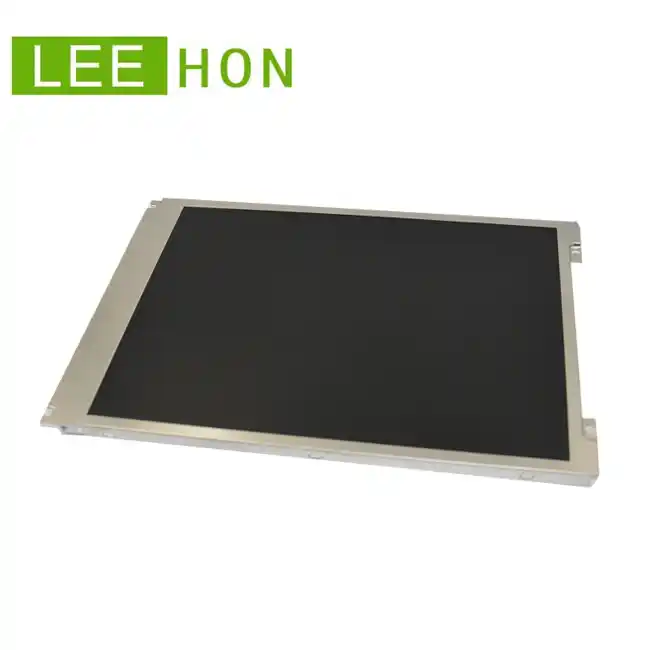

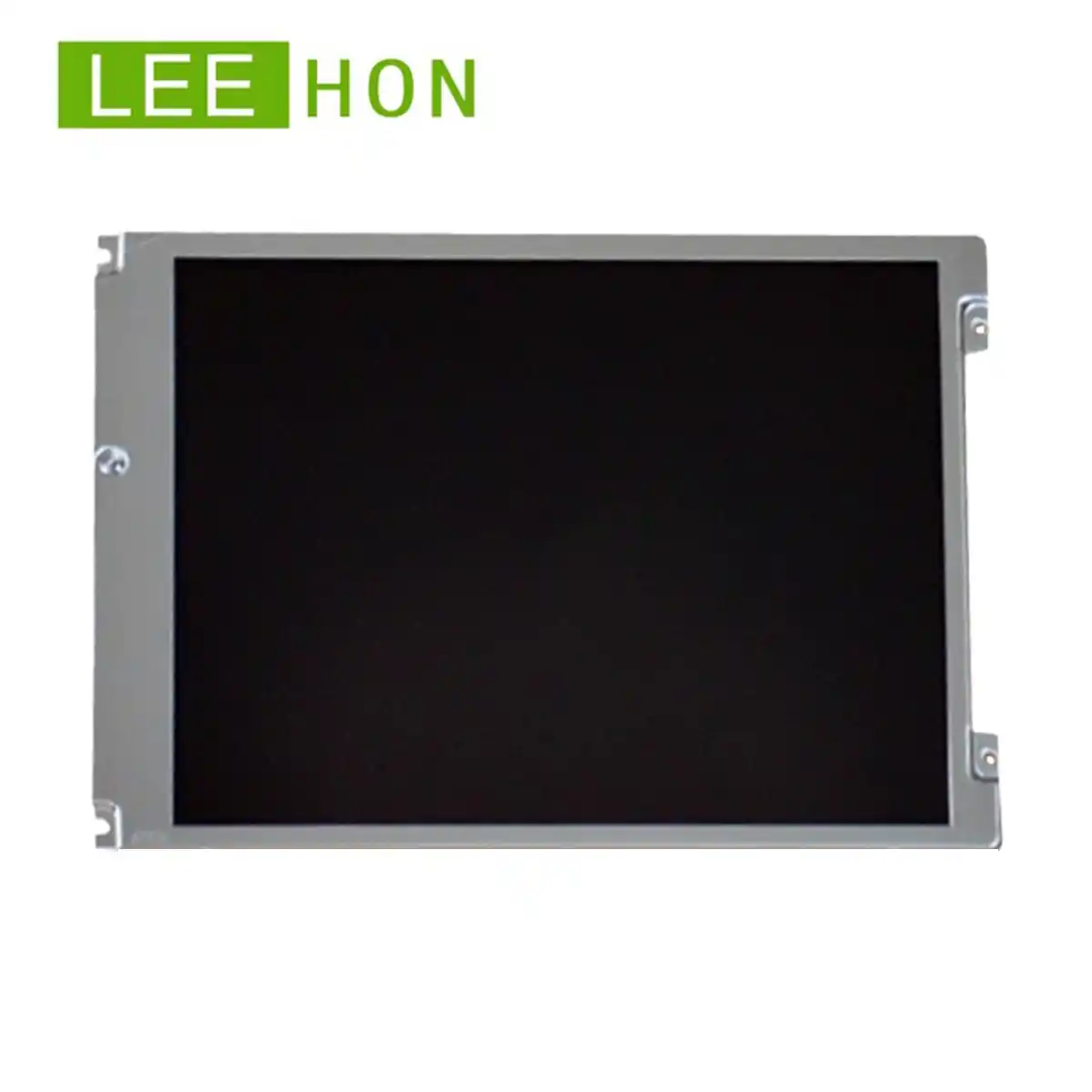

AUO 8.4 inch SVGA (800(H) x 600(V)) G084SN03 V3
Product overviews:
This specification applies to the 8.4 inch color TFT LCD module G084SN03 V3. This module is designed for display units for Industrial Applications. The screen format is intended to support the SVGA (800(H) x 600(V)) screen and 16.2M (RGB 8-bits) or 262k colors (RGB 6-bits). All input signals are LVDS interface compatible. LED Driver is embedded. This is a RoHS product.
Supply Status:
Steady supply.
| Brand: | AUO |
| Model P/N: | G084SN03 V3 |
| Diagonal Size: | 8.4 inch |
| Pixels: | SVGA (800(H) x 600(V)) |
| Pixel Pitch(mm): | 0.213x 0.213 mm |
| Interface Type: | 1 channel LVDS |
| Luminance: | Typ. 250 nit；Min 200nit |
| Viewing Angle: | Typ.：80/60/80/80 |
| Active Area(mm): | 170.4(H) x 127.8(V) mm |
| Physical Size(mm): | 203.0(W) x 142.5(H) x 5.7(D) (typ.) mm |
| Contrast Ratio: | Typ.：600:1;Min：400:1 |
| Response Time: | Typ.30;Max 50 |
| Work Mode: | TN, Normally White |
| Surface Treatment: | Anti-glare, Hardness 3H |
| Color Depth: | 262K(6-bit) / 16.2M(8-bit) |
| Backlight: | WLED , 30K hours , with LED Driver |
| Input Voltage: | 3.3 V |
| Storage Temp: | -20 ~ +70 (°C) |
| Operating Temp: | -20 ~ +70 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 190 (typ) |
| Package: | M ax. Capacity : 30 LCD M odules/Carton. |
