Product model: G084SN05 V904
Product name:

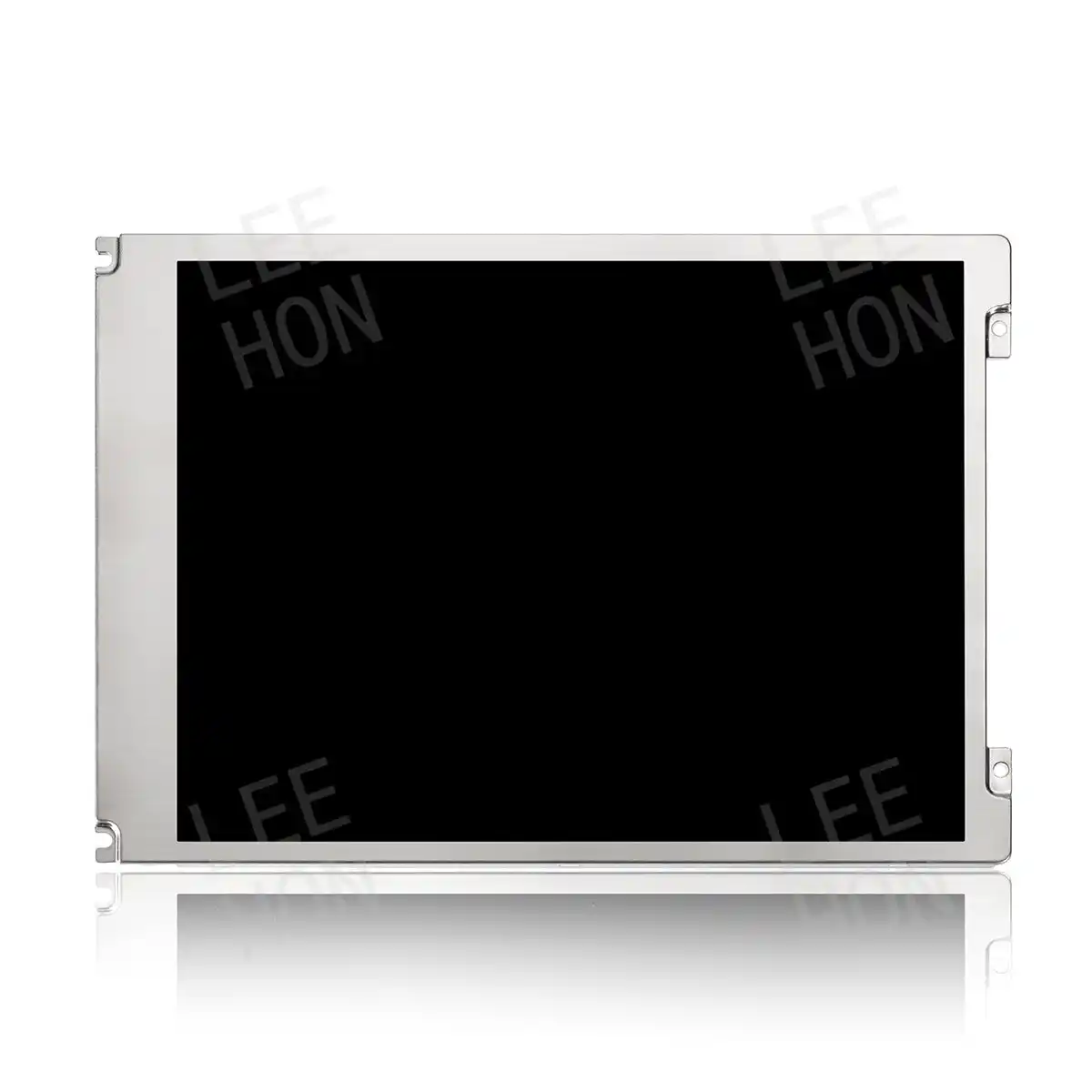

AUO 8.4 inch SVGA (800(H) x 600(V) G084SN05 V904
Product overviews:

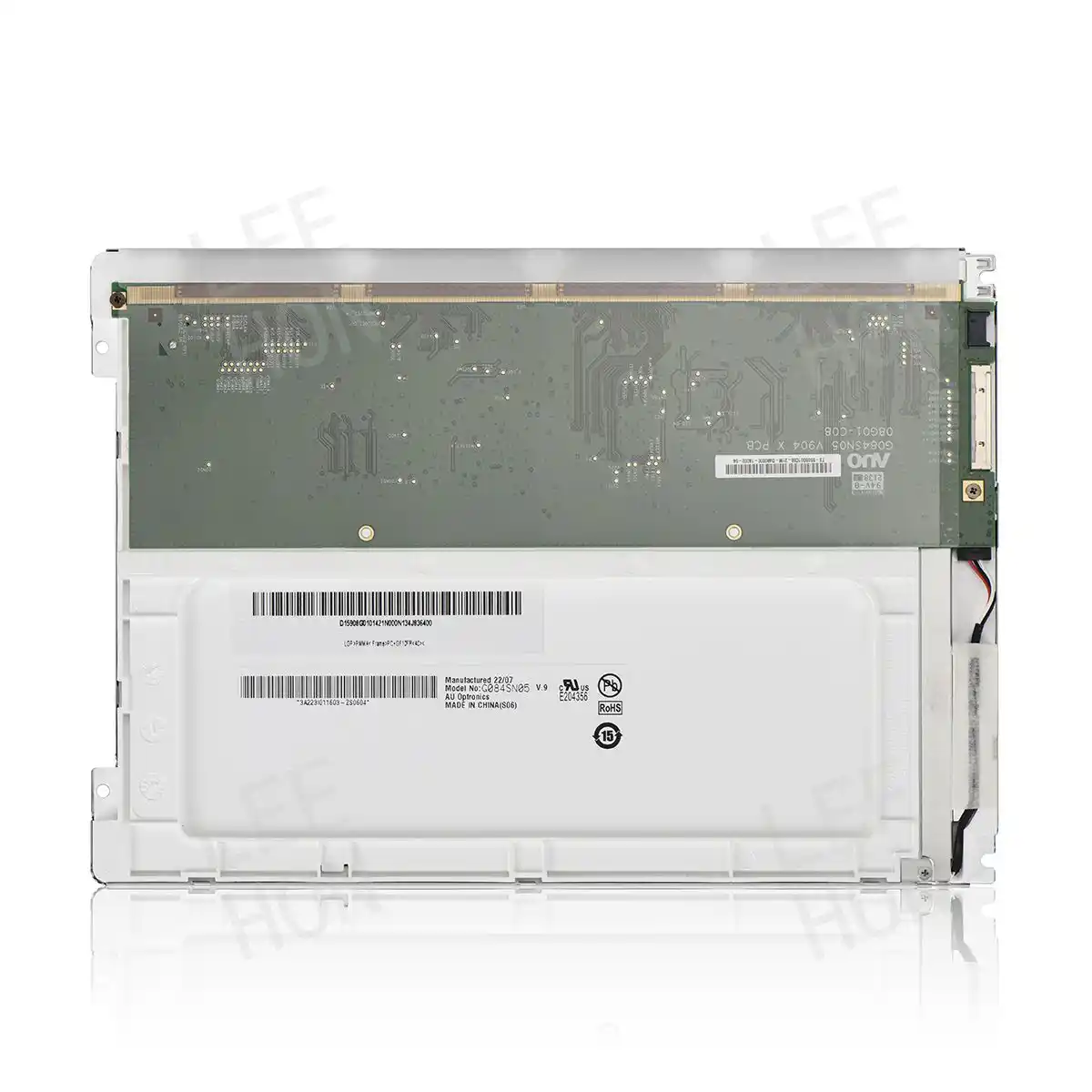

This specification applies to the 8.4 inch color TFT LCD module G084SN05 V904.G084SN05 V904 designed with wide viewing angle; wide operating temperature and long life.LEDs backlight is well suited to be the display units for Industrial Applications.LED driving board for backlight unit is included in this panel and the structure of the LED units is replaceable.G084 SN05 V904 is built in timing controller and LVDS interface.The screen format is intended to support the SVGA (800(H) x 600(V) screen and 16 .2M (RGB8-bits) or 262k colors (RGB 6-bits).G084SN05 V904 is a RoHS product.
Supply Status:
Steady supply.
| Brand: | AUO |
| Model P/N: | G084SN05 V904 |
| Diagonal Size: | 8.4 inch |
| Pixels: | SVGA (800(H) x 600(V) |
| Pixel Pitch(mm): | 0.213x 0.213 mm |

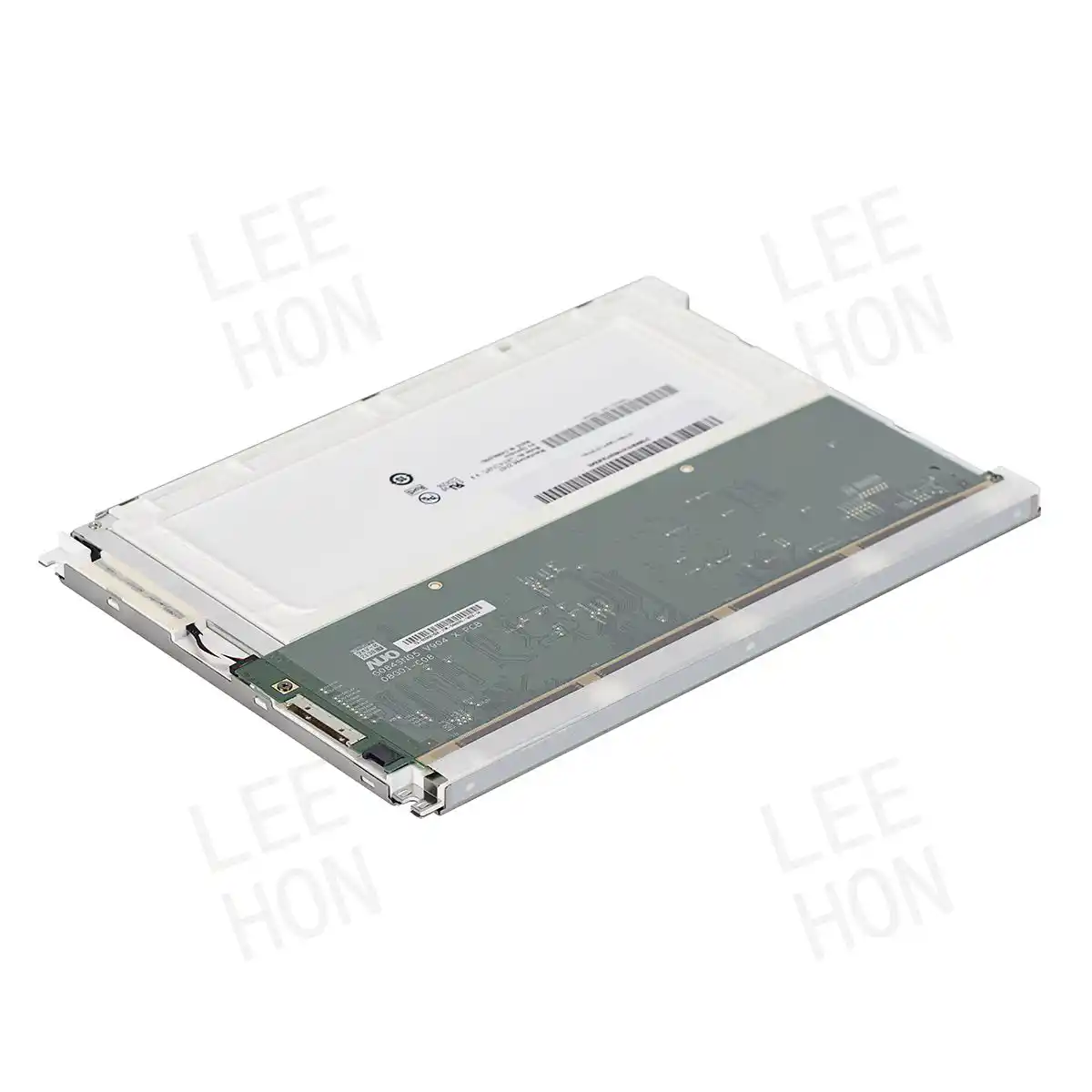

| Interface Type: | 1 channel LVDS |
| Luminance: | Typ. 450 nit；Min 350nit |
| Viewing Angle: | Typ.：80/60/80/80 |

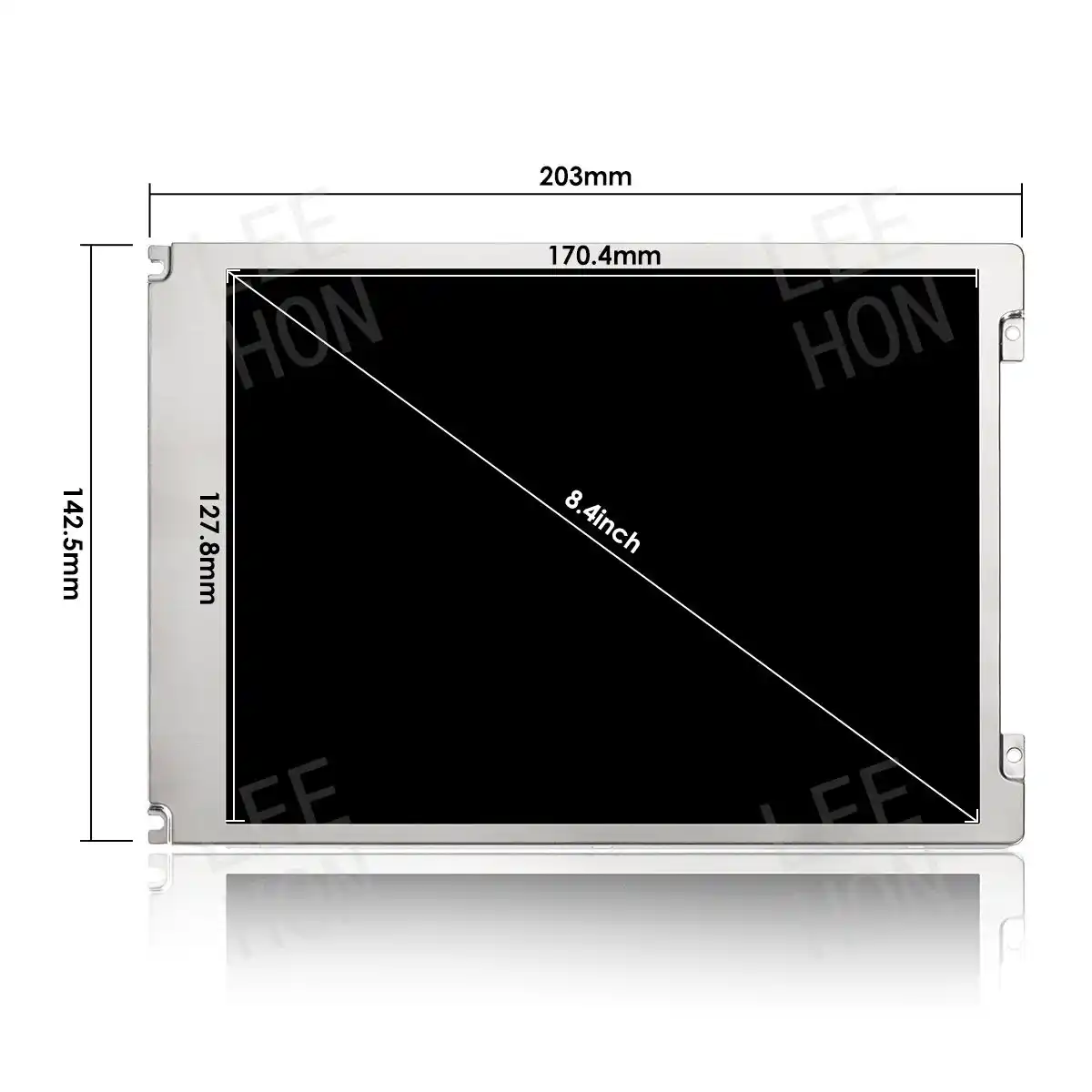

| Active Area(mm): | 170.4(H) x 127.8(V) mm |

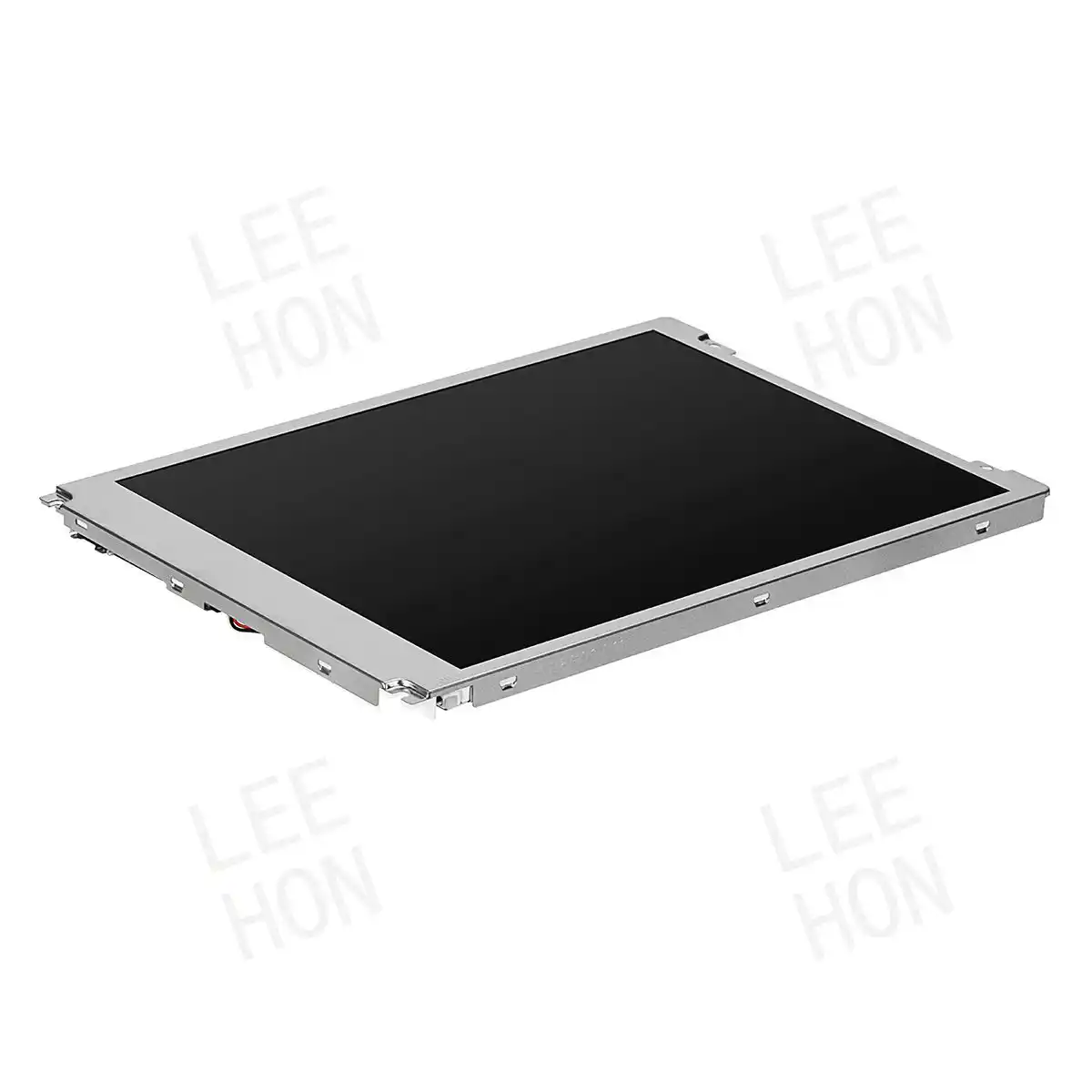

| Physical Size(mm): | 203.0(W) x 142.5(H) x 8.0(D) (typ.) mm |
| Contrast Ratio: | Typ.：600:1;Min：400:1 |
| Response Time: | Typ.30;Max 50 |
| Work Mode: | TN, Normally White |
| Surface Treatment: | Anti-glare, Hardness 3H |
| Color Depth: | 262K(6-bit) / 16.2M(8-bit) |
| Backlight: | WLED , 50K hours , with LED Driver |
| Input Voltage: | 3.3 V |
| Storage Temp: | -30 ~ +80 (°C) |
| Operating Temp: | -30 ~ +80 (°C) |
| Touchscreen: | Optional |
| Net Weight: | -30 ~ +80 (°C) |
| Package: | Max. Capacity : 30pcs LCD Modules/Carton. |

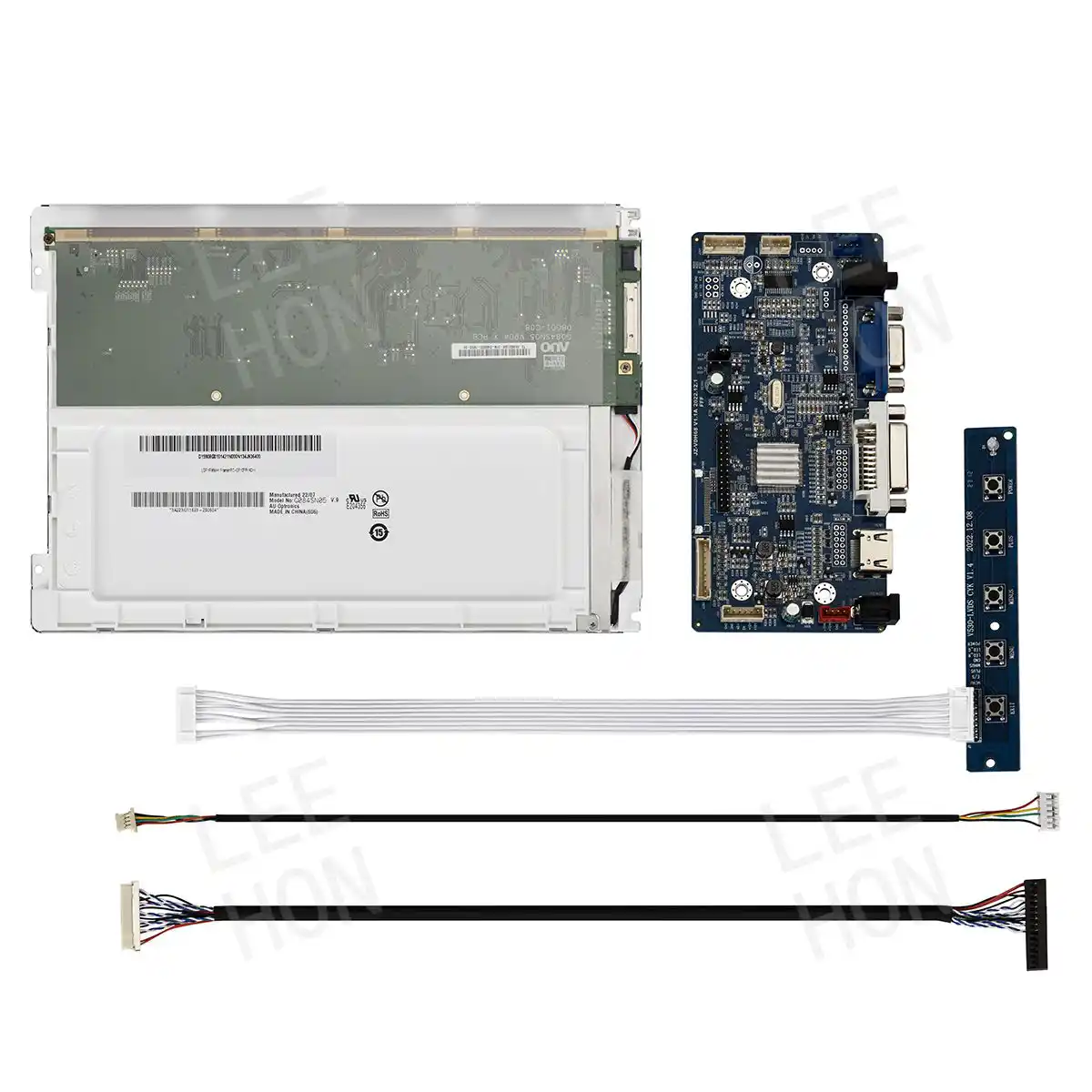

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
