EV173FHM-N81
Product name:
BOE 17.3 inch 1920×1080 EV173FHM-N81
Product overviews:
The EV173FHM-N81 is a 17.3 inch Full HD (1920x1080) a-Si TFT-LCD panel by BOE, featuring WLED backlight, eDP1.2 interface, and matte surface. It's designed for industrial applications with operating temperatures from 0 to 50°C. Offering high brightness of 480 cd/m², suitable for demanding environments.
Supply Status:
Steady supply.
| Brand: | BOE |
| Model P/N: | EV173FHM-N81 |
| Diagonal Size: | 17.3 inch |
| Pixels: | 1920×1080 |
| Pixel Pitch(mm): | 198.9(H) ×198.9(V) mm |
| Interface Type: | LVDS |
| Luminance: | 480 cd/m² |
| Viewing Angle: | 85/85/85/85 (typ) |

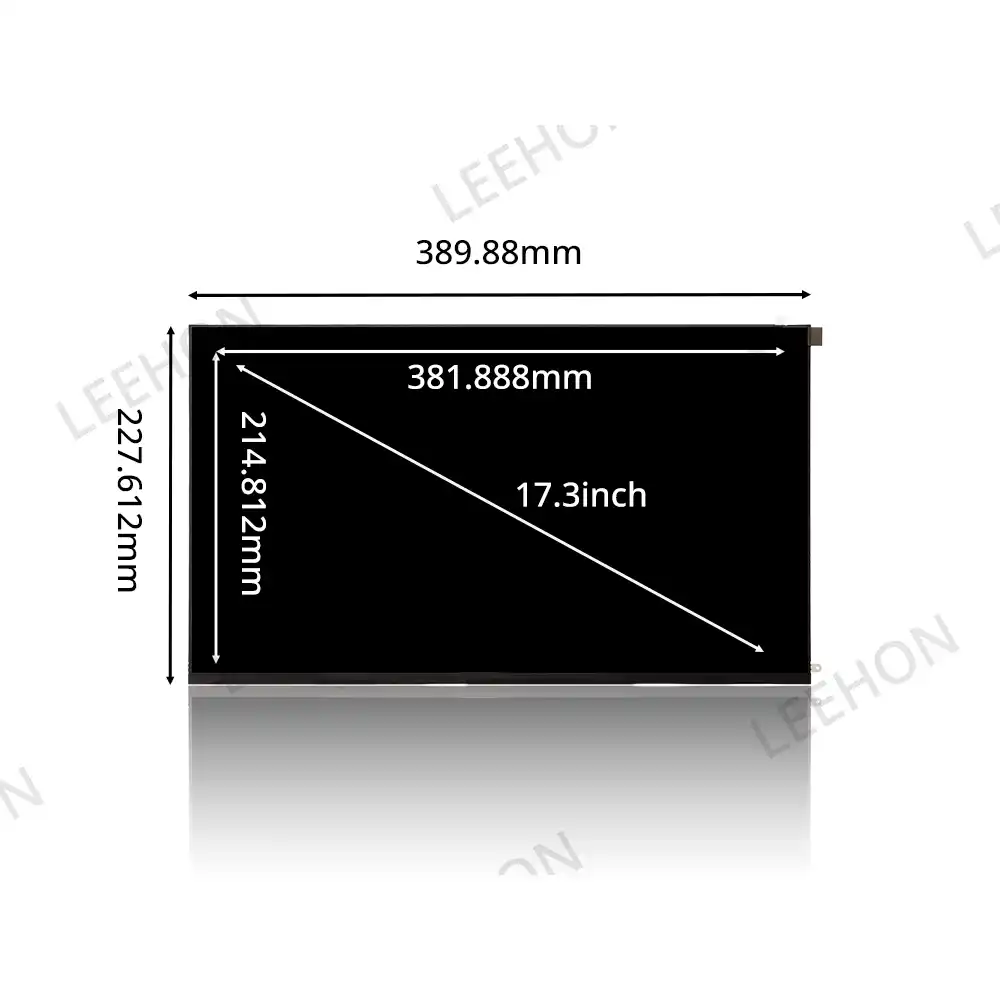

| Active Area(mm): | 381.888(H) *214.812(V) mm |
| Physical Size(mm): | 389.888(H) × 227.612(V)*3.2(B) mm |
| Contrast Ratio: | 1100:1 (Typ.)；800:1(Min) |
| Response Time: | 25/16 (Typ.)(Tr/Td) (ms) |
| Work Mode: | Normally black |
| Surface Treatment: | AG25 |
| Color Depth: | 16.7M |
| Backlight: | WLED,50K hours withLED |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -30 ~ 85 °C |
| Operating Temp: | -30 ~ 85 °C |
| Touchscreen: | without |
| Net Weight: | 520Max |
| Package: | Max capacity:16 pcs TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
