Product model: BA104S01-300
Product name:
BOE 10.4inch 800*600 BA104S01-300
Product overviews:

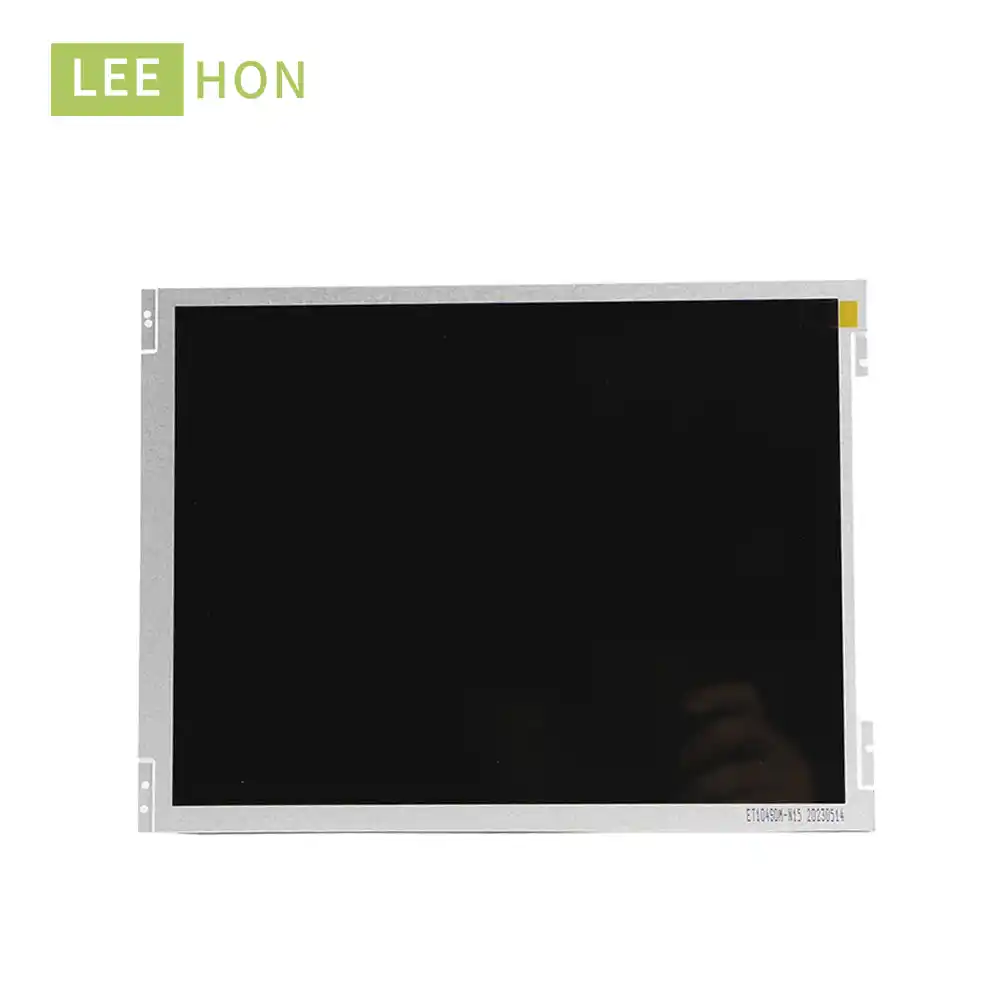

BA104S01 300 is a color active matrix TFT LCD module using amorphous silicon TFT's(Thin Film Transistors) as an active switching devices. This module has a 10.4 inch diagonally measured active area with SVGA resolutions (800 horizontal by 600 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors.
Supply Status:
Steady supply.
| Brand: | BOE |
| Model P/N: | BA104S01-300 |
| Diagonal Size: | 10.4inch |
| Pixels: | 800*600 |
| Pixel Pitch(mm): | 88x264 μm |

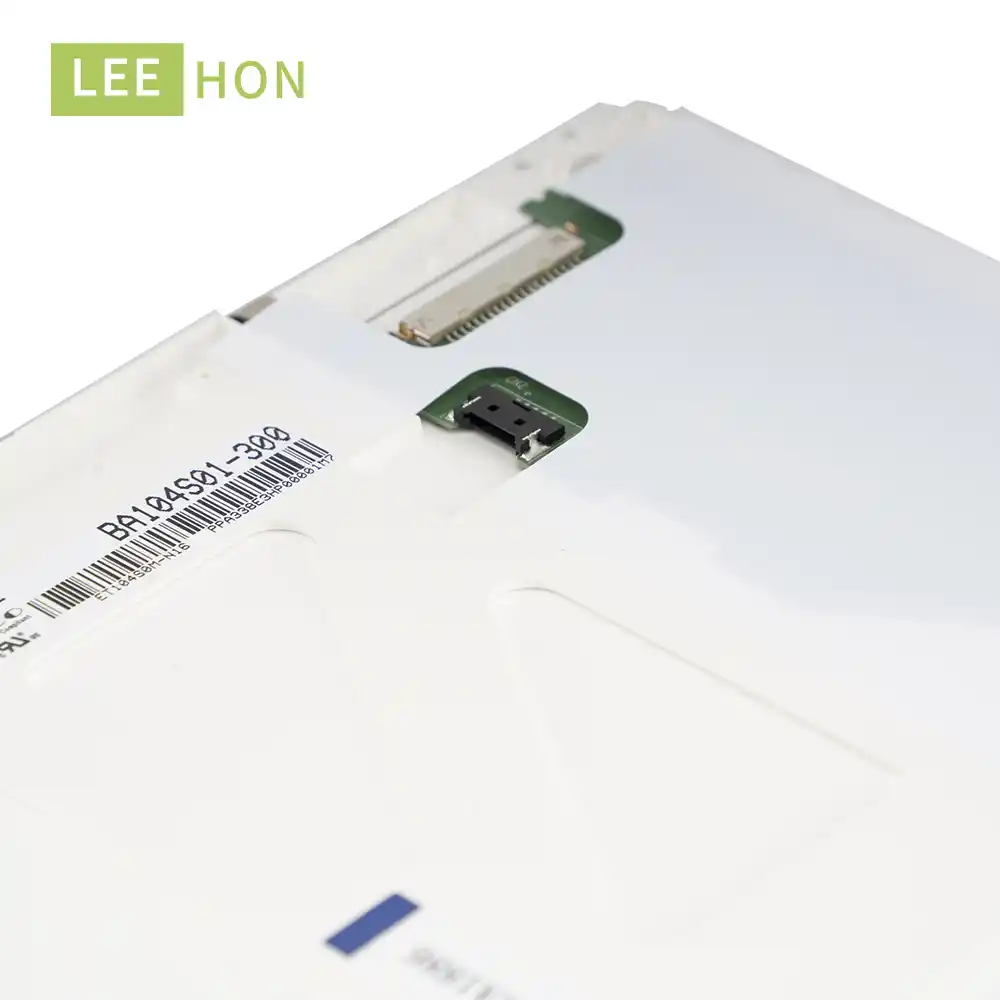

| Interface Type: | LVDS (2 ch, 8-bit) |
| Luminance: | min 300, typ 350 (cd/m2) |
| Viewing Angle: | typ 80/80/65/75 |

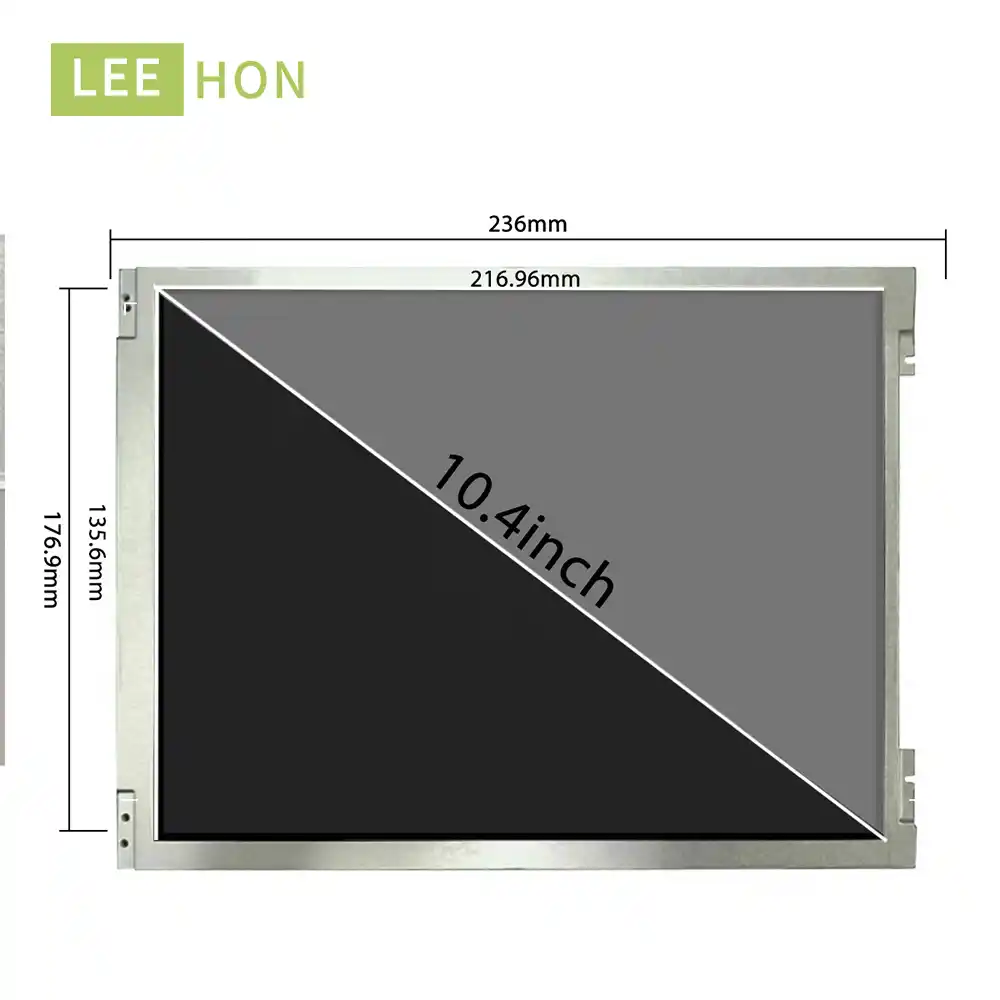

| Active Area(mm): | 211.2x158.4 mm |
| Physical Size(mm): | 236.0(H)x176.9(V) x5.6(Body) mm |
| Contrast Ratio: | typ 800:1 |
| Response Time: | typ 30, max 35 (ms) |
| Work Mode: | TN, Normally White |
| Surface Treatment: | AG25 |
| Color Depth: | 16.7M |
| Backlight: | WLED,30K hours,with LED Driver |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -30 ~ 80 °C |
| Operating Temp: | -20 ~ 70 °C |
| Touchscreen: | without |
| Net Weight: | 300g Max |
| Package: | Package Quantity in one Box: 28pcs |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
