Product model: G104XVN01.0
Product name:

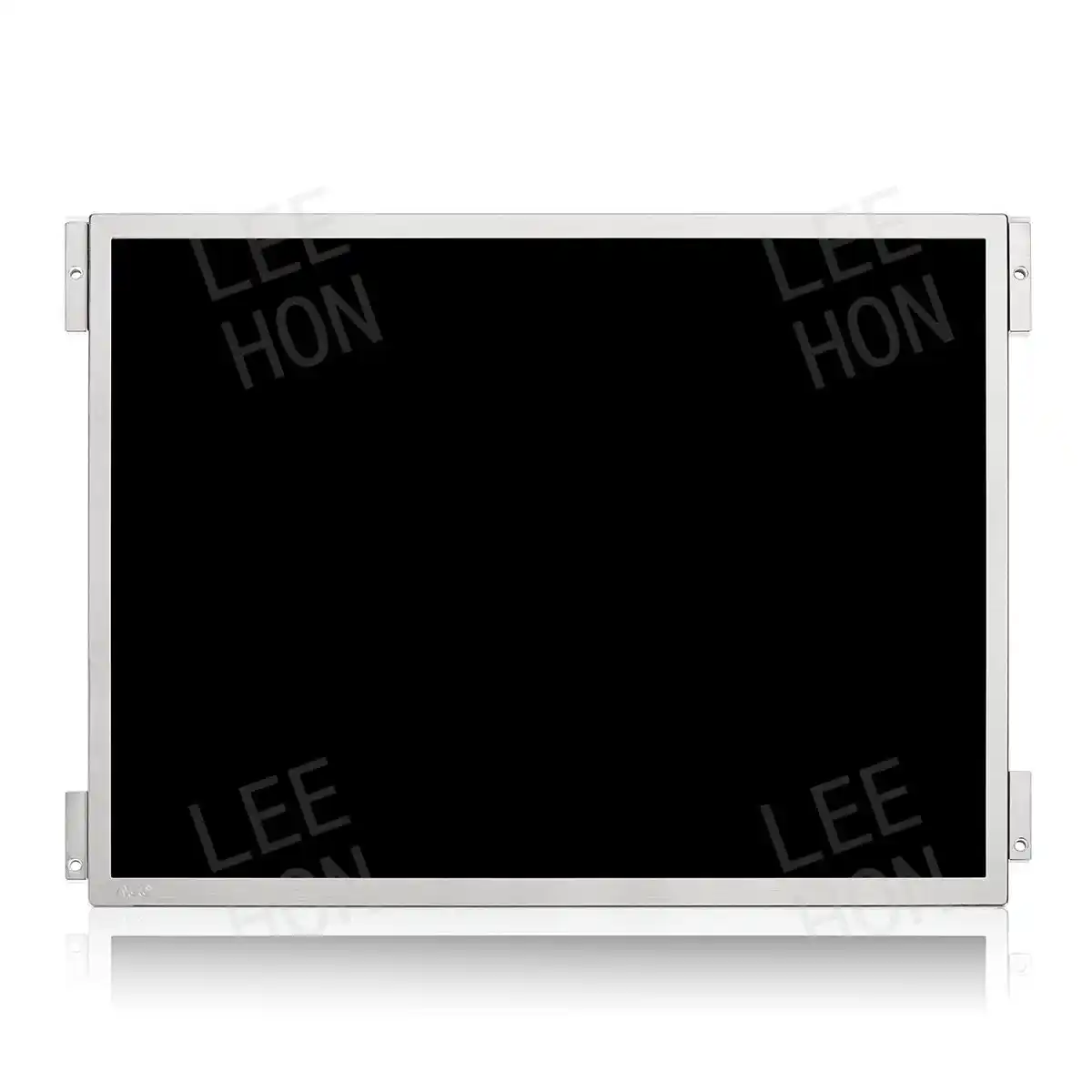

AUO 10.4 inch 1024(RGB)×768, XGA G104XVN01.0
Product overviews:
G104XVN01.0 is a 10.4-inch LCD module product launched by Youda Optoelectronics Co., Ltd. (AUO) using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight drive, and touch free. As a PSA, black display, and transparent LCD module product, G104XVN01.0 can provide a display brightness of 470 cd/m ² with a transmission contrast of 3000:1, as well as a viewing angle of 89/89/89/89 (Typ.) (CR ≥ 10) (L/R/U/D). The optimal viewing angle is full view, and its response time is 20/10 (Typ.) (Tr/Td) ms.
Supply Status:
Please contact us for availability or click G104XVN01.010 to upgrade and replace the model.
| Brand: | AUO |
| Model P/N: | G104XVN01.0 |
| Diagonal Size: | 10.4 inch |
| Pixels: | 1024(RGB)×768, XGA |
| Pixel Pitch(mm): | 0.2055×0.2055 mm (H×V) |

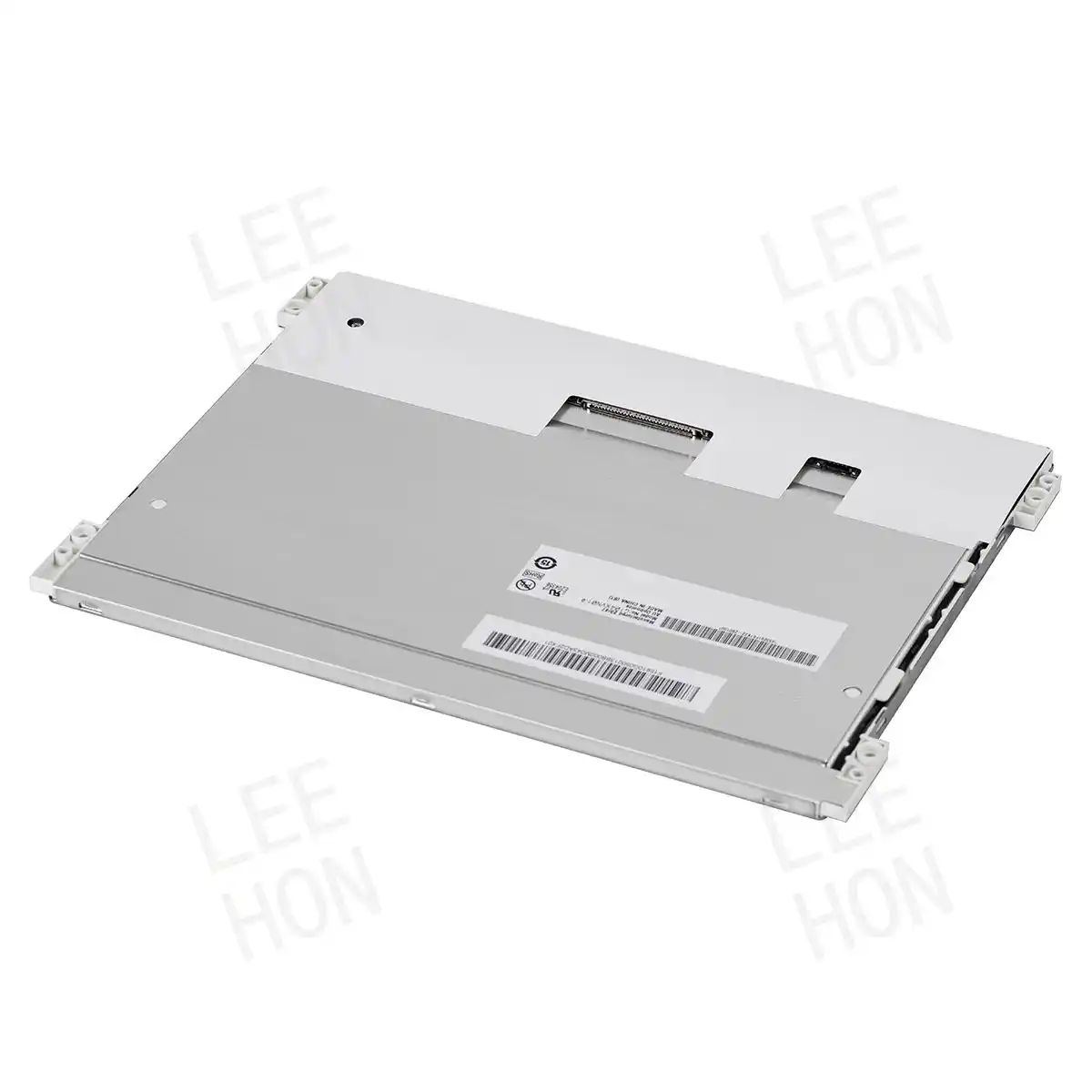

| Interface Type: | 1 channel LVDS |
| Luminance: | Typ.470 nit；Min 350nit |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |

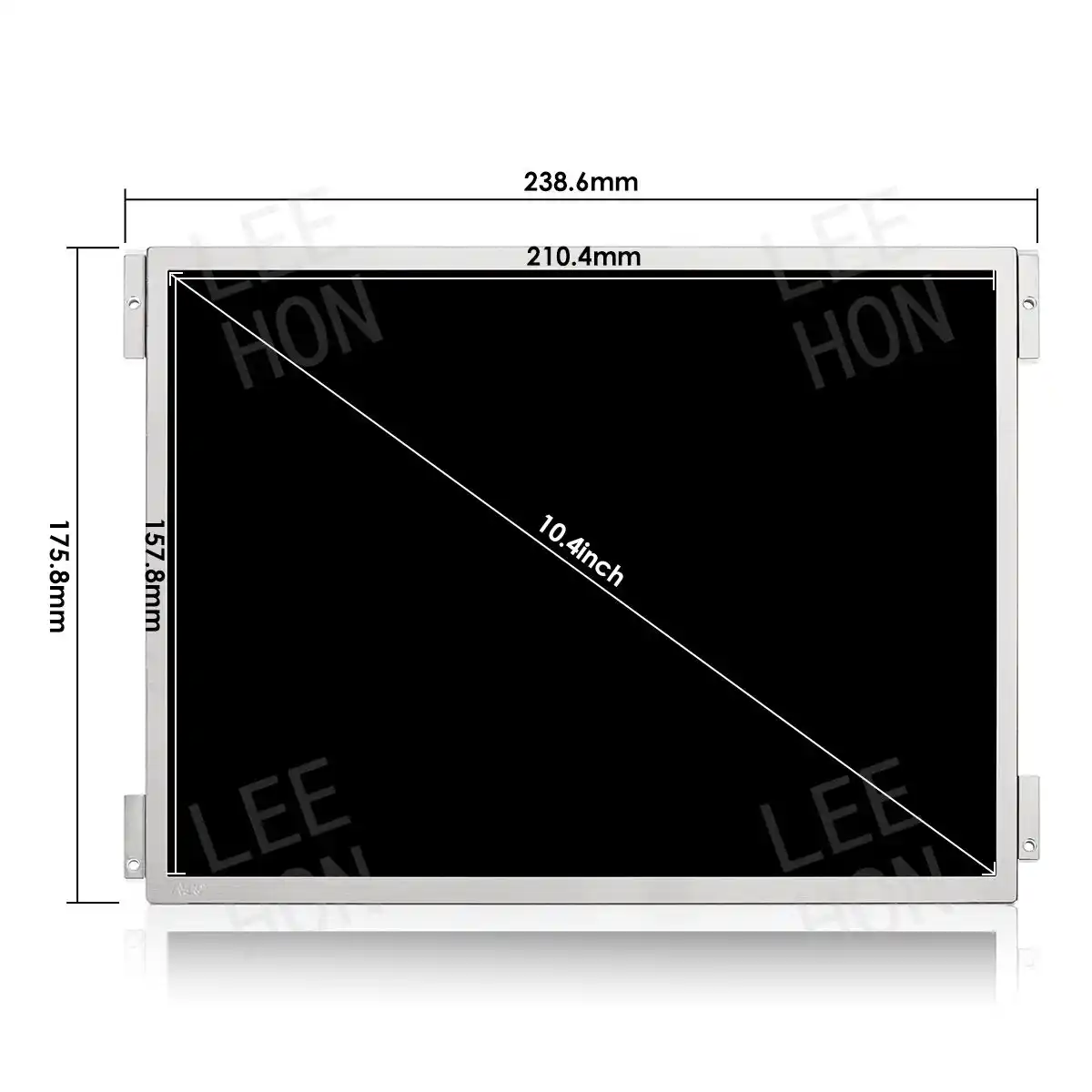

| Active Area(mm): | 210.4×157.8 mm (H×V) |
| Physical Size(mm): | 238.6(H)x 175.8(V) x 6.5(D) (typ.) mm |
| Contrast Ratio: | Typ.：3000:1;Min：2500:1 |
| Response Time: | Typ.30;Max 50 |
| Work Mode: | PSA Normally Black |
| Surface Treatment: | Anti-glare, Hardness 3H |
| Color Depth: | 16.7M / 262K colors |
| Backlight: | WLED , 80K hours , with LED Driver |
| Input Voltage: | 3.3 V |
| Storage Temp: | -30 ~ 80°C |
| Operating Temp: | -30 ~ +80 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 295g |
| Package: | Max capacity:40 TFT-LCD module per carton |

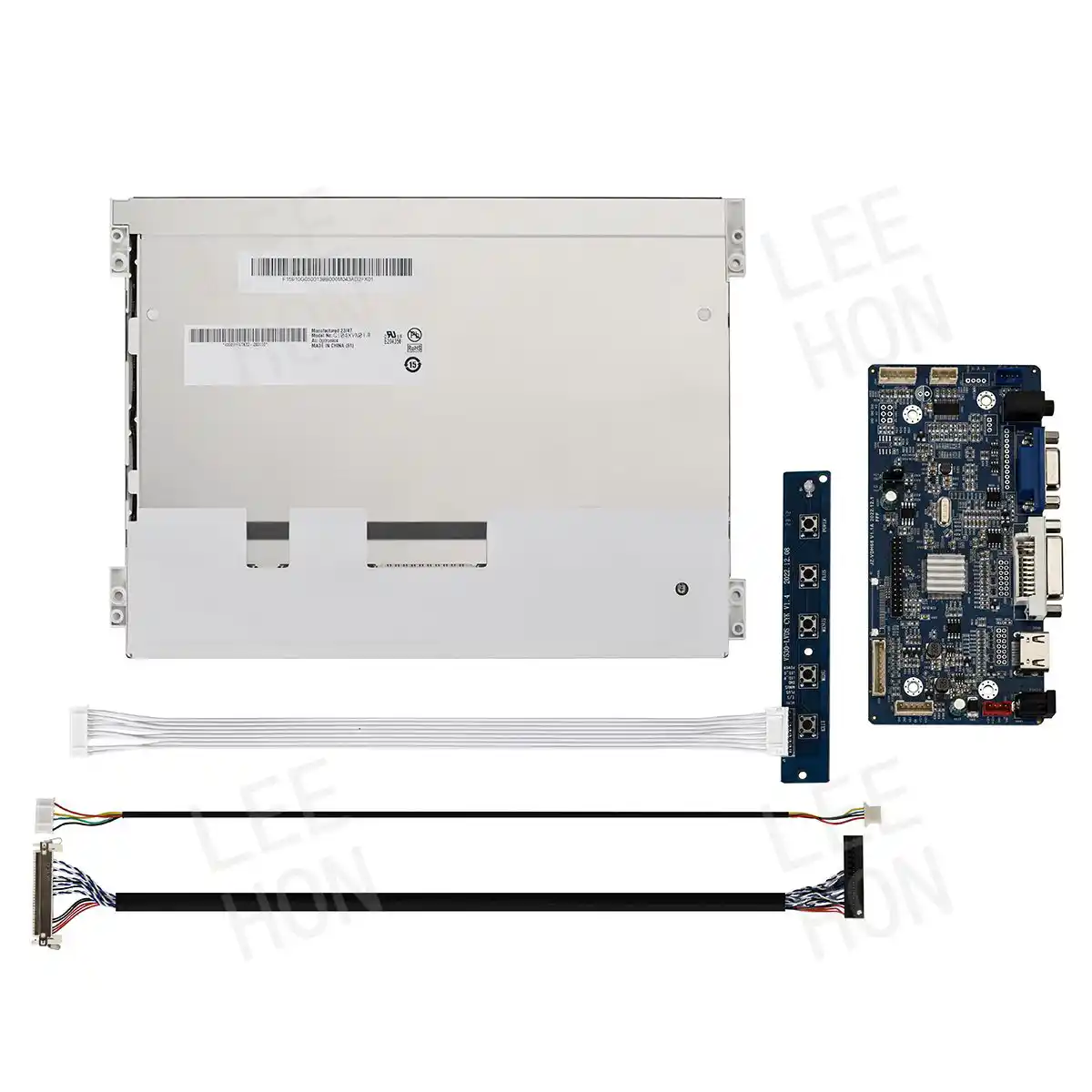

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
