G101STN01.C
Product name:
AUO 10.1 inch 1024×600 G101STN01.C
Product overviews:
This specification applies to the Color Active Matrix Liquid Crystal Display G101STN01.C composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support Wide SVGA (1024(H) x 600(V)) screen and 262k/16.7M colors (LVDS 6/8-bits). And LED driving circuit for backlight unit is included in G101STN01.C. All input signals are LVDS interface. G101STN01.C designed with wide viewing angle; wide temperature and long life LED backlight (50K hrs) is well suited for industial applications. G101STN01.C is a RoHS product.
Supply Status:
Steady supply.
| Brand: | AUO |
| Model P/N: | G101STN01.C |
| Diagonal Size: | 10.1 inch |
| Pixels: | 1024×600 |
| Pixel Pitch(mm): | 0.2175×0.2088mm (H×V) |

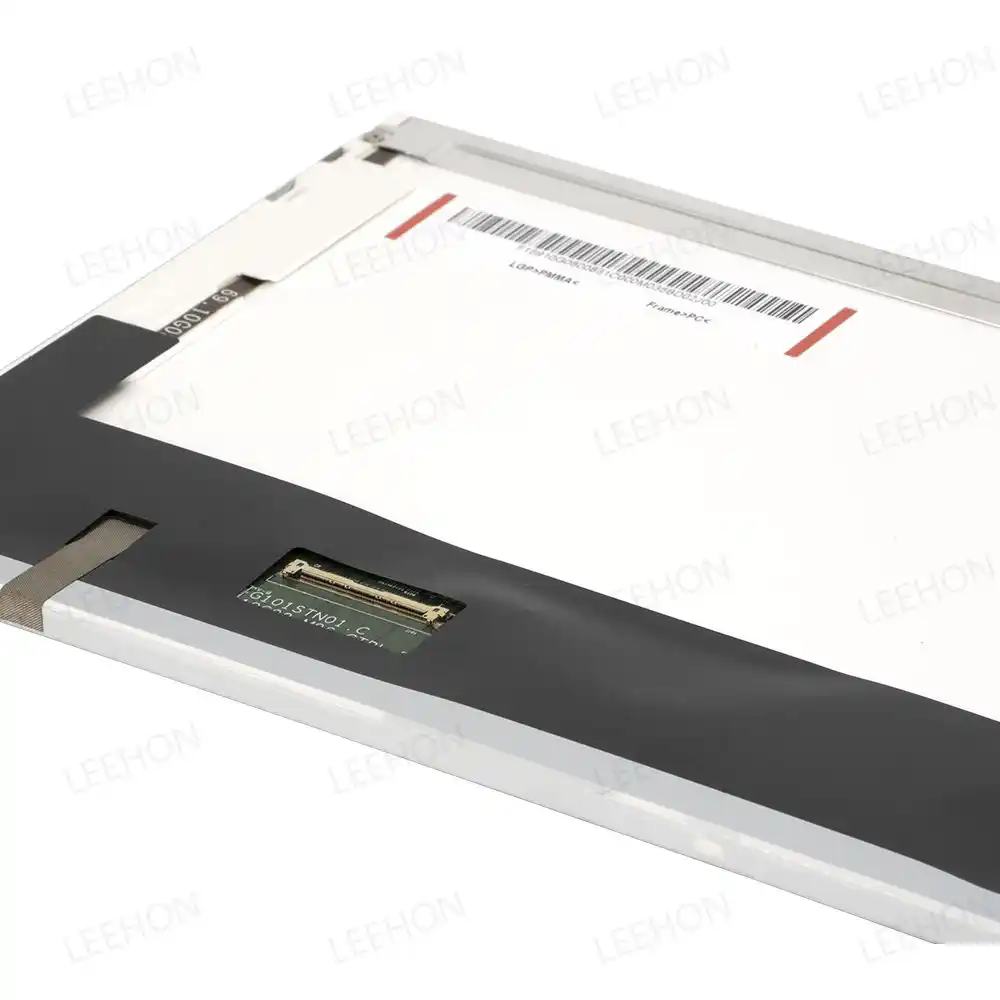

| Interface Type: | LVDS |
| Luminance: | 500 cd/m² |
| Viewing Angle: | 70/70/60/60 (Typ.)(CR≥10) |

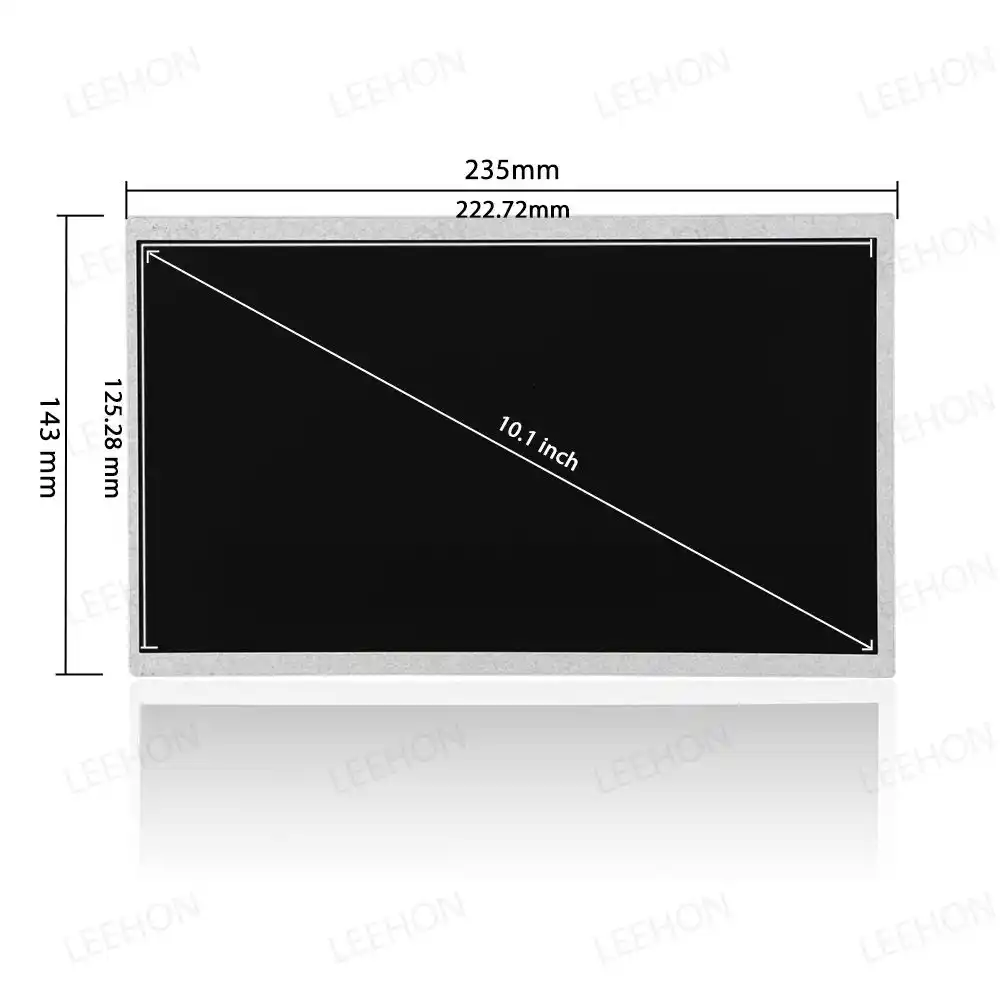

| Active Area(mm): | 222.72×125.28 mm (H×V) |
| Physical Size(mm): | 235×143x4.9 mm |
| Contrast Ratio: | 500:1 (Typ.)；400:1(Min) |
| Response Time: | 20 (Typ.)(Tr+Td) ms |
| Work Mode: | TN,Normally White |
| Surface Treatment: | Anti-Glare, 3H |
| Color Depth: | 262K/16.2M |
| Backlight: | WLED,50K hours withLED |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -30 ~ 80 °C |
| Operating Temp: | -30 ~ 80 °C |
| Touchscreen: | without |
| Net Weight: | 180g |
| Package: | Max capacity:35pcs TFT-LCD module per carton |

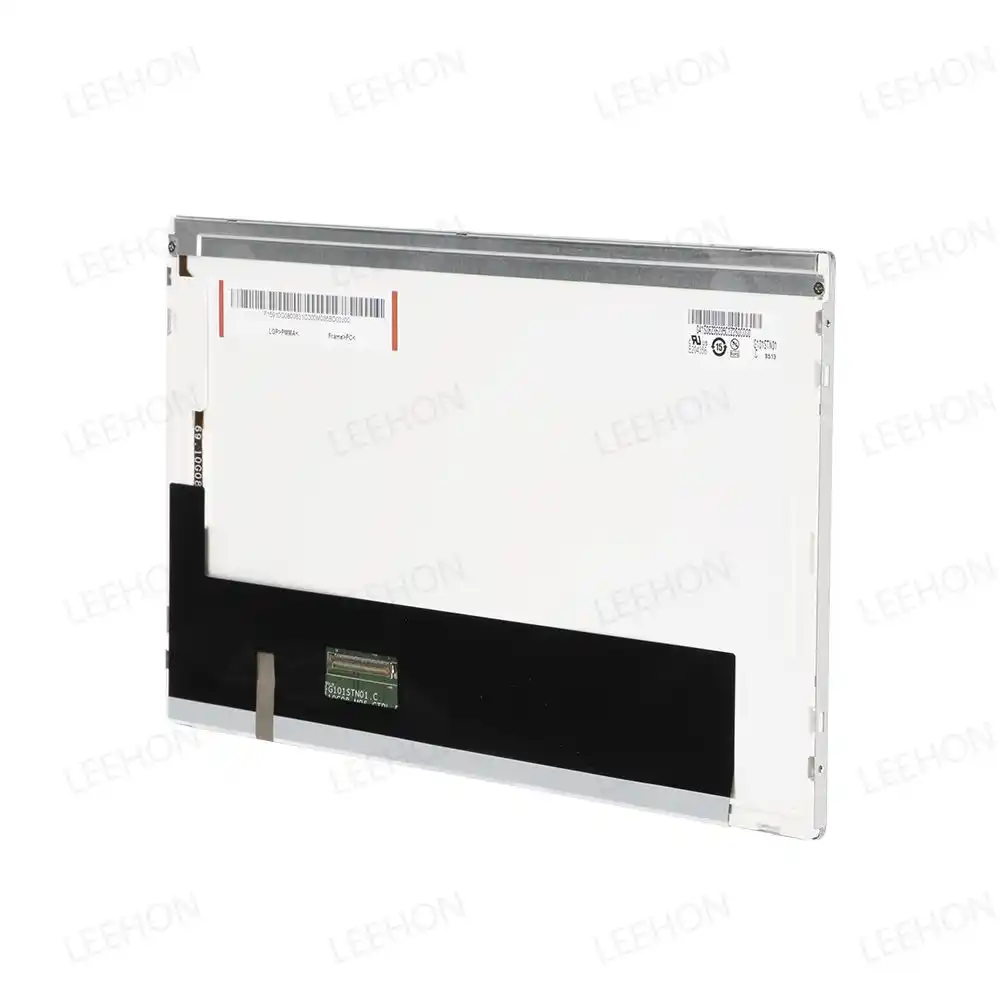

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
