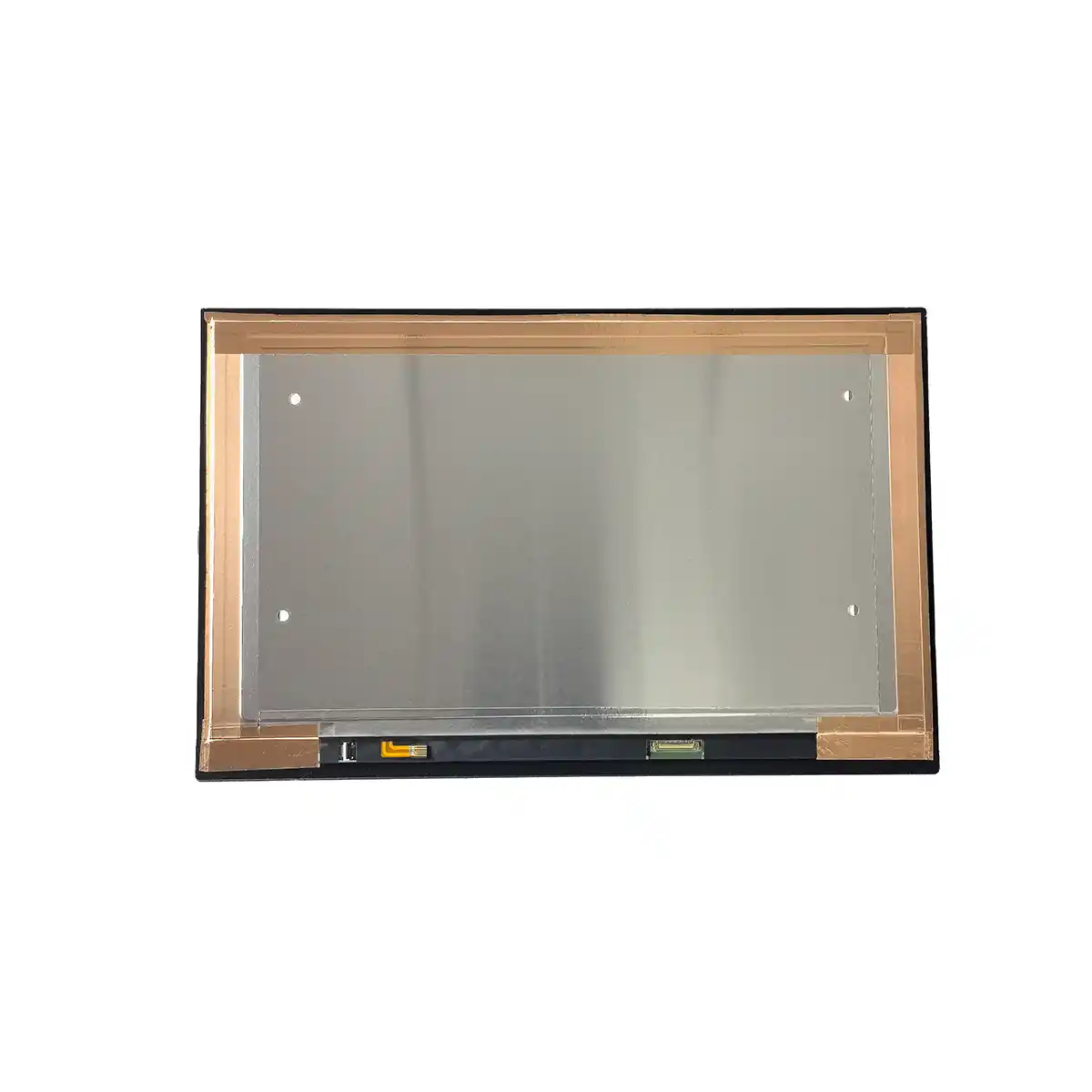

LH101DY060A
Product name:
LEEHON 10.1 inch 1920(RGB)×1200, WUXGA, 225PPI LH101DY060A
Product overviews:
LH101DY060A is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 10.1 inch diagonally measured active area with resolutions (1920 horizontal by 1200 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.2M colors.
Supply Status:
Steady supply.
| Brand: | LEEHON |
| Model P/N: | LH101DY060A |
| Diagonal Size: | 10.1 inch |
| Pixels: | 1920(RGB)×1200, WUXGA, 225PPI |
| Active Area(mm): | 216.58×135.36mm |
| Physical Size(mm): | 240 × 159.8 × 4.65 mm |
| Luminance: | ≥500 cd/m ² |
| Contrast Ratio: | 1000 : 1 (Typ.) |
| Best Viewing Angle: | Full perspective |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR> 10) |
| Work Mode: | HADS， Constant black display, transparent |
| Refresh rate: | 60Hz |
| Response Time: | 30 (Typ.)(Tr+Td) ms |
| Color Depth: | |
| Interface Type: | MIPI (4 data lanes), eDP1.4, HBR1 (2.7G/lane), terminal, 30 pins |
| Net Weight: | TBD |
| Operating Voltage: | 3.3V (Typ.) |
| Temperature: | Working temperature: -40~60 ° C; Storage temperature: -45~70 ° C |
| Electromagnetic Compatibility: | 250 mesh irregular omentum |
| Power consumption: | 3.84 W |
| Touch: | National COB solution, supporting passive pen function |
| Heated glass: | Heating power consumption specified by the customer, with temperature control (optional) |
| Aviation plug interface: |
