Product model: TM035KDH03
Product name:

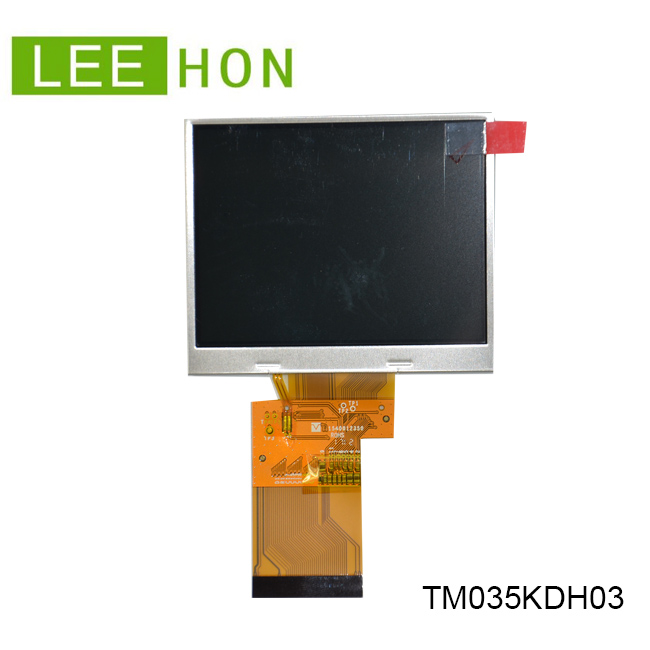

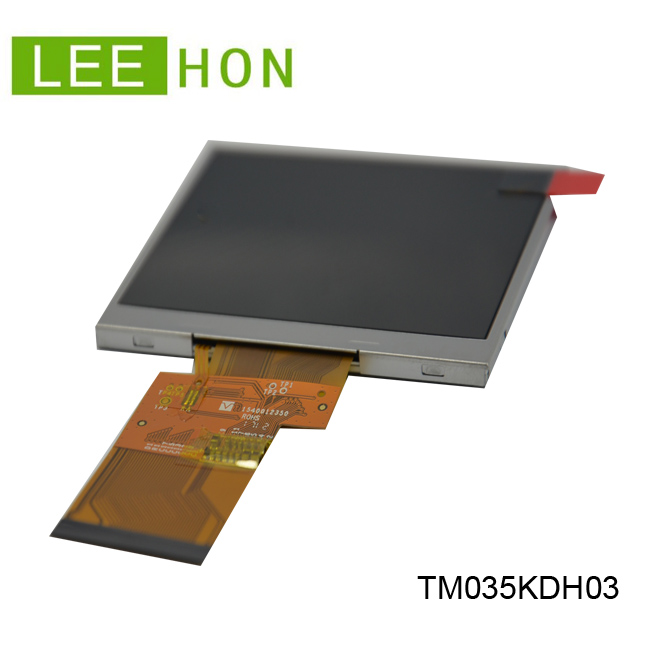

TIANMA 3.5 inch 320（RGB）*240(QVGA) TM035KDH03
Product overviews:
TIANMA 3.5 inch tft lcd panel TM070RDH10-40 with 320（RGB）*240(QVGA) resolution , brightness 300 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +80 (°C). Based on its white LED backlight.This model is recommended for industrial use.Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board.
Supply Status:
Steady supply.
| Brand: | TIANMA |
| Model P/N: | TM035KDH03 |
| Diagonal Size: | 3.5 inch |
| Pixels: | 320（RGB）*240(QVGA) |
| Pixel Pitch(mm): | 0.219*0.219mm |
| Interface Type: | FPC |
| Luminance: | Typ. 300 nit；Min 240nit |
| Viewing Angle: | Typ.：60/70/70/70 |
| Active Area(mm): | 70.08 x 52.56 mm |
| Physical Size(mm): | 76.90 x 63.90 x 3.15 (W x H x D) (mm) |
| Contrast Ratio: | Typ.：500:1;Min：400:1 |
| Response Time: | 25(Typ.)(Tr+Td)(ms) |
| Work Mode: | TM with Normally White |
| Surface Treatment: | RGB/CCIR656/601 |
| Color Depth: | 16.7M dithering |
| Backlight: | WLED , 20K hours , with LED Driver |
| Input Voltage: | 5.0 V |
| Storage Temp: | -30 ~ +80 (°C) |
| Operating Temp: | -20 ~ +70 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 30g |
| Package: | Max. capacity: 160 pieces TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
