ZJ080NA-08A
Product name:

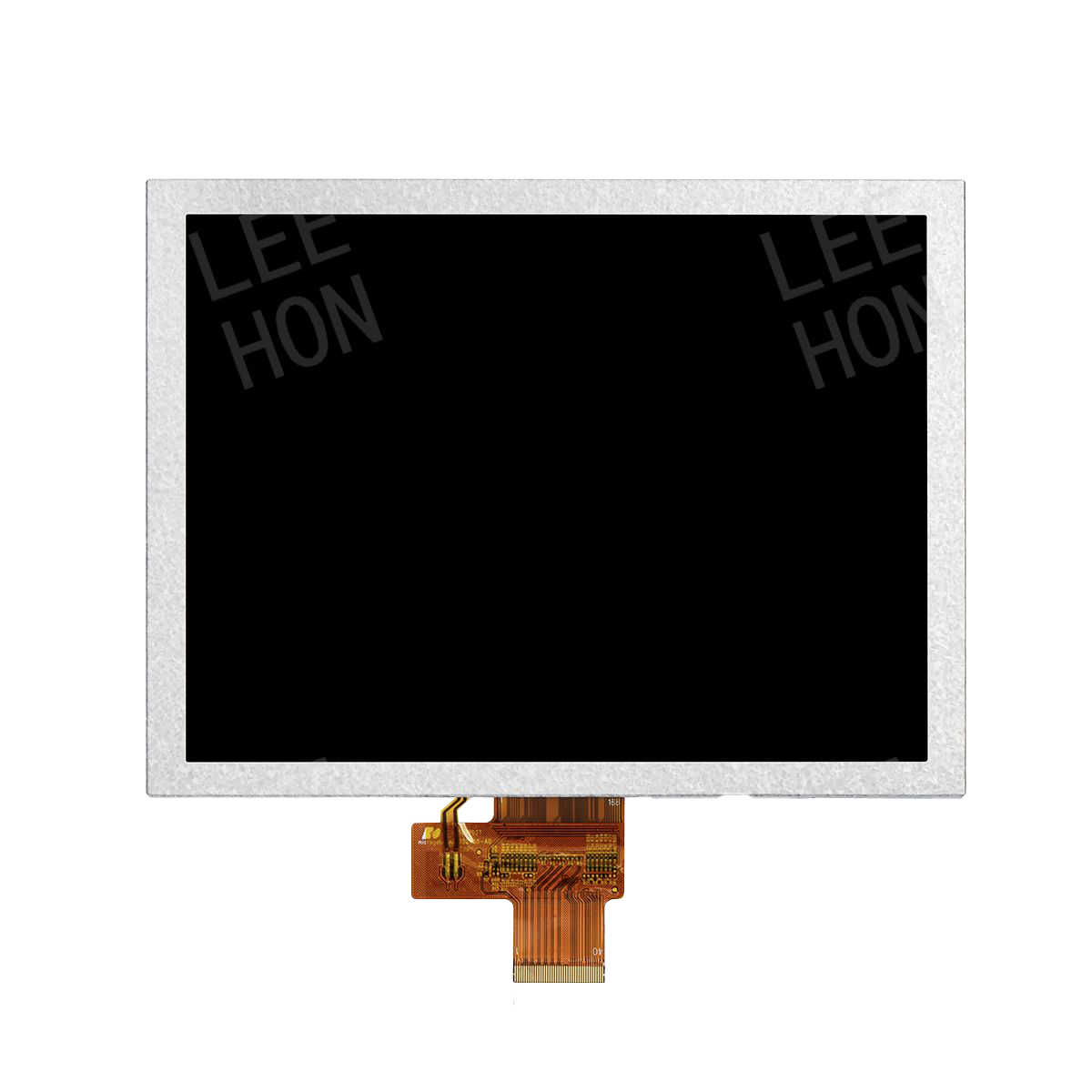

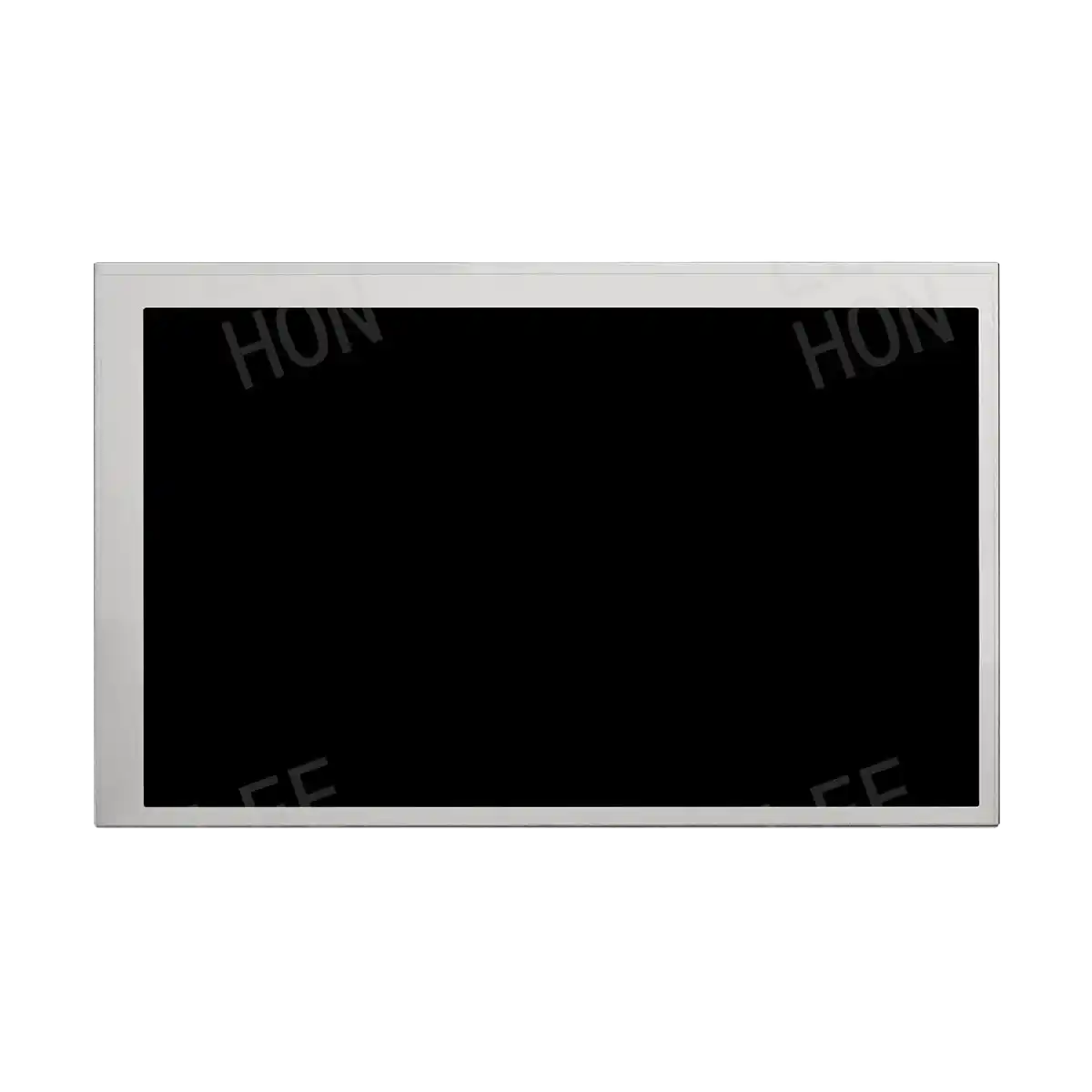

INNOLUX 8 inch 1024x600 ZJ080NA-08A
Product overviews:
The ZJ080NA-08A launched by Chimei Innolux is an 8.0-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, no backlight driver, and no touch. White LED backlight, up/down, left/right flip display. Its working temperature is -20~80 ° C, and its storage temperature is -30~80 ° C.
Supply Status:
Steady supply.
| Brand: | INNOLUX |
| Model P/N: | ZJ080NA-08A |
| Diagonal Size: | 8 inch |
| Pixels: | 1024x600 |
| Pixel Pitch(mm): | 0.1725(W) x 0.1656(H) mm |
| Interface Type: | RGB |
| Luminance: | 500 cd/m² |
| Viewing Angle: | 75/75/70/72 (Typ.) |
| Active Area(mm): | 176.64(W) x 99.36(H) |
| Physical Size(mm): | 192.8(W) x 116.9(H) x 6.4(D)mm |
| Contrast Ratio: | 700:1 |
| Response Time: | 30 (Typ.)(Tr+Td) (ms) |
| Work Mode: | Normally White |
| Surface Treatment: | Plain |
| Color Depth: | Digital |
| Backlight: | WLED,20K hours |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -20 ~ 80 °C |
| Operating Temp: | -30 ~ 80 °C |
| Touchscreen: | without |
| Net Weight: | 0.23Kgs (Typ.) |
| Package: | Max capacity:30 pcs TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
