DV190FBM-NB0
Product name:
BOE 19 inch 1920×360 DV190FBM-NB0
Product overviews:
The DV190FBM-NB0, a 19.1 inch a-Si TFT-LCD panel by BOE, features WXGA resolution (1920x360), WLED backlight, and matte surface. It supports sRGB, has a >3:1 aspect ratio, and is Energy Star 6.0 compliant. With a typical brightness of 300 cd/m², it's designed for digital signage and bar-type displays, offering a lifespan over 50,000 hours. The module, without touch or backlight driver, operates at 0-60°C, with storage temperatures from -20 to 60°C.
Supply Status:
Steady supply.
| Brand: | BOE |
| Model P/N: | DV190FBM-NB0 |
| Diagonal Size: | 19 inch |
| Pixels: | 1920×360 |
| Pixel Pitch(mm): | 0.24825(H) ×0.24825(V) mm |
| Interface Type: | LVDS |
| Luminance: | 300 cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.) |

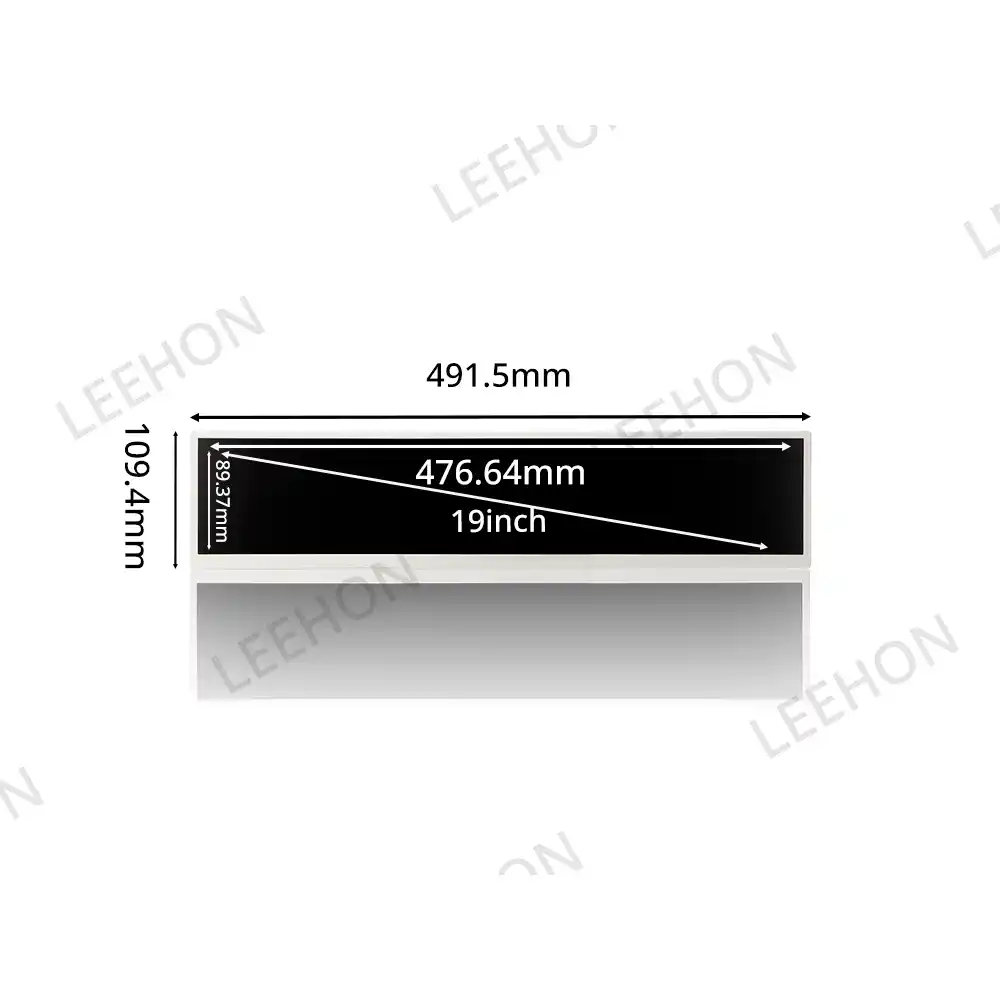

| Active Area(mm): | 476.64(H) × 89.37(V) mm |
| Physical Size(mm): | 491.5(H) × 109.5(V) × 8.4(B) mm |
| Contrast Ratio: | 1200:1 (Typ.)；900:1(Min) |
| Response Time: | 35/30 (Typ.)(Tr/Td) (ms) |
| Work Mode: | Normally Black |
| Surface Treatment: | Haze 25% |
| Color Depth: | 16.7M |
| Backlight: | WLED,50K hours |
| Input Voltage: | 5.0V (Typ.) |
| Storage Temp: | -20 ~ 60 °C |
| Operating Temp: | 0 ~ 60 °C |
| Touchscreen: | without |
| Net Weight: | 780（typ.)g |
| Package: | Max capacity:19 pcs TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
