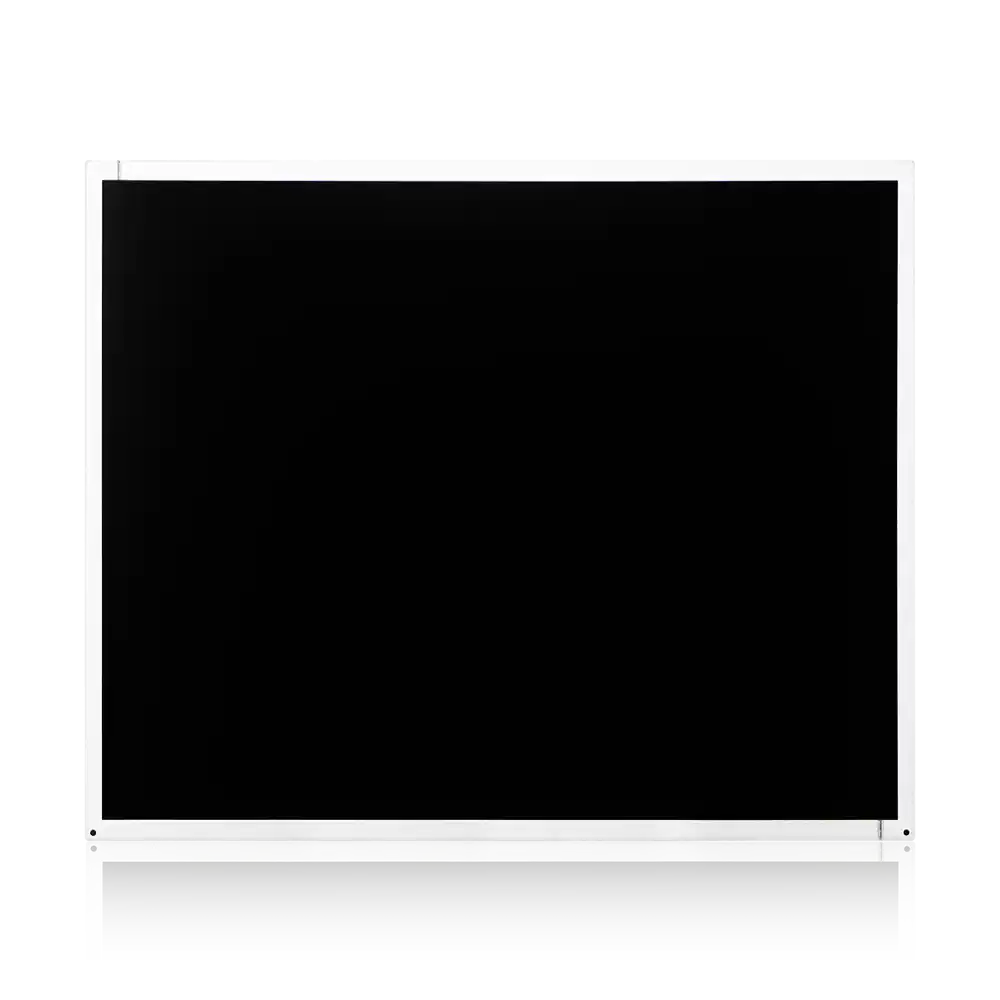

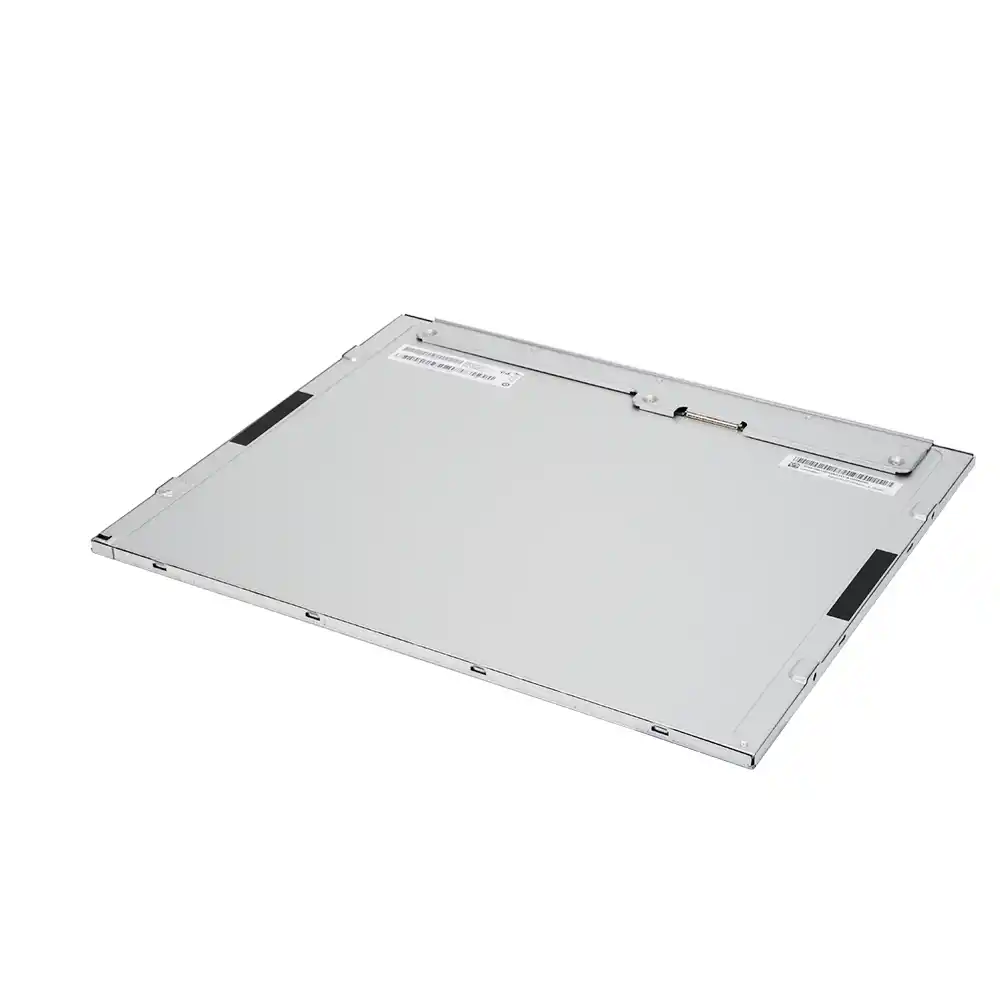

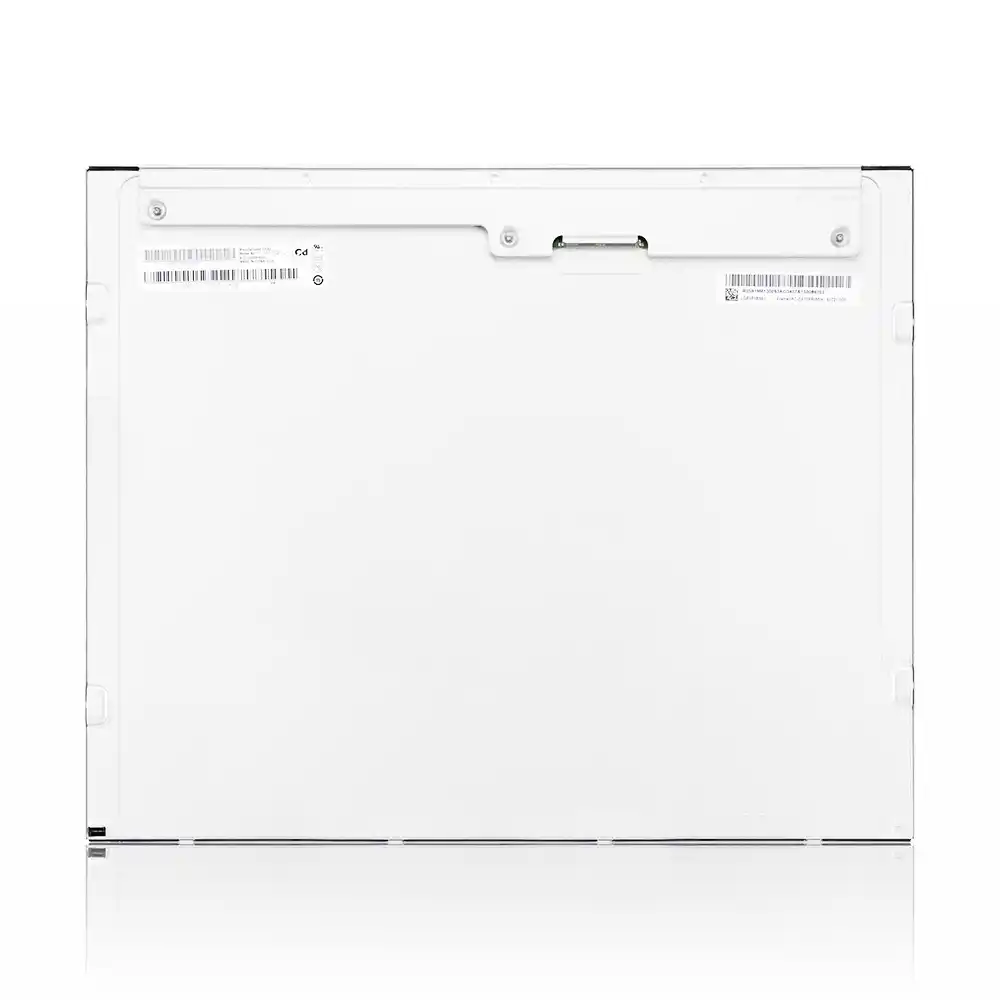

M190ETN01.0
Product name:

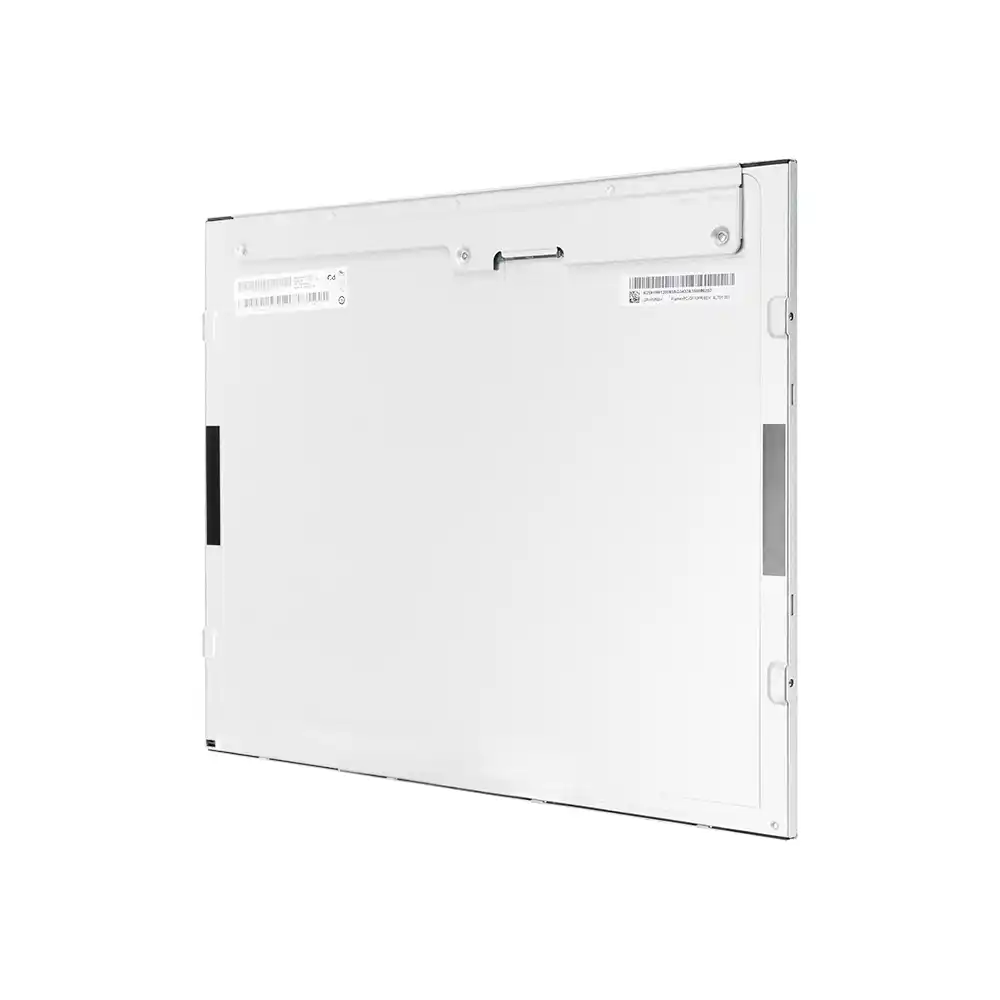

AUO 19 inch 1280×1024 M190ETN01.0
Product overviews:
This specification applies to the 19 inch-SXGA color a-Si TFT-LCD Module M190ETN01.0 The display supports the SXGA - 1280(H) x 1024(V) screen format and 16.7M colors (RGB 6-bit data + HiFRC data). The light source of this TFT-LCD module is W-LED. All input signals are 2-channel LVDS interface and this module doesn’t contain a driver for backlight.
Supply Status:
Steady supply.
| Brand: | AUO |
| Model P/N: | M190ETN01.0 |
| Diagonal Size: | 19 inch |
| Pixels: | 1280×1024 |
| Pixel Pitch(mm): | 376.32 (H) x 301.06 (V) mm |

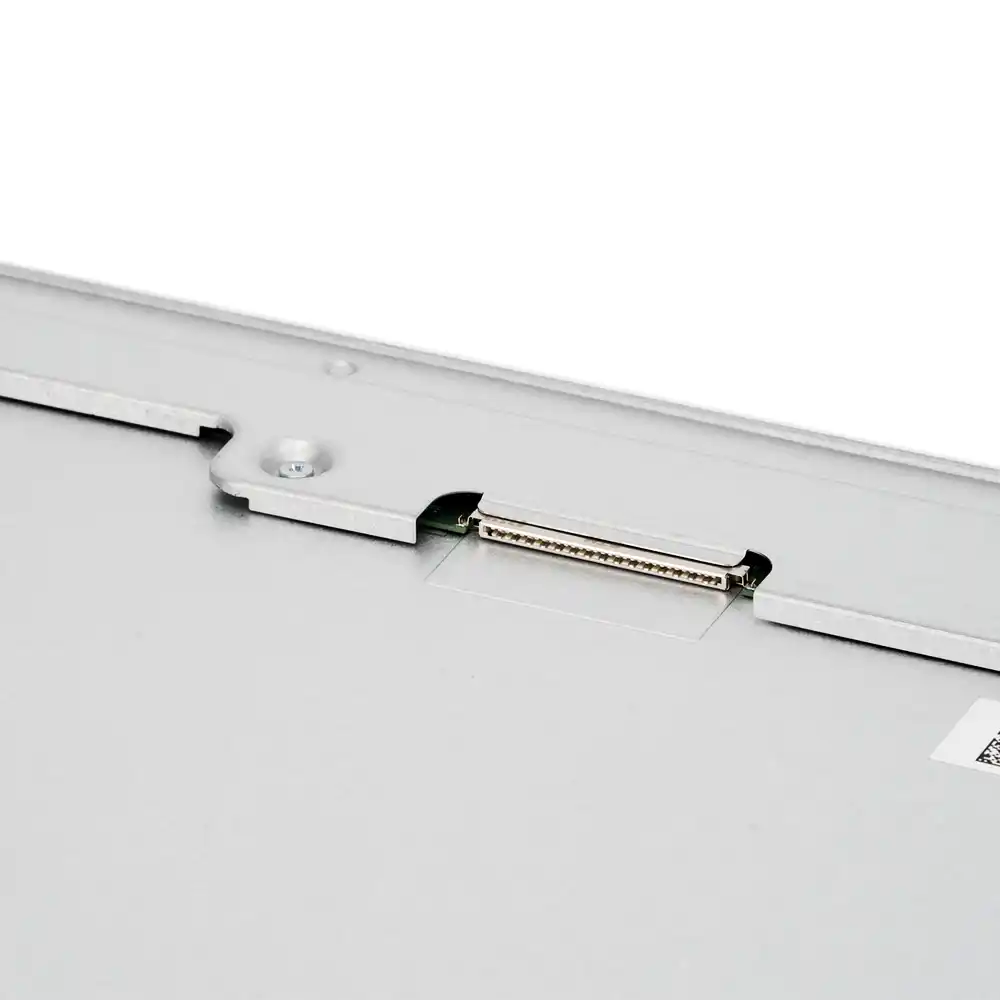

| Interface Type: | LVDS |
| Luminance: | 250 cd/m² |
| Viewing Angle: | 85/85/80/80 (Typ.)(CR≥10) |
| Active Area(mm): | 376.32 (H) x 301.06 (V) mm |
| Physical Size(mm): | 396 (H) x 324 (V) x 10.9(D) mm |
| Contrast Ratio: | 1000:1 (Typ.)；600:1(Min) |
| Response Time: | 5 ms |
| Work Mode: | Normally White |
| Surface Treatment: | Anti-Glare, 3H |
| Color Depth: | 16.7M colors (RGB 6-bit + Hi_FRC) |
| Backlight: | WLED,30K hours |
| Input Voltage: | +5.0 V |
| Storage Temp: | -20 ~ 60 °C |
| Operating Temp: | 0 ~ 50 °C |
| Touchscreen: | without |
| Net Weight: | 1800g |
| Package: | Max capacity:13pcs TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
