DV185FHM-R00
Product name:

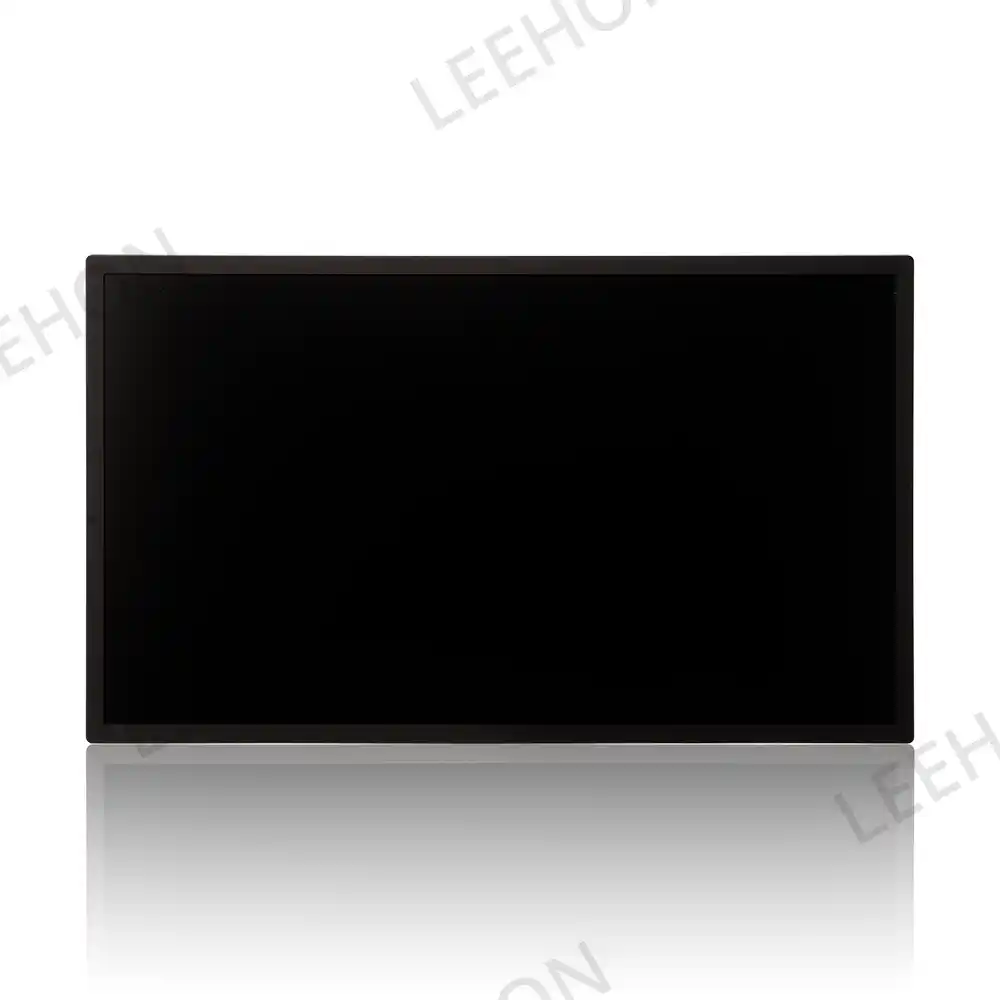

BOE 18.5 inch 1920×1080 DV185FHM-R00
Product overviews:
The DV185FHM-R00 is a 18.5 inch a-Si TFT-LCD panel by BOE, featuring a 1920x1080 resolution, 1000 cd/m² brightness, 1000:1 contrast, and 89/89/89/89 (L/R/U/D) viewing angles. It uses WLED backlight with an LED driver, supports 16.7M colors via 6-bit + Hi-FRC, and has a 14ms response time. This non-touch display is suitable for industrial applications, offering long-term stability and a wide color gamut of 73% NTSC.
Supply Status:
Steady supply.
Brand: | BOE |
Model P/N: | DV185FHM-R00 |
Diagonal Size: | 18.5 inch |
Pixels: | 1920×1080 |
Pixel Pitch(mm): | 71(H) ×213(V) um |

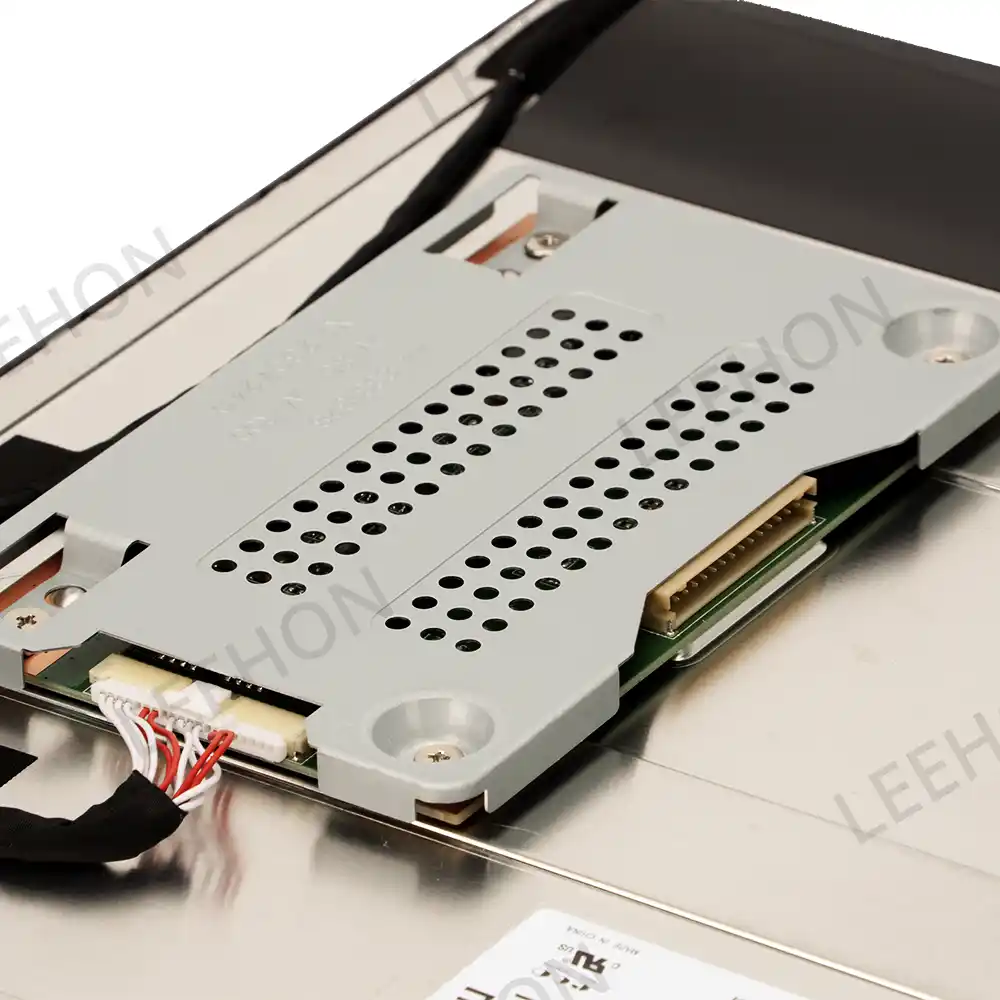

Interface Type: | LVDS |
Luminance: | 1000 cd/m² |
Viewing Angle: | 89/89/89/89 (Typ.) |

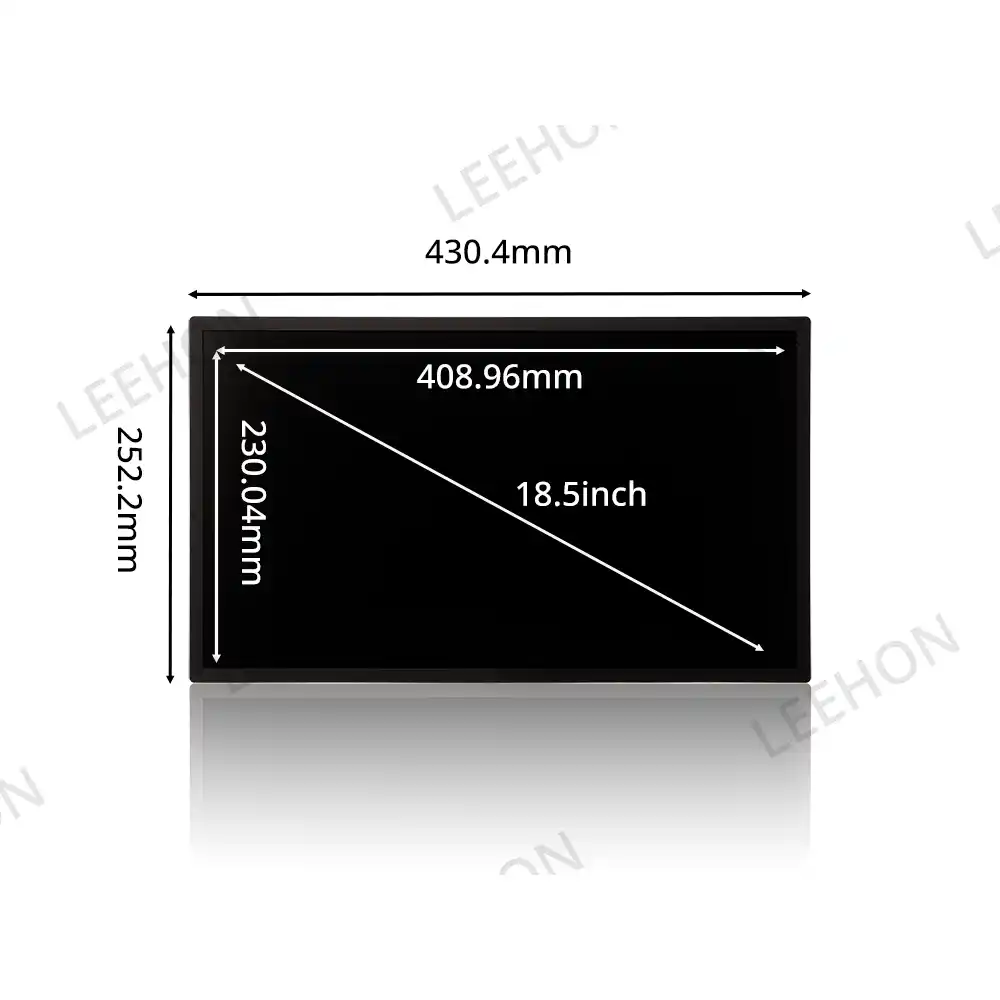

Active Area(mm): | 408.96(H) × 230.04 (V) mm |
Physical Size(mm): | 430.4(H)*252.2(V)*12.4(B) mm |
Contrast Ratio: | 1000:1 (Typ.) |
Response Time: | 14 (Typ.)(Tr+Td) (ms) |
Work Mode: | Normally Black |
Surface Treatment: | Haze 25%,3H |
Color Depth: | 16.7M |
Backlight: | WLED,50K hours withLED |
Input Voltage: | 5 V (Typ) |
Storage Temp: | -30 ~ 70 °C |
Operating Temp: | -20 ~ 60 °C |
Touchscreen: | without |
Net Weight: | 1120±200 g |
Package: | Max capacity:18 pcs TFT-LCD module per carton |

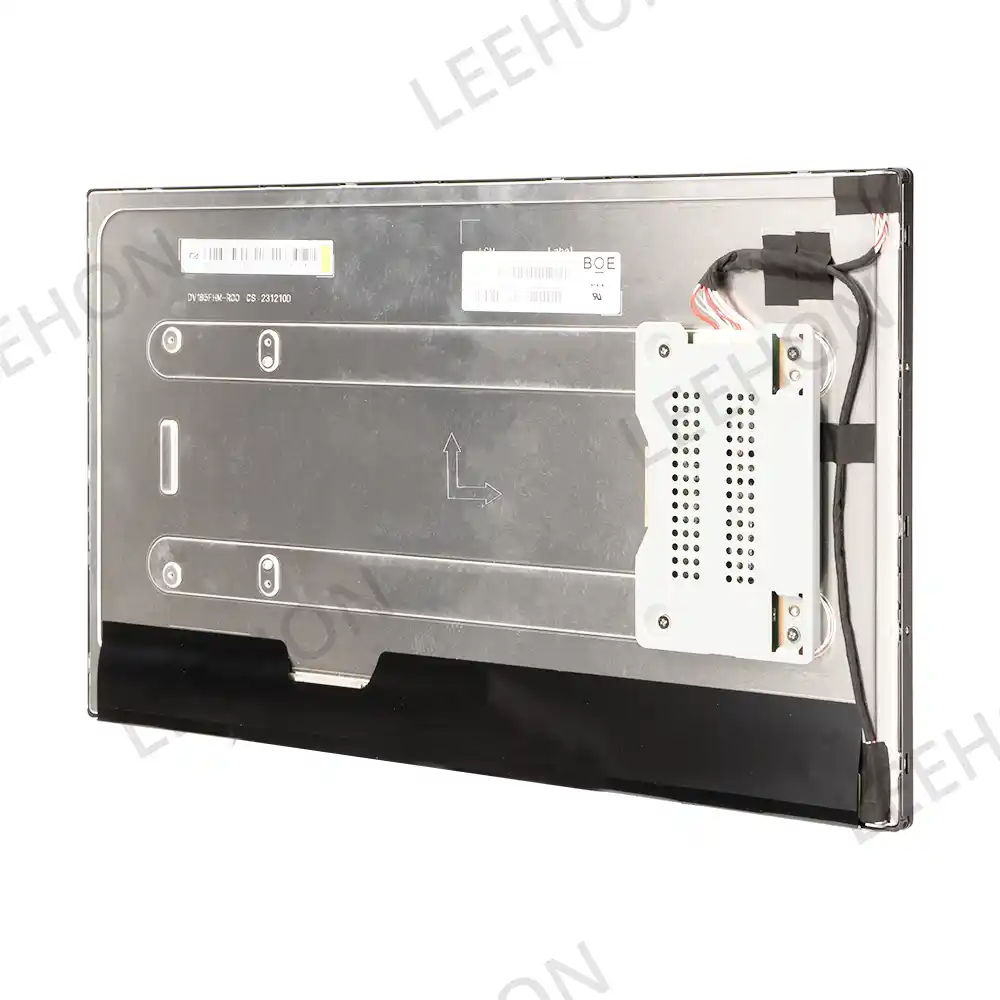

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
