Product model: LH170LX022A
Product name:
LEEHON 170inch 1280(RGB)×1024 LH170LX022A
Product overviews:
LH170LX022A is a color active matrix TFT LCD MDL using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This MDL has a 17 inch diagonally measured active area with SXGA resolutions (1280 horizontal by 1024 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD MDL panel is adapted for a low reflection and higher color type.
Supply Status:
Steady supply.
| Brand: | LEEHON |
| Model P/N: | LH170LX022A |
| Diagonal Size: | 170inch |
| Pixels: | 1280(RGB)×1024 |

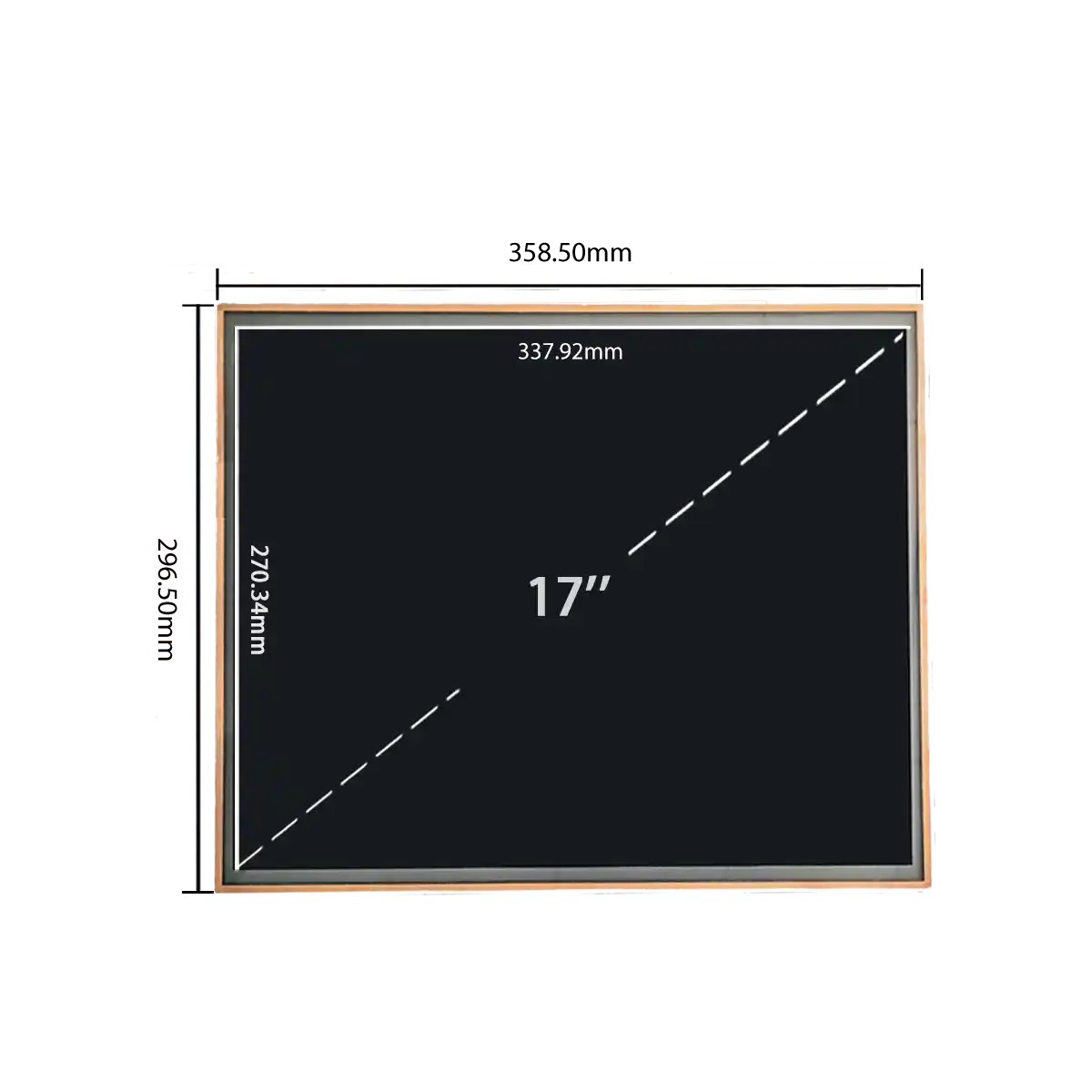

| Active Area(mm): | 337.92×270.34 mm |
| Physical Size(mm): | 358.5 × 296.5 × 13.45 mm |
| Luminance: | 150 cd/m ² |
| Contrast Ratio: | 1000 : 1 (Typ.) |
| Best Viewing Angle: | Full perspective |
| Viewing Angle: | 89/89/89/89 (Typ.) |
| Work Mode: | HADS， Constant black display, transparent |
| Refresh rate: | 60Hz |
| Response Time: | 20 (Typ.)(Tr+Td) ms |
| Color Depth: | |
| Interface Type: | LVDS (2 ch, 8-bit), terminal, 30 pins |
| Net Weight: | 2059g |
| Operating Voltage: | 5V (Typ.) |
| Temperature: | Working temperature: -20~55 ° C; Storage temperature: -55~70 ° C |
| Electromagnetic Compatibility: | 100 mesh shielding film |
| Power consumption: | 10.5 W |
| Touch: | Capacitive touch, 10 point touch, with RC filtering circuit and electromagnetic shielding function (optional) |
| Heated glass: | Heating power consumption specified by the customer, with temperature control (optional) |
| Aviation plug interface: |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
