Product model: G121EAN01.2
Product name:
AUO 121inch 1280 x 800 G121EAN01.2
Product overviews:
This specification applies to the Color Active Matrix Liquid Crystal Display G121EAN01.2 composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support WXGA (1280(H) x 800(V)) screen and 16.7M (8-bits) or 262k colors (6-bits). LED driving board for backlight unit is included in G121EAN01.2. G121EAT01.2 designed with wide viewing angle; wide temperature and long life LED backlight is well suited for industial applications. G121EAN01.2 is a RoHS product.
Supply Status:
Steady supply.
| Brand: | AUO |
| Model P/N: | G121EAN01.2 |
| Diagonal Size: | 121inch |
| Pixels: | 1280 x 800 |
| Pixel Pitch(mm): | 0.204 x 0.204 mm |

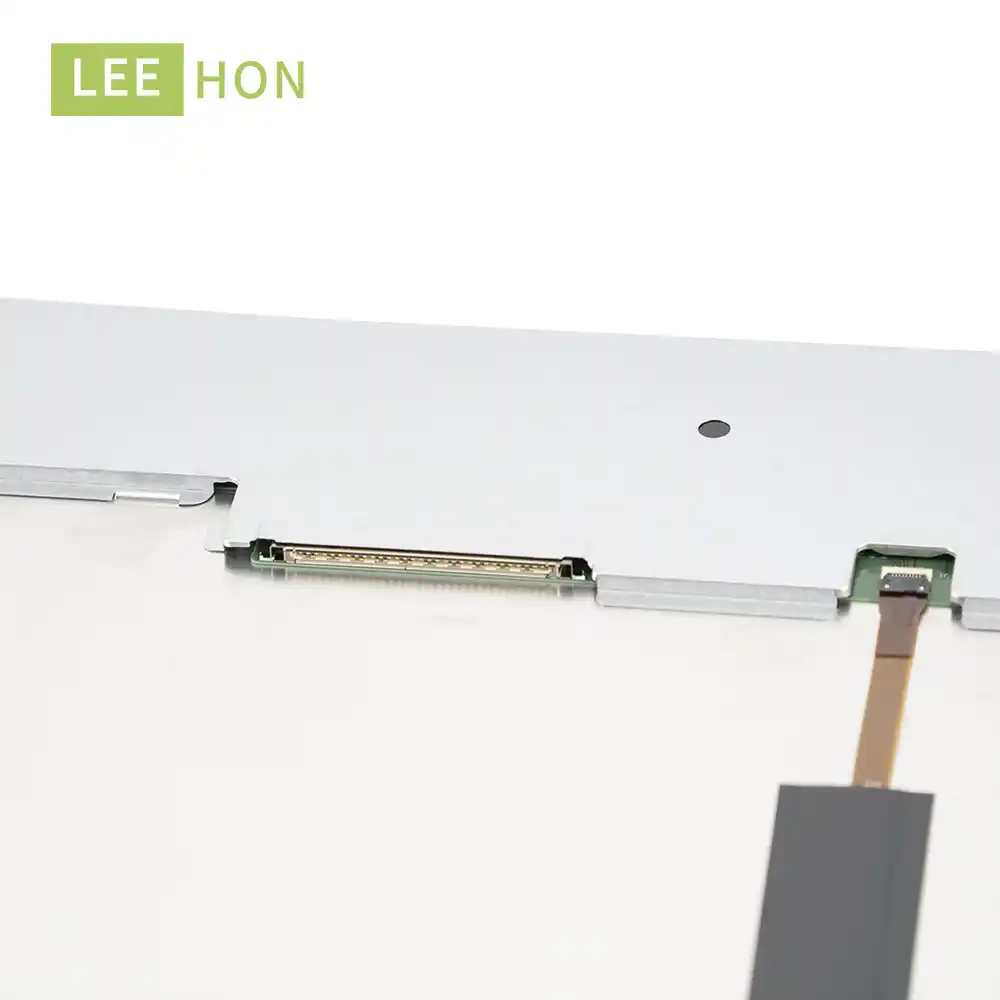

| Interface Type: | LVDS (1 ch, 6/8-bit) |
| Luminance: | 850(Min)/1000(Typ) cd/m2 |
| Viewing Angle: | 89/89/89/89(typ.) |

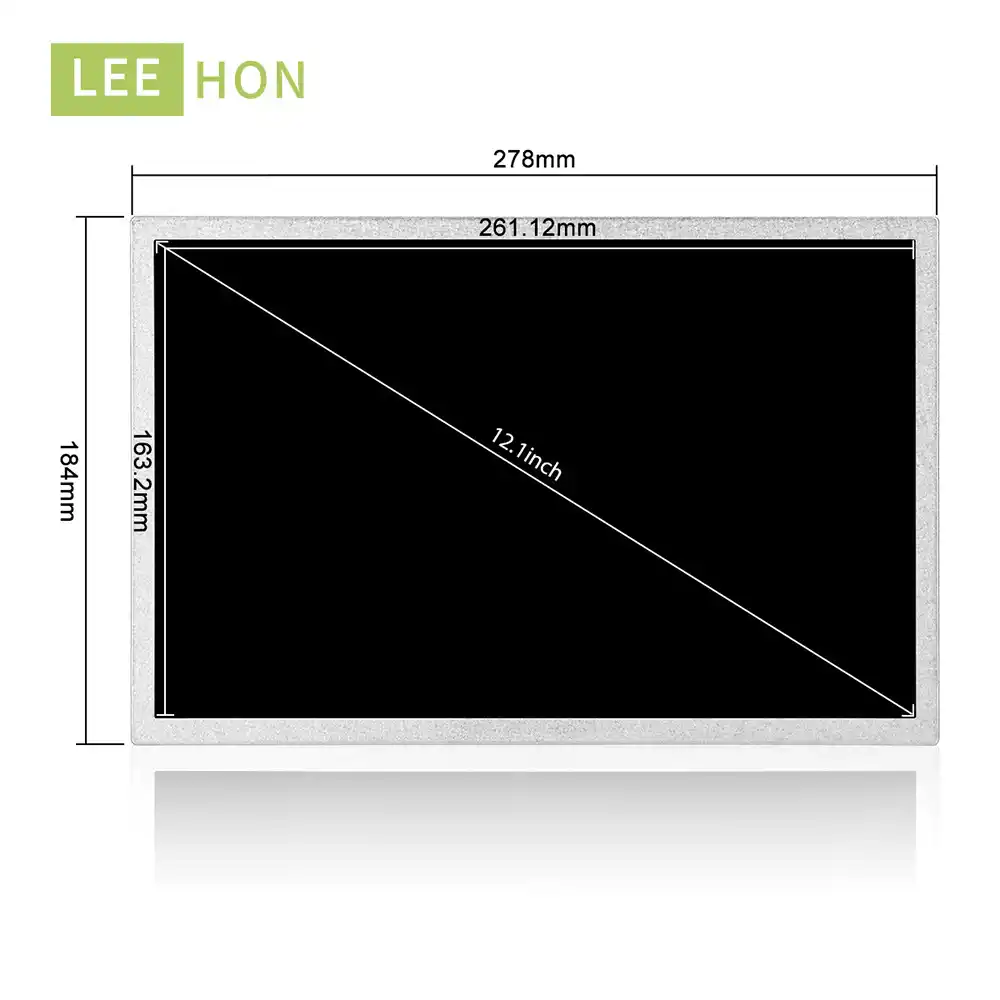

| Active Area(mm): | 261.12(H) x 163.2(V) mm |
| Physical Size(mm): | 278.0(H) x 184.0(V) x 9.4(D) (Typ.) mm |
| Contrast Ratio: | typ 1000:1 min 800:1 |
| Response Time: | 25(typ.) (ms) |
| Work Mode: | Normally Black |
| Surface Treatment: | Anti-glare, Hardness 3H |
| Color Depth: | 16.2M / 262K colors |
| Backlight: | WLED,70K hours,with LED Driver |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -30 ~ 85 °C |
| Operating Temp: | -30 ~ 85 °C |
| Touchscreen: | without |
| Net Weight: | 450 (Max.) |
| Package: | Package Quantity in one Box: 20pcs |

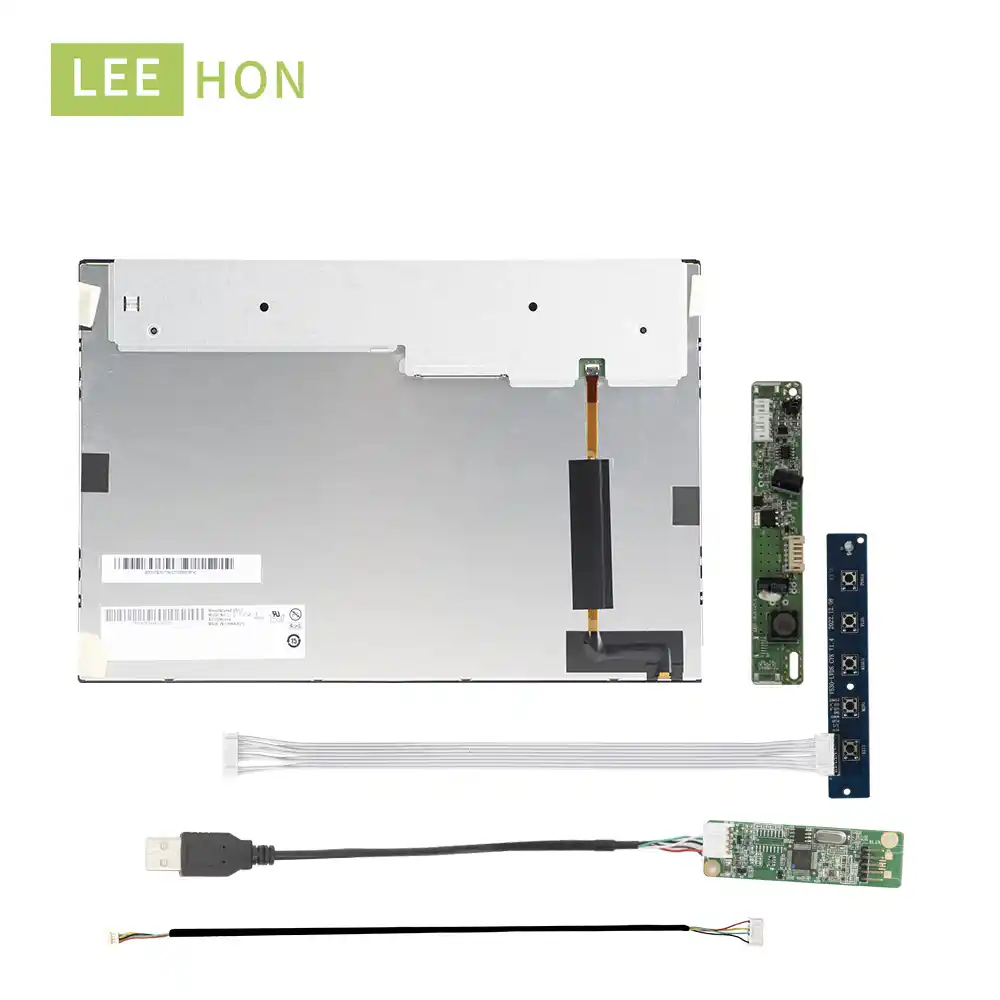

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
