LH320LX002A
Product name:
LEEHON 320inch 1920(RGB)×1080, FHD,60Hz LH320LX002A
Product overviews:
LH320LX002A is a color active matrix TFT LCD MDL using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This open cell has a 31.51 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this open cell can display 16.7M colors. The TFT-LCD panel used for this open cell is adapted for a low reflection and higher color type.
Supply Status:
Steady supply.
| Brand: | LEEHON |
| Model P/N: | LH320LX002A |
| Diagonal Size: | 320inch |
| Pixels: | 1920(RGB)×1080, FHD,60Hz |
| Active Area(mm): | 698.4 (H) ×392.85 (V) mm |
| Physical Size(mm): | 800 ×460 ×70 mm |
| Luminance: | 600 cd/m ² |
| Contrast Ratio: | 1200:1 (Typ.) |
| Color Depth: | |
| Work Mode: | ADSDS， Constant black display, transparent |
| Response Time: | 8 (Typ.)(G to G) ms |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR> 10) |
| Power consumption: | ≤200 W |
| Net Weight: | 16.3 Kg |
| Heated glass: | Heating power consumption specified by the customer, with temperature control (optional) |
| Shielding glass: | 100 mesh omentum |
| Module chassis: | All aluminum machining structure |
| Touch: | Optional |
| Wet heat requirements: | 95% (constant humidity and heat,+60 ℃) |
| Temperature: | Working temperature: -20~60 ° C; Storage temperature: -55~70° C |
| Low air pressure requirements: | Low pressure of 53kPa, altitude of 3-5 km |
| Vibration requirements: | Can meet the world\'s most stringent testing standards |
| Shock requirements: | Peak acceleration of 200m/s2, pulse width of 11ms |
| Electromagnetic Compatibility: | Can meet the world\'s most stringent testing standards |

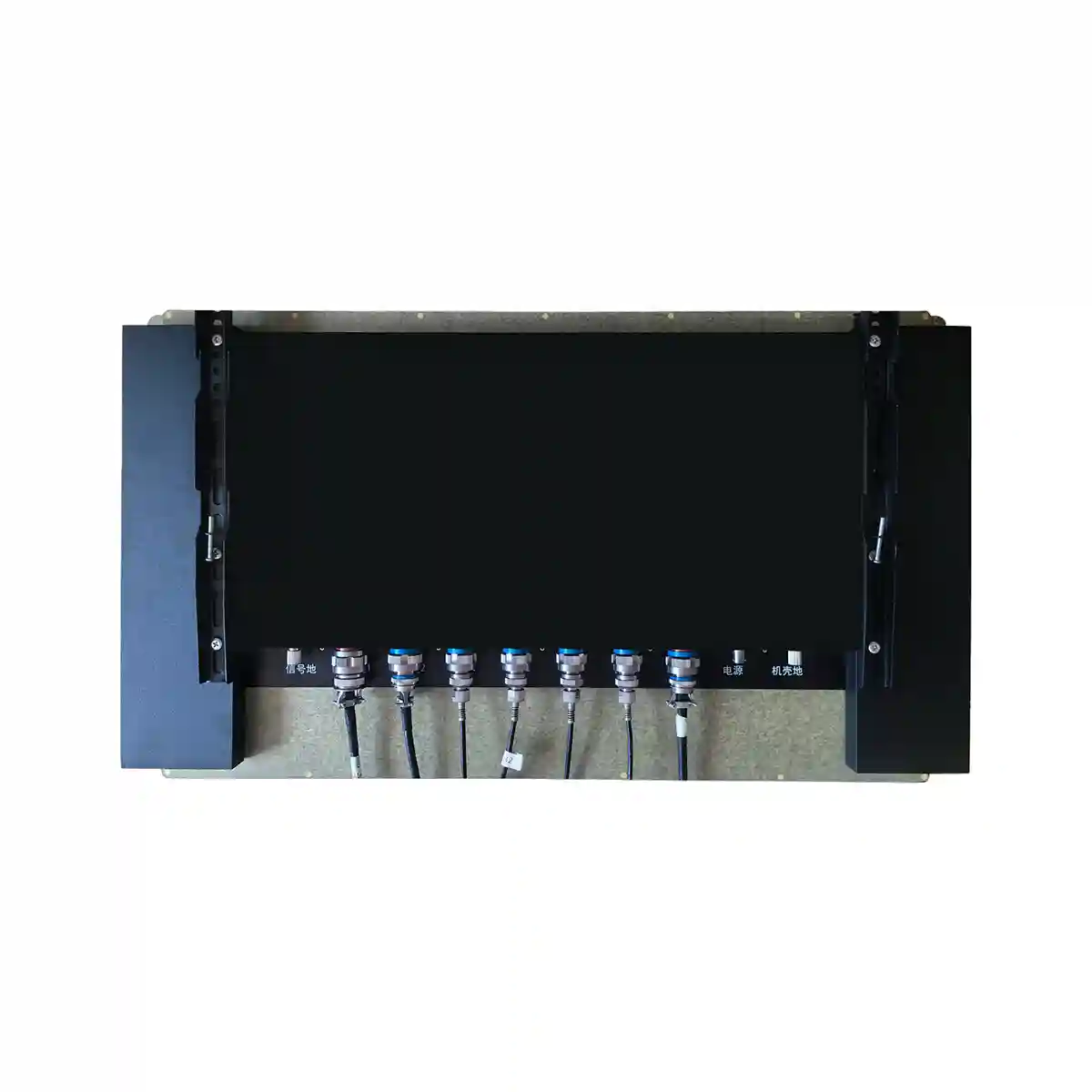

| Aviation plug interface: | 1 * power supply, 2 * HDMI, 2 * USB, 1 * VGA, supports VGA and HDMI signal switching |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
