Product model: LH238NZ047A
Product name:

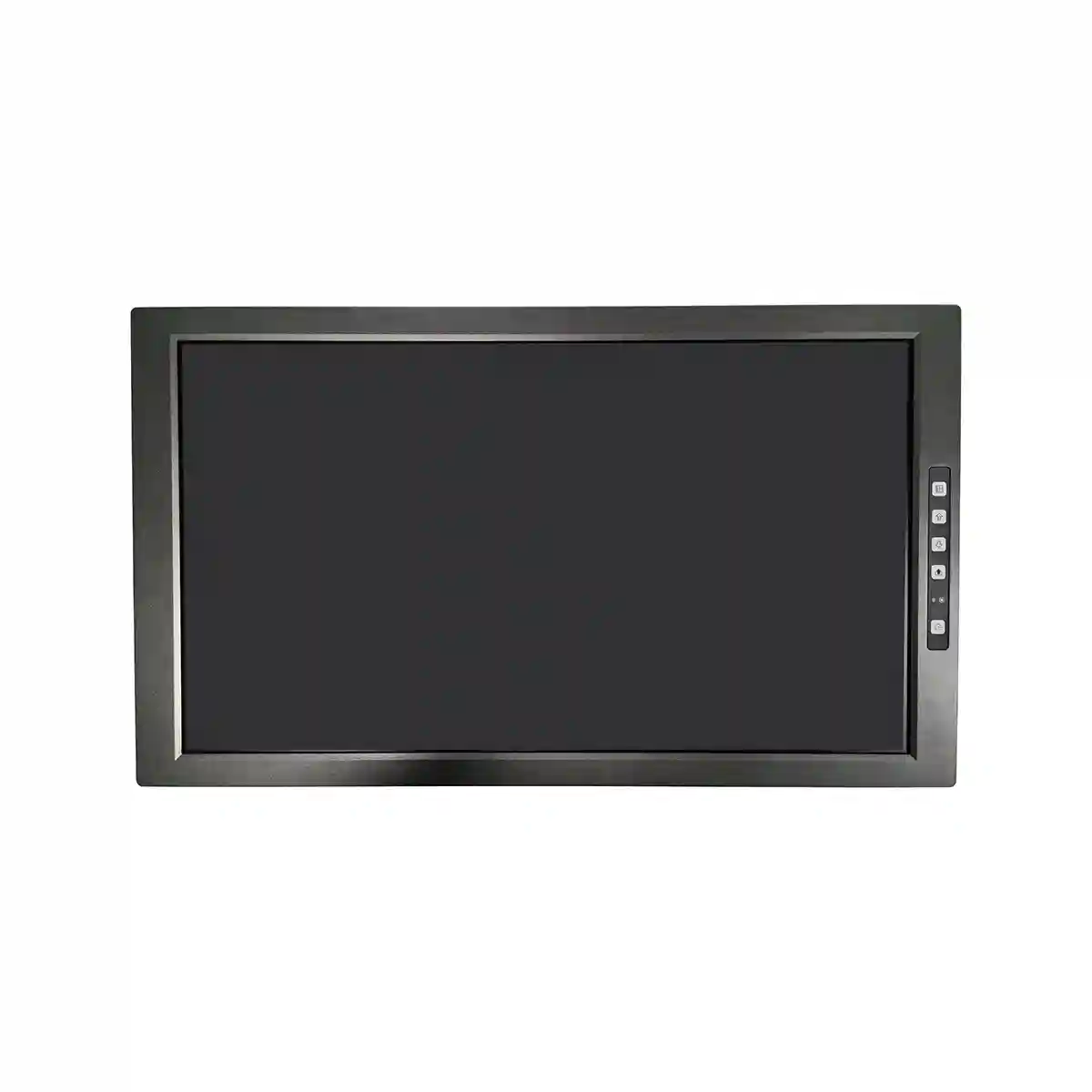

LEEHON 238inch 1920(RGB)×1080, FHD, 92PPI LH238NZ047A
Product overviews:
LH238NZ047A is a color active matrix TFT LCD OC using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This OC Product has a 23.8 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical strip e and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
Supply Status:
Steady supply.
| Brand: | LEEHON |
| Model P/N: | LH238NZ047A |
| Diagonal Size: | 238inch |
| Pixels: | 1920(RGB)×1080, FHD, 92PPI |
| Active Area(mm): | 527.04 (H) ×296.46 (V) mm |
| Physical Size(mm): | 600 ×350 ×69.25 mm |
| Luminance: | ≥300 cd/m ² |
| Contrast Ratio: | 1000 : 1 (Typ.)(TM) |
| Color Depth: | |
| Work Mode: | ADS， Constant black display, transparent |
| Response Time: | 14 (Typ.)(G to G) ms |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR> 10) |
| Power consumption: | 19.5 W |
| Net Weight: | 8350 g |
| Heated glass: | Heating power consumption specified by the customer, with temperature control (optional) |
| Shielding glass: | 100 mesh omentum |
| Module chassis: | All aluminum machining structure |
| Touch: | Supports multi touch |
| Wet heat requirements: | 95% (constant humidity and heat,+60 ℃) |
| Temperature: | Working temperature: -20~55 ° C; Storage temperature: -40~60 ° C |
| Low air pressure requirements: | Low pressure of 53kPa, altitude of 3-5 km |
| Vibration requirements: | Can meet the world\'s most stringent testing standards |
| Shock requirements: | Peak acceleration of 200m/s2, pulse width of 11ms |
| Electromagnetic Compatibility: | Can meet the world\'s most stringent testing standards |
| Aviation plug interface: | 1 * Power, 1 * DVI, 1 * USB |
