LH156LX009B
Product name:

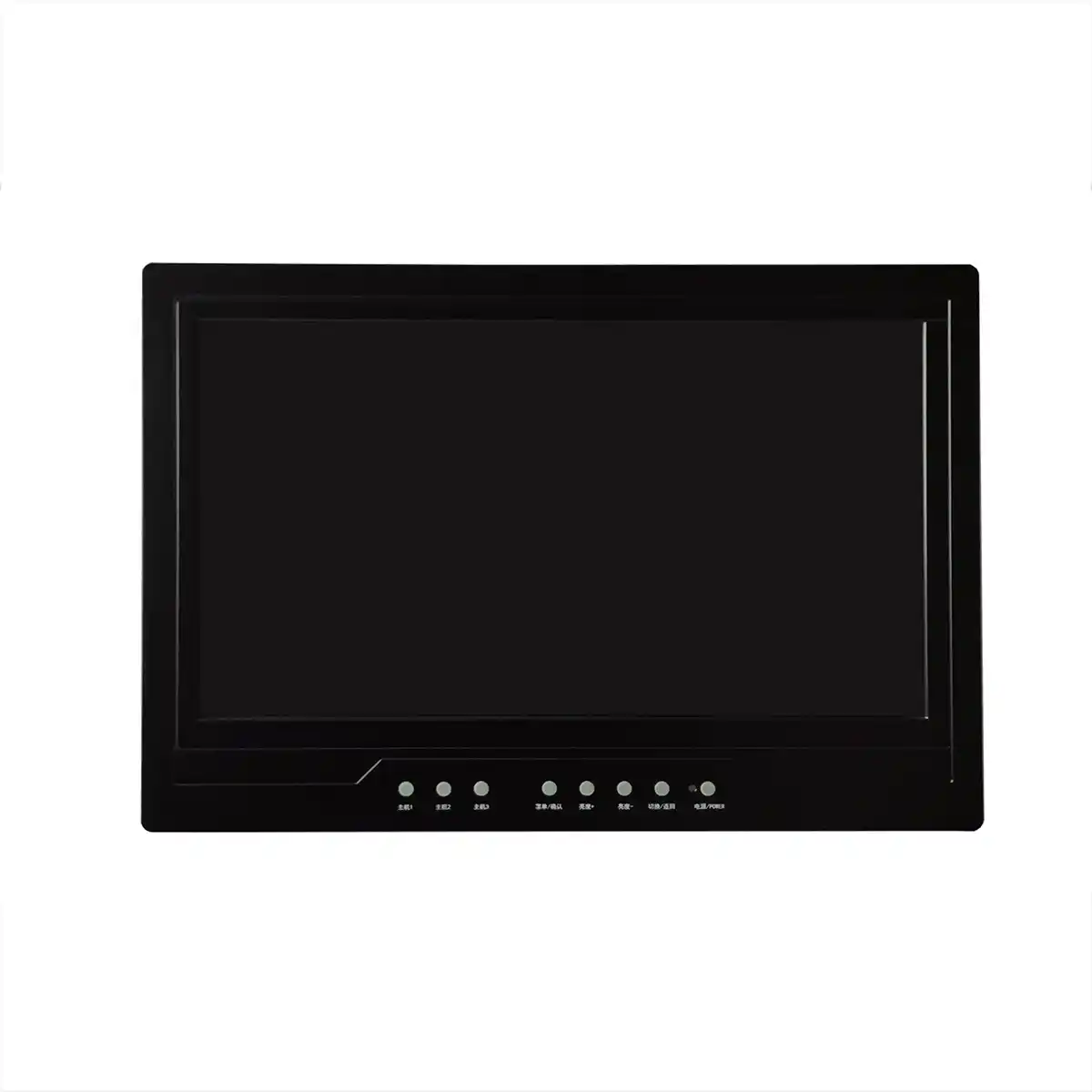

LEEHON 156inch 1920×1080 LH156LX009B
Product overviews:
Color LCD module LH156LX009B is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight. The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a color-filter glass substrate. Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated into best form for active matrix system by a signal processing board, and sent to the driver LSIs which drive the individual TFT arrays. The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight assembly, when it is controlled by data signals. Color images are created by regulating the amount of transmitted light through the TFT array of red, green and blue dots.
Supply Status:
Steady supply.
| Brand: | LEEHON |
| Model P/N: | LH156LX009B |
| Diagonal Size: | 156inch |
| Pixels: | 1920×1080 |
| Active Area(mm): | 344.16 (H) ×193.59 (V) mm |
| Physical Size(mm): | 400 * 280 * 50mm |
| Luminance: | 600 cd/m ² |
| Contrast Ratio: | 1000:1 (Typ.) |
| Color Depth: | |
| Work Mode: | UA-SFT， Constant black display, transparent |
| Response Time: | 12/13 (Typ.)(Tr/Td) |
| Viewing Angle: | 88/88/88/88 (Typ.)(CR> 10) |
| Power consumption: | 17 W |
| Net Weight: | 4243 g |
| Heated glass: | Heating power consumption specified by the customer, with temperature control (optional) |
| Shielding glass: | 100 mesh omentum |
| Module chassis: | All aluminum machining structure |
| Touch: | Optional |
| Wet heat requirements: | 95% (constant humidity and heat,+60 ℃) |
| Temperature: | Working temperature: -40~70 ° C; Storage temperature: -55~80 ° C |
| Low air pressure requirements: | Low pressure of 53kPa, altitude of 3-5 km |
| Vibration requirements: | Can meet the world\'s most stringent testing standards |
| Shock requirements: | Peak acceleration of 200m/s2, pulse width of 11ms |
| Electromagnetic Compatibility: | Can meet the world\'s most stringent testing standards |

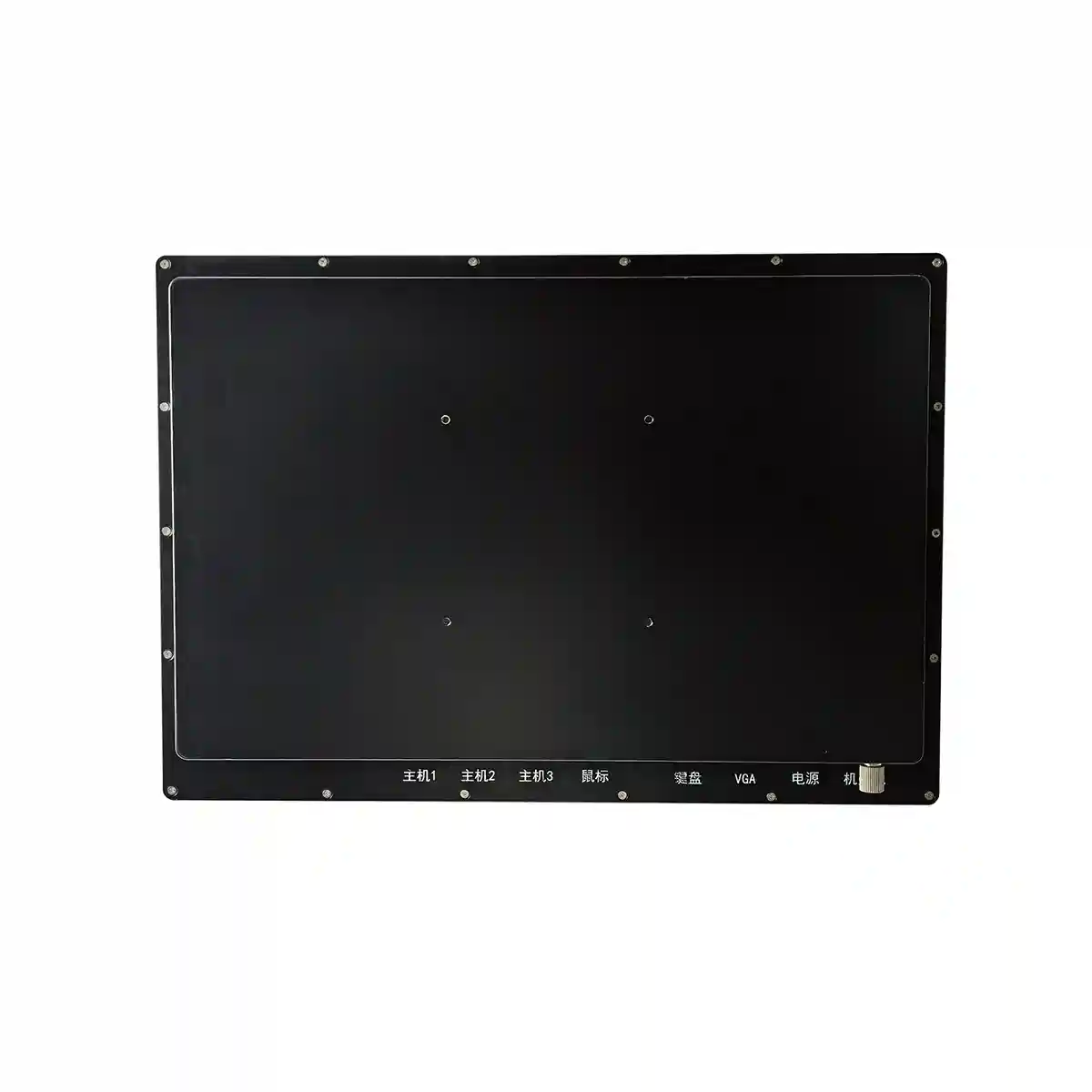

| Aviation plug interface: | 1 * power supply, 3 * HDMI, 3 * USB, supporting dual video signal switching and 3 * HDMI digital signal switching |
