LH238NZ047A
Product name:

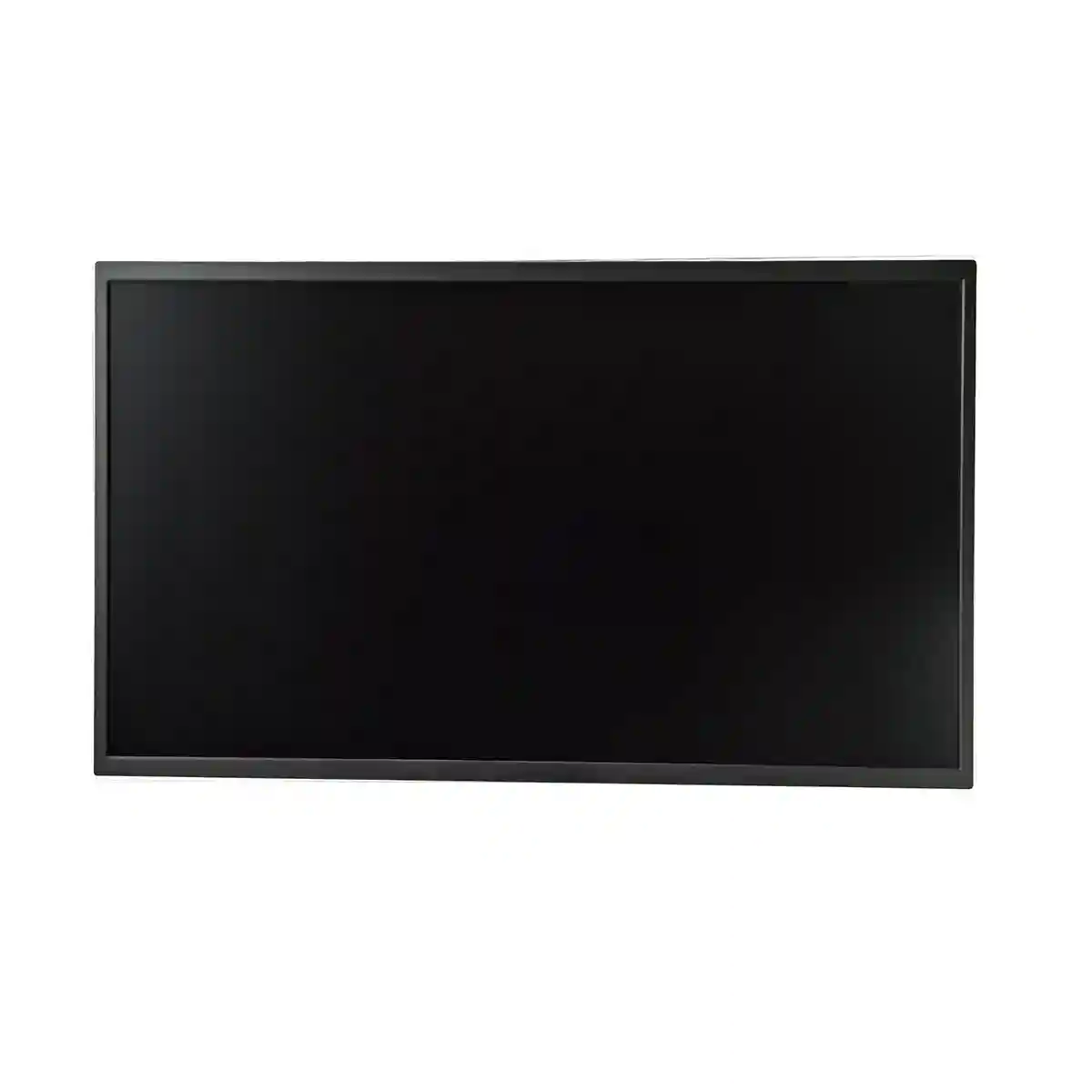

LEEHON 238inch 1920(RGB)×1080, FHD, 92PPI LH238NZ047A
Product overviews:
LH238NZ047A is a color active matrix TFT LCD OC using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This OC Product has a 23.8 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical strip e and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
Supply Status:
Steady supply.
| Brand: | LEEHON |
| Model P/N: | LH238NZ047A |
| Diagonal Size: | 238inch |
| Pixels: | 1920(RGB)×1080, FHD, 92PPI |
| Active Area(mm): | 527.04×296.46 mm |
| Physical Size(mm): | 550.8 * 324.4 * 13.1 mm |
| Luminance: | ≥300 cd/m ² |
| Contrast Ratio: | 1000 : 1 (Typ.)(TM) |
| Best Viewing Angle: | Full perspective |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR>10) |
| Work Mode: | ADS， Constant black display, transparent |
| Refresh rate: | 60Hz |
| Response Time: | 14 (Typ.)(G to G) ms |
| Color Depth: | |
| Interface Type: | LVDS (2 ch, 8-bit), 30 pins, terminals |
| Net Weight: | TBD |
| Operating Voltage: | 5V (Typ.) |
| Temperature: | Working temperature: -20~55 ° C; Storage temperature: -40~60 ° C |
| Electromagnetic Compatibility: | 100 mesh omentum |
| Power consumption: | 19.5 W |
| Touch: | Supports multi touch |
| Heated glass: | Heating power consumption (15-20) W, power supply voltage 6-8V |
| Aviation plug interface: |
