LH215LX042A
Product name:
LEEHON 215inch 1920(RGB)×1080 [FHD] 102PPI LH215LX042A
Product overviews:

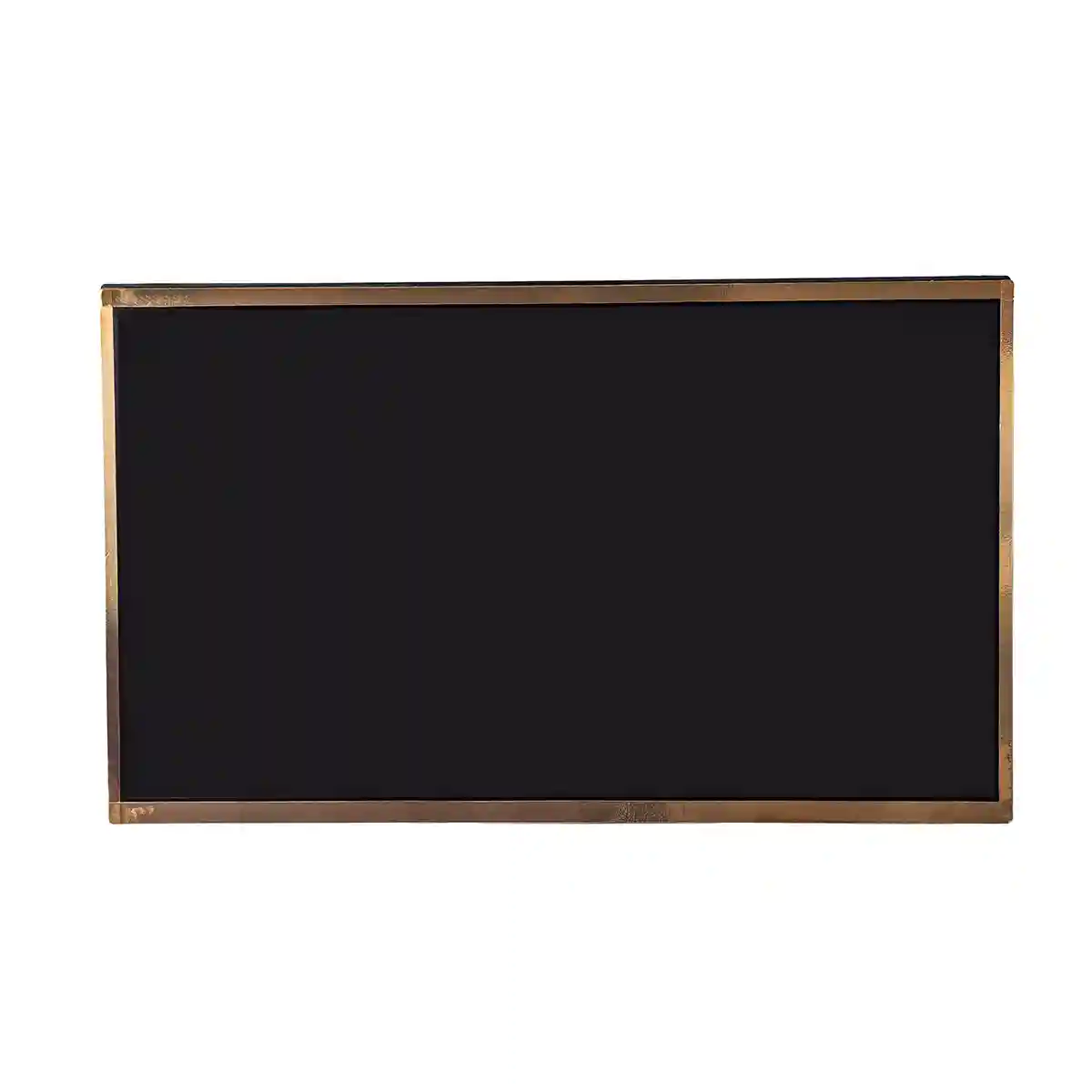

LH215LX042A is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 21.5 inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
Supply Status:
Steady supply.
| Brand: | LEEHON |
| Model P/N: | LH215LX042A |
| Diagonal Size: | 215inch |
| Pixels: | 1920(RGB)×1080 [FHD] 102PPI |

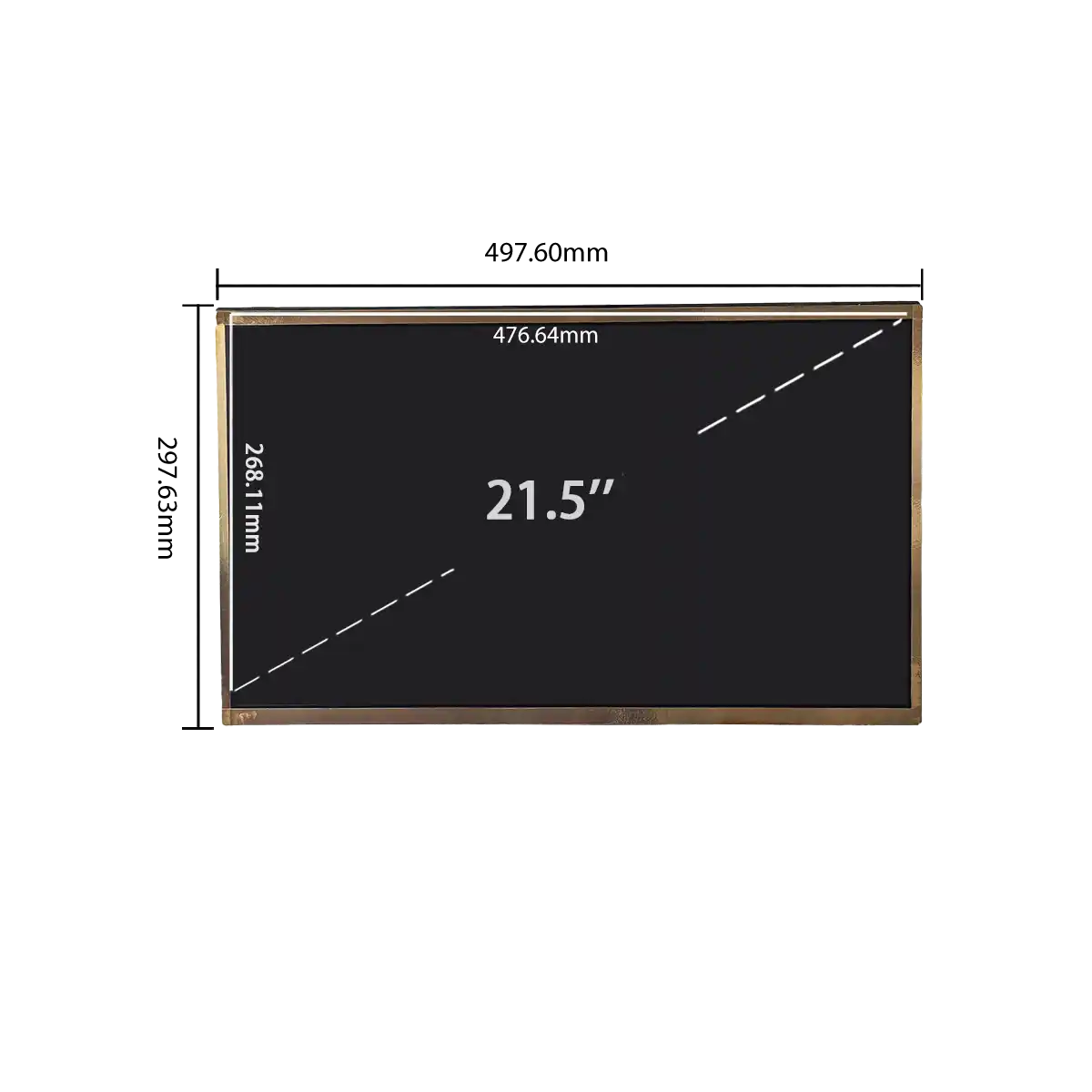

| Active Area(mm): | 476.64×268.11 mm |
| Physical Size(mm): | 497.6 * 297.63 * 15.3 mm |
| Luminance: | ≥600 cd/m ² |
| Contrast Ratio: | 1000:1 (Typ.) (TM) |
| Best Viewing Angle: | Full perspective |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR>10) |
| Work Mode: | ADS， Constant black display, transparent |
| Refresh rate: | 60Hz |
| Response Time: | 14 (Typ.)(G to G) ms |
| Color Depth: | |
| Interface Type: | LVDS (2 ch, 8-bit), 30 pins, terminals |
| Net Weight: | TBD |
| Operating Voltage: | 5V (Typ.) |
| Temperature: | Working temperature: -20~55 ° C; Storage temperature: -40~65 ° C |
| Electromagnetic Compatibility: | 100 mesh shielding film |
| Power consumption: | 31.5 W |
| Touch: | External capacitive screen with ten point touch control |
| Heated glass: | 45-55W |
| Aviation plug interface: |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
