Product model:
More parameters
TCG062HVLDA-G20
Product name:

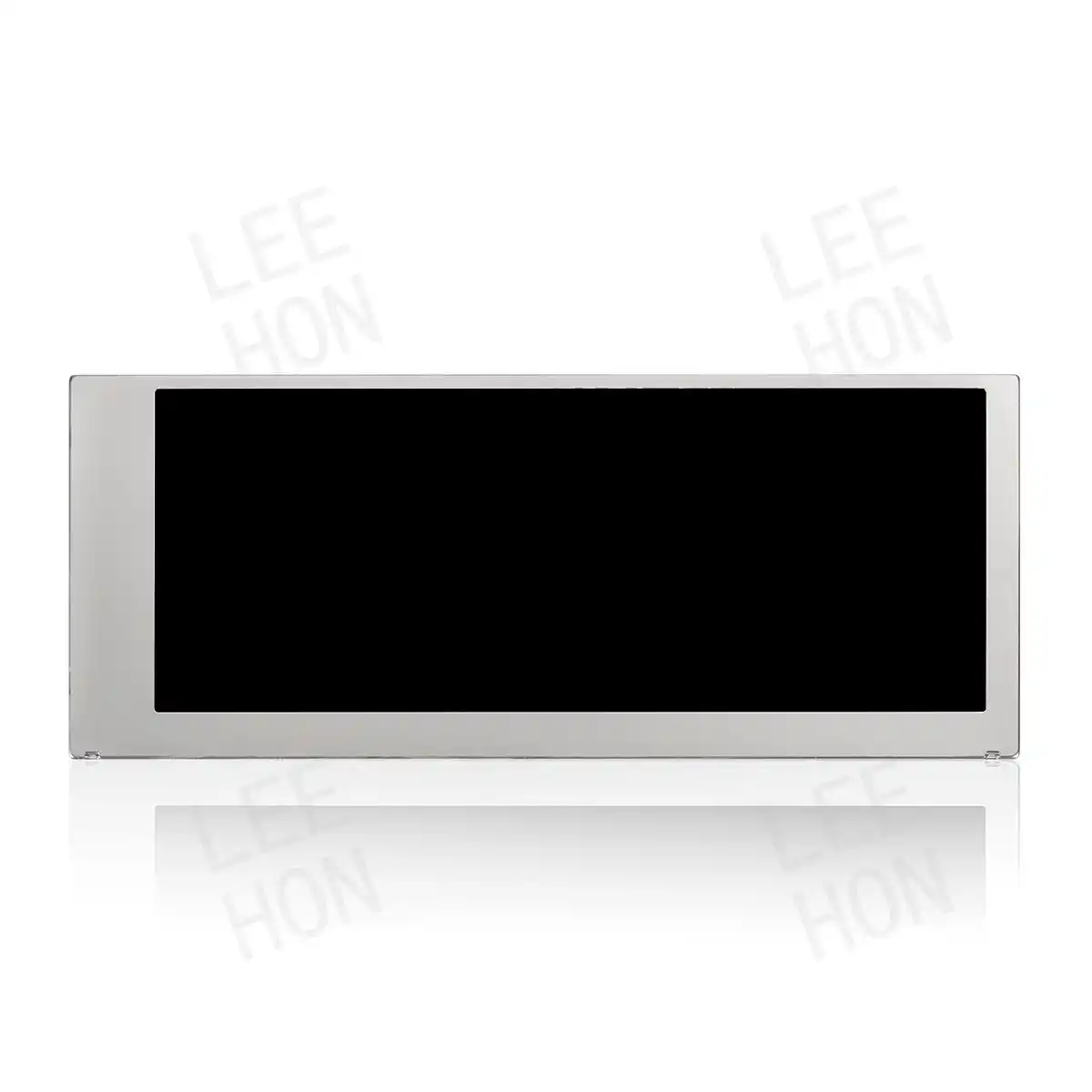

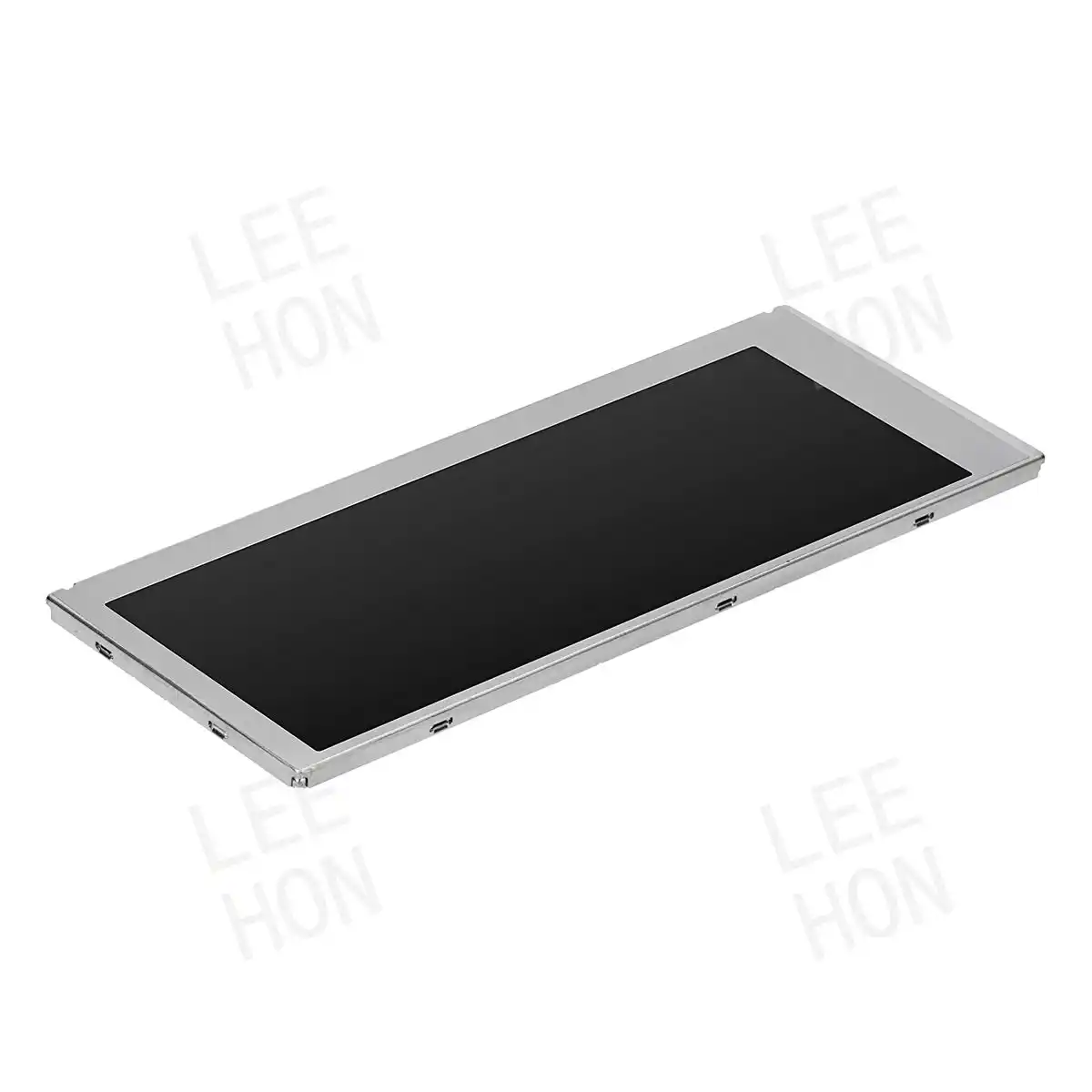

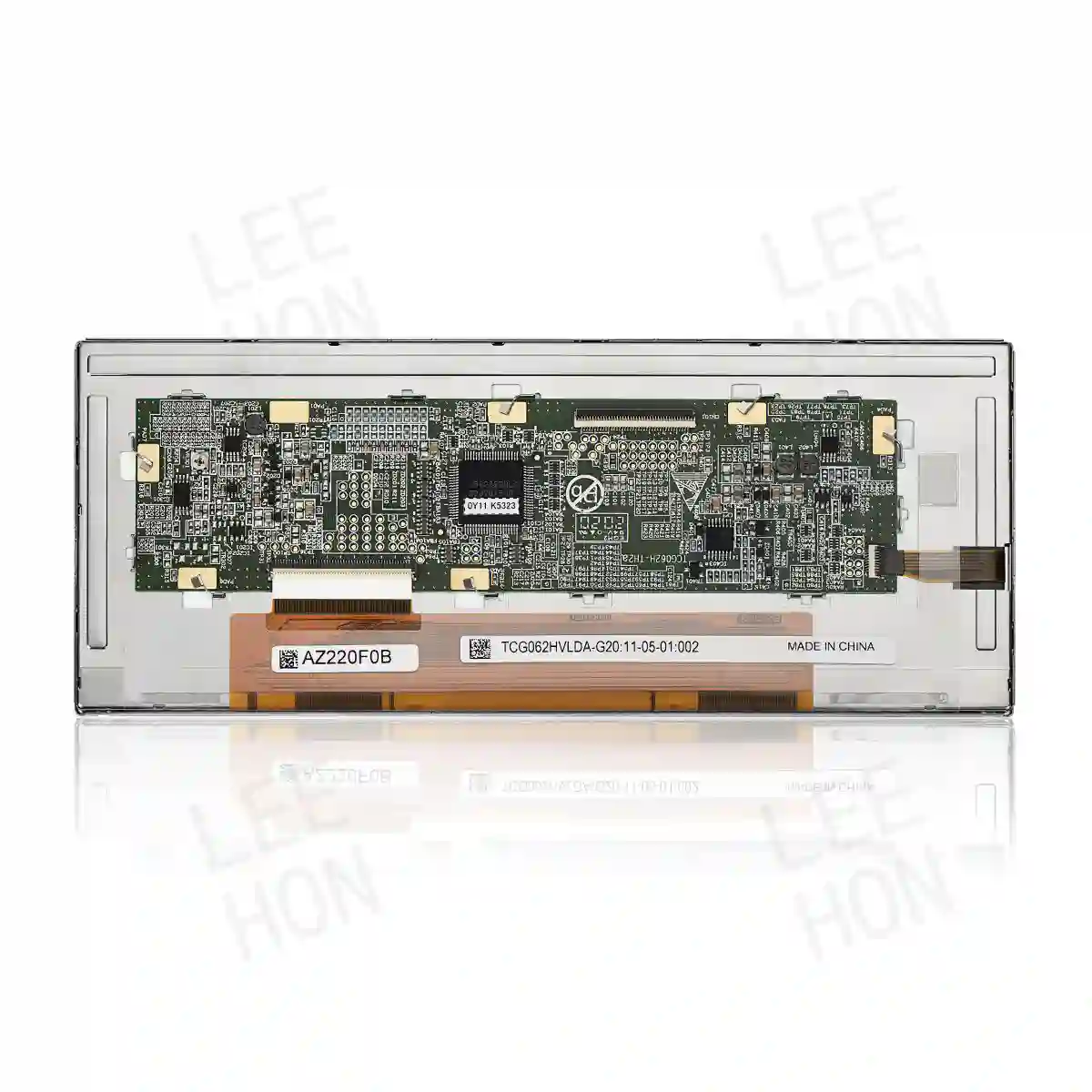

KYOCERA 6.2 inch 640×240 TCG062HVLDA-G20
Product overviews:
TCG062HVLDA-G20 is a 6.2-inch a-Si TFT-LCD liquid crystal module product launched by Kyocera. It is equipped with WLED backlight, LED driver backlight drive, and touch free. This product operates at a temperature of -20~70 ° C and is stored at a temperature of -30~80 ° C.
Supply Status:
Steady supply.
| Brand: | KYOCERA |
| Model P/N: | TCG062HVLDA-G20 |
| Diagonal Size: | 6.2 inch |
| Pixels: | 640×240 |
| Pixel Pitch(mm): | 0.077(W)×0.231(H) mm |
| Interface Type: | RGB |
| Luminance: | 300 cd/m² |
| Viewing Angle: | Typ.：80/80/80/80 |

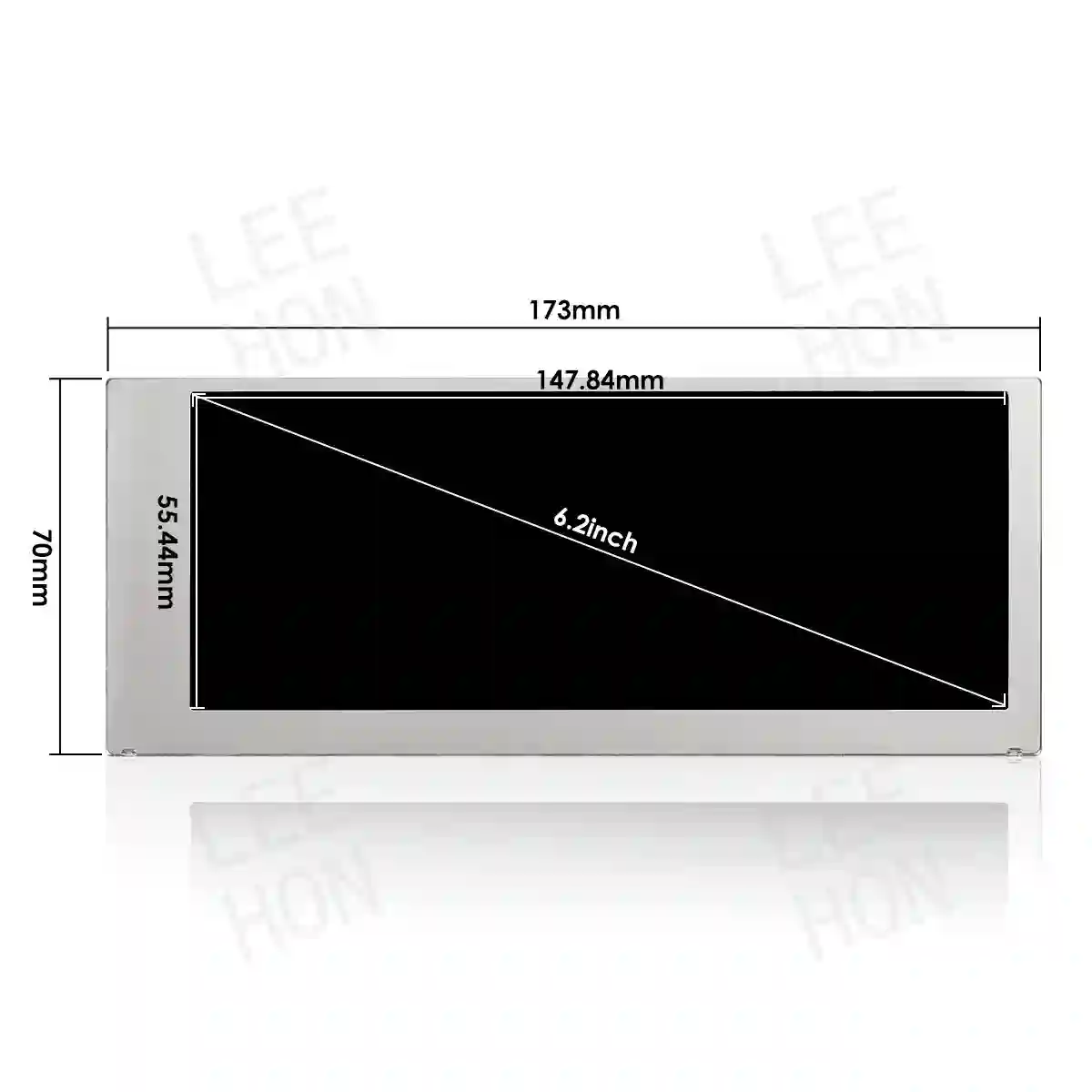

| Active Area(mm): | 149.8(W)×57.4(H) mm |
| Physical Size(mm): | 173(W)×70(H)×6.7(D) mm |
| Contrast Ratio: | Typ.：500:1;Min：300:1 |
| Response Time: | Typ.20 |
| Work Mode: | Normally White |
| Surface Treatment: | Mirror (Haze 0%) |
| Color Depth: | 262K（6-bit） |
| Backlight: | WLED , 40K hours , with LED Driver |
| Input Voltage: | 3.3 V |
| Storage Temp: | -30 ~ +80 (°C) |
| Operating Temp: | -20 ~ +70 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 105g |
| Package: | - |
