DV430FHM-NN5
Product name:

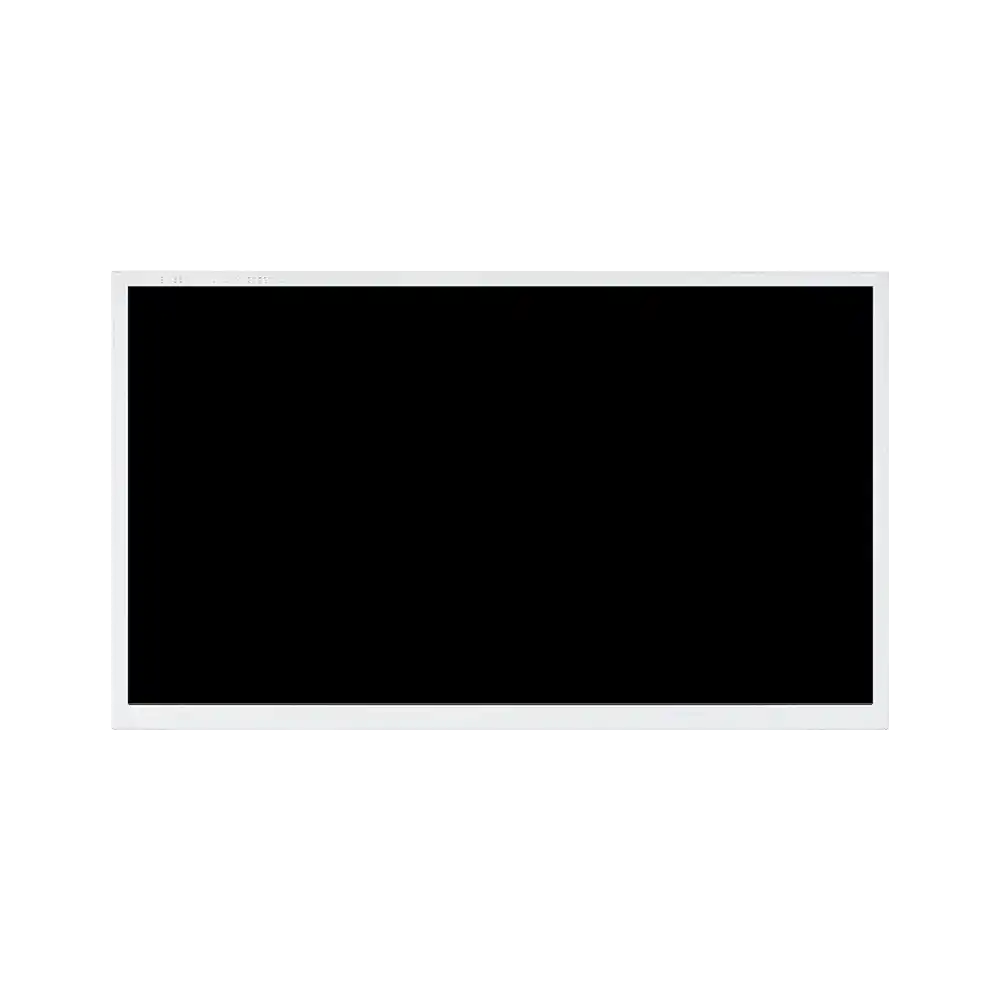

BOE 43 inch 1920x1080 DV430FHM-NN5
Product overviews:
The DV430FHM-NN5 is a 43 inch a-Si TFT-LCD panel by BOE, featuring 1920x1080 resolution, 16:9 aspect ratio, and 700 nits brightness. It supports landscape and portrait modes, has a narrow bezel, and uses WLED backlight with an LED driver. The panel, which started mass production in Q1 2021, is ideal for digital signage and outdoor applications due to its high brightness and 24/7 operation support. It offers a 1200:1 contrast ratio, 72% NTSC color gamut, and a matte surface finish.
Supply Status:
Steady supply.
| Brand: | BOE |
| Model P/N: | DV430FHM-NN5 |
| Diagonal Size: | 43 inch |
| Pixels: | 1920x1080 |
| Pixel Pitch(mm): | 0.49005×0.49005 (H×V) mm |
| Interface Type: | LVDS |
| Luminance: | 700 cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.) |
| Active Area(mm): | 940.896(H) × 529.254(V) mm |
| Physical Size(mm): | 962.1(H) × 550.5(V) × 12.9(B) mm |
| Contrast Ratio: | 1200:1 |
| Response Time: | 8 (Typ.)(G to G) (ms) |
| Work Mode: | Normally Black |
| Surface Treatment: | Haze 25% |
| Color Depth: | 16.7M (8-bit) |
| Backlight: | WLED,30K hours withLED |
| Input Voltage: | 12.0V (Typ.) |
| Storage Temp: | -20 ~ 60 °C |
| Operating Temp: | 0 ~ 50 °C |
| Touchscreen: | without |
| Net Weight: | 8.36Kgs (Typ.) |
| Package: | Max capacity:10 pcs TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
