GV122WXM-N80
Product name:

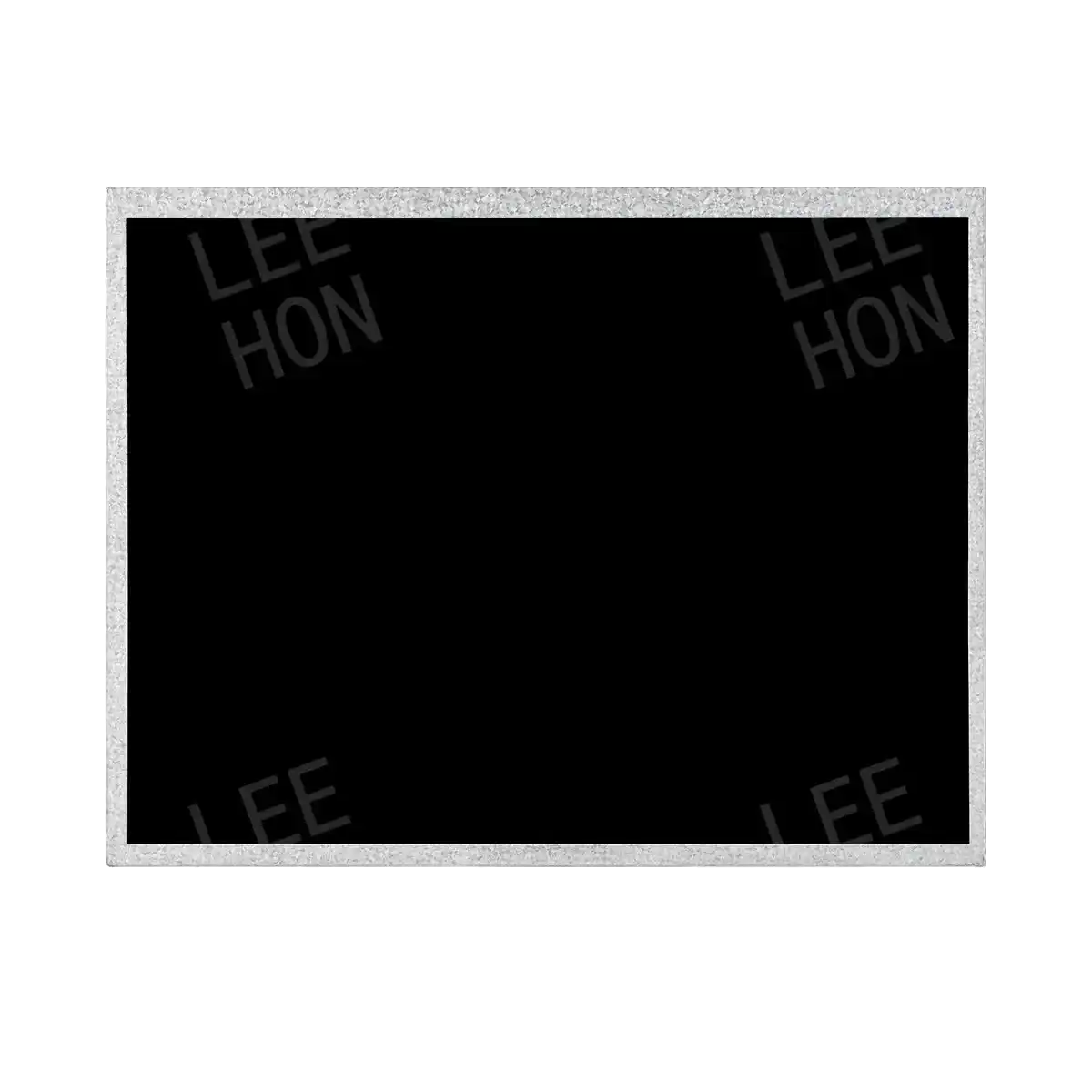

BOE 12.2 inch 1280x800 GV122WXM-N80
Product overviews:
The GV122WXM-N80 is a 12.2 inch a-Si TFT-LCD display module by BOE, featuring a resolution of 1280x800 with 450 nits brightness and a 1000:1 contrast ratio. It includes WLED backlighting with an integrated LED driver, supporting LVDS (1 ch, 8-bit) interface. The panel operates within a temperature range of -20 to 70°C, suitable for industrial applications. This robust display solution, without touch, offers a wide viewing angle and a color depth of 16.7 million colors, making it ideal for various demanding environments.
Supply Status:
Steady supply.
| Brand: | BOE |
| Model P/N: | GV122WXM-N80 |
| Diagonal Size: | 12.2 inch |
| Pixels: | 1280x800 |
| Pixel Pitch(mm): | 0.2052(H)x0.2052(V) mm |
| Interface Type: | LVDS |
| Luminance: | 450 cd/m² |
| Viewing Angle: | Typ:85/85/85/85 |
| Active Area(mm): | 262.656(H)x164.16(V) mm |
| Physical Size(mm): | 278.00(W)×184.00(V) × 6.76(Max) mm |
| Contrast Ratio: | 1000:1 (Typ.)；800:1(Min) |
| Response Time: | Typ. 30ms, Max. 35ms |
| Work Mode: | Normal black |
| Surface Treatment: | - |
| Color Depth: | 16.7M |
| Backlight: | WLED, withLED |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -30 ~ 80 °C |
| Operating Temp: | -20 ~ 70 °C |
| Touchscreen: | without |
| Net Weight: | 563.45g |
| Package: | Max capacity:18 pcs TFT-LCD module per carton |
The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
