G150XTN06.4
Product name:
AUO 15 inch 1024×768 G150XTN06.4
Product overviews:
G150XTN06.4 is a Color Active Matrix Liquid Crystal Display composed of a TFT-LCD display, a driver circuit, and a backlight system. The screen format is intended to support XGA(1024(H) x768(V)) screen and 16.2M or 262K colors. All input signals are LVDS interface compatible.All design rules of this module can correspond to PSWG standard.G150XTN06.4 is designed for industrial display applications.
Supply Status:
Steady supply.
| Brand: | AUO |
| Model P/N: | G150XTN06.4 |
| Diagonal Size: | 15 inch |
| Pixels: | 1024×768 |
| Pixel Pitch(mm): | 0.297x 0.297 mm |

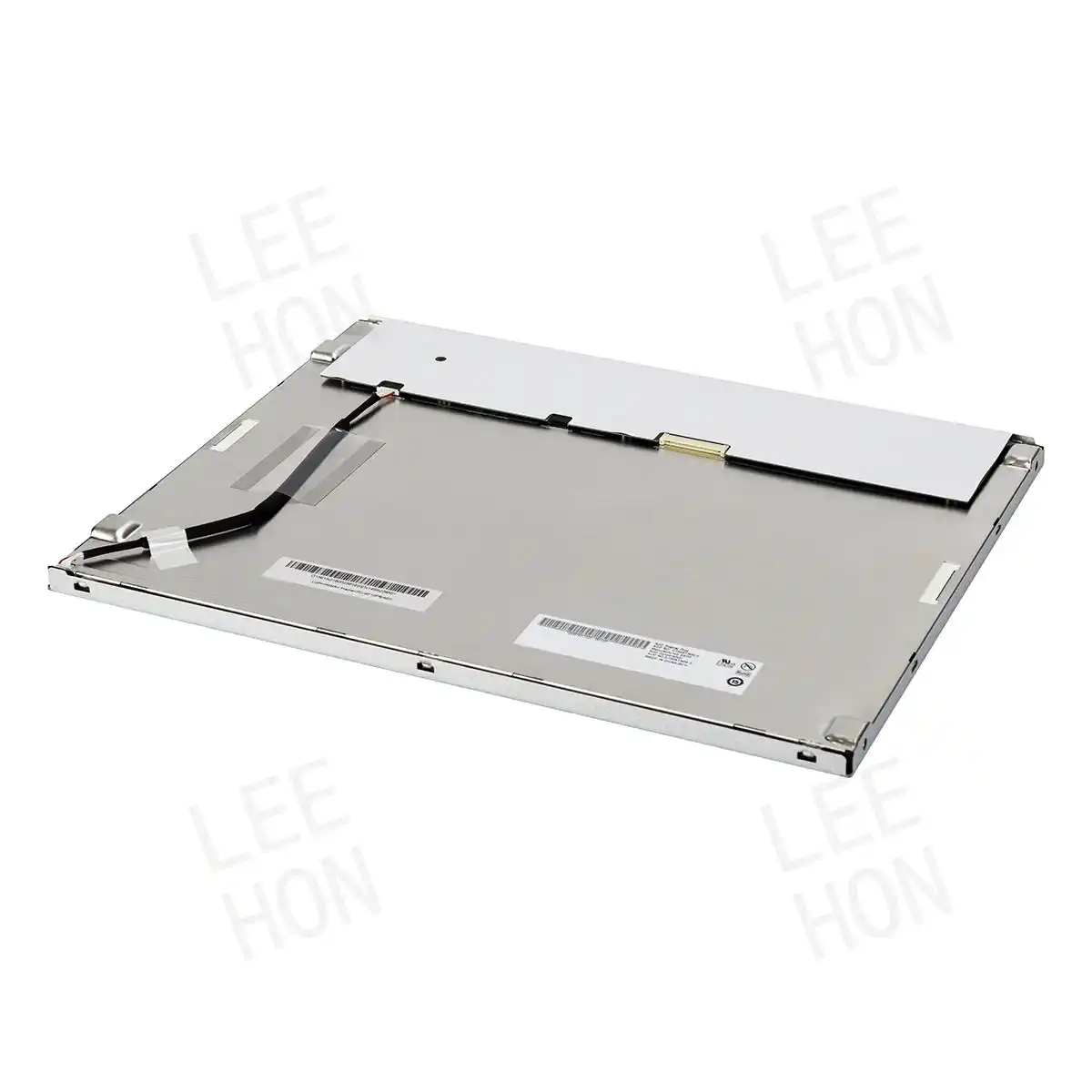

| Interface Type: | LVDS |
| Luminance: | 400 cd/m² |
| Viewing Angle: | Typ.：70/80/80/80 |

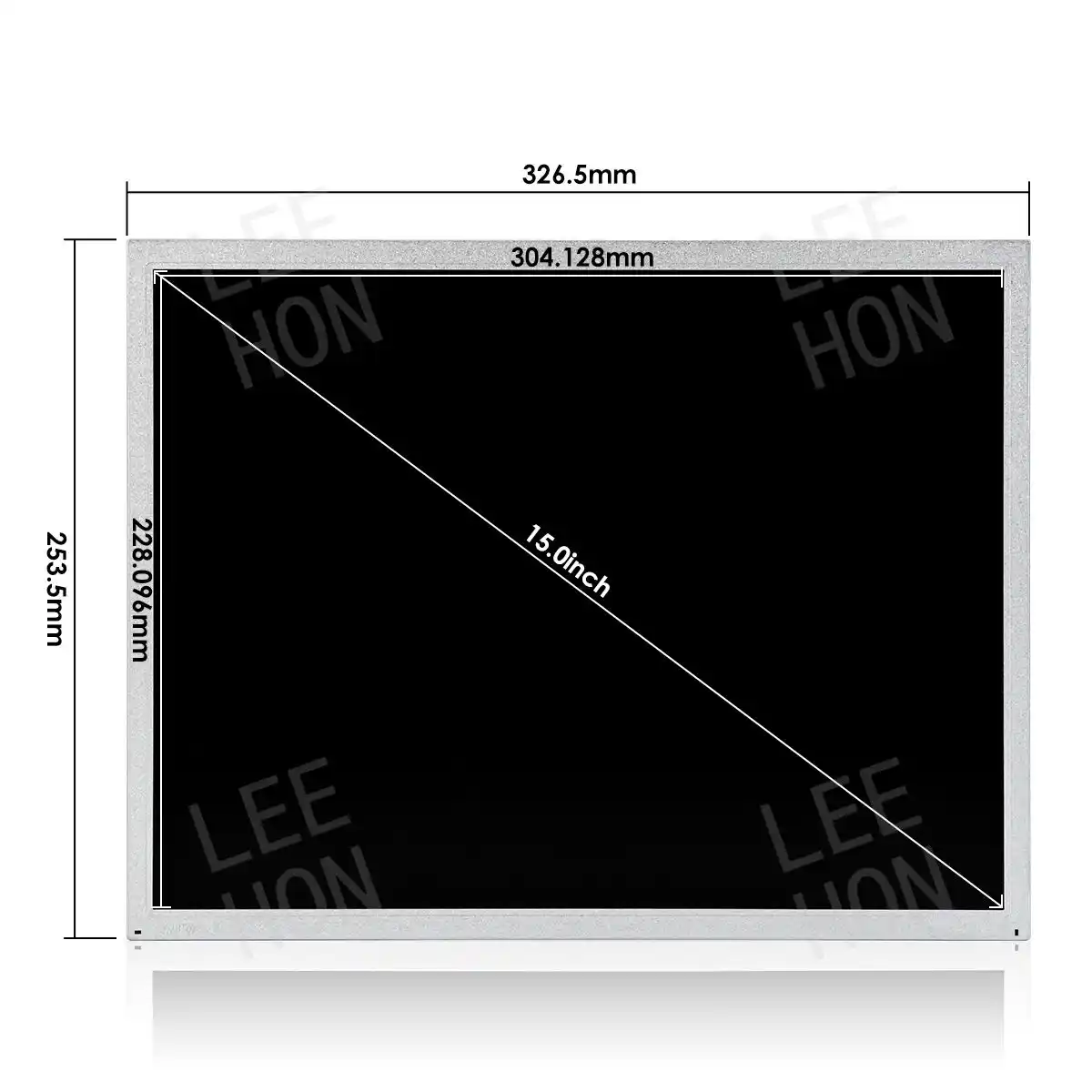

| Active Area(mm): | 304.128(H) x 228.096(V) mm |
| Physical Size(mm): | 326.5(H)x 253.5(V) x 12.0(D) (max.) mm |
| Contrast Ratio: | Typ.：800:1;Min：400:1 |
| Response Time: | Typ.8 |
| Work Mode: | TN, Normally White |
| Surface Treatment: | Anti-glare |
| Color Depth: | 16.7M / 262K |
| Backlight: | WLED , 70K hours , with LED Driver |
| Input Voltage: | 3.3 V |
| Storage Temp: | -30 ~ +85 (°C) |
| Operating Temp: | -30 ~ +85 (°C) |
| Touchscreen: | Optional |
| Net Weight: | 1000g max |
| Package: | Max. capacity: 15pcs TFT-LCD module per carton |

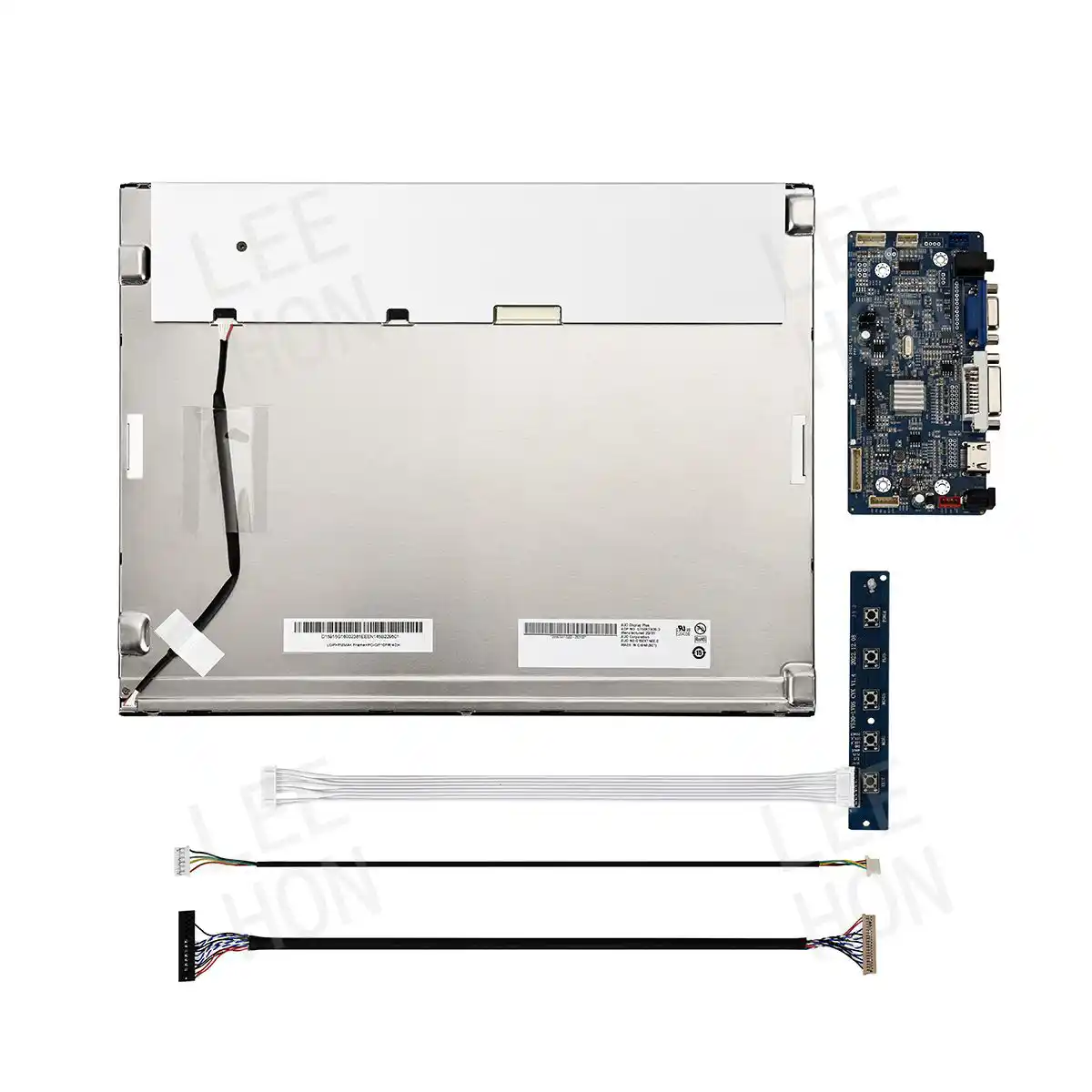

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
