G116HAN01.0
Product name:
AUO 11.6 inch 1920×1080 G116HAN01.0
Product overviews:
G116HAN01.0 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and LED backlight system. The screen format is intended to support the 16:9 ,1920(H) x1080(V) screen and 16.7M colors (RGB 8-bits data driver) with LED backlight driving circuit. All input signals are eDP interface compatible. G116HAN01.0 is designed for a display unit of notebook style personal computer and industrial machine.
Supply Status:
Steady supply.
| Brand: | AUO |
| Model P/N: | G116HAN01.0 |
| Diagonal Size: | 11.6 inch |
| Pixels: | 1920×1080 |
| Pixel Pitch(mm): | 0.1335×0.1335 mm |
| Interface Type: | eDP |
| Luminance: | 300 cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) |

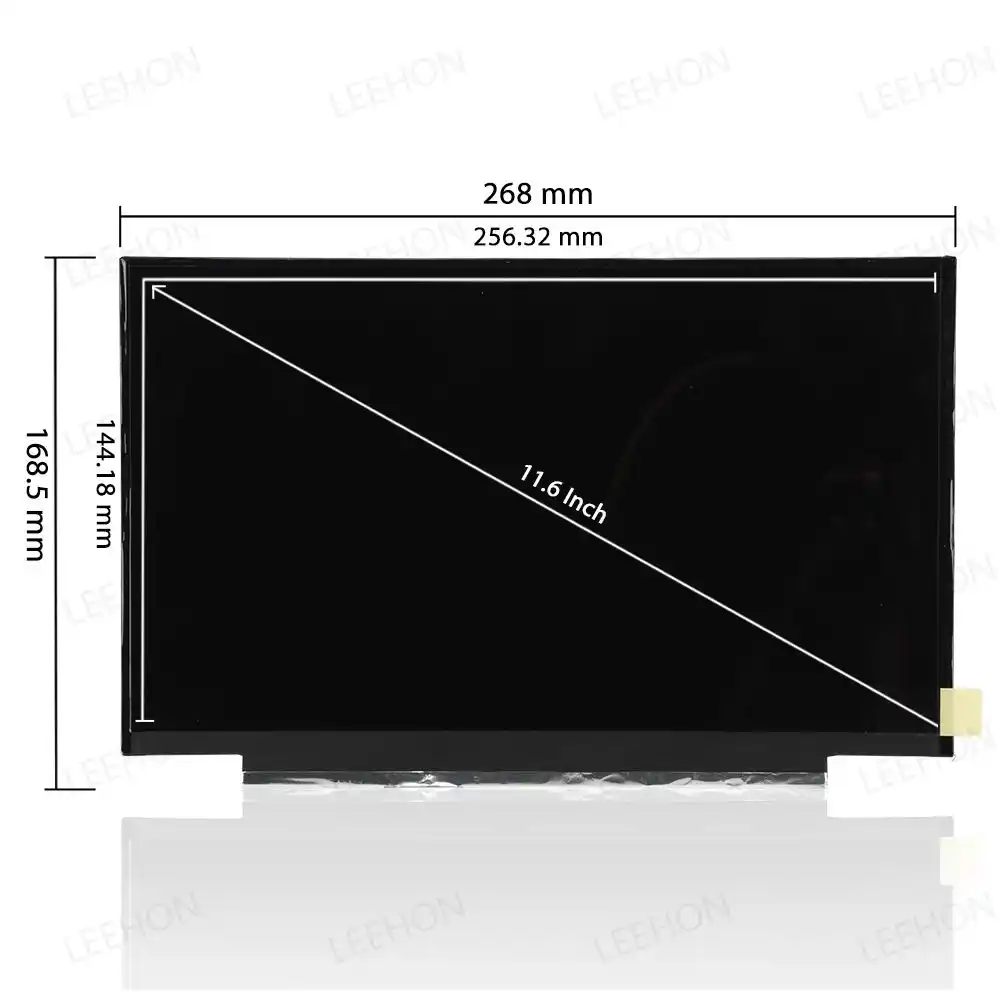

| Active Area(mm): | 256.32(H) x 144.18(V) |
| Physical Size(mm): | 268.5×158.5x169.0mm |
| Contrast Ratio: | 800:1 |
| Response Time: | 25 (Typ.)(Tr+Td) (ms) |
| Work Mode: | AHVA, Normally Black |
| Surface Treatment: | HC, Hardness 3H |
| Color Depth: | 16.7M (8-bit) |
| Backlight: | WLED,15K hours withLED |
| Input Voltage: | 3.3V (Typ.) |
| Storage Temp: | -20 ~ 60 °C |
| Operating Temp: | 0 ~ 50 °C |
| Touchscreen: | without |
| Net Weight: | 200g max |
| Package: | Max capacity:48pcs TFT-LCD module per carton |

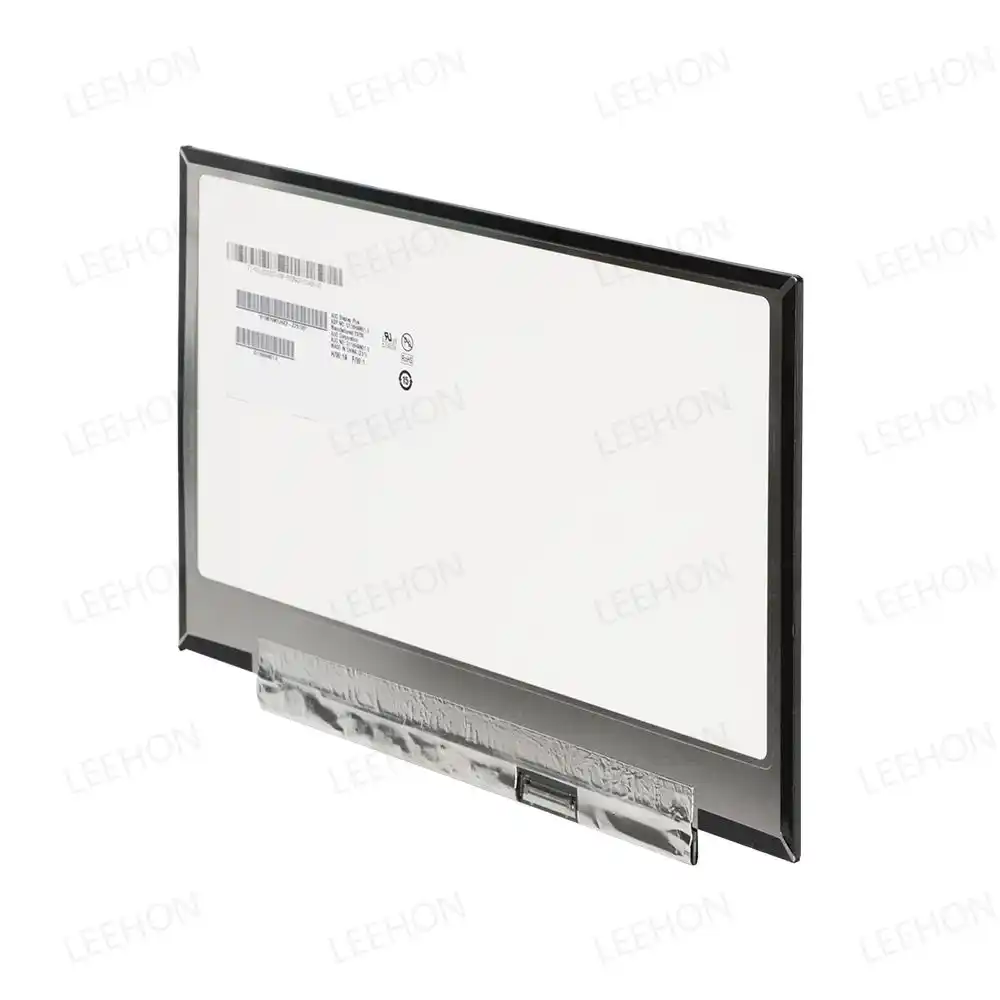

The following accessories are available for you to choose!
Specifications are provided to refer to detailed parameters and circuit settings, and 3D documents are used for structural design. If you are still unsure, we can provide original technical support.
